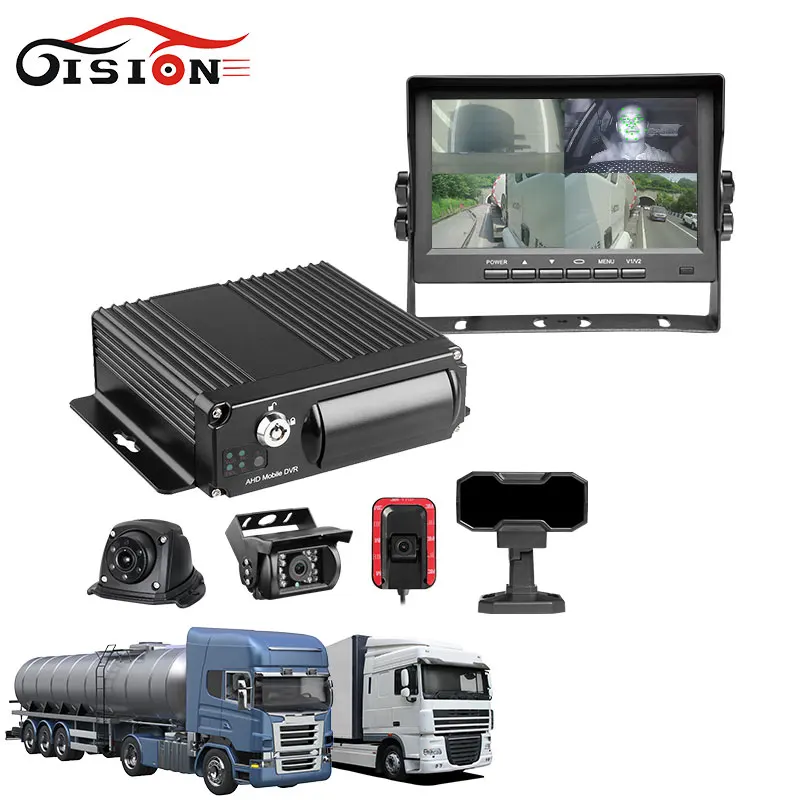

Камера видеонаблюдения GISION H.265 720P 1080P, 4 канала, DVR, GPS, Wi Fi, ADAS, BSD, DMS
- Category: Car Black Box >>>
- Supplier: Shenzhen,Gision,Security,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Key features
4G GPS WIFI SD Card Mdvr
1. Industrial-grade design with special vehicle port for reliable working on harsh environment
2. Wide voltage support over-load ,short circuit ,reverse connect protection
3. support 2 sd cards , max support 256GB.
4. 3/4G WIFI transmit; multiple grade image quality transmitting option
5. GPS/BD/GLONASS global positioning
6. Powerful software platform including remote preview, playback, broadcast, talk and more
7. Support multiple serial port extension
2. Wide voltage support over-load ,short circuit ,reverse connect protection
3. support 2 sd cards , max support 256GB.
4. 3/4G WIFI transmit; multiple grade image quality transmitting option
5. GPS/BD/GLONASS global positioning
6. Powerful software platform including remote preview, playback, broadcast, talk and more
7. Support multiple serial port extension
Specification
System | Operating system | Embedded Linux OS |
Operating language | Chinese/English | |
Operating interface | GUI, support mouse | |
Password security | User password/Admin password | |
Audio & Video | Video standard | PAL/NTSC |
Video compression | H.264 | |
Image resolution | 1080P/1080N/720P/960H/D1/CIF | |
Playback quality | 1080P/1080N/720P/960H/D1/CIF | |
Compound mode | A variety of ways | |
Decoding ability | 1ch 1080p real time | |
Recording quality | Class 1-6 optional | |
Image display | Single/QUAD display optional | |
Audio Compression | G.726 | |
Audio recording | Audio & Video synchronized recording | |
Recording & Playback | Recording mode | Manual/Alarm |
Video bit rate | Full frame 4096Mbps，6 classes image quality optional | |
Audio bit rate | 8KB/s | |
Storage media | SD card | |
Video inquiry | Inquiry by channel/Recording type | |
Local playback | Playback by file | |
Firmware upgrading | Upgrading mode | Manual/Automatical/Remote/Emergency Recovery |
Upgrading method | USB stick/Wireless network/SD card | |
Interface | AV input | 4ch aviation interface |
AV output | 1ch VGA video output, 1ch aviation AV output | |
Alarm input | 4 digital inputs (4 Positive/Negative trigger) | |
SD card | 2 SDXC High speed card (up to 256GB) | |
USB interface | 1 USB 2.0 (support U disk/mouse) | |
Ignition input | 1 ACC signal | |
UART | 1 LVTTL Level | |
LED Indication | PWR/RUN | |
Disk /SD card lock | 1 | |
Debug port | 1 | |
Function extention | GPS/BD | Support detecting antenna Plug in/Unplug/Short circuit |
3G/4G | Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE | |
WIFI | 802.11b/g/n, 2.4GHz | |
Others | Power input | 8~36V DC |
Power input | Standby 3mA Maximum consumption 30W @12V 2.5A @24V 1.25A | |
Working temperature | -20 --- 70℃ | |
Storage | 1080P 1.5G/h/channel 1080N 1.2G/h/channel 720P 1G/h/channel 960H 750M/h/channel | |
Dimension | 147mm*124mm*41mm |
