New Programmable DC Switching Power Supply 5000W DC 0-12V 24V 48V 50V 50A 100A Apply for Laboratory
- Category: Other Power Supplies >>>
- Supplier: Guangdong,Yibenyuan,Power,Supply,Equipment,Co.,Ltd.
Share on:
Product Overview
Description

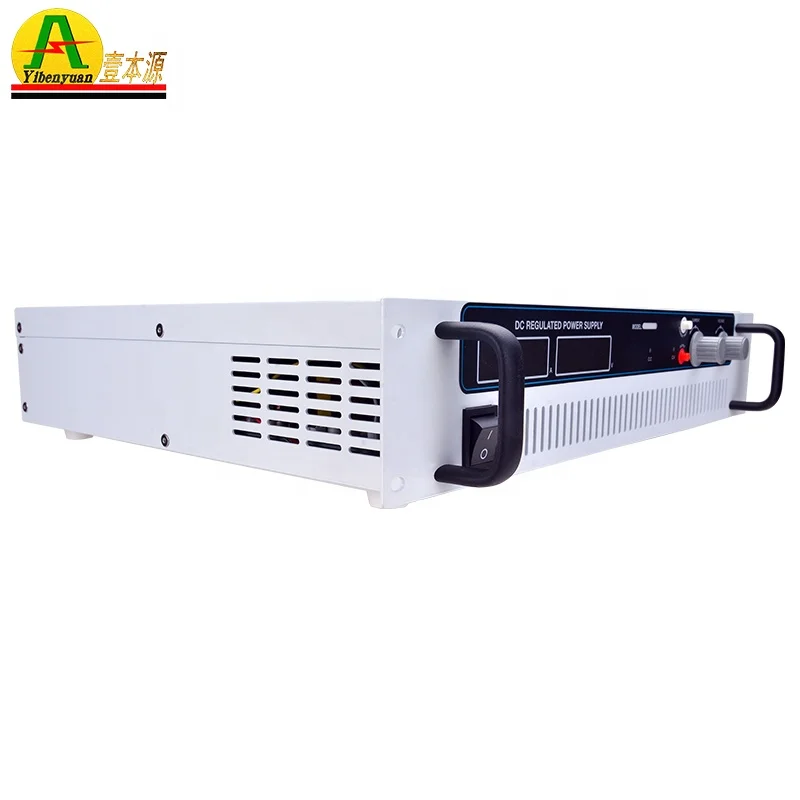

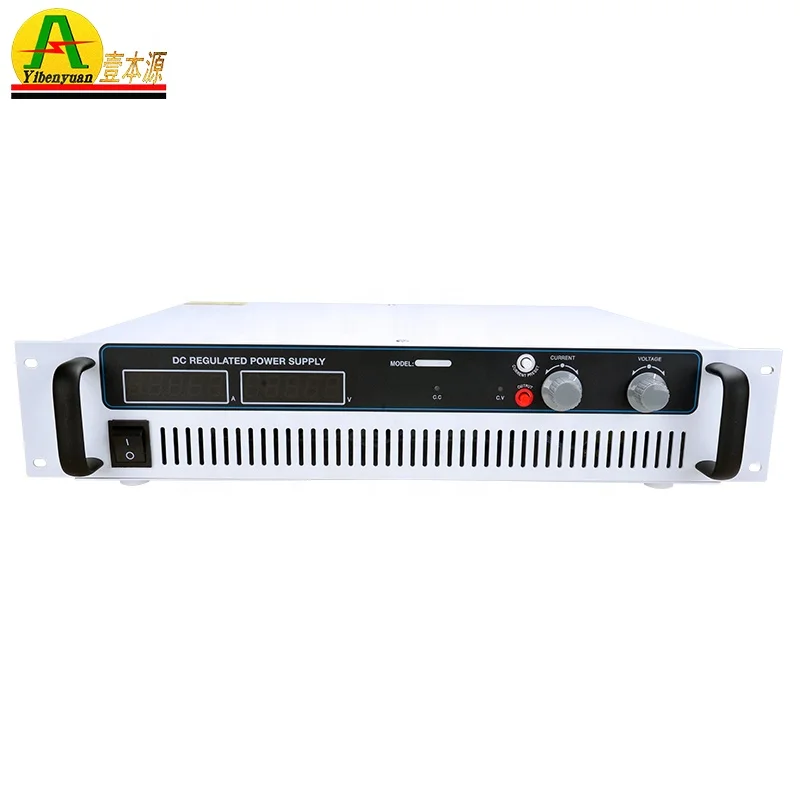

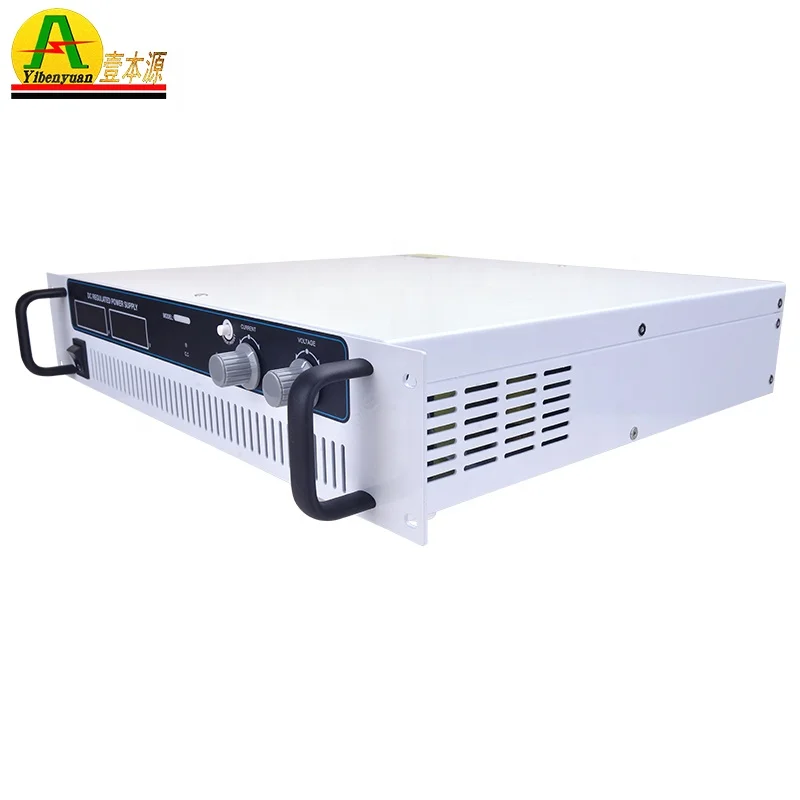

New Programmable DC Switching Power Supply 5000W DC 0-12V 24V 48V 50V 50A 100A Apply for Laboratory
I. FEATURES
(1) Small size and light weight are suitable for work surface use and rack installation.
(2) Using PWM modulation, the consumes power of crystal module is low, high efficiency, and more power.Well-designed electronic technology circuit, forced air cooling and heat treatment, with a very low temperature coefficient.
(3) Low noise and low ripple.
(4) Using high gain amplifier circuit design, with good fast response characteristics.
(5) Using a 4-bit high sampling rate, high-resolution voltage, current digital display meter.
(6) Built-in O.V.P over-voltage protection circuit and O.T.P over-temperature protection circuit, the protection function is perfect and reliable.
(7) This product is designed with load terminal voltage detection terminal, which has the function of accurately reading the voltage of the load terminal and performing precise control.
Voltage remote compensation connector (COLRAGE SENSING), compensates for line voltage drop and improves test accuracy.
II.TECHNICAL PARAMETRIC
Brand | YIBENYUAN |
Model | YBY-ATDK50100 |
AC Input | 1 phase 220VAC±15% 50/60hz |
Input Voltage Range | 220VAC ±15% |
Input frequency | 50Hz/60Hz |
Output voltage | 0~50VDC |
Output current | 0-100A |
Output Power | 5000W |
Voltage Stabilization | ≤0.3%+10mV |
Load Stabilization | ≤0.5%+30mV |
Ripples and Noises | ≤0.5%+10mVrms |
Voltage Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
Display Format | 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V |
Current Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
Remote Adjustment | (Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC |
Remote Display | (Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC |
Output Over Voltage Protection | Built-in O.V.P. protection, protection limited value is rated +5% |
Output Over Load Protection | Overload, current limit, constant current output |
Over Temperature Protection | Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature |
Voltage Setting | 10-turn precision potentiometer |
Current Setting | 10-turn precision potentiometer |
Output Polarity | Output Positive(+) negative(- ) Can be grounded at will |
Heat Dissipation Way | Forced fan cooling |
Work Conditions | Indoor use design,Temperature:0℃~40℃;Humidity:10%~85%RH |
Storage Conditions | Temperature:-20℃~70℃;Humidity:10%~90%RH |
Machine Dimension | L483*W430*H88(MM) |
Package Dimension | L570*W570*H180(MM) |
Net/Gross Weight | 14KG/20KG |

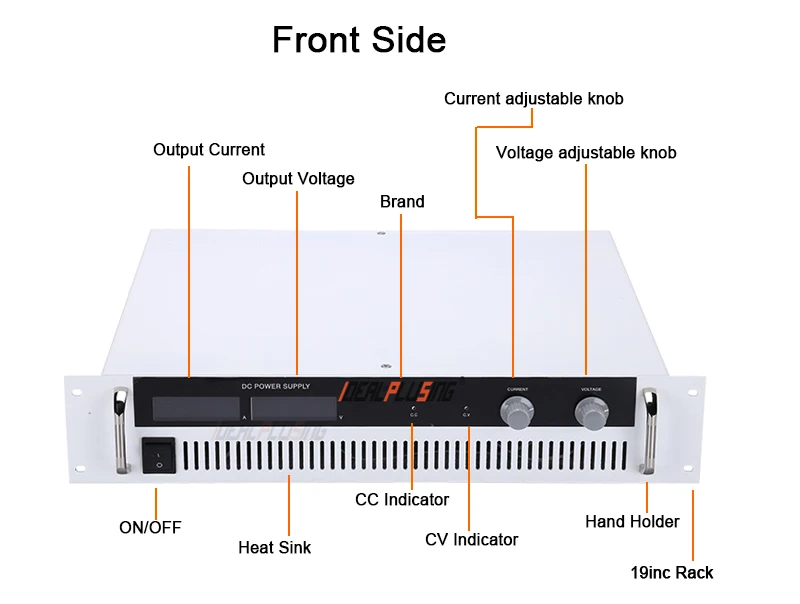

Product Overview:
Application:
Package:
Certification
FAQ:
FAQ
1Q: Are you a manufacturer or a trading company?
A: We are a manufacturer,and this is our factory's address:NO.3,Xinye Yixiang,Chenchung in dustrial zone,Qiaonan street,Panyu district,Guangzhou city,Guangdong Province,China.
2Q:Do you accept OEM?
A: Yes,all of our products can be customized.
3Q: What's your MOQ?
A: MOQ is 1 pc.
4Q:What's the lead time?
A: It deoends,generally it's with in 5 business days for 1-2 piece.
5Q: What's your warranty?
A: 12 months.
6Q:What's your payment?
A: PAYPAL /TT /Western union
