uv EPS uv power supply 5kw uv lamp controller for mercury and halogen lamp power supply
- Category: Industrial Power Supplies >>>
- Supplier: Shenzhen,Uwet,Electric,Technologies,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

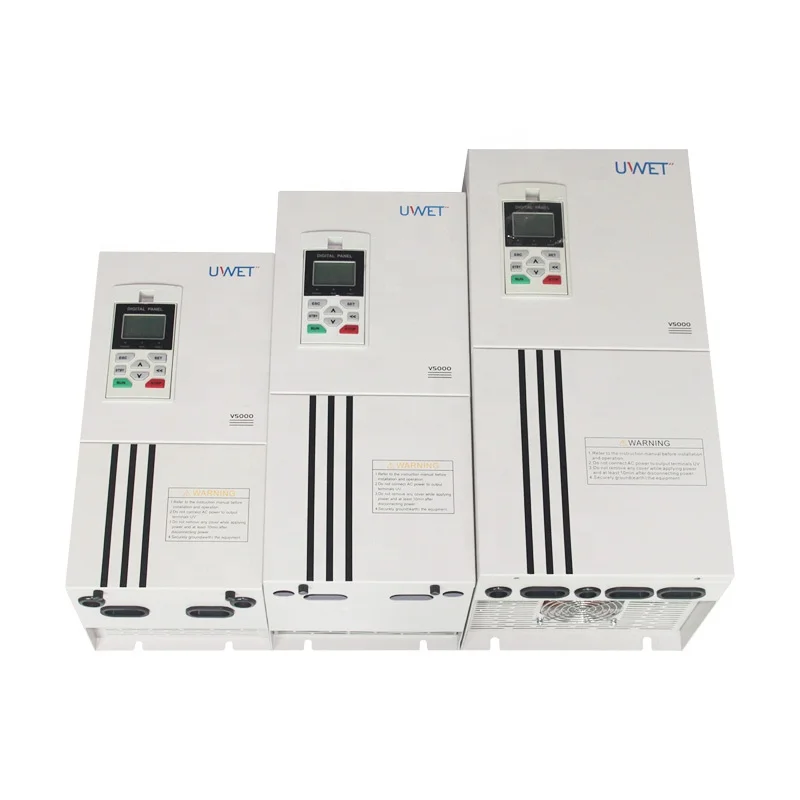

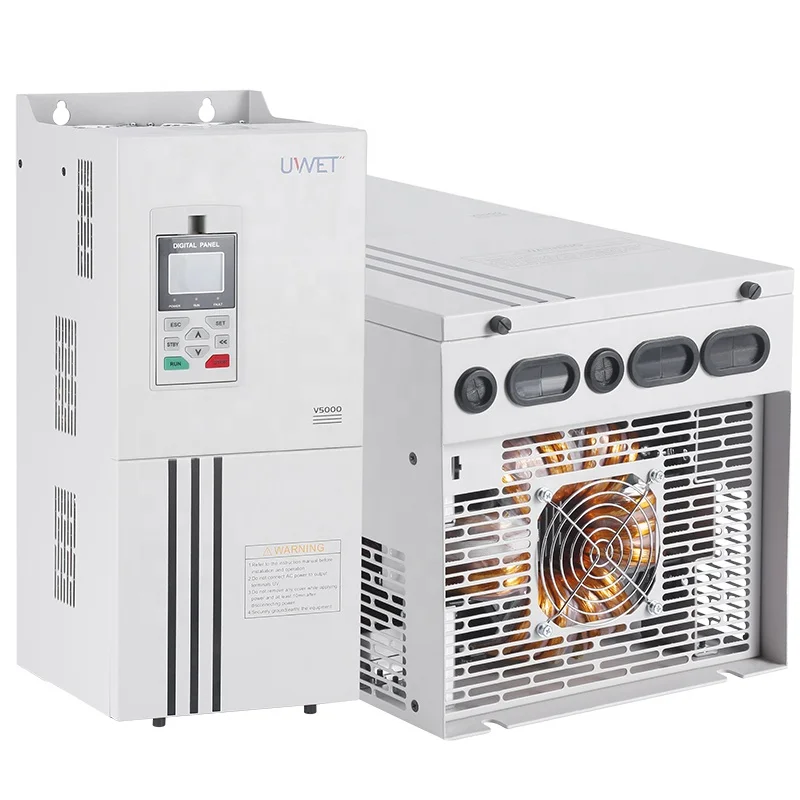

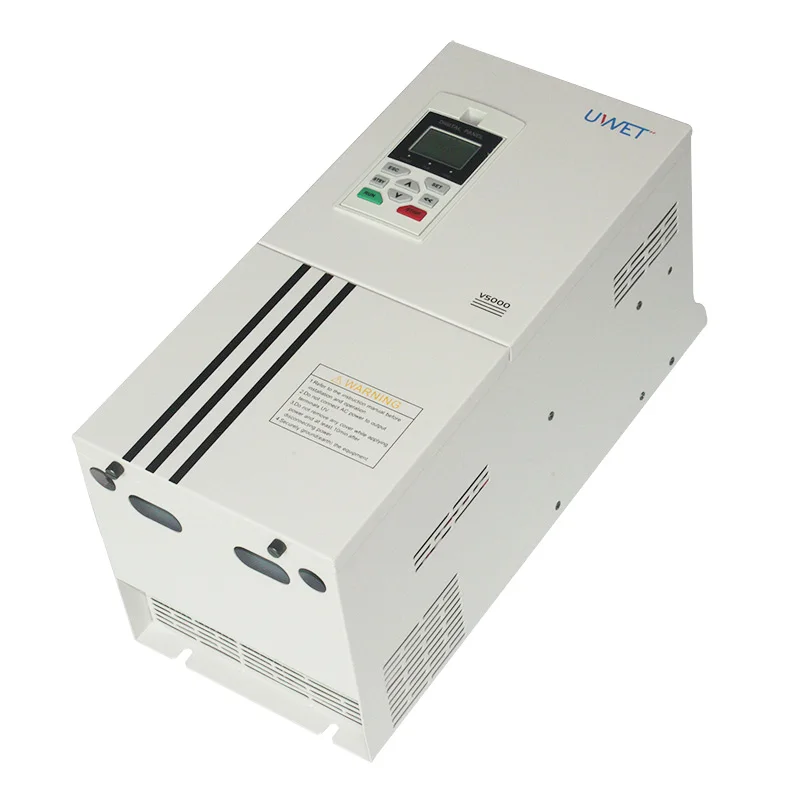

V5000E series is high-performance electronic rectifier developed by UWET for medium pressure mercury lamps/halogen lamp, which adapts Infineon's IGBT from Germany, high-performance MCU as the control core and excellent thermal design to create advanced products.
We could customize per your input data and output data, please contact us for specific model and accurate price.
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | UWET |

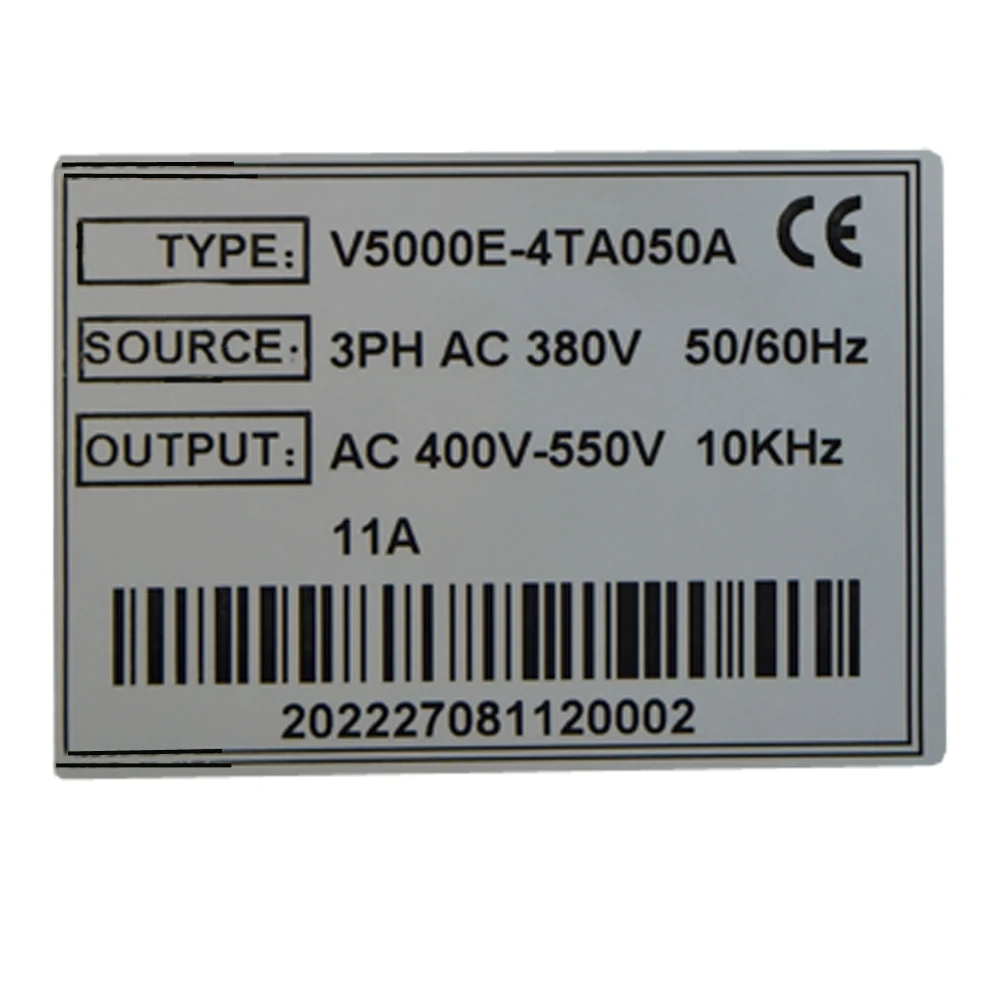

Model Number | 4TA050A |
Input Voltage | 380V AC |
Output Voltage | 450V-550V |
Output Power | 5kw |
Output Frequency | 10-15KHz high frequency stable square wave |
Output Current | 8A max |
Feature 1 | Real-time monitoring cooling system status.Control cooling capacity as per temperature and humidity requirement. |
Feature 3 | Real-time monitoring lamp current and voltage |
Feature 4 | Frequency conversion adjustment of lamp power vector |
Feature 5 | Monitoring shutter switch and status |
Feature 6 | Light intensity closed loop compensation |
Feature 7 | Support light intensity probe closed loop control |
Feature 8 | Built-in lamp tube exhaust control & frequency converter of cooling fan to optimize PID |
Control Mode | Power vector |
High Voltage Mode | Isolated boot transformer |
Intelligent Detection | In standby mode, it can start voltage holding automatically to ensure the power's speedy recovery |
Flexible power regulation modes | digital panel, external analog, RS485 communication, multi-segment power, extended board etc. |
Automatic matching of lamp voltage | match the actual lamp working voltage automatically within the allowed range |
Channels | Multiple programmable IO/AO/AI channels, transmission of machine status in real-time |
Company Profile
Shenzhen UWET Electric Technologies Co., LTD. is a high-tech private enterprise specializing in R&D, production, sales and service of UV intelligent power supply. It is located in Longhua District,where there are many high-tech industries. The company's R&D team is strong, and most of the R&D personnel have R&D experience of foreign companies. More than ten top experts in the industry have absorbed advanced technologies such as Italy, Austria, Germany and Japan, combined with the principle of frequency converters and the development of the domestic UV industry.It took three years to develop the company's latest product: UV intelligent variable frequency power supply. The products have completely independent intellectual property rights,and now many technologies are in the leading level in the industry and even in the world.
The core technology of UV intelligent variable frequency power supply is modern electronic power technology such as single-chip technology of power fusion , vector control algorithm, high-frequency switching power supply technology, and IGBT inverter technology,so that the product has the characteristics of complete functions, high efficiency, energy saving, stable and reliable, and precise control, safe and intelligent protection, small size, light weight, cost-effective and so on. Mainly used in graphic printing industry, UV curing industry, spraying UV curing industry, wood surface treatment and other industries.
The core technology of UV intelligent variable frequency power supply is modern electronic power technology such as single-chip technology of power fusion , vector control algorithm, high-frequency switching power supply technology, and IGBT inverter technology,so that the product has the characteristics of complete functions, high efficiency, energy saving, stable and reliable, and precise control, safe and intelligent protection, small size, light weight, cost-effective and so on. Mainly used in graphic printing industry, UV curing industry, spraying UV curing industry, wood surface treatment and other industries.
Certifications
Exhibition
Packing & Delivery
Wooden Packing /Carton/At the request of customer
FAQ
1. who are we?
We are based in Guangdong, China, start from 2012,sell to Domestic Market(45.00%),Southeast Asia(10.00%),Western Europe(8.00%),Southern Europe(6.00%),Eastern Europe(5.00%),South America(5.00%),Oceania(5.00%),North America(5.00%),South Asia(3.00%),Mid East(3.00%),Africa(3.00%),Northern Europe(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
UV electronic power supply,UV intelligent variable frequency power supply,UV Lamp Electric Power Supply,UV Lamp Power Supply,UV Digital Power Supply
4. why should you buy from us not from other suppliers?
Strong R&D team and more than ten top experts in the industry have absorbed advanced technologies such as Italy, Austria, Germany and Japan, combined with the principle of frequency converters and the development of the domestic UV industry.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2012,sell to Domestic Market(45.00%),Southeast Asia(10.00%),Western Europe(8.00%),Southern Europe(6.00%),Eastern Europe(5.00%),South America(5.00%),Oceania(5.00%),North America(5.00%),South Asia(3.00%),Mid East(3.00%),Africa(3.00%),Northern Europe(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
UV electronic power supply,UV intelligent variable frequency power supply,UV Lamp Electric Power Supply,UV Lamp Power Supply,UV Digital Power Supply
4. why should you buy from us not from other suppliers?
Strong R&D team and more than ten top experts in the industry have absorbed advanced technologies such as Italy, Austria, Germany and Japan, combined with the principle of frequency converters and the development of the domestic UV industry.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T
Language Spoken:English,Chinese
