SeeChee Hv-30s 115v Ac Chemical Dosing Pump Price 30-35lpm Detergent Acid Adblue Electric Fuel Pump For Ibc System
- Category: >>>
- Supplier: Tianjin,Seechee,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

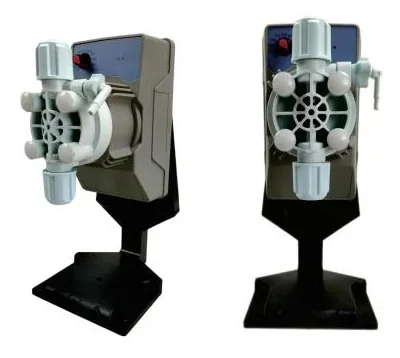

Diaphragm Metering Pump
MF Series
Clever
PVDF pump head standard, All functions in one pump
• Cover 0,4 to 110 l/h with an output pressure up to 20 Bar
• 1 Casing allows skids to be pre-constructed, as the fixing points remain constant, and the pumps can be selected on confirmation of the dosing flow
• Inventory Reduction.Reduce spares stock holding.
Compatible
PVDF pump head and ceramic ball valve as standard
PVDF is suitable for almost all chemical used in the Industrial, Waste Water Treatment and potable Water applications
The use of Ceramic balls as standard improves the pumping reliability and the chemical compatibility of the whole liquid end Full chemical compatibility
Reliable
Diaphragm pure solid PTFE
The advanced design and manufacturing process allows the diaphragm to have a unique life expectancy.
Made of pure solid PTFE, the diaphragm is compatible with most chemicals.
Routine diaphragm replacement is no longer a requirement.
Reduced maintenance.
Full chemical compatibility.
Steady dosing performance
Stabilized Multi Power Supply 100 - 240 Vac 50/60 Hz with reduced consumption
Pumps Head
BODY PVDF
BALL VALVES Ceramic
SEAT VALVE FPM/EPDM
DI APHRAGM PTFE
The parts in contact with the liquid have been chosen in order to guarantee perfect compatibility with most chemical normally in use.
Dosing mode
The pump head has a manual priming valve,
The flow rate is manually or automatically (by signal input) adjustable from 0 (pump stop) to 100% of the max flow rate, Moreover it is equipped with the low level alarm to stop or not the pump.
Installation
Horizontally-mounted( standard)
Wall-mounted(optional, need to buy bracket)
Pumps identification
Mounting dimension drawing
Installation kit
The pump are supplied complete with the indispensible accessories fortheir correct installation as follows;

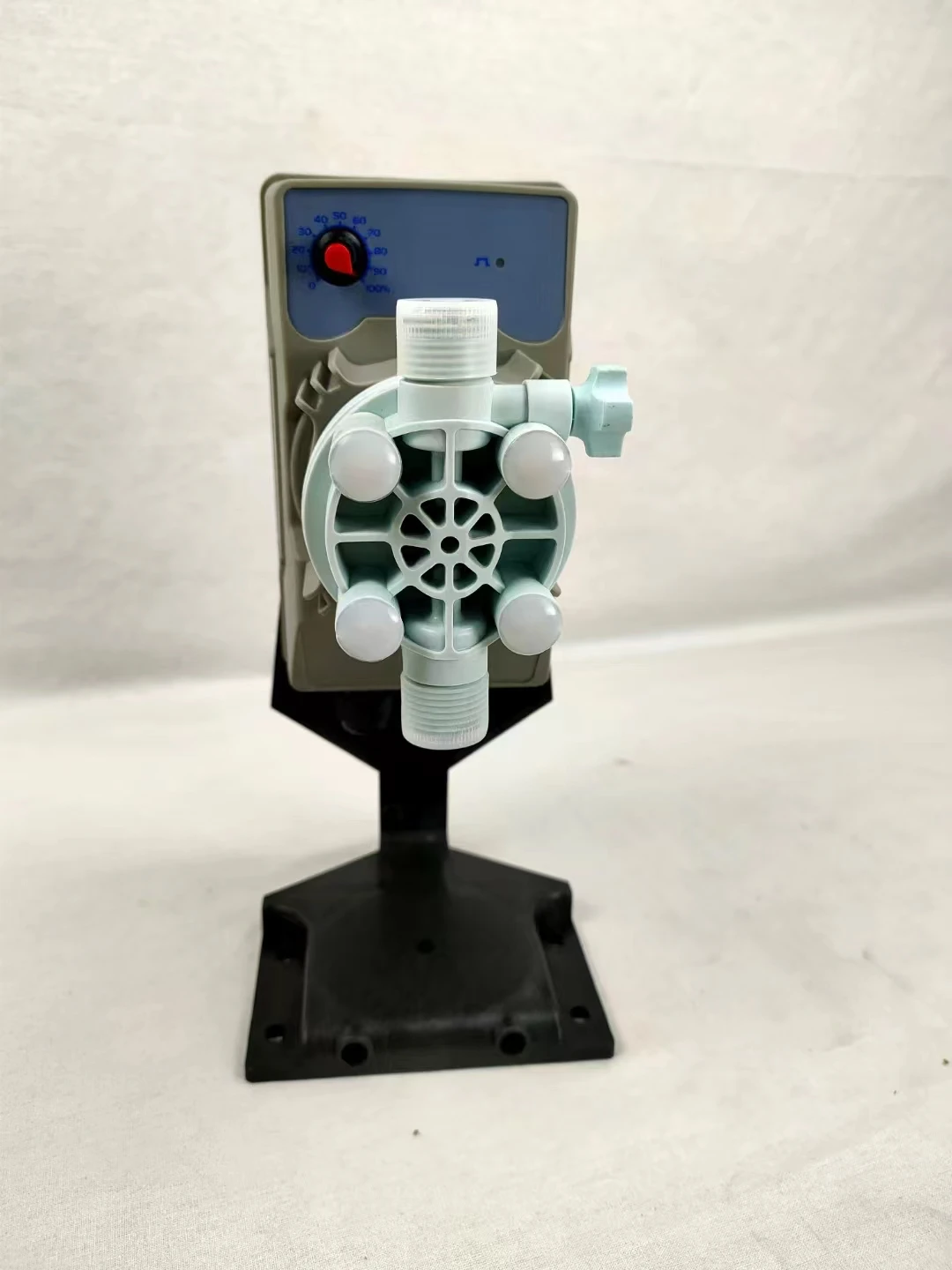

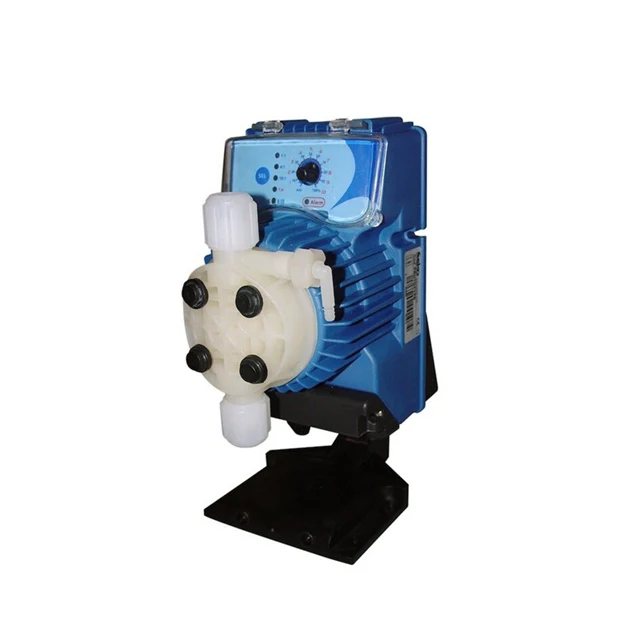

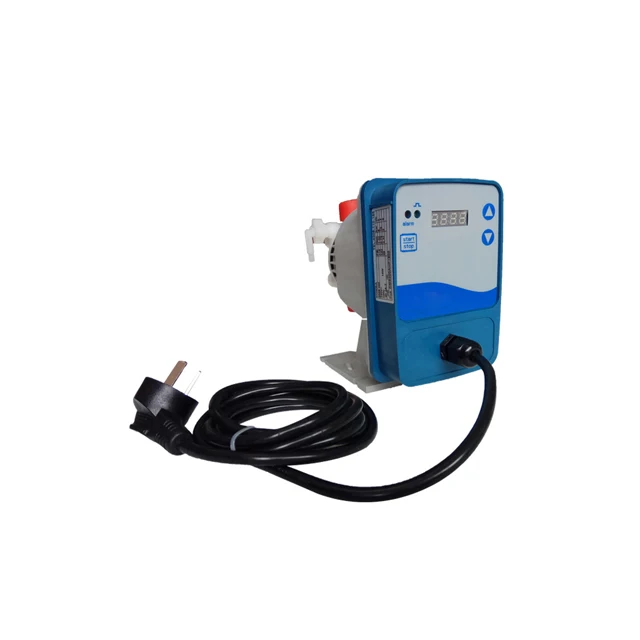

KF Series
KF is a simple solenoid dosing pump,operating with a micro-processor to manage the dosing.
Its external enclosure has an Ip65 which guarantees a protection versus splashing water and aggressive environments.
Dosing mode
The pump head has a manual priming valve.
The flow rate is manually or automatically (by signal input) adjustable from 0 (pump stop) to 100%of the max flow rate.
Moreover it is equipped with the low level alarm to stop or not the pump
Long life diaphragm
The advanced design and manufacturing process allows the diaphragm to have a unique life expectancy.
Made of pure solid PTFE,the diaphragm is compatible with most chemicals.
The diaphragm has been tested over a period of 5years giving superior results.
Routine diaphragm replacement is no longer a requirement.
Pumps head
BODY PVDF
BALL VALVES Ceramic
SEAT VALVE FPM/EPDM
DI APHRAGM PTFE
The parts in contact with the liquid have been chosen in order to guarantee perfect compatibility with most chemical normally in use.
Graphic display and keypad
KF digital is programmable via keypad and 2 linex 8 digits backlighted display.

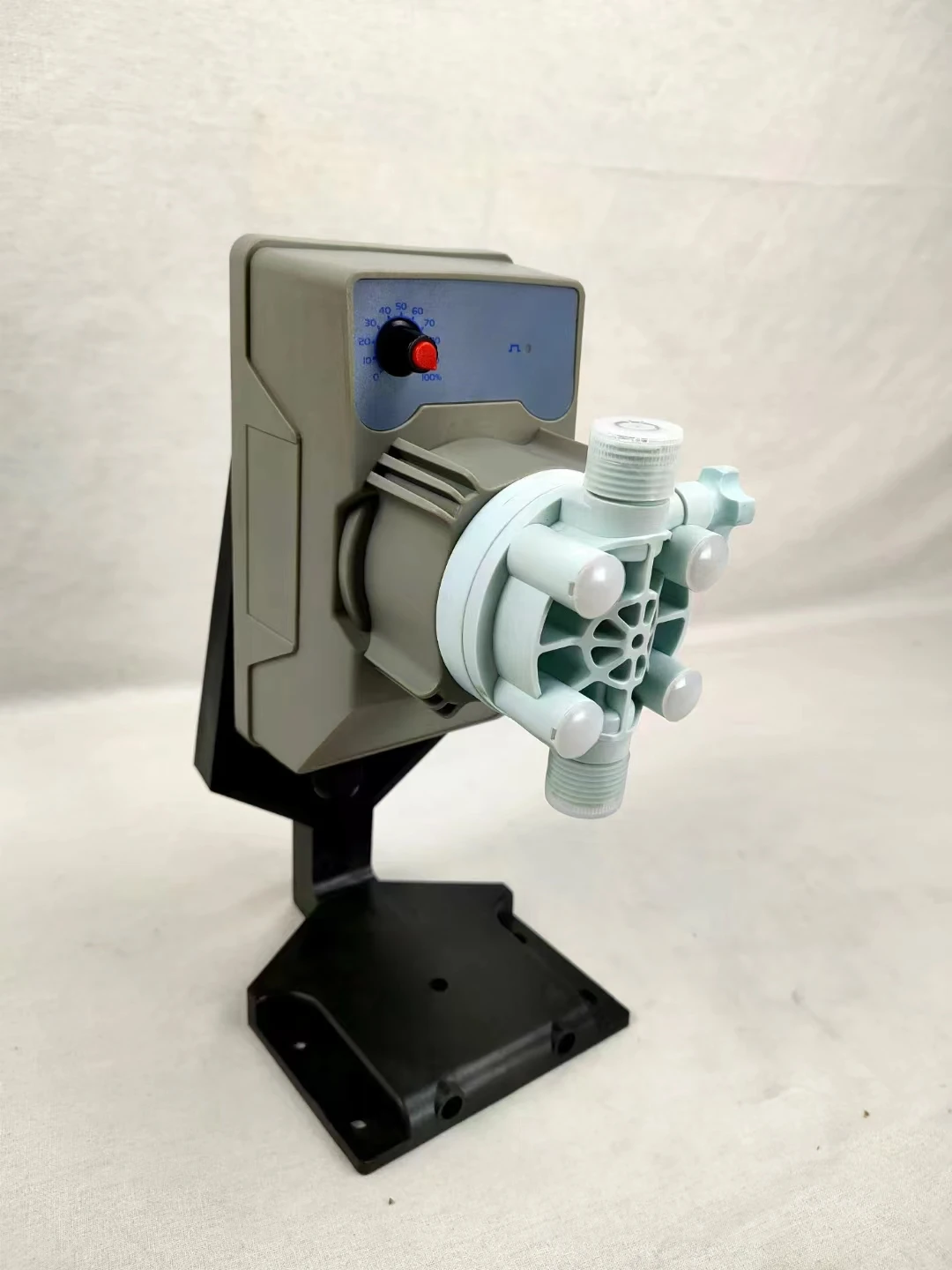

Wall-mounted
KF pump can be fixed on wall by fixing bracket provide with the pump or top of drums by theoptional foot fixing bracket.

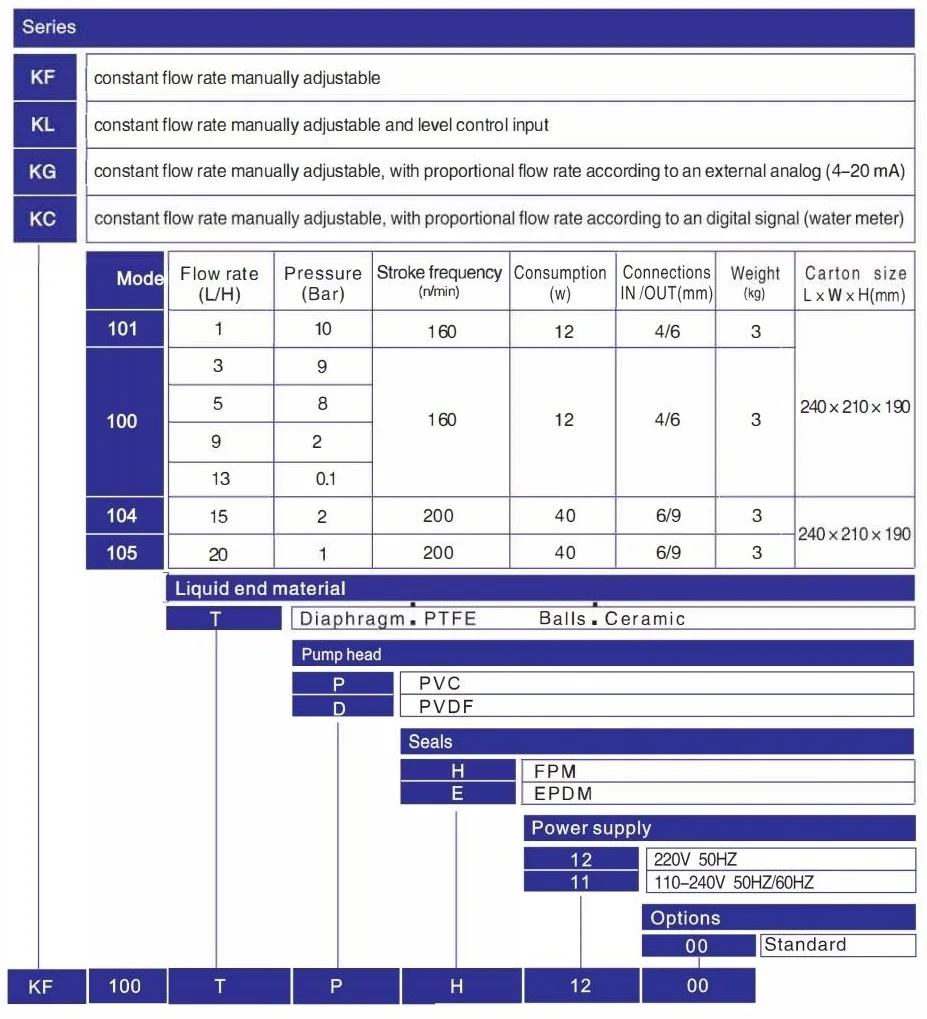

Pumps identification

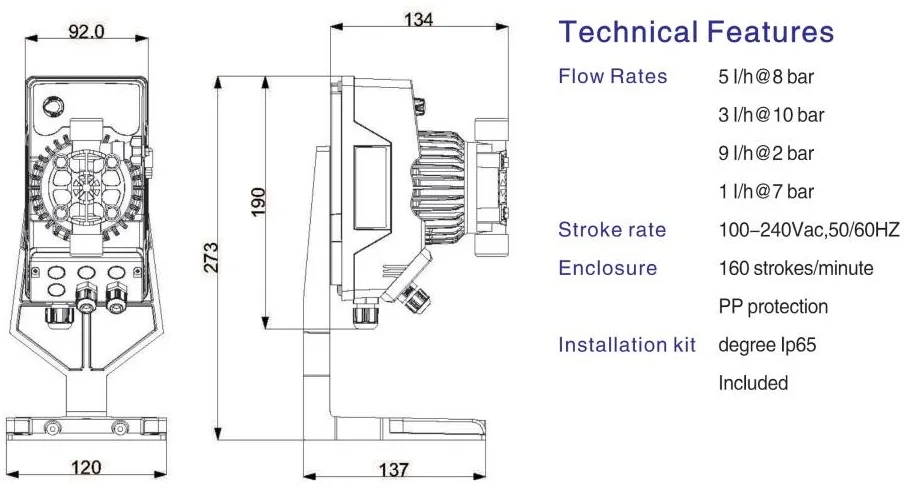

Mounting dimension drawing

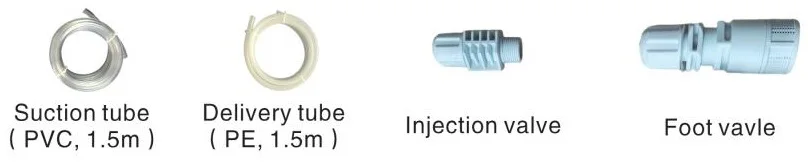

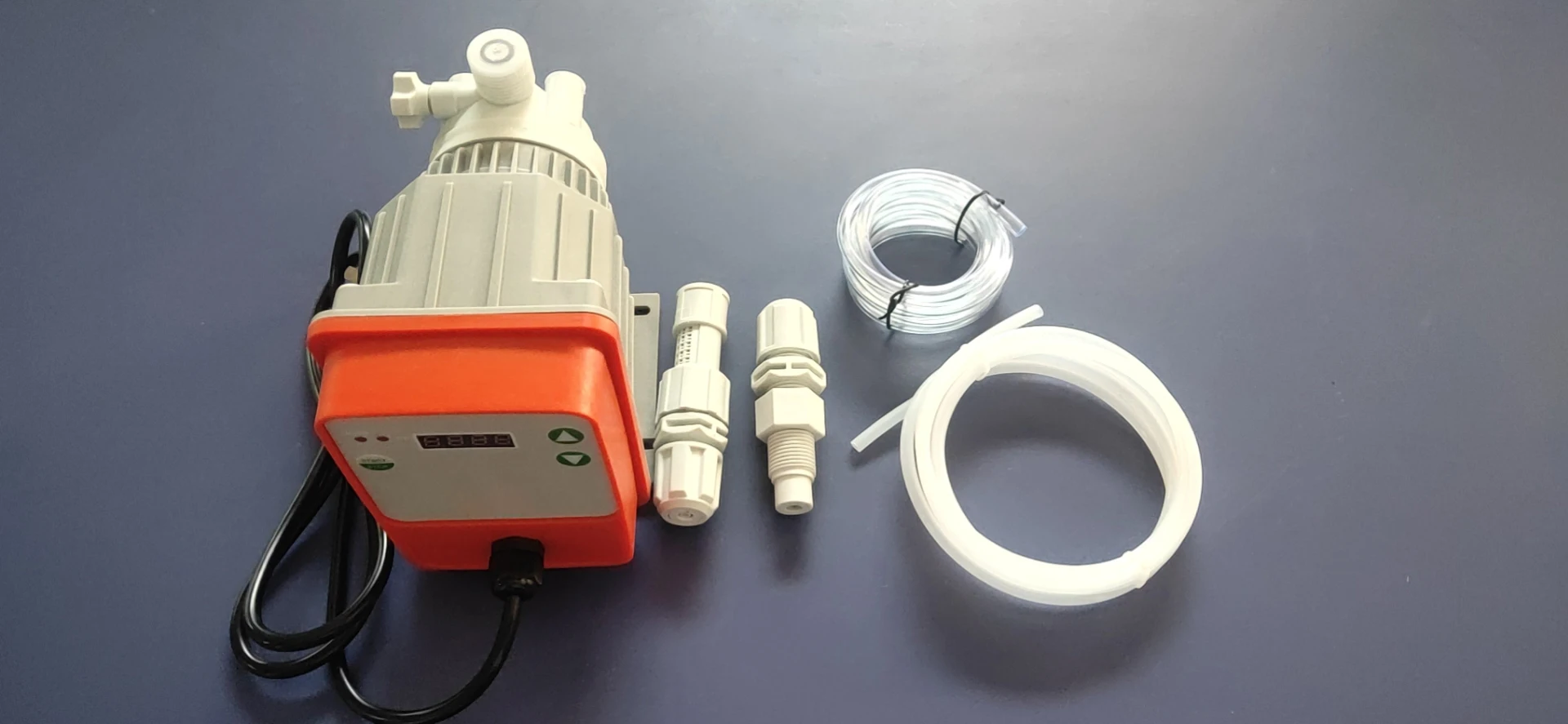

Installation kit
The pump are supplied complete with the indispensible accessories for their correct installation as follows;

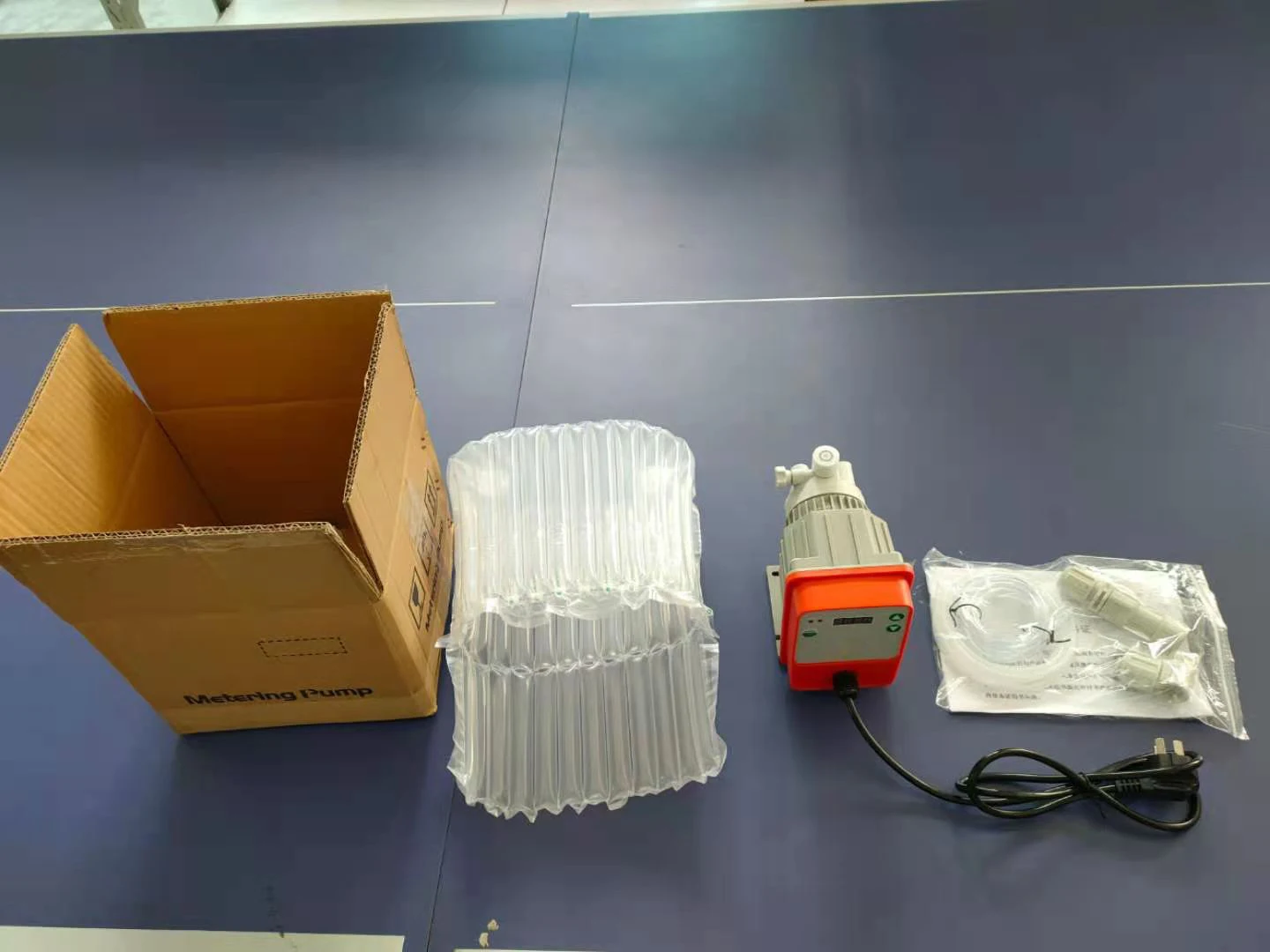

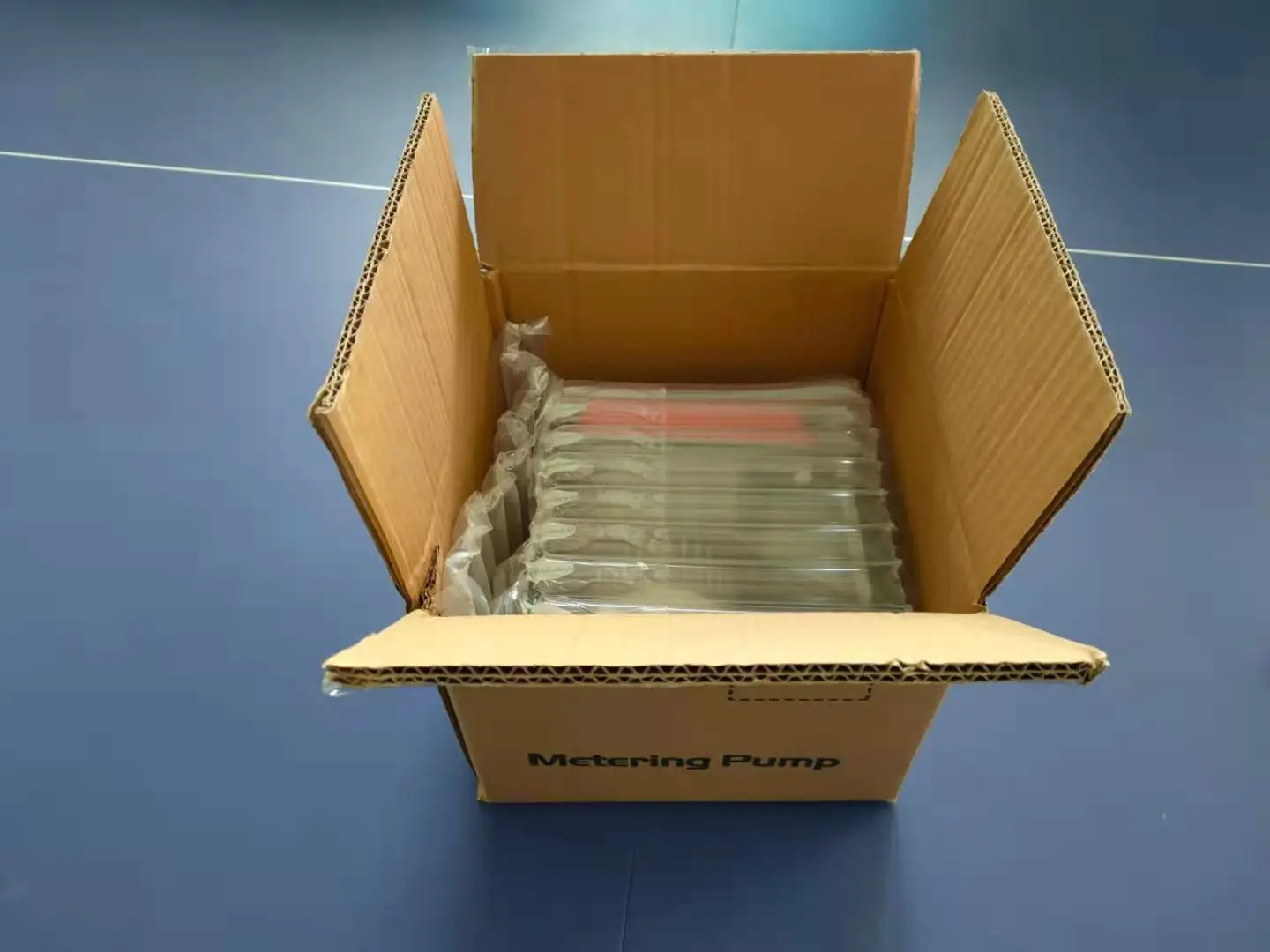

Packaging & Shipping
Company Information
Tianjin SeeChee Technology Co.,Ltd.--located in Tianjin, which located the biggest seaport in the north of China. Products: Water Treatment Products. SeeChee has more than 20 years experience in water treatment products.
Our own brand: "SeeChee" "HatChee"
Water Treatment Products:
Silicon Carbide Ceramic Membrane,Alumina Ceramic Membrane, MBR Membrane, UF Membrane, DTRO Membrane, Ro Membrane, SS/FRP Membrane Vessel, FRP Pressure Tank, Ion Exchange Resin, Filter Cartridge, SS Filter, UV Sterilizer, Ozone Generator
Sewage Filling, Distributor, Riser Tube, Dosing Pump, Pressure Gauge, Flow Meter, Solenoid Valve, Brain Tank, Dosing Tank, etc.
Water Treatment Products Agent Brands:
Runxin Valve, Famous brand Resin, Famous brand dosing Pump, Famous brand Pump, Famous brand ro membrane... etc.
SeeChee:
Offer the best quality
Offer the best service
Offer the best price
Offer one stop shopping
To be a World-Class advanced technology company in water treatment products
Why Choose Us
 | |||
INDEPENDENT FACTORY
We are the source factories and have many oversized factories and our own workshops with different products. | OEM SUPPORT
We can produce the goods according to the customers’ requirements. And we can make the customers’ brand. | PRODUCT UPDATE
We have our own R&D team to update the products. Some products have applied for a patent for the appearance. | QUALITY ASSURANCE
We strictly produce goods according to ISO, NSF, CE, ASME certification. All products must be qualified before sold. |
 | |||
BRAND COOPERATION
Cooperate with most of the famous brands in water treatment industry.
| GOOD PACKAGING
In order to protect the goods,most of the goods are with quality cartons or wooden boxes. | PROFESSIONAL TEAM
Sales,engineers and after-sales teams offer the 24-hour online service for each customers. | ONE-STOP SERVICE
We build a large water treatment products system. Customers can find all of the needing from us. |
FAQ
Q: Are you a trading company or a manufacturer?
A: We are one of China leading water treatment manufacturers since 2000, with our OWN auto making line!
And we have our own trading company our own large warehouse. So that we can offer most of the water treatment productds.
Q: Where is your factory? How can I visit?
A: We have more than three factories in different cities. They located in Tianjin city, Hengshui City of Hebei Province, Nanjing City of Jiangsu Province...etc. You can visit our Tianjin head office. Then we will take you to our factories.
Q: What's your brand name?
A: We have two brands. One brand is "SeeChee". It is for the ion exchange resin. Another brand is "HatChee". It is for the ro membrane, membrane housing,filter,pressure tanks...etc.
Q: Can we OEM from your factory?
A: Yes. Normally, we export under our brand name HatChee. If you have any request, we also provide OEM, ODM service.
Q: Can I get some samples? Can I place small order before bulk purchase?
A: We're glad to provide sample, trial order welcome for first time, please kindly contact us.
Q: How can I place order? How can I pay you?
A: You can contact us by email about your order details, or place order on line. After you confirm our PI, we will request you to pay. T/T (Citibank) and Alipay, Western Union are the most usual ways we are using.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. Or it is 7-15 days if goods are not in stock, it is according to quantity.
Q: What is your working time?
A: We offer the 24-hour online service for each customers.
