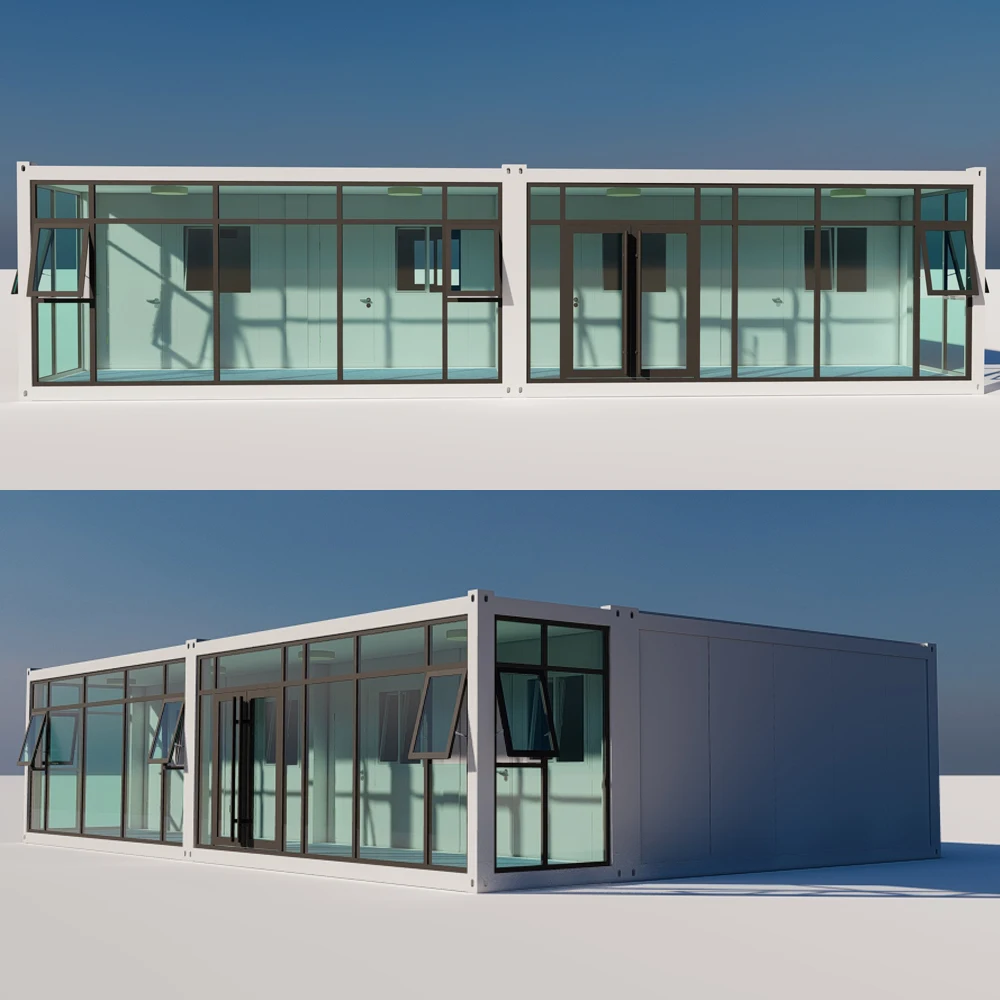

high quality movable 20ft prefab waterproof container house retail store bar cafe restaurant for Europe
- Category: >>>
- Supplier: Qingdao Huayuan Steel Structure Co. Ltd.Qingdao Ltd.
Share on (1600585761160):
Product Overview
Description
Product Description
Container House | ||||
Specification | Length(mm) | 6055(5780) | ||
Width(mm) | 2435(2250) | |||
Height(mm) | 2896(2600) | |||
Weight | Around 2000kg | |||
Roof type | Flat roof, with internal drainage | |||
Storey | ≤3 storey | |||
Design parameter | Life time of steel frame | 20 years | ||
Earth live load | 2.0KN/m2 | |||
Roof live load | 0.5KN/m2 | |||
Wind load | 0.6KN/m2 | |||
Earthquake resistance | grade 8 | |||
Steel structure | Corner column | Galvanized cold rolled steel, t=3.0mm, material:Q235B | ||
Roof beam | Galvanized cold rolled steel, t=3.0mm, material:Q235B | |||
Roof secondary beam | C channel steel, t=1.6mm, material:Q235B | |||
Earth beam | Galvanized cold rolled steel, t=3.0mm, material:Q235B | |||
Earth secondary beam | C channel stee, t=2.0mm, material: Q235B | |||
Paint | Graphene powder spraying(static electricity spray process) | |||
Roof | Roof panel | 0.5mm thickness galvanized steel sheet, color: white grey | ||
Insulation | 100mm fiberglass wool insulation with one side aluminum film, desity≥14kg/m³, combustion performace: grade A non-combustible | |||
Ceiling | 0.5mm thickness steel sheet, color white grey | |||
Floor | Decoration floor | No | ||
Base panel | 19mm fiber cement board, density≥1.3g/cm³ | |||
Insulation(optional) | 100mm fiberglass wool with one side aluminum film, density≥14kg/m³, combustion performace: grade A non-combustible | |||
Block panel (optional) | 0.3mm galvanized steel sheet | |||
Wall | Thickness | 75mm fiberglass sandwich panel, outer panel is 0.5mm orange peel galvanized steel sheet, ivory white color, PE coating, inner panel is 0.5mm galvanized flat steel sheet, white grey, PE coating. | ||
Insulation | 75mm fiberglass insulation, density≥64kg/m³, combustion performace: grade A non-combustible | |||
Low-e glass | 6mm glass+12mm hollow glass+6mm glass, low-e glass, aluminum frame | |||
Normal glass | 6mm glass+12mm hollow glass+6mm glass, normal glass, plastic steel frame | |||
Door | Specification(mm) | Single door, width x height=1660*2030 | ||
Material | Steel door | |||
Electric system | Voltage | 220V~250V | ||
Electric wire | Indoor power line is 6 m2, lighting switching line is 1.5m2 | |||
Disconnector | Miniature circuit breaker | |||
Lighting | Two unit single-tube daylight lamp, 36W | |||
Socket | With socket | |||
Water system | Water supply | PPR | ||
Drainage | UPVC | |||
Application
Packaging
Customer Photos

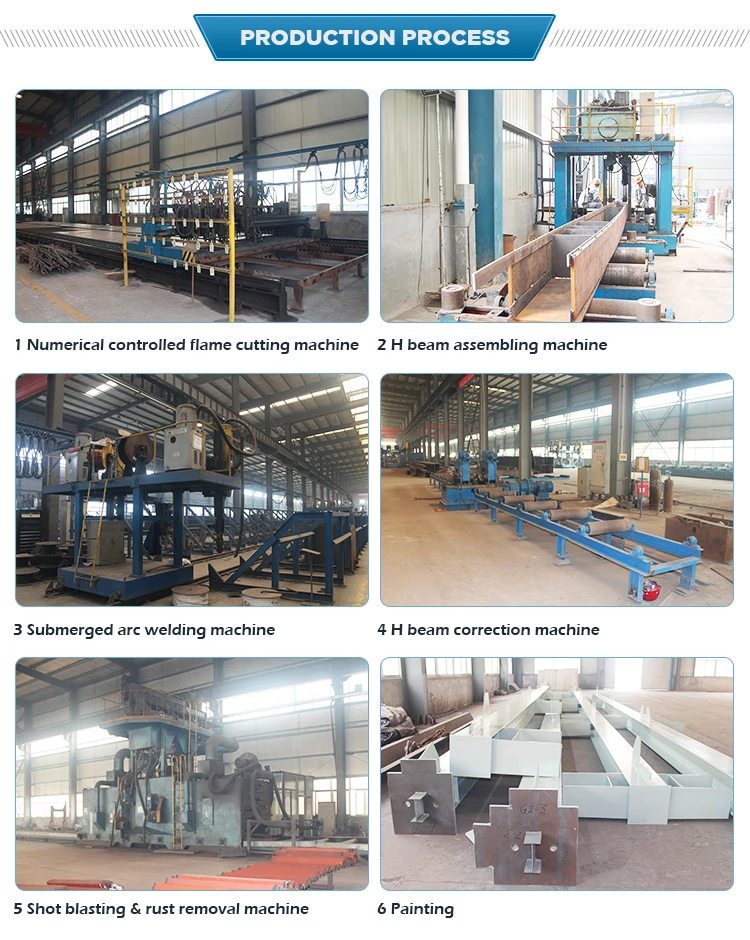

Production process
