overband magnetic separator permanent magnet classical magnetic separator
- Category: >>>
- Supplier: Linqu,Runde,Heavy,Industry,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Main Products
Product Description
Specification

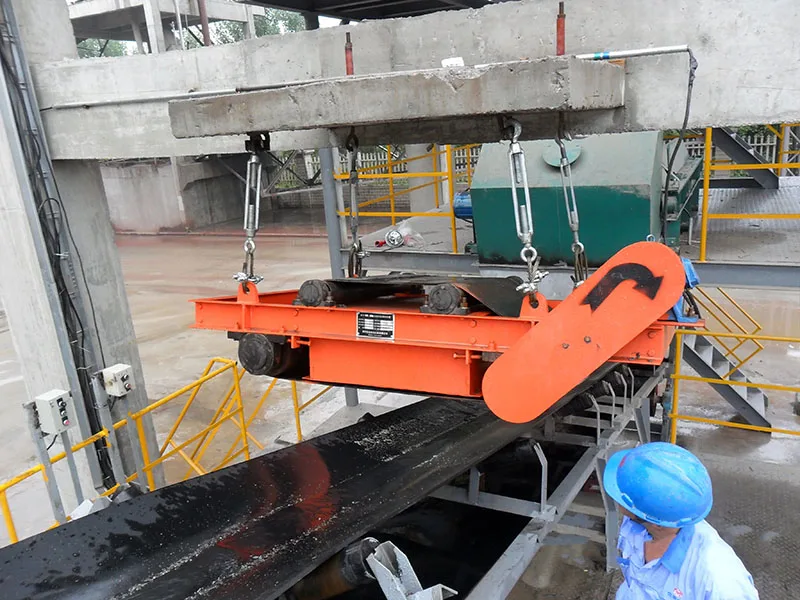

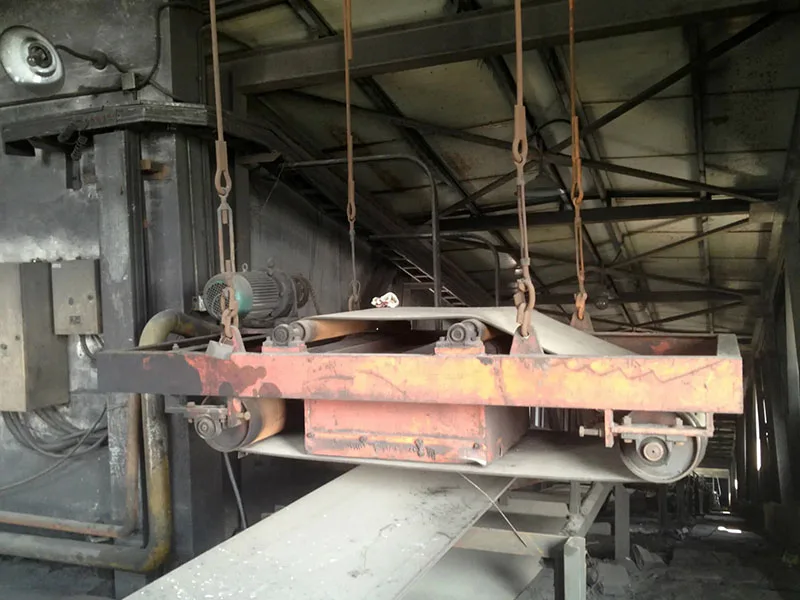

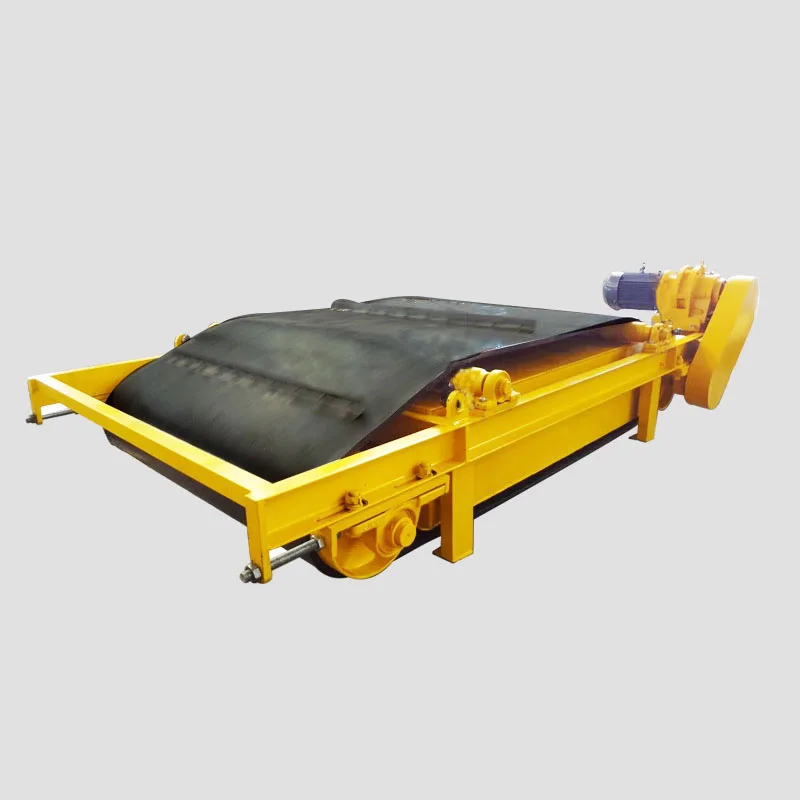

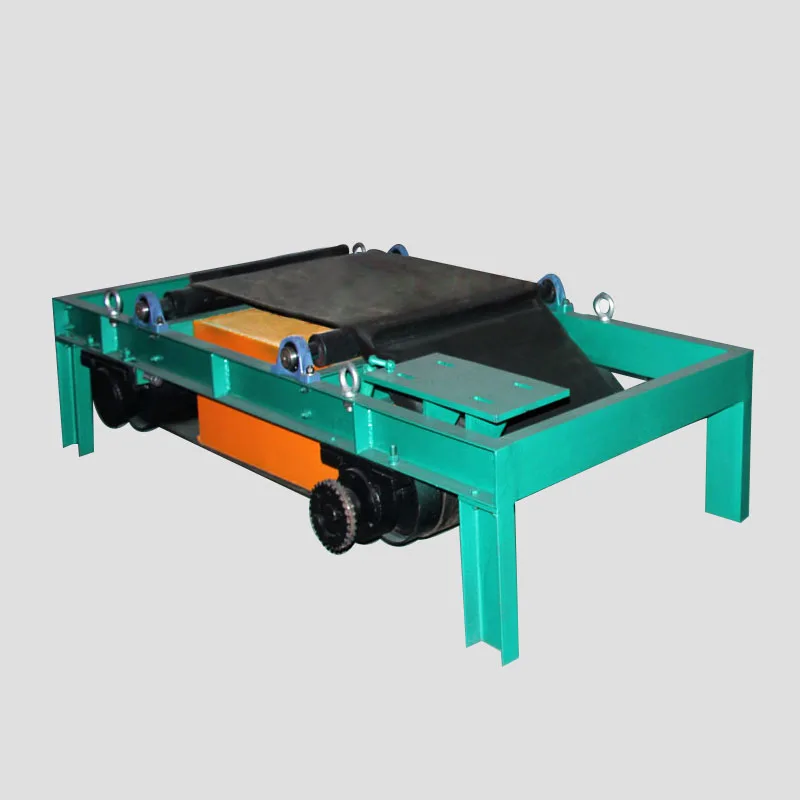

RCYD(C) series self-cleaning permanent magnetic separator made by high-performance NdFeB rare earth, the machine consists of permanent magnet core, unloading iron belt, reducer motor, frame, driven rollers and other parts, used for variety of conveyor.Adsorb ferromagnetic material from a non-magnetic materials. It have an automatic unloading iron device, The ferromagnetic material is automatically thrown by unloading iron belt device, so as to achieve the purpose of the automatic unloading iron. The machine have a wide range of applications, energy saving, easy maintenance, the failure rate is very low, stable and reliable operation in extremely harsh environment.
Product Features:
* Magnetic circuit design using computer simulation, perfect double pole structure.
* NdFeB material is magnetic source, high coercivity, high magnetic field strength.
* Automatic clean iron, easy maintenance, wide application.
* Transmission drum with drum-type structure, the belt automatic correction function, dustproof housings, mechanical failure is low.
Dimensional sketches and installation sketches:
Product Features:
* Magnetic circuit design using computer simulation, perfect double pole structure.
* NdFeB material is magnetic source, high coercivity, high magnetic field strength.
* Automatic clean iron, easy maintenance, wide application.
* Transmission drum with drum-type structure, the belt automatic correction function, dustproof housings, mechanical failure is low.
Dimensional sketches and installation sketches:
Model | Adaptive Belt width (mm) | Suspension Heigh h=mm | Adaptive belt speed mm | Material Thickness ≤mm | Drive Power ≤kw |
RCYD（C）-5 | 500 | 150 | 2.5 | 80 | 1.5 |
RCYD（C）-6 | 600 | 175 | 2.5 | 120 | 1.5 |
RCYD（C）-6.5 | 650 | 200 | 2.5 | 150 | 1.5 |
RCYD（C）-8 | 800 | 250 | 2.5 | 200 | 2.2 |
RCYD（C）-10 | 1000 | 300 | 2.5 | 250 | 3.0 |
RCYD（C）-12 | 1200 | 350 | 2.5 | 300 | 4.0 |
RCYD（C）-14 | 1400 | 400 | 2.5 | 350 | 4.0 |
RCYD（C）-16 | 1600 | 450 | 2.5 | 400 | 5.5 |
RCYD（C）-18 | 1800 | 500 | 2.5 | 450 | 5.5 |
RCYD（C）-20 | 2000 | 550 | 2.5 | 500 | 7.5 |
Model | Work form | Weight kg | Overall dimensions（mm） | ||||||||
A | B | C | D | E | |||||||
RCYD（C）-5 | continuous | 750 | 1900 | 735 | 935 | 950 | 753 | ||||
RCYD（C）-6 | 920 | 2050 | 780 | 1030 | 1100 | 833 | |||||
RCYD（C）-6.5 | 1200 | 2165 | 780 | 1080 | 1200 | 888 | |||||
RCYD（C）-8 | 1400 | 2350 | 796 | 1280 | 1300 | 1088 | |||||
RCYD（C）-10 | 2120 | 2660 | 920 | 1550 | 1400 | 1335 | |||||
RCYD（C）-12 | 3350 | 2860 | 1010 | 1720 | 1550 | 1515 | |||||
RCYD（C）-14 | 4450 | 3225 | 1050 | 1980 | 1800 | 1755 | |||||
RCYD（C）-16 | 6200 | 3350 | 1180 | 2160 | 1950 | 1850 | |||||
RCYD（C）-18 | 8100 | 3580 | 1210 | 2450 | 2200 | 2130 | |||||
RCYD（C）-20 | 9700 | 3800 | 1300 | 2700 | 2400 | 2410 | |||||
