Металлический корпус Saipwell, Электрический металлический переключатель
- Category: >>>
- Supplier: Hennepps Electric (shanghai) Co. Ltd.
Share on (1600585945281):
Product Overview
Description
Product Description

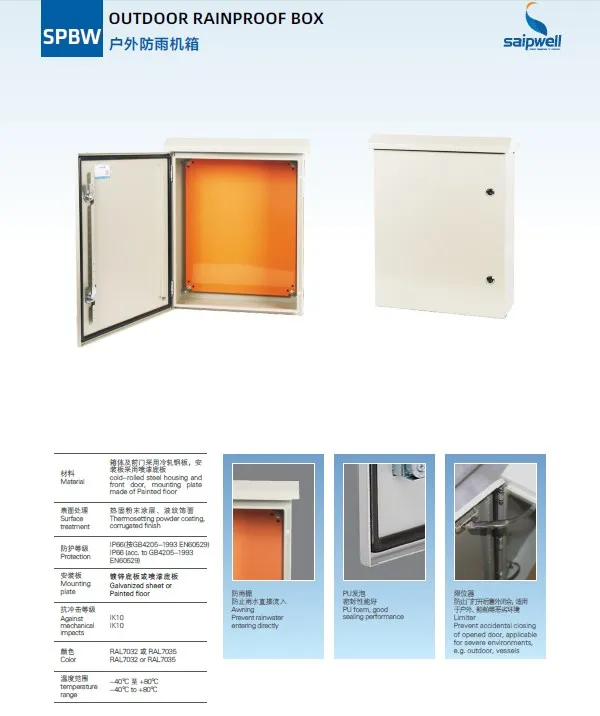

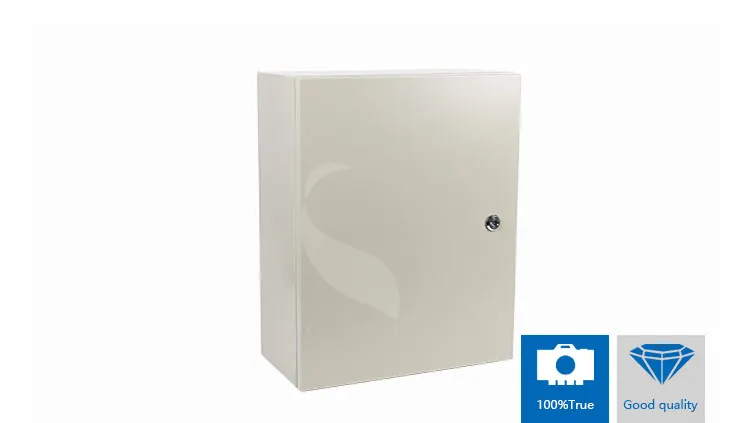

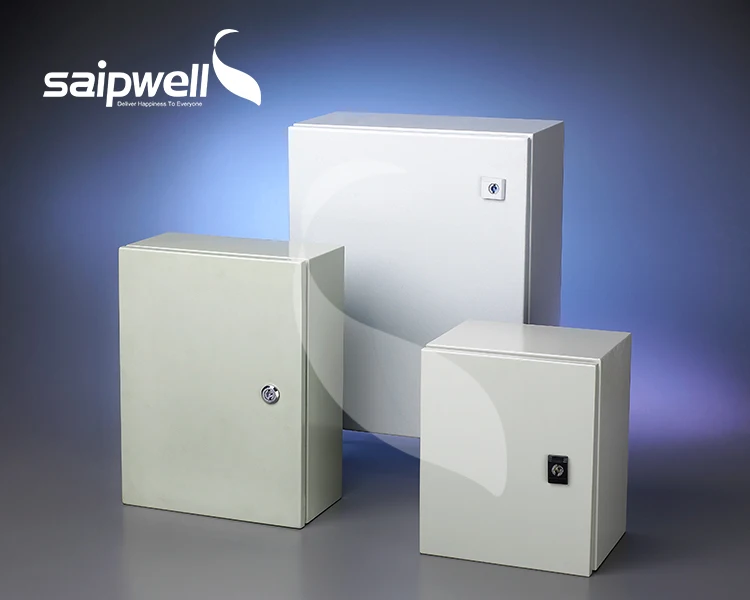

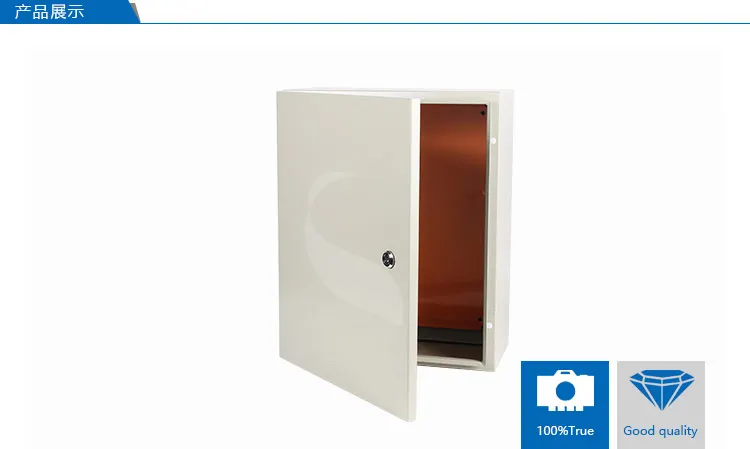

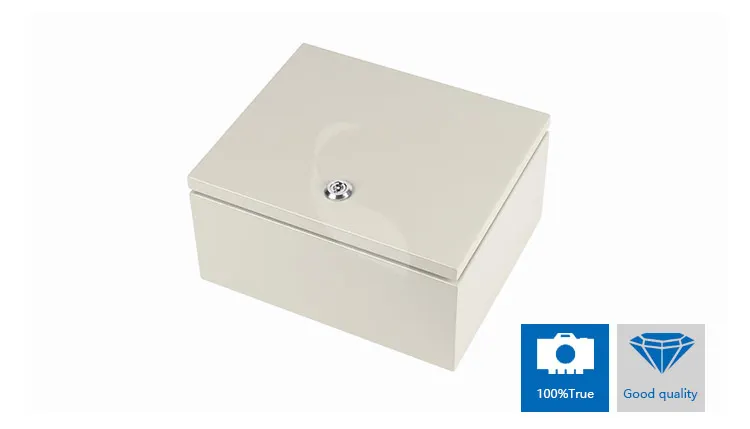

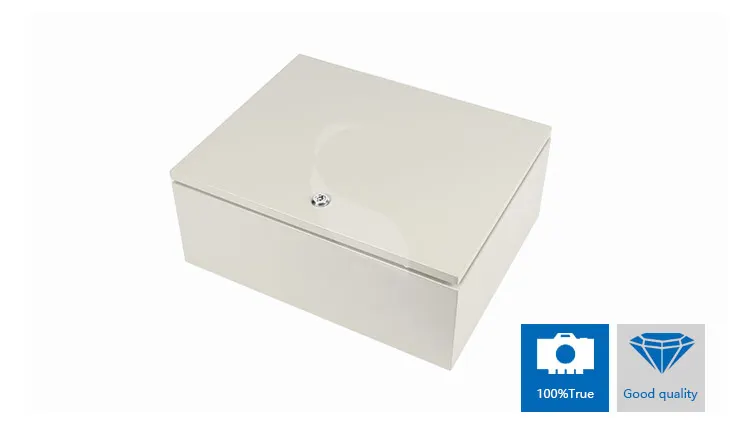

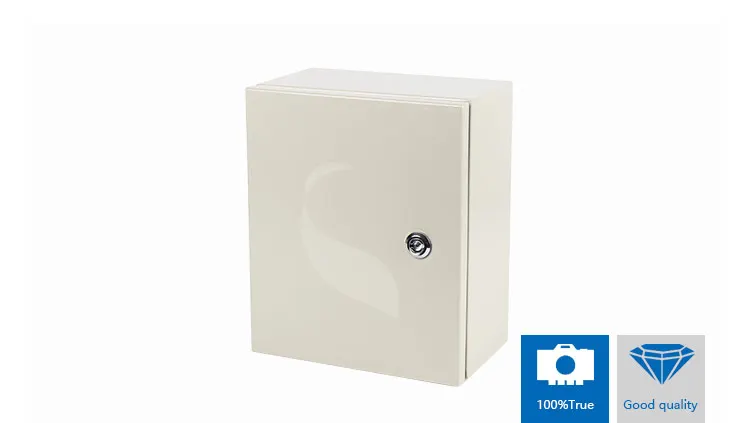

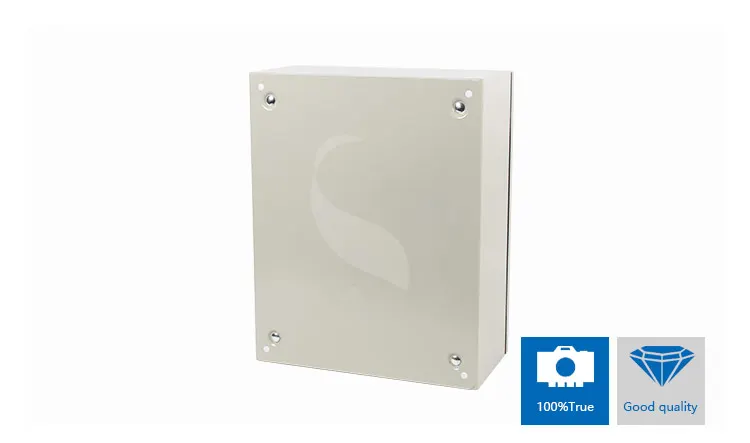

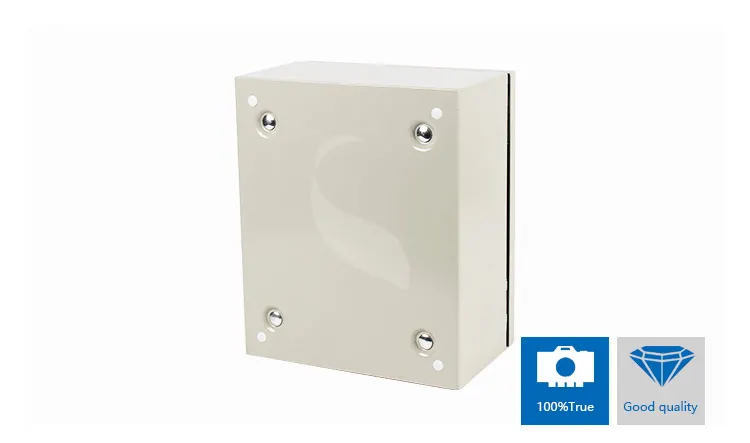

Metal Enclosure junction box IP66 waterproof junction box outdoor rainproof box
Product Porcess
PU foaming sealing strip ensures a protection grade of IP66 to box body
Bosses of various types and sizes allow easy installation of inlet/outlet lines
Galvanized mounting plate can also be used for wiring outside the box
Multiple protection grooves are designed at the box opening can not only reinforce the structure but also prevent the entry of dirt or water when the door is opened
Professional lock system with double-teeth cylinder allows easy locking/unlocking

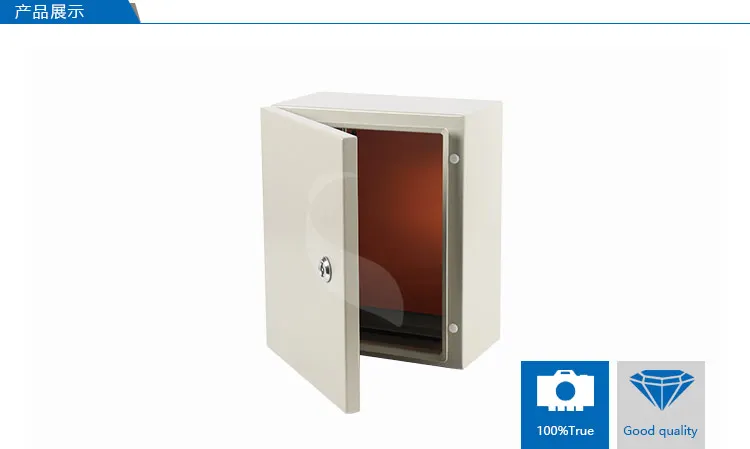

Inner doors
Inner doos set for fixing to the front of the enclosureoutdoor plastic storage box
The internal door can also be adjusted in depth through SDCR supports.Made of sheet steel protected with polyester epoxy.
outd
oor plastic storage box

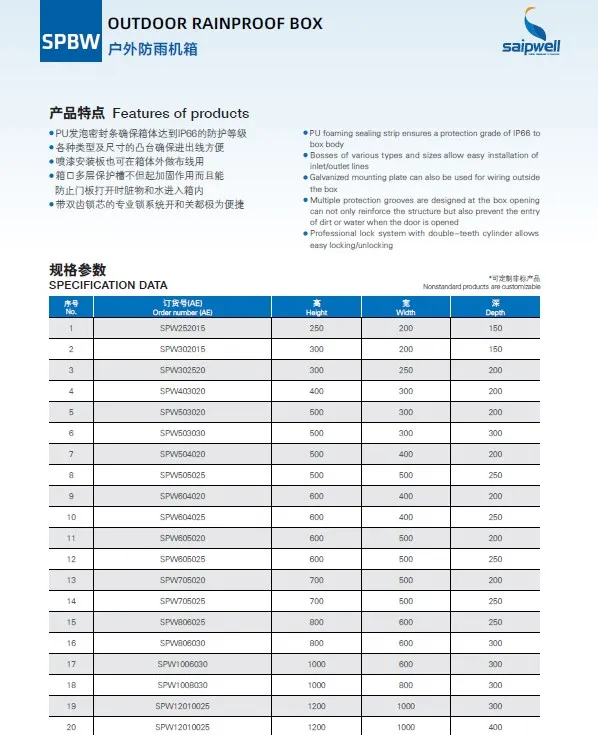

More Size(We can do the different size as customers' order .)
| Type | Size | Type | Size | Type | Size | Type | Size |
| SPT-202015 | 200*200*150 | SPT-504025 | 500*400*250 | SPT-705015 | 700*500*150 | SPT-10010025 | 1000*1000*250 |
| SPT-252015 | 250*200*150 | SPT-504030 | 500*400*300 | SPT-705020 | 700*500*200 | SPT10010030 | 1000*1000*300 |
| SPT-302015 | 300*200*150 | SPT-505015 | 500*500*150 | SPT-705025 | 700*500*250 | SPT1206020 | 1200*600*200 |
| SPT-302020 | 300*200*200 | SPT-505020 | 500*500*200 | SPT-706020 | 700*600*200 | SPT1206025 | 1200*600*250 |
| SPT-302520 | 300*250*200 | SPT-505025 | 500*500*250 | SPT-706025 | 700*600*250 | SPT1206030 | 1200*600*300 |
| SPT-303015 | 300*300*150 | SPT-604015 | 600*400*150 | SPT-806020 | 800*600*200 | SPT-1208020 | 1200*800*200 |
| SPT-303020 | 300*300*200 | SPT-604020 | 600*400*200 | SPT-806025 | 800*600*250 | SPT1208025 | 1200*800*250 |
| SPT-303025 | 300*300*250 | SPT-604025 | 600*400*250 | SPT-806030 | 800*600*300 | SPT-1208030 | 1200*800*300 |
| SPT-403015 | 400*300*150 | SPT-604030 | 600*400*300 | SPT-808020 | 800*800*200 | SPT-12010025 | 1200*1000*250 |
| SPT-403020 | 400*300*200 | SPT-605015 | 600*500*150 | SPT-808025 | 800*800*250 | SPT-120410030 | 1200*1000*300 |
| SPT-403025 | 400*300*250 | SPT-605020 | 600*500*200 | SPT-808030 | 800*800*300 | SPT-12010040 | 1200*1000*400 |
| SPT-404015 | 400*400*150 | SPT-605025 | 600*500*250 | SPT-1006020 | 1000*600*200 | SPT-12012025 | 1200*1200*250 |
| SPT-404020 | 400*400*200 | SPT-605030 | 600*500*300 | SPT-1006025 | 1000*600*250 | SPT-12012030 | 1200*1200*300 |
| SPT-404025 | 400*400*250 | SPT-606015 | 600*600*150 | SPT-1006030 | 1000*600*300 | SPT-1406030 | 1400*600*300 |
| SPT-503015 | 500*300*150 | SPT-606020 | 600*600*200 | SPT-1008020 | 1000*700*200 | SPT-1408030 | 1400*800*300 |
| SPT-503020 | 500*300*200 | SPT-606025 | 600*600*250 | SPT-1008025 | 1000*800*250 | SPT-14010030 | 1400*1000*300 |
| SPT-503030 | 500*300*300 | SPT-704020 | 700*400*200 | SPT-1008030 | 1000*800*300 | SPT-14010040 | 1400*1000*400 |
| SPT-504015 | 500*400*150 | SPT-704030 | 700*400*300 | SPT-1008040 | 1000*800*400 | SPT-14012030 | 1400*1200*300 |
| Type | Size | Type | Size | Type | Size | Type | Size |
| SPW-202015 | 200*200*150 | SPW-504025 | 500*400*250 | SPW-705015 | 700*500*150 | SPW-10010025 | 1000*1000*250 |
| SPW-252015 | 250*200*150 | SPW-504030 | 500*400*300 | SPW-705020 | 700*500*200 | SPW-10010030 | 1000*1000*300 |
| SPW-302015 | 300*200*150 | SPW-505015 | 500*500*150 | SPW-705025 | 700*500*250 | SPW-121206020 | 1200*600*200 |
| SPW-302020 | 300*200*200 | SPT-505020 | 500*500*200 | SPW-706020 | 700*600*200 | SPW-1206025 | 1200*600*250 |
| SPW-302520 | 300*250*200 | SPW-505025 | 500*500*250 | SPW-706025 | 700*600*250 | SPW-1206030 | 1200*600*300 |
| SPW-303015 | 300*300*150 | SPW-604015 | 600*400*150 | SPW-806020 | 800*600*200 | SPW-1208020 | 1200*800*200 |
| SPW-303020 | 300*300*200 | SPW-604020 | 600*400*200 | SPW-806025 | 800*600*250 | SPW1208025 | 1200*800*250 |
| SPT-303025 | 300*300*250 | SPT-604025 | 600*400*250 | SPW-806030 | 800*600*300 | SPW-1208030 | 1200*800*300 |
| SPW-403015 | 400*300*150 | SPW-604030 | 600*400*300 | SPW-808020 | 800*800*200 | SPW-12010025 | 1200*1000*250 |
| SPW-403020 | 400*300*200 | SPW-605015 | 600*500*150 | SPW-808025 | 800*800*250 | SPW-120410030 | 1200*1000*300 |
| SPW-403025 | 400*300*250 | SPW-605020 | 600*500*200 | SPW-808030 | 800*800*300 | SPW-12010040 | 1200*1000*400 |
| SPW-404015 | 400*400*150 | SPW-605025 | 600*500*250 | SPW-1006020 | 1000*600*200 | SPW-12012025 | 1200*1200*250 |
| SPW-404020 | 400*400*200 | SPW-605030 | 600*500*300 | SPW-1006025W | 1000*600*250 | SPW-12012030 | 1200*1200*300 |
| SPW-404025 | 400*400*250 | SPW-606015 | 600*600*150 | SPW-1006030 | 1000*600*300 | SPW-1406030 | 1400*600*300 |
Company Information
About Saip Electric Group Company Limited
Saip Electric Group Co . , Ltd ( called ” Saip ” forshort ) is an enterprise specialized in design , production and sales of electricequipments . Head office located in the largest manufacturing base of electricequipment of Wenzhou China , which is called ” the Electric Equipment Capital of China ” , next to Shanghai and Ningbo Ports . Saip has Five specialized branches ,over 300 specialized cooperative partners . Saip , an ISO9001 certificatedenterprise, owns modern production lines and high quality controlling equipmentwith scientific administration, professional engineers, highly trained teamstechnicians and skilled workers.Now Saip has five design and production basesin Hong Kong, Taiwan, Singapore, Turkey and Shanghai(China Mainland), 28 salesorganizations in the world and more than 50 holding member enterprises. Saipproducts cover wind energy, solar energy, low-voltage apparatus, welding equipment,instrument and meter, photoelectron, electrical products for construction,automobile apparatus and industrial automation, The products are sold to morethan 100 countries and regions. All exported products have passed through thecertification of CE and partial products have passed through several kinds ofinternational certification like ROHS, TUV, ., KEMA, S, SIRIM and so on.Saipas always inherits “high quality and sincere service”.Saip—yoursuccessf. cooperative partner!
1. Saip is an enterprise specialized in design , production and sales of electric equipments .
2. It's located in the largest manufacturingg base of electric equipment of Wenzhou ,China .
3. All exported products have passed through the certification of CE and partial products have passed
through several kinds of international certification like ROHS , EMC , LVD , IP66 and so on .
------------ 7 years export experiences
------------ Specialized in electric equipment .
------------ Alibaba top golden supplier
Packaging & Shipping
why choose us?
Certifications

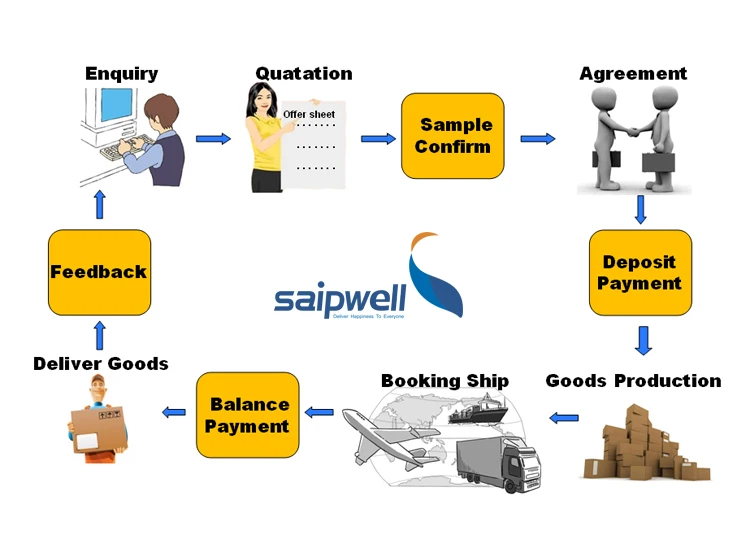

How to order?
contact way
Hello , this is Mary from Saip Electric Group Company Limited .
Thanks for your inquiry of our product.
Please feel free to contact me :
More products,you can visit our web : www.saipwell.com to check.
Contact Person:Maryzhang
Email: mary(at)saipwell.com
Wechat:0086-13695878629
Mob:0086-13695878629
Tel:0086-021-33050667-8023
Fax:0086-021-33050669
Happy to service for you.
