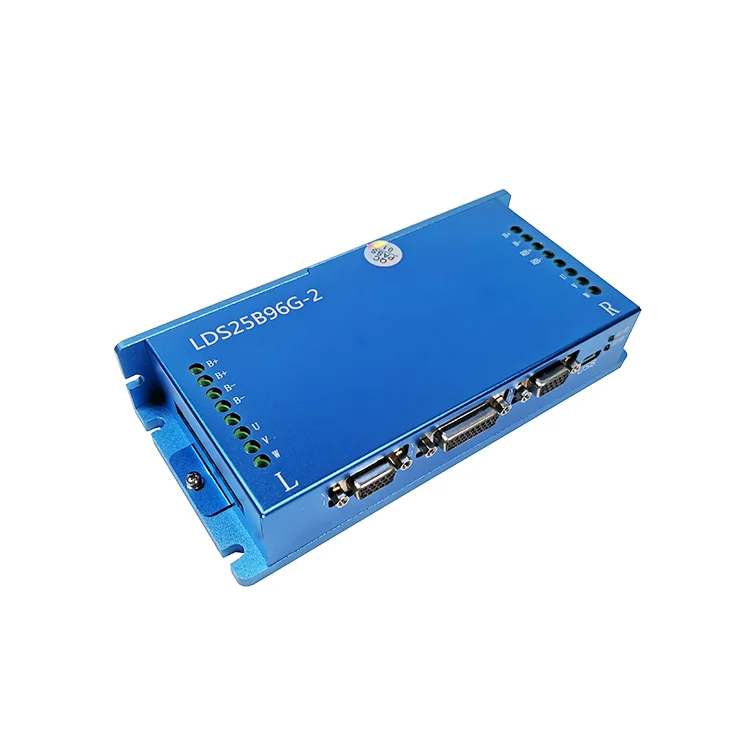

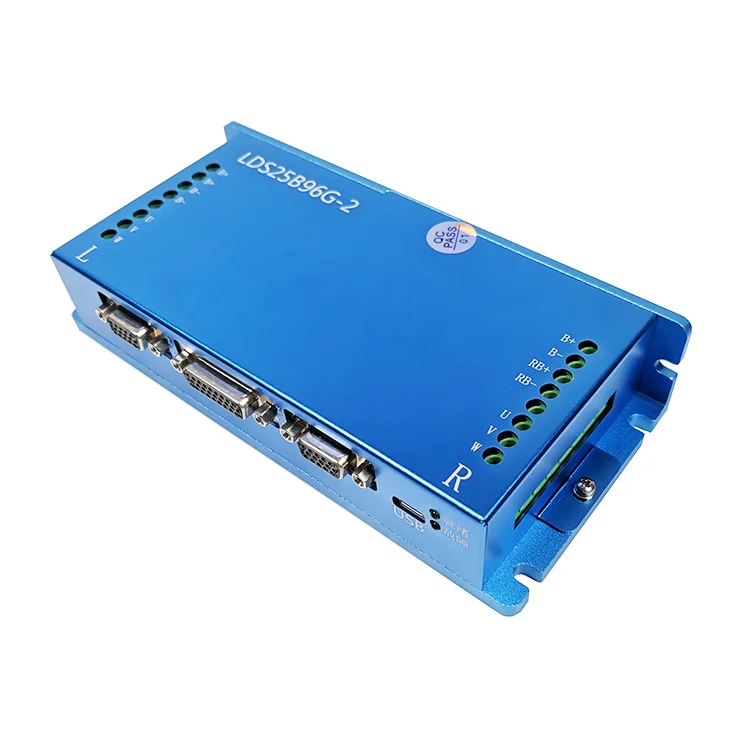

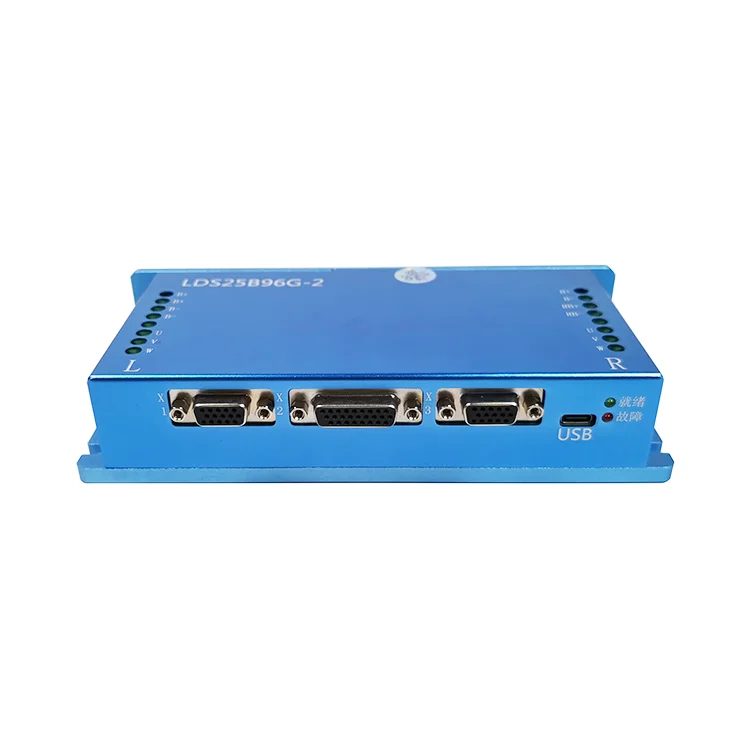

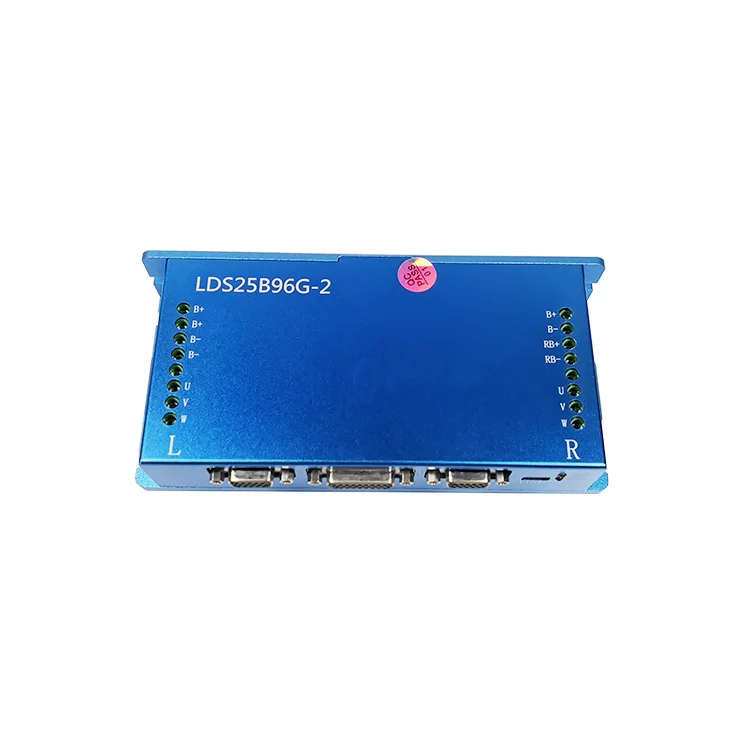

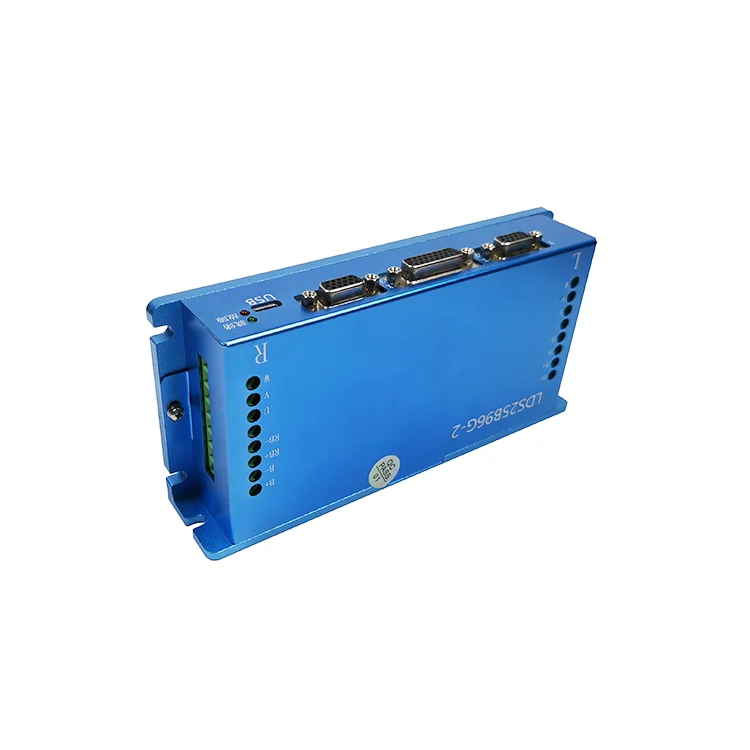

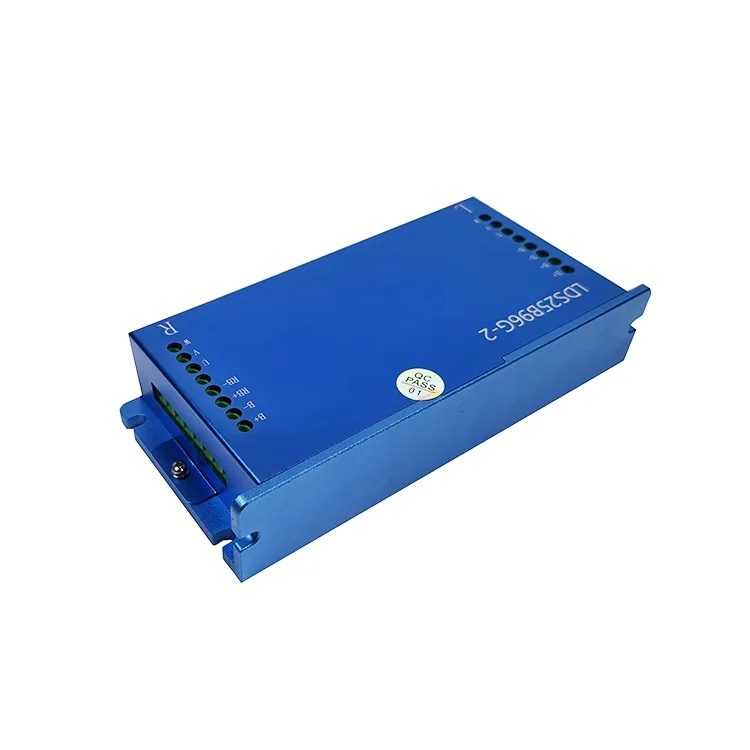

Dual Channel Motor Driver LDS25B96G-2
LD series DC servo motor driver is a high-performance DC motor driver which has been introduced by senior experts after more than ten years of application experience in the robot industry, combined with leading motor control and current accurate detection technology. The powerful PID adjustment technology can perfectly control the motor's smooth forward and reverse rotation, commutation and braking. The output current can be adjusted in real time to prevent overcurrent. The motor speed and rotation position can be accurately controlled. The motor has a short response time and low recoil. We can provide 5A-200A high current, wide voltage input 12v-96v and other serialized products. This product is widely used in mobile cars, service robots, wearable exoskeleton robots and other products.
PRODUCT SPECIFICATIONS
Model | LDS25B96G-2 |
Single Channel Rated Current | 25Arms±2% |
Single Channel Maximum Current | 50Arms±2% |
Maximum Overload Time of Single Channel | 10S |
Overload Recovery Time of Single Channel | 90S (Requires external auxiliary heat dissipation) |
Limit Power Supply Range | 18 VDC～96 VDC |
Temperature Rise | Rated current operation 30min≤40K (refer to cooling mode) |
Drive Frequency | 6 ～16KHz±0.1KHz |
Cooling Method | Good ventilation conditions, need to add heat sink aluminum fins at the bottom |
Rated Insulation Withstand Voltage | The leakage current of input and output to chassis DC 1000V is less than 3mA, |
Insulation resistance of the whole machine | At a temperature of 40 ° and a humidity of 95% ≥1M (no dew on the board) |
Mean Time Between Failures (MTBF) | ≥5000 hours |
Power Control Method | Vector control |
Protection Level | IP32 |
Dimension
Advantages
* Flat, small size, wide voltage, light weight, high power density.
* Acceleration and acceleration mode control, fast positioning without shaking.
* Multiple hardware and software to protect the motor.
* Real-time reading current, speed, position.
* Real-time reading current, speed, position.
RS485 Communication
The communication line of Rs485 communication should not be run together with the high-voltage line or high-current power line. For wiring precautions, please refer to 4.2 Communication Cable Wiring Method below.
CAN Communication
● It is recommended to use shielded twisted pair connection. Connect two 120Ω terminal matching resistors at both ends of the bus to prevent signal reflection.
● Measure the resistance between CANL and CANH with a multimeter to confirm whether the field termination resistance is correct. The normal resistance value should be about 60Ω. (Two electricity Resistance parallel)
● The maximum number of connected devices is 64.
● When CAN devices communicate over long distances, the common ground GND of different CAN circuits needs to be connected to each other to ensure that the reference potentials between different communication devices are equal.
● CAN communication line should not go together with high voltage line or high current power line.
Structure Diagram

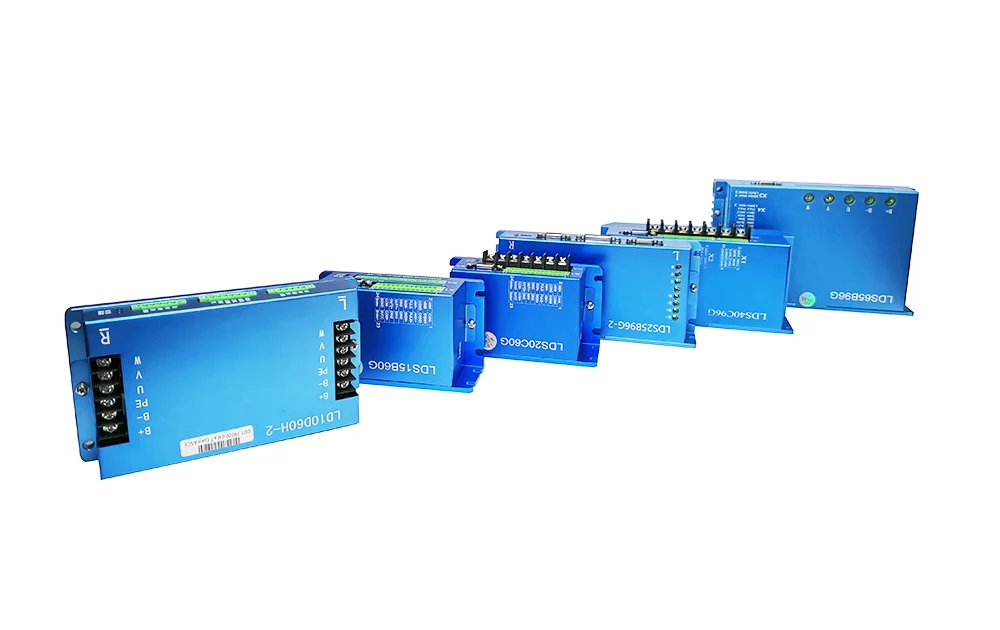

Product Series
