DGPS GNSS RTK base and rover station receiver M65
- Category: >>>
- Supplier: Tianjin Unique Technology Co. Ltd.
Share on (1600586458616):
Product Overview
Description
Product Description
DGPS GNSS RTK base and rover station receiver M65
Function Feature
The M65 is a high
-end GNSS receiver, a new generation
of measurement engine, built
-in 4G module, all-network
link, and multi
-protocol radio, using a new appearance
design, magnesium
alloy structure, Linux operating
system, is an extreme, intelligent, lightweight survey
GNSS receiver.
-end GNSS receiver, a new generation
of measurement engine, built
-in 4G module, all-network
link, and multi
-protocol radio, using a new appearance
design, magnesium
alloy structure, Linux operating
system, is an extreme, intelligent, lightweight survey
GNSS receiver.
Function Feature
Linux+I.MX6ULCortex-A7
intelligent system platform
432 Super channels and
special fast catching engine
Support BDS、GPS、GLONASS、
Galileo、QZSSand SBAS
Centimeter level accuracy
Built-in large capacity
intelligent lithium battery,
Long endurance
Industrial type design, strong
magnesium alloy housing,
IP67 design, safe and reliable
intelligent system platform
432 Super channels and
special fast catching engine
Support BDS、GPS、GLONASS、
Galileo、QZSSand SBAS
Centimeter level accuracy
Built-in large capacity
intelligent lithium battery,
Long endurance
Industrial type design, strong
magnesium alloy housing,
IP67 design, safe and reliable
Configuration | Content | Remarks | ||
Hardware platform | I.MX6UL Cortex-A7 | |||
Software platform | Linux | |||
GNSS | GPS | L1、L2、L5 | ||
GLONASS | L1、L2 | |||
BDS | B1、B2、B3 | |||
GALILEO | E1、E5a、E5b | |||
QZSS | L1、L2、L5 | |||
SBAS | L1 | |||
Data format | NMEA-0183 | |||
CorrectionI/OProtocol | RTCM 2.X、RTCM3.X | |||
Data update rate | MAX 5Hz | |||
Reacquisition time | <1s | |||
Cold start | <40s | |||
Positioning accuracy | Single point positioning （RMS） | Horizontal: 1.5m Vertical: 3.0m | ||
DGPS（RMS） | Horizontal: 0.4m Vertical: 0.8m | |||
RTK（RMS） | Horizontal：±（10mm+1ppm） Vertical：±（15mm+1ppm） | |||
Time precision（RMS） | 20ns | |||
Static accuracy(RMS) | Horizontal：±（2.5mm+1ppm） Vertical：±（5mm+1ppm） | |||
Speedaccuracy（RMS） | 0.03m/s | |||
Tilt Compensation Accuracy（within30°） | <2cm | Only supported by M65XXI | ||
The system platform | Bluetooth | V2.1+EDR / V4.0 Dual mode | ||
WIFI | 802.11 b/g/n | |||
Radio communication | External transmit：5W/35W（adjustableexternal radio） Built-in transmit：0.5W/1Wadjustable frequency：410-470MHz Communication protocol：TrimTalk,TrimMark3， SOUTH，PCC-EOT | |||
Cellular network communication | all-network link LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 TD-SCDMA: B34/B39 CDMA: BC0 WCDMA: B1/B8 GSM: 900/1800MHz | |||
Built-in memory | On board 8G; | |||
Indicator light | Indicator light | Power indicator | ||
Satellite light | Positioning status indicator | |||
Bluetoothlight | Bluetoth connection status indicator | |||
Data link light | Differential data link indicator | |||
Mobile network indicato | Mobile network status indicator | |||
Battery | Specification | 7.4V，9750mAh | ||
Endurance | >15hour (under typical power consumption) | |||
Environmental features | Working temperature | -20℃~+70℃ | ||
Storage temperature | -40℃~+85℃ | |||
Shock resistance | 2mdrop with pole at normal temperature | |||
Protection rating | IP67 | |||
Physical features | material | Magnesium alloy shell+ABS／PCPlastic lid | ||
Dimension | 156mm*156mm*102mm | |||
Weight | 1.4kg | |||
Accessories | M65Host | 1Set | ||
Radio antenna | 1PCS | |||
Data cable with 7 core | 1PCS | |||
Power adapter | 1PCS | |||
Product Features
Linux smart system
Linux+ i.mx6ul cortex
-a7 intelligent system platform,bring efficient
computing and unlimited expansion of product functions to users.
Full system full frequency GNSS receiver
The host is integrated with high precision positioning module, with completely
independent core intellectual property rights，
it support BDS B1/B2/B3，
GPS L1/L2/L5，GLONASS L1/L2，Galileo E1/E5a/E5b，SBAS L1，
QZSS L1/L2/L5，
Full system fullfrequency signal reception and processing
4G, all-network link
Based on the Linux platform, 4G all-network link solution, fully support China mobile/Unicom/Telecom 2/3/4G network, better
compatibility, stronger signal, more stable connection.
Long endurance
Built-in large-capacity intelligent lithium battery to ensure continuous
working time over 15 hours (under typical power consumption)
Combination of antenna
New four in one antenna, GNSS, WiFi, bluetooth, 4G all in one, better wireless signal
Linux+ i.mx6ul cortex
-a7 intelligent system platform,bring efficient
computing and unlimited expansion of product functions to users.
Full system full frequency GNSS receiver
The host is integrated with high precision positioning module, with completely
independent core intellectual property rights，
it support BDS B1/B2/B3，
GPS L1/L2/L5，GLONASS L1/L2，Galileo E1/E5a/E5b，SBAS L1，
QZSS L1/L2/L5，
Full system fullfrequency signal reception and processing
4G, all-network link
Based on the Linux platform, 4G all-network link solution, fully support China mobile/Unicom/Telecom 2/3/4G network, better
compatibility, stronger signal, more stable connection.
Long endurance
Built-in large-capacity intelligent lithium battery to ensure continuous
working time over 15 hours (under typical power consumption)
Combination of antenna
New four in one antenna, GNSS, WiFi, bluetooth, 4G all in one, better wireless signal

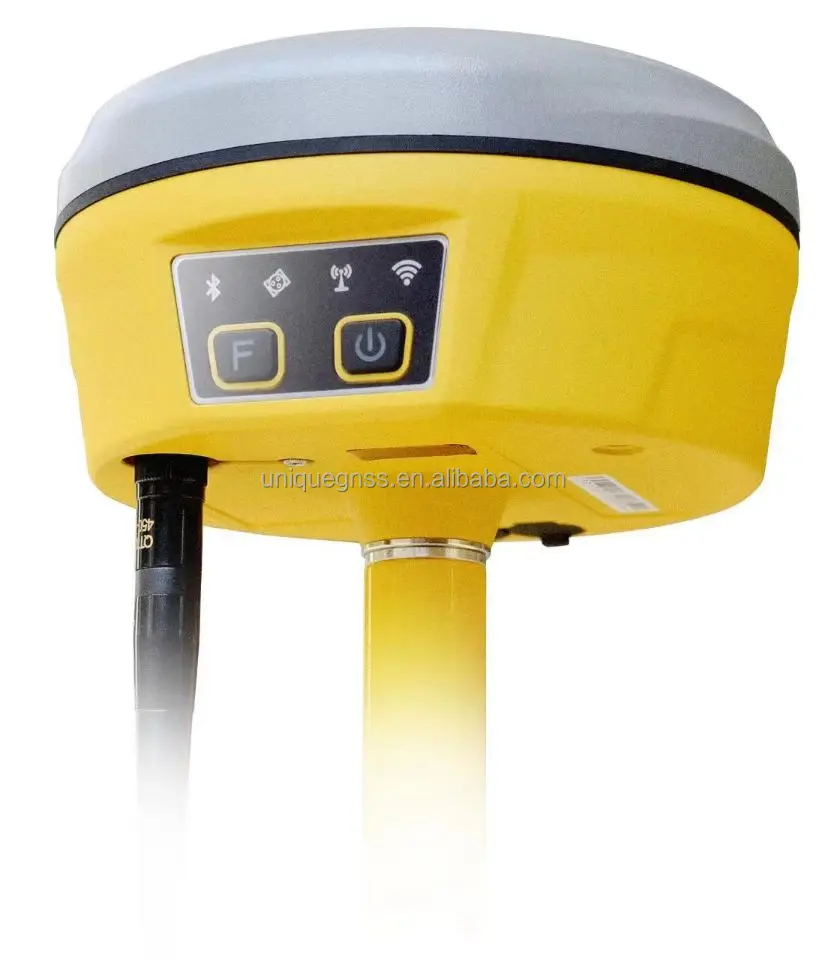

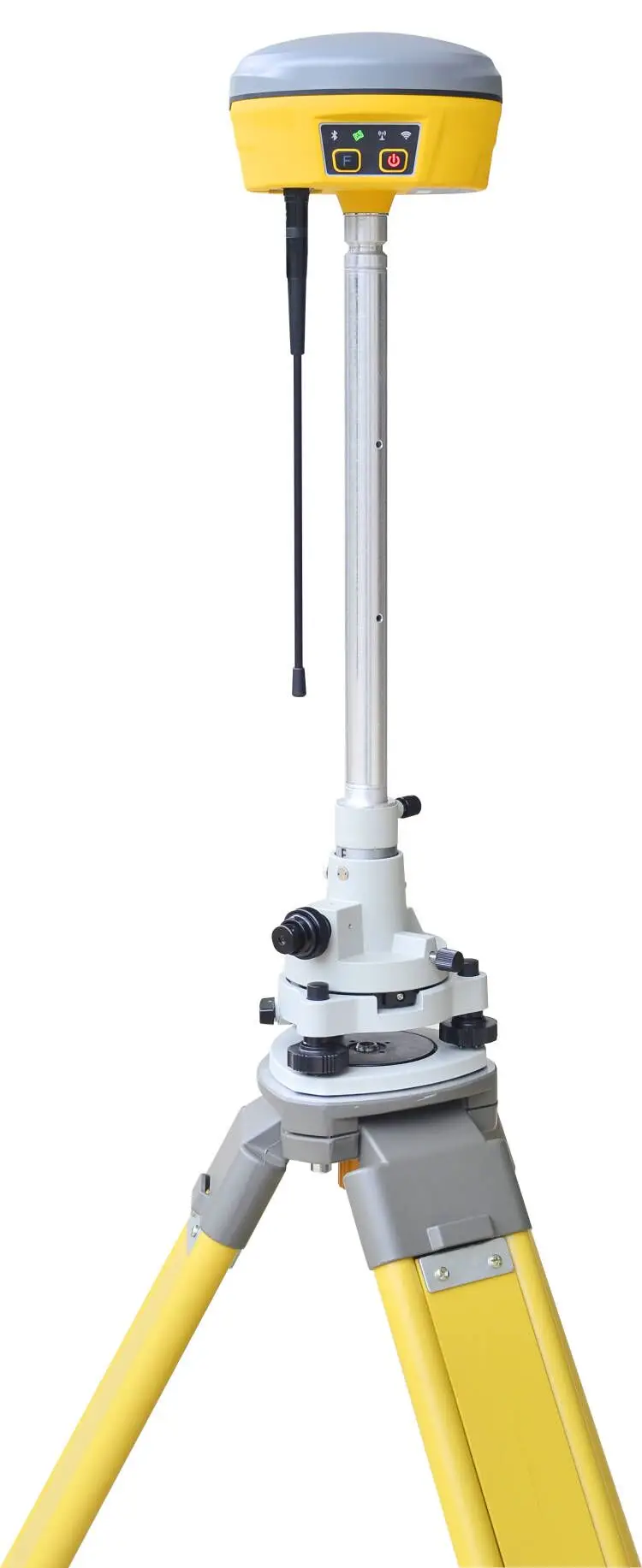

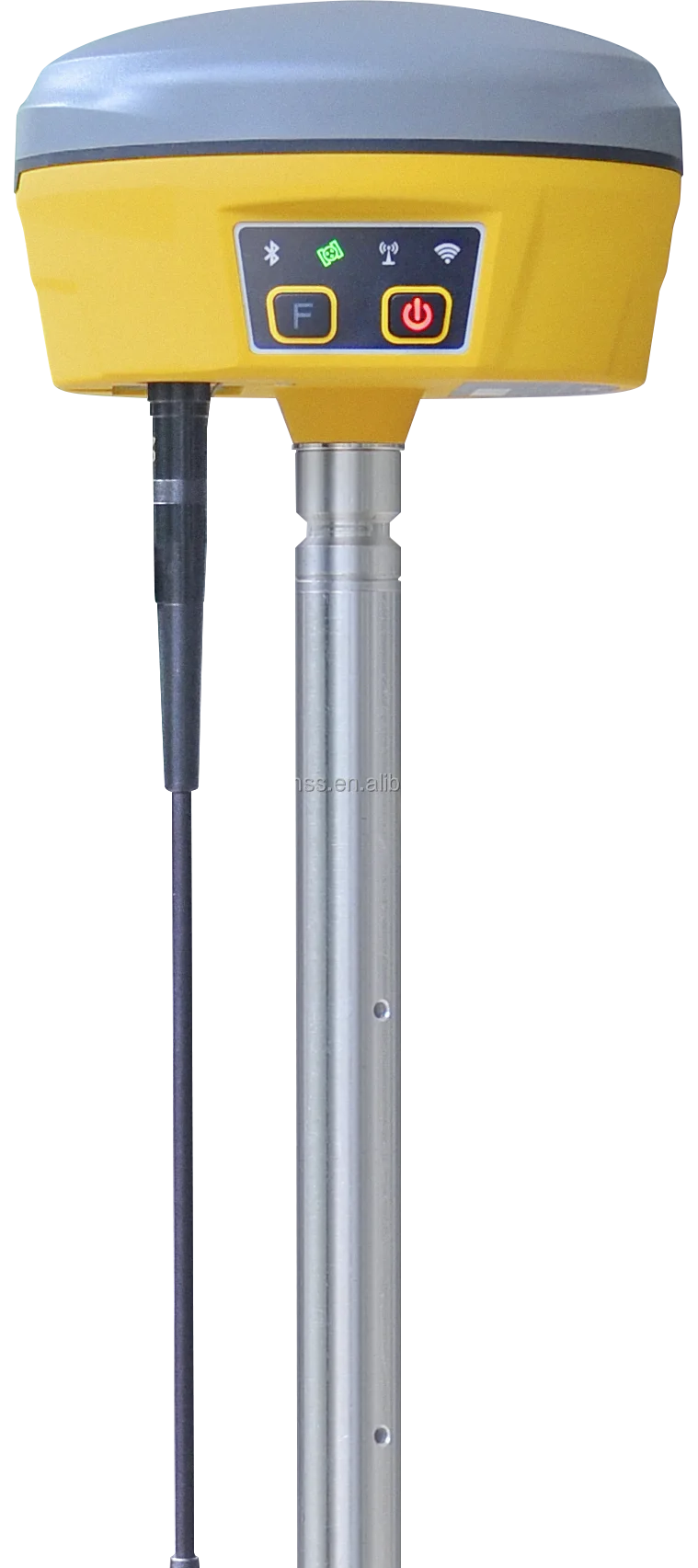

Products Photos
Related Products

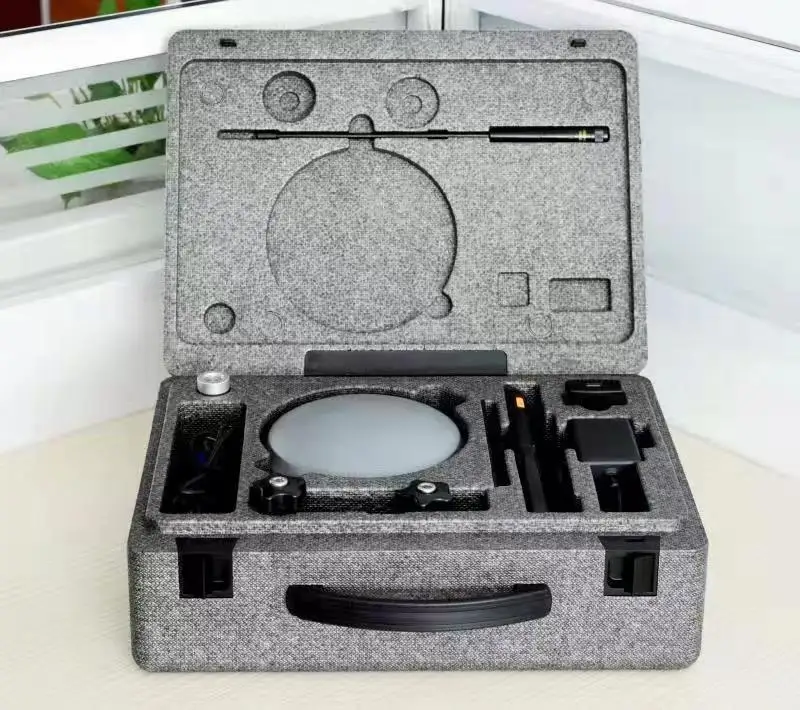

Packing&Shipping
After Sales Service
The warranty period is 12 months.
Within the 12 months, if there is any fault caused by non-artificial reason, which can be repaired by the customer themselves, we
can offer the spare parts to the customer free of charge. If there is any problem which cannot be repaired by the customer
themselves, the customer can resent the products to our factory for repairing free of charge, and the freight charge would be
shared by the customer and our company two sides.Under the circumstances out of the warranty period, if there is any problem, we
can repair free of charge for the customers, we just charge for the spare parts at the cost itself, and the freight charge would
be bear by the customers.
If there is any problem caused by human reason within the first year, the service would be the same as the service out of the
warranty period.
can offer the spare parts to the customer free of charge. If there is any problem which cannot be repaired by the customer
themselves, the customer can resent the products to our factory for repairing free of charge, and the freight charge would be
shared by the customer and our company two sides.Under the circumstances out of the warranty period, if there is any problem, we
can repair free of charge for the customers, we just charge for the spare parts at the cost itself, and the freight charge would
be bear by the customers.
If there is any problem caused by human reason within the first year, the service would be the same as the service out of the
warranty period.
