Sorting Belt Conveyor Machine Conveyor Scanning Static Dimensioner Weighing Cubing System
- Category: >>>
- Supplier: Senad Robot(Shanghai)Co. Ltd.
Share on (1600586671973):
Product Overview
Description
Product Description
DWS system ecommerce courier express logistics warehouse handling belt conveyor

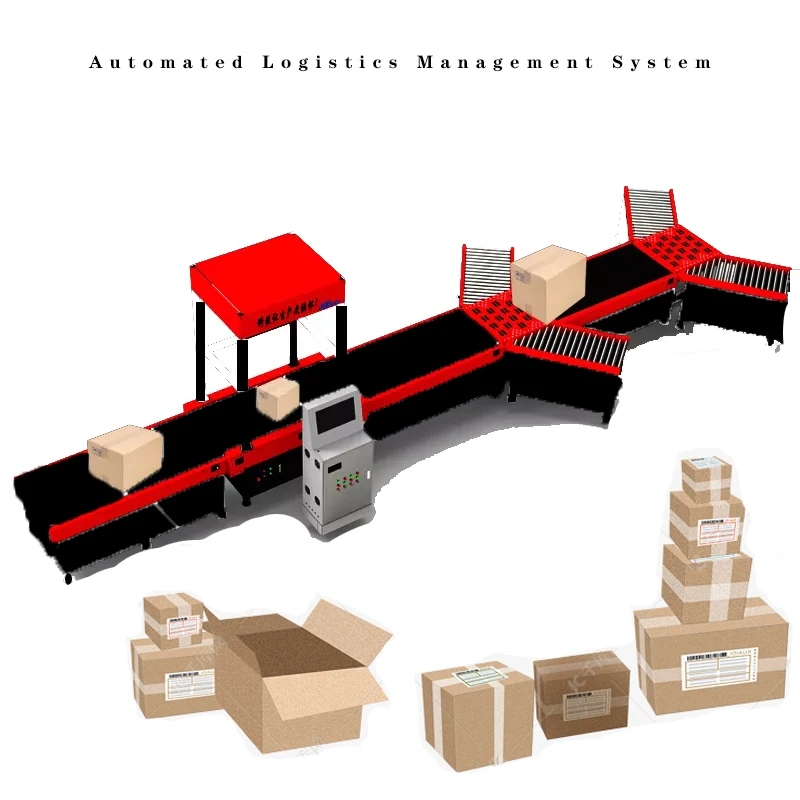

This is an automatic parcel handling and sorting system.
This belt conveyor handling system is integrated with dynamic dimensioning weighing scanning system and sorting controlling system. It covers the head part of logistics warehousing flows. Widely applied in both mainland China and overseas markets.
The parcels are automatically unloading from truck and the connecting belt conveyer will pass on them to the Dimensioning Weighing Scanning section for barcode reading & image capturing, dynamic weighing and cubic dimension mearsuring(Once the throughput is massly large, there is an automatic queuing equipment to make the parcel passing on one by one instead of in huddling.)
After the DWS information captured, the WCS system will integrate the sorting plans to designated the destination of each parcels.There are 23 different sorting destionations availble.
Product Shows
Product Paramenters
Description | Specification | Remarks | ||
Industrial computer | Intel I5 | SENAD customized | ||
Display | 19.5inches | LCD | ||
Camera | 20 million pixels smart camera | / | ||
Dedicated light source | For smart camera | / | ||
Keyboard mouse | Wireless mouse and keyboard set | Logitech | ||
Load cell sensor | 100kg | Express delivery | ||
Lens | 20mm Lens | / | ||
Volume Line Structure Light | 3D Camera | / | ||
DWS conveyor | Collect barcodes,weights,cubic dimensions,photos,system connection with host system | SENAD customized | ||

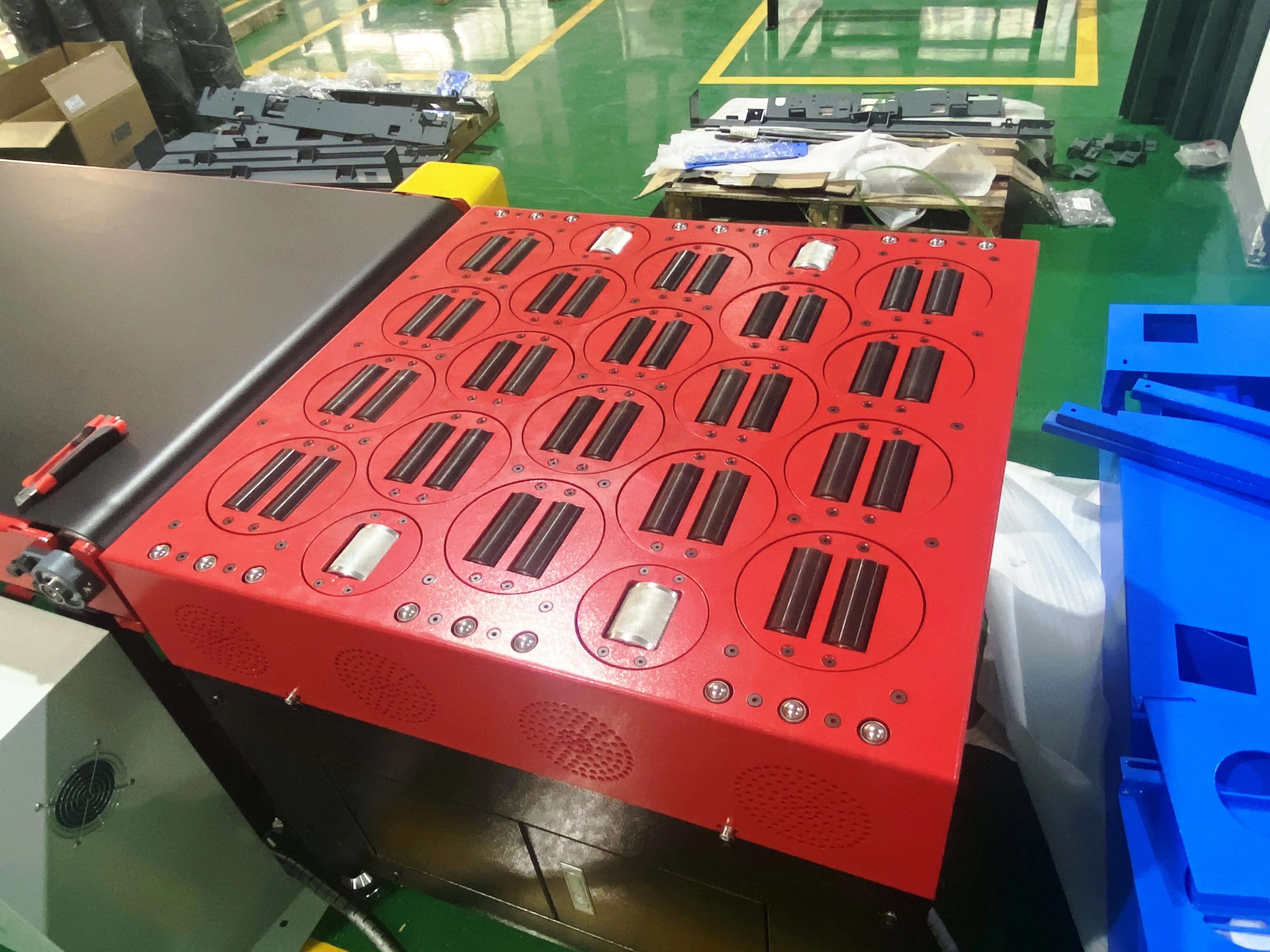

Wheet sorter conveyor | Convey to three or five exits | Left (*2),right (*2) and straight | ||
Connection conveyors | Different speed conveying | |||
Servo motor | 750W | / | ||
Parameters | ||||
Weighing error range | ±20~40g | |||
Weighing range | 0.03-60kg | |||
Efficiency | Average 3500pieces / hour | |||
Recognition rate | 99.9% (Normal packages) | |||
Error range | Normal: average ±10mm | |||
Abnormal: average ±15mm | ||||
Measuring range | 10*100*50~1200*1000*800（mm） | |||
Software interface | http、TCP、485 | |||
Application Software | SENAD DWS System | |||
Weighing mode | Dynamic weighing | |||
Temperature | -20℃-40℃ | |||
Power supply | 220V/50Hz | |||
Diagnostic method | Remote inspection / on-site inspection | |||
Speed of conveying belt | 90m/min（adjustable） | |||
Gathering images | yes | |||

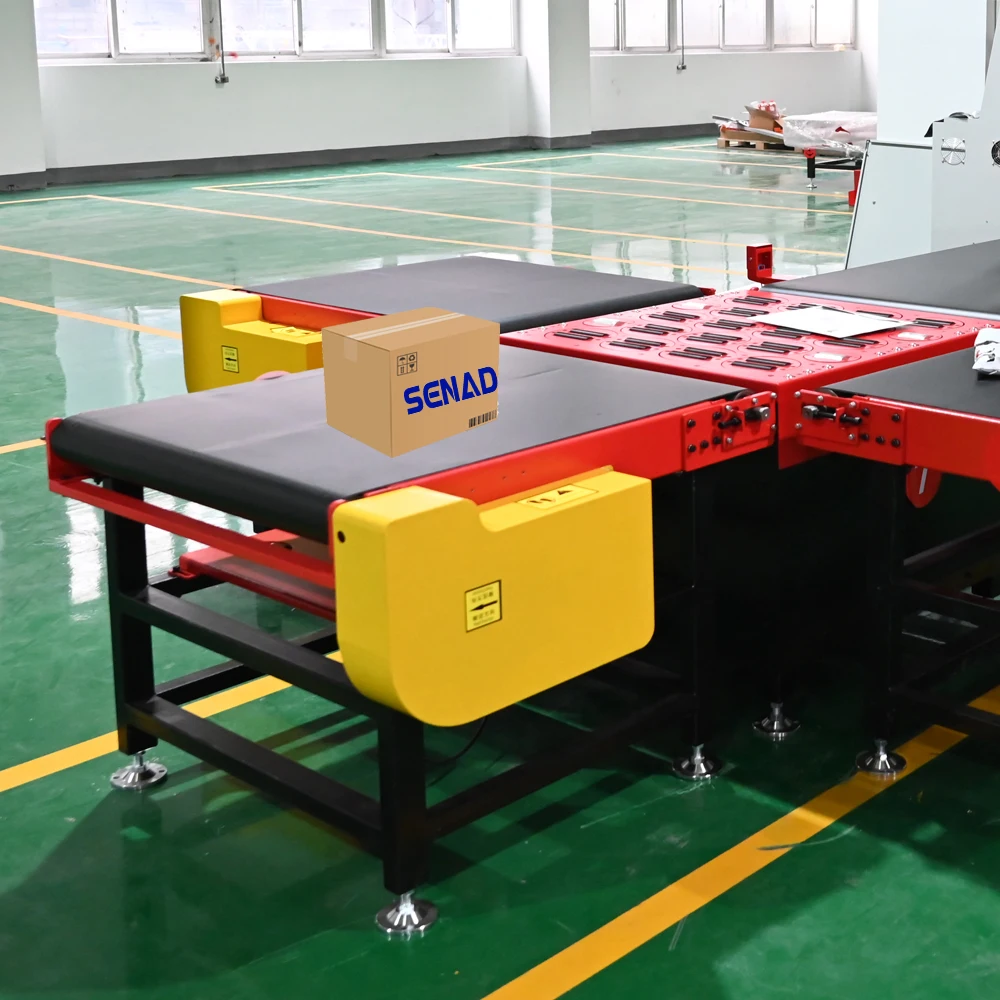

Product Details
__________
__________
__________
__________

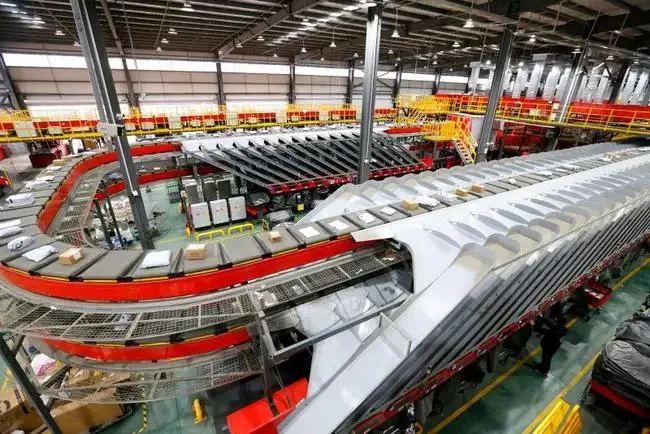

Application
