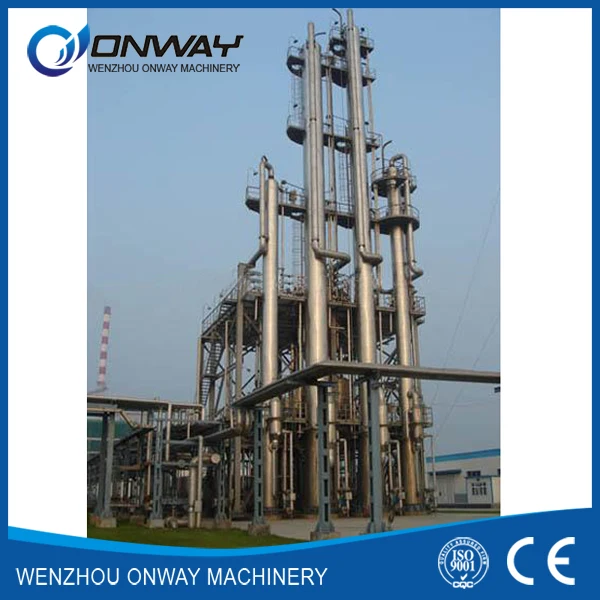

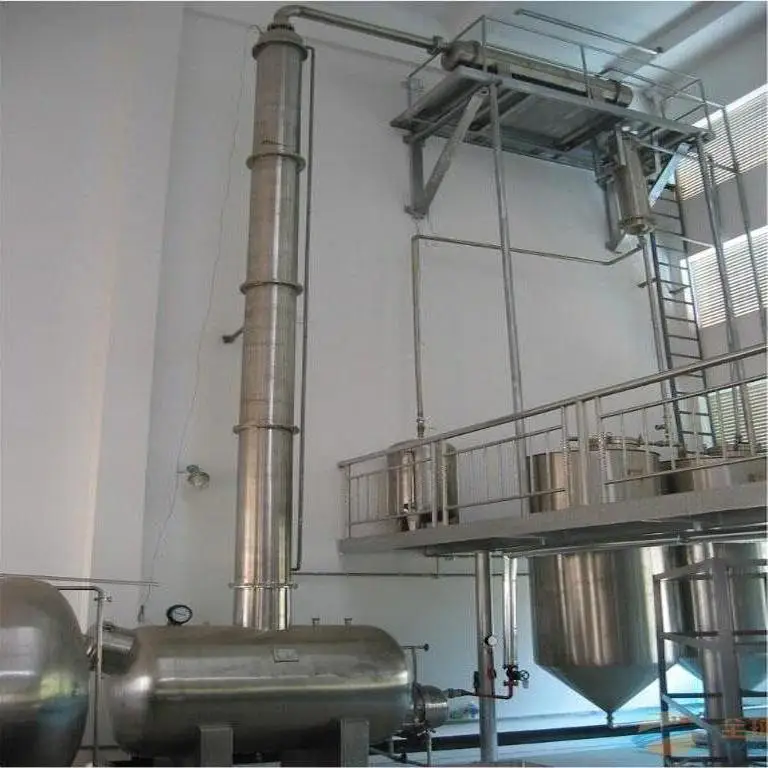

JH Alcohol Distiller
JH Alcohol Distiller (alcohol distillation equipment, distillation tower)is made up of Heater, tower/column body, condenser, cooler, buffer tank and high-level storage tank and alcohol online test gauge.
And this machine belong to industry type .It is very height about 10-15m height . The output alcohol max can be 96% .
Suitable for thin alcohol recovery of pharmaceutical, food, light industry and chemical Industry.
FEATURES AT A GLANCE
1.It can produce 70% alcohol, 90% alcohol and max 95% alcohol . You can control the output alcohol degree according to your request.
2. With very lower steam consumption and cooling water consumption .
3.Very easy to operation it .

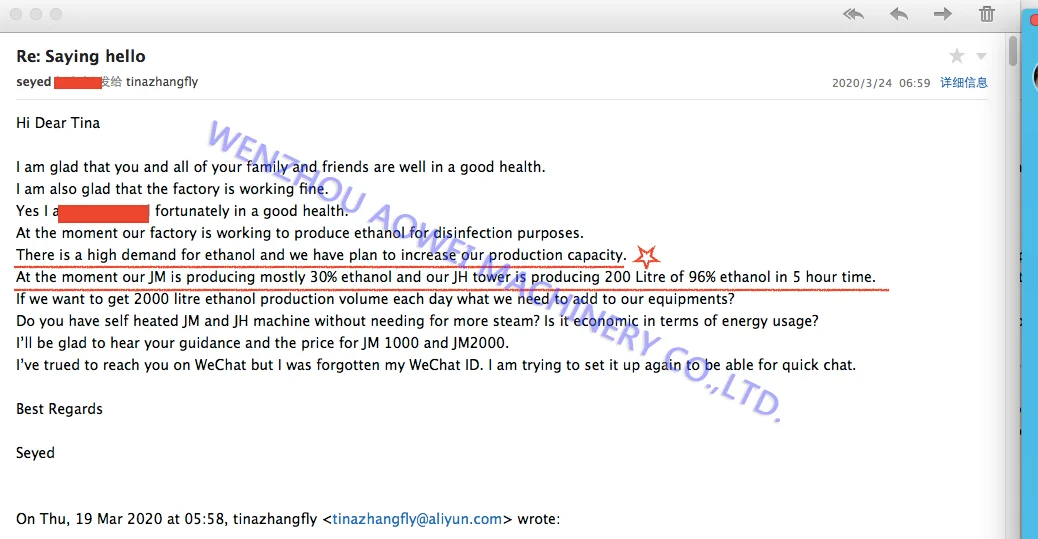

Customer project 1-
Two sets of JH alcohol distiller
Customer project 2
Customer project 2
Two sets of JH alcohol distiller
PRODUCT SPECIFICATIONS
JH200 | JH300 | JH400 | JH500 | JH600 | JH800 | ||||||
Tower volume (L) | 650 | 1200 | 1500 | 2300 | 2600 | 3200 | |||||
Tower heigh(mm) | 6000 | 7000 | 7000 | 7000 | 7500 | 7500 | |||||
Condensator area (m2) | 5 | 8 | 11 | 18 | 25 | 45 | |||||
Recycling capacity(kg/h) | 40-50 | 90-100 | 150-160 | 280-300 | 420-440 | 600-620 | |||||
Recycling concentration(%) | Max 96% | 96kN | |||||||||
Packing form inside the column | Stainless steel corrugated loading material | 60kN | |||||||||
PRODUCT CONFIGURATION
The heater(You feeding raw material into this part )
Stainless steel corrugated(which filling inside the column )
Condenser(used to cooling the alcohol vapor to alcohol liquid )
Final Product For Reference
Rubbing alcohol&Fuel alcohol
Rubbing Alcohol - 75% alcohol
Fuel Alcohol-98% methanol
Drinking Alcohol
The alcohol can be 40%, 50% , 55%, 65%, 70% alcohol .
