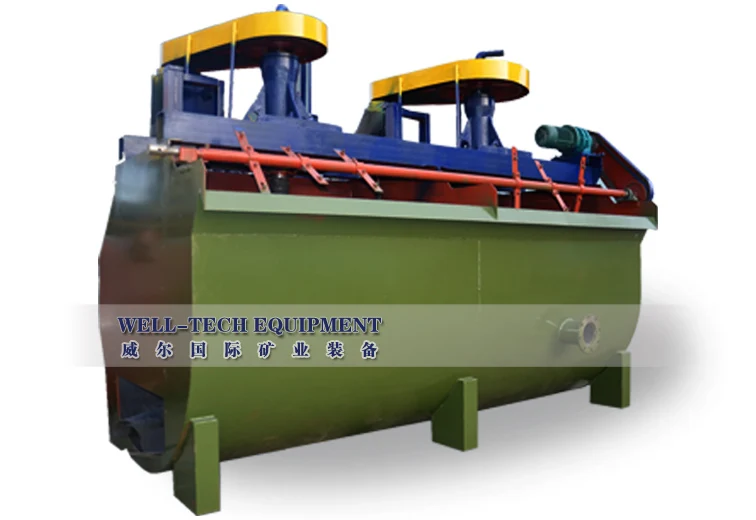

Copper flotation machine flotation cell from China manufacturer
- Category: >>>
- Supplier: Jiangxi Well-Tech International Mining Equipment Co. Ltd.
Share on (1600586913402):
Product Overview
Description
Product Description
Introduction

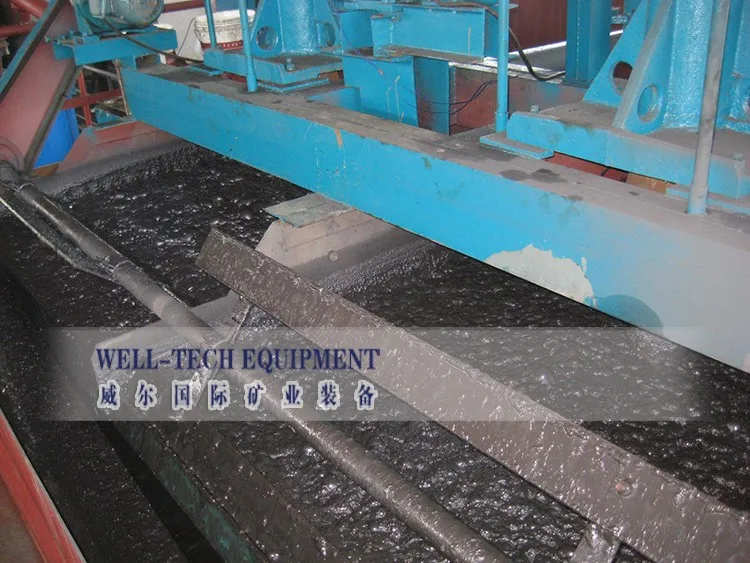

Floatation Separator is usually a continuous process by a few tanks, dozens of tank flotation machine connection, including roughing, scavenging, concentration operations. The use of flotation machine should meet the following requirements about equipment and processes, varies parts are complete and intact. Machines function normally and achieve the required aeration rate. Motor drives impeller rotating through belt and pulley. On the one hand, the machine inhaled enough air mixed with slurry, on the other hand, stirring the mixture of pulp and pharmaceutical. At the same time, refinement of the bubble, the particles adhere to the bubbles on the role of reagents and float to the slurry surface. So it the formation of mineralized froth layer and scraped by the scraper.
SPECIFICATIONS FOR XCF/KYF FLOTATION MACHINE | ||||||||||||||
Model | Effective volume(m³) | Capacity (m³/min) | Diameter of impeller(mm) | Pressure of blower(Kpa) | Power of impeller(Kw) | Power of scrapper(Kw) | Weight(Kg | |||||||
XCF-1 | 1 | 0.2-1 | 400 | >12.6 | 5.5 | 1.1 | 1154 | |||||||
XCF-2 | 2 | 0.4-2 | 470 | >14.7 | 7.5 | 1659 | ||||||||
XCF-3 | 3 | 0.6-3 | 540 | >19.8 | 11 | 1.5 | 2259 | |||||||
XCF-4 | 4 | 1.2-4 | 620 | >19.8 | 15 | 2669 | ||||||||
XCF-8 | 8 | 3.0-8 | 720 | >21.6 | 22 | 3968 | ||||||||
XCF-16 | 16 | 4-16 | 860 | >25.5 | 37 | 6520 | ||||||||
XCF-24 | 24 | 4-24 | 950 | >30.4 | 37 | 8000 | ||||||||
XCF-38 | 38 | 10-38 | 1050 | >34.3 | 55 | 11000 | ||||||||
KYF-1 | 1 | 0.2-1 | 340 | >12.6 | 7 | 1.1 | 826 | |||||||
KYF-2 | 2 | 0.4-2 | 410 | >14.7 | 5.5 | 1419 | ||||||||
KYF-3 | 3 | 0.6-3 | 480 | >19.8 | 7.5 | 5.5 | 1885 | |||||||
KYF-4 | 4 | 1.2-4 | 550 | >19.8 | 11 | 2206 | ||||||||
KYF-8 | 8 | 3.0-8 | 630 | >21.6 | 15 | 3600 | ||||||||
KYF-16 | 16 | 4-16 | 740 | >25.5 | 30 | 5900 | ||||||||
KYF-24 | 24 | 4-24 | 800 | >30.4 | 30 | 7500 | ||||||||
KYF-38 | 38 | 10-38 | 880 | >34.3 | 45 | 10300 | ||||||||
Main Features
1. Air charging system is mainly composed by the inlet air pipe;
2. The flotation machine has large inhaling capacity and low energy consumption;
3. Complete flotation circuit with inhaling air and pulp, no auxiliaries are needed;
4. Reasonable circulation of pulp decreases coarse sand sedimentation.

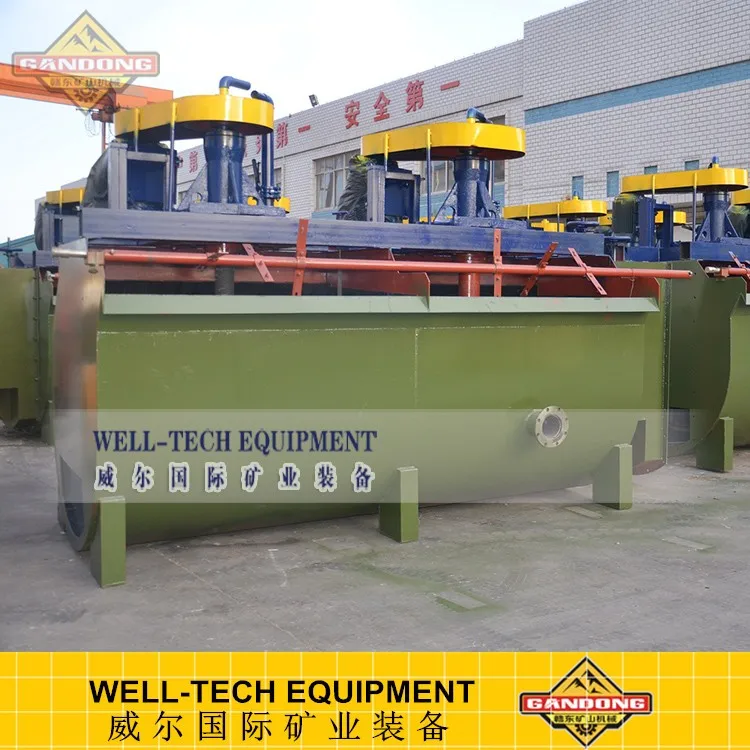

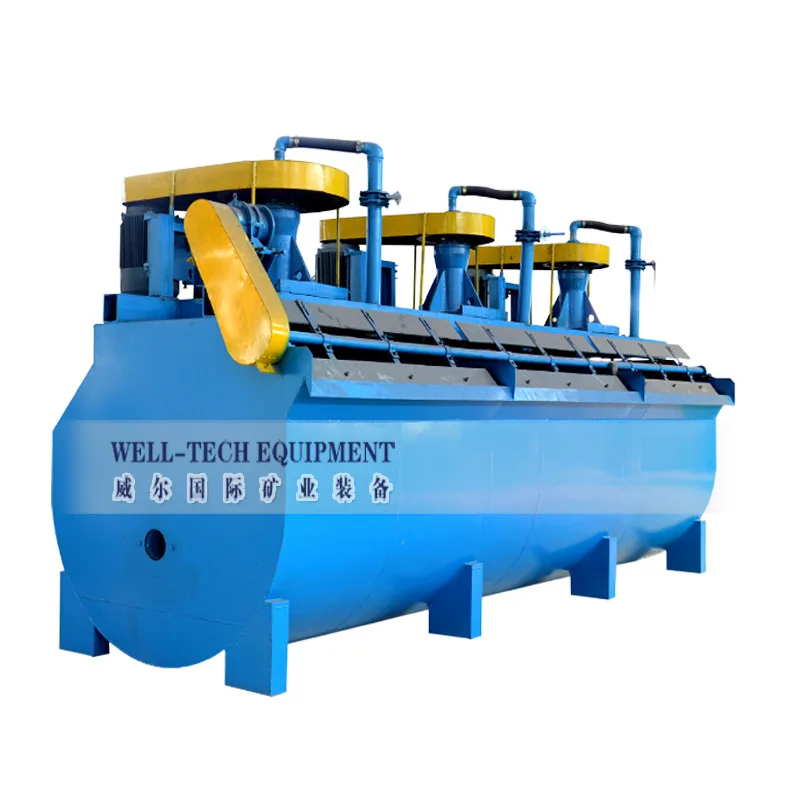

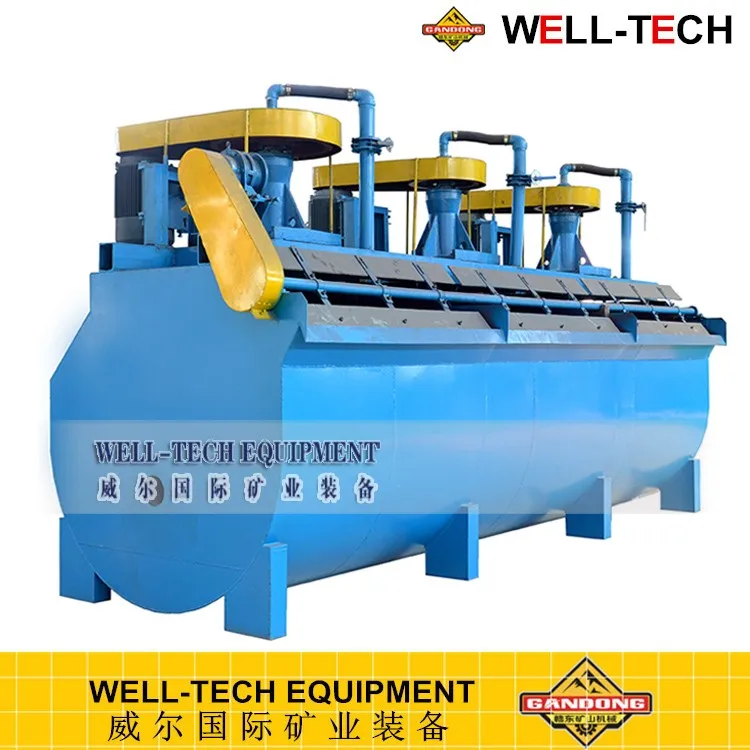

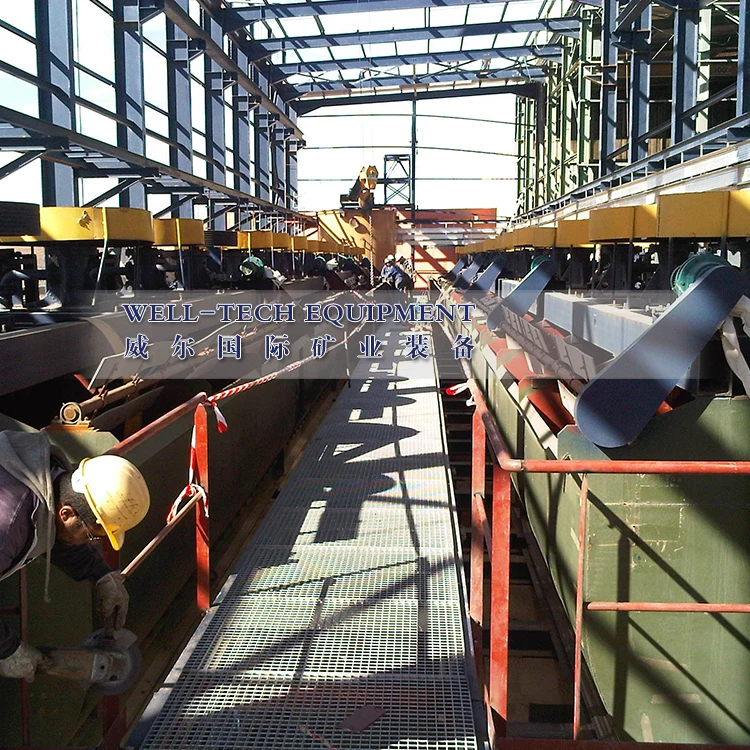

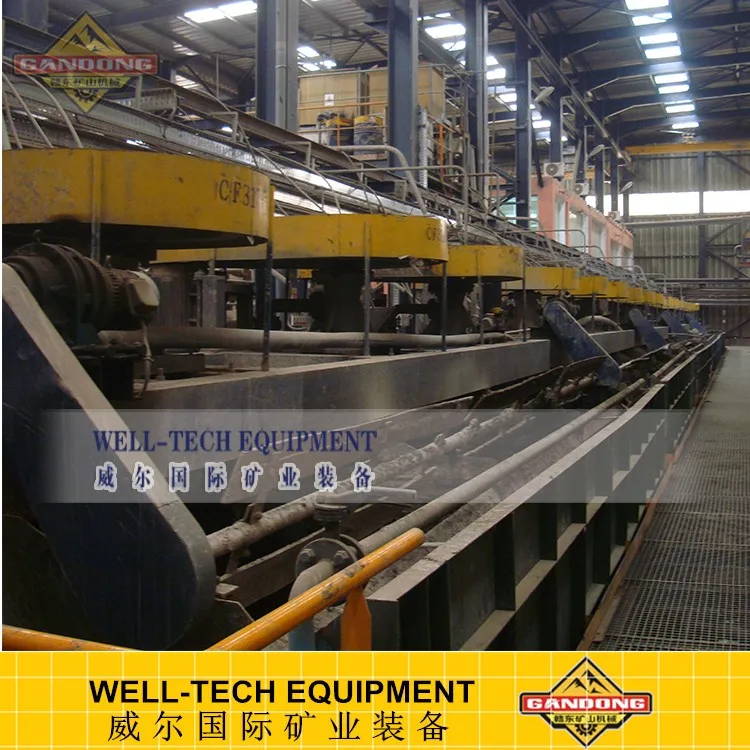

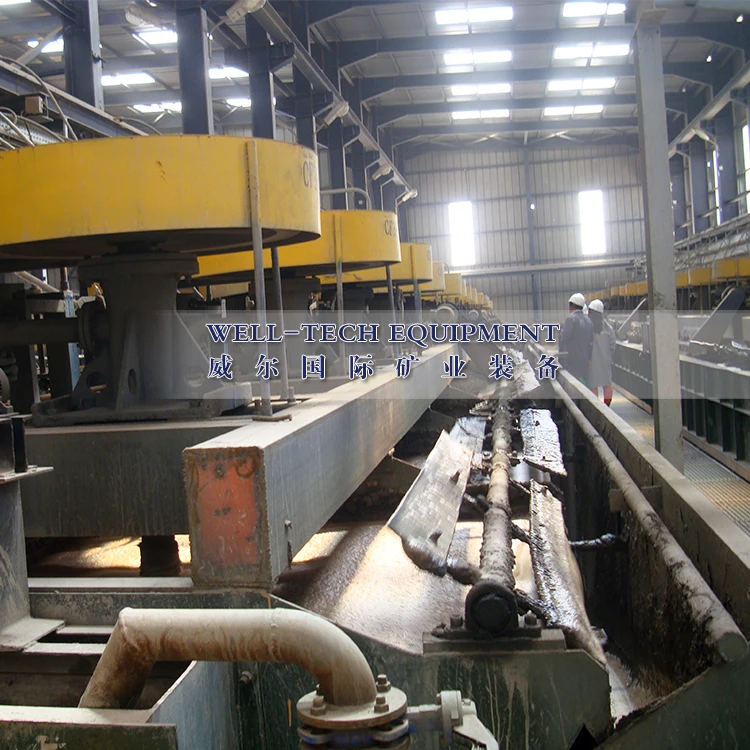

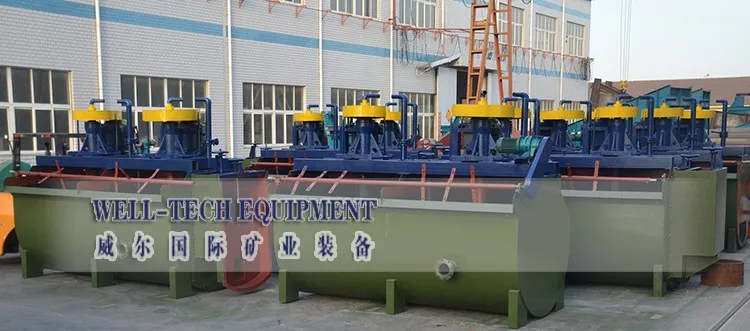

Detailed Images

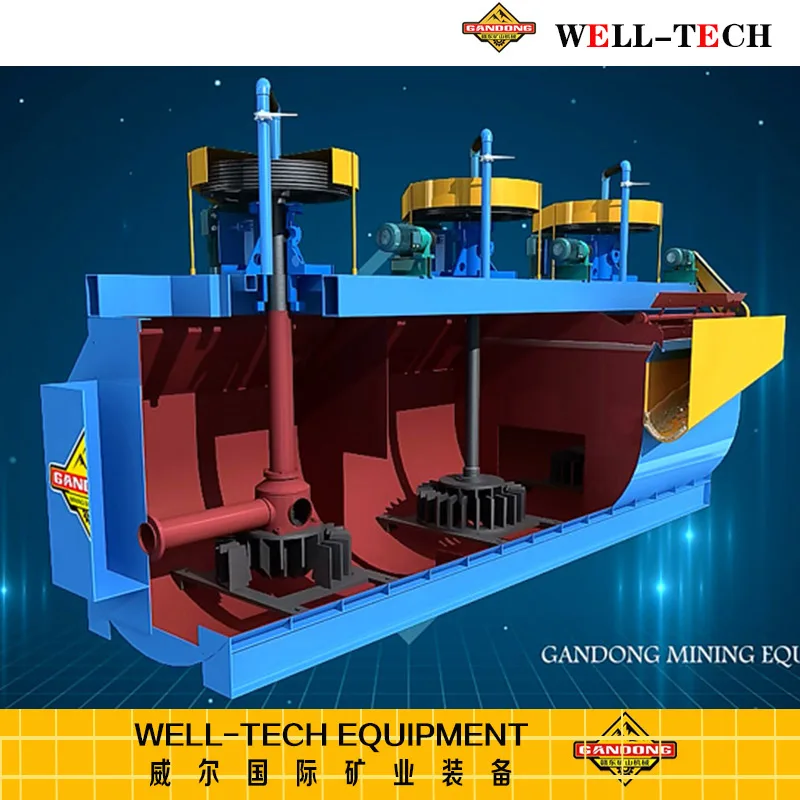

Working principle
XCF mode and KYF mode are inflation flotation machine. Impellers’ little diameter and lower peripheral speed make power consumption reduce 30-50%. Air distributor is equipped in cell to get air evenly, lengthening impeller and rotor’s service life. KYF mode has no self-suction pulp function but lower power consumption,XCF mode has self-absorption pulp,places horizontally without foam pump,and equipped with stator to form negative pressure zone,but power consumption is little more than that of XCF type, so XCF and KYF combined together to work,the former as suction tank, the latter as direct-current cell, combined flotation machine place horizontally without foam pump.
Main Parts

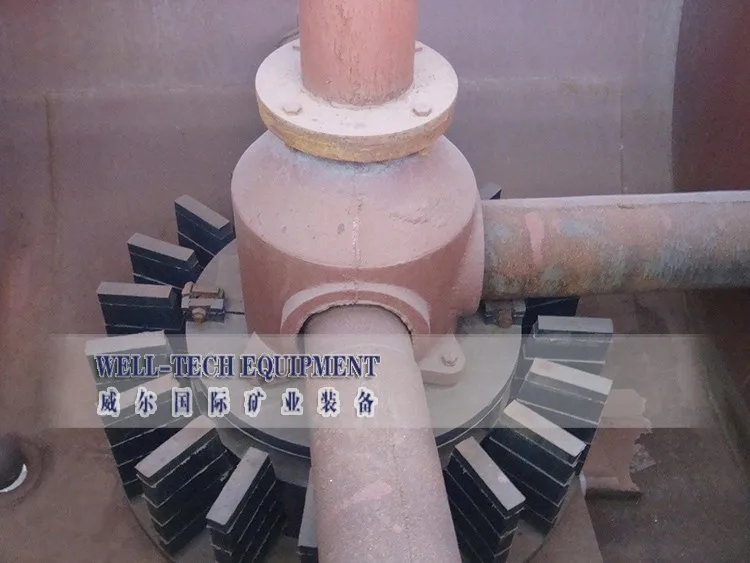

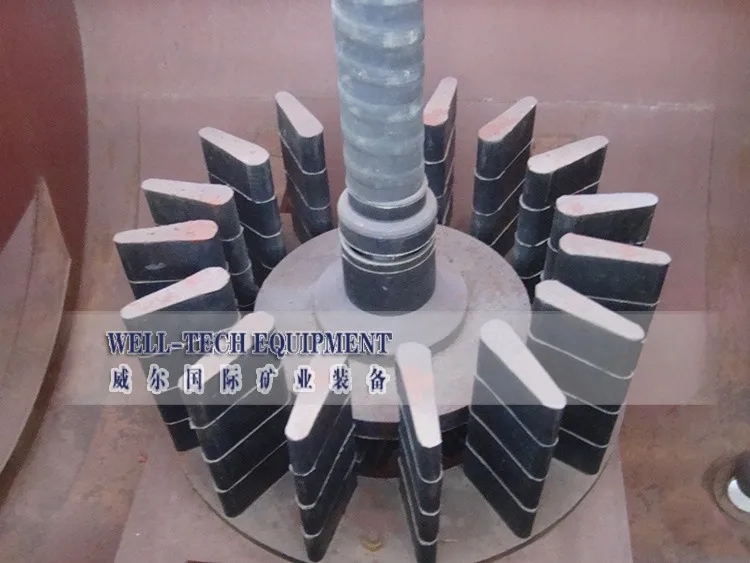

Name: XCF impeller
Machine Parts
Name: KYF impeller
Main Features
Mechanical agitation(KYF),no air inhalation and no pulp sucked automatically. it is combined with XCF cells as the direct cells.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

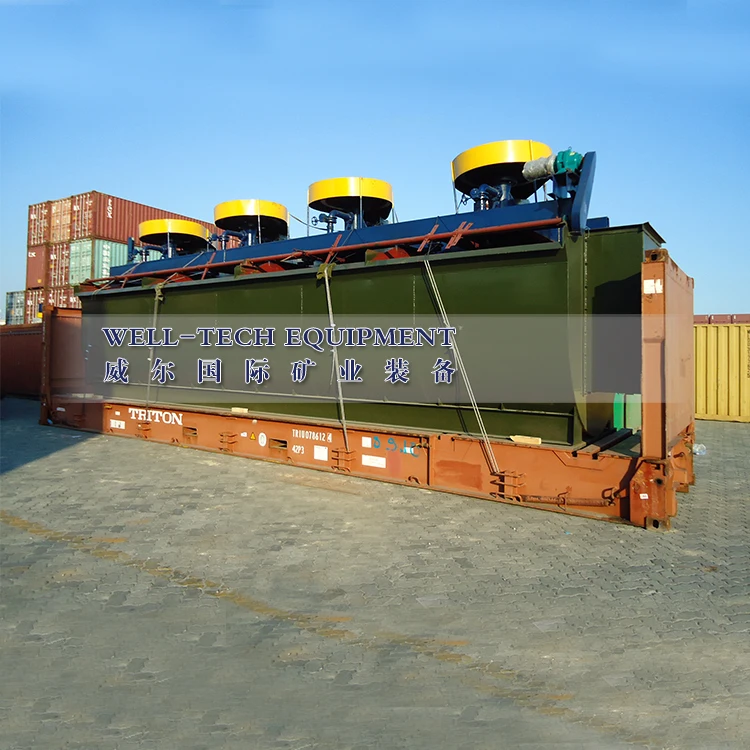

Packing & Delivery
Packaging& Delivery | ||
Container | 40HQ/40GP/20GP | |
Load Port | Xiamen , Shenzhen,Shanghai | |
Trade term | FOB,CIF,CFR,EXW | |
Delivery time | Within 35 days after recieve 30% deposit,balance before loading | |
