Price:$19,000.00
Price in USD:Details

Quantity:


Product Overview

Description







Products Description


Model
ZG 40 Pipe Making Machine
Pipe Material
stainless steel , carbon steel , galvanized steel
Round Pipe Dia.
8-50.8mm
Round Pipe Thickness
0.3-2.0mm
Square Pipe Dia.
10×10—35×35mm
Square Pipe Thickness
0.5—1.5mm
Rectangle Pipe Dia.
10×10—25×30mm
Rectangle Pipe Thickness
0.5—1.5mm


Part 1: Un-coiler
Manual operation with adjustable brake
Two sides, coil adapting cone with loading weight: ≤1T per side

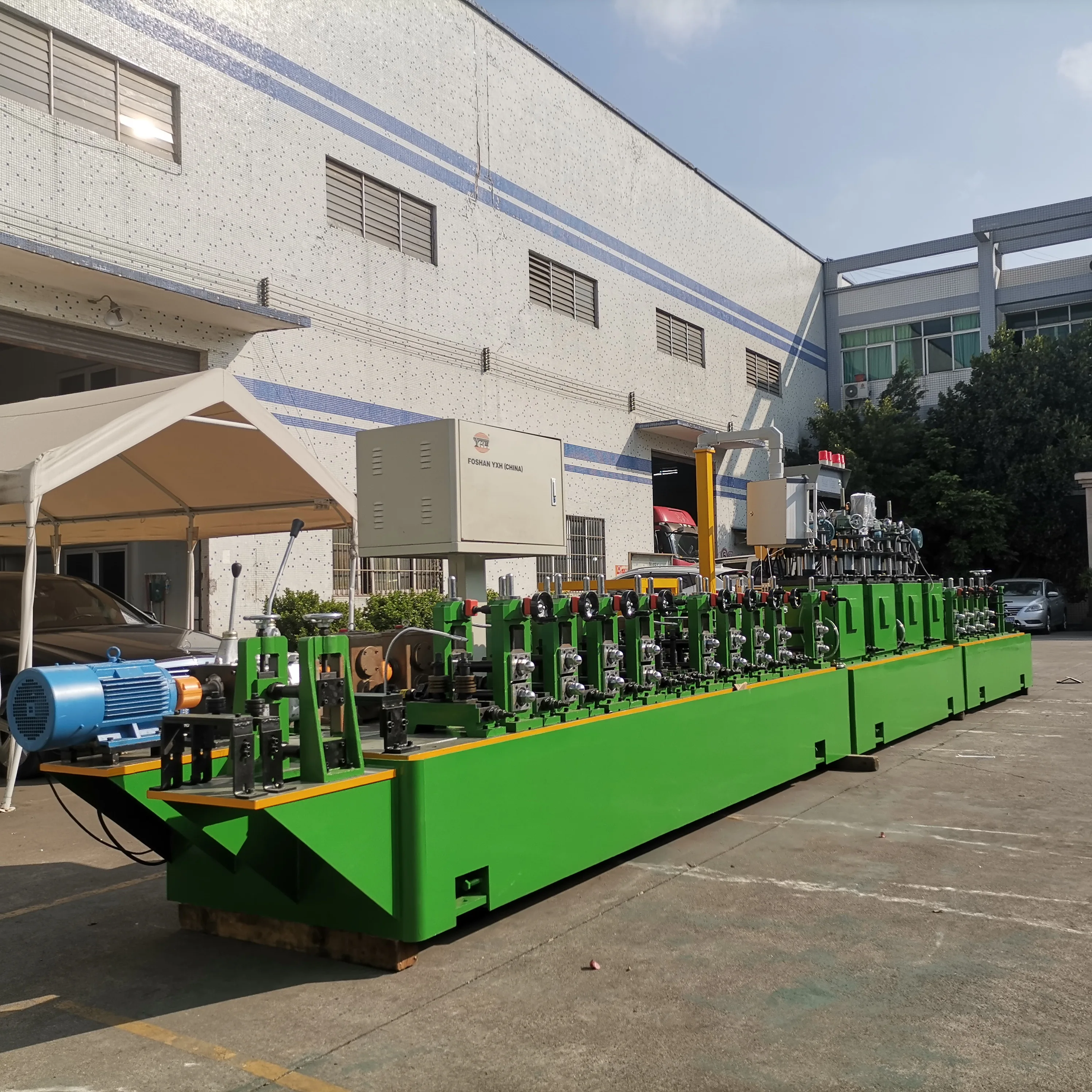

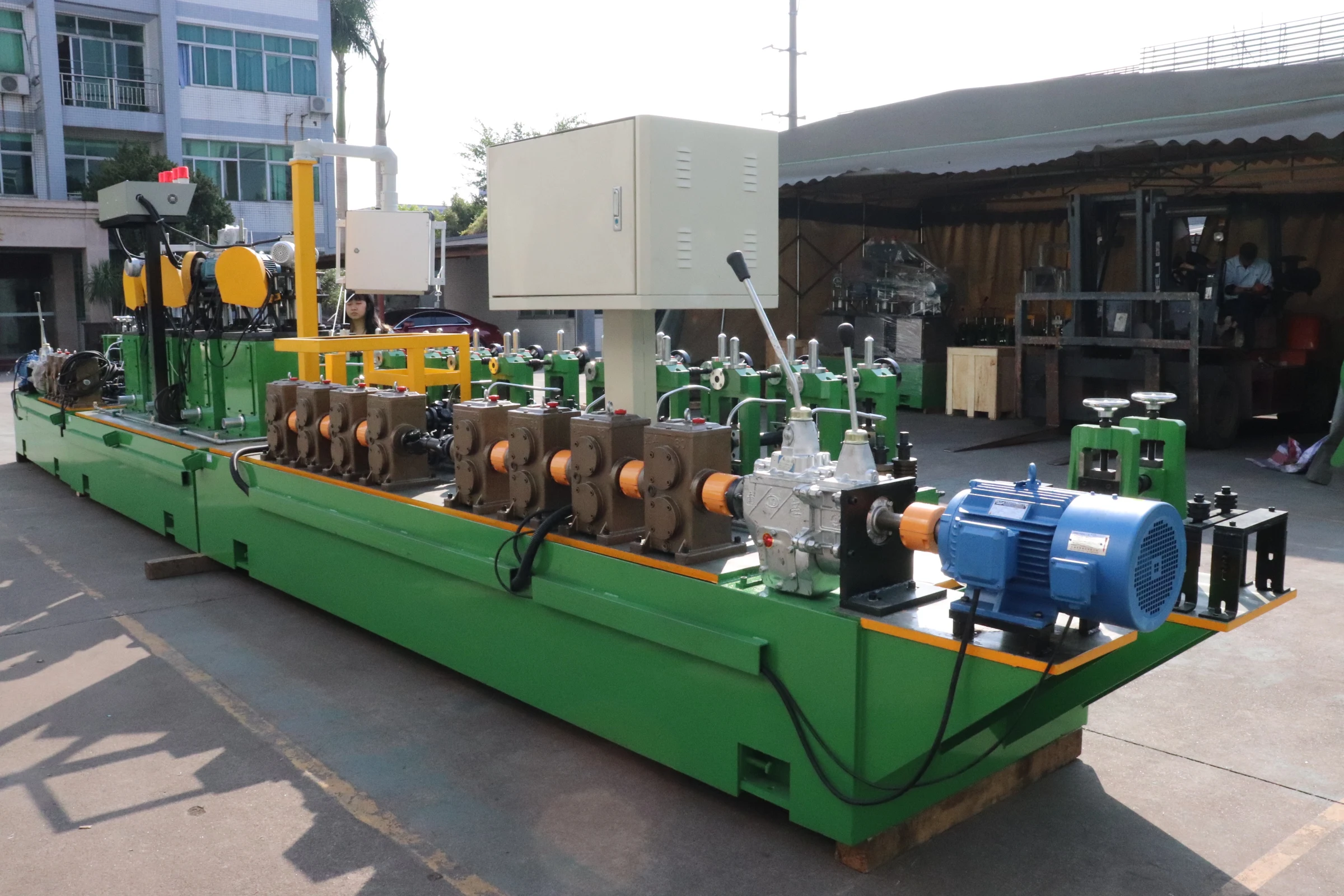

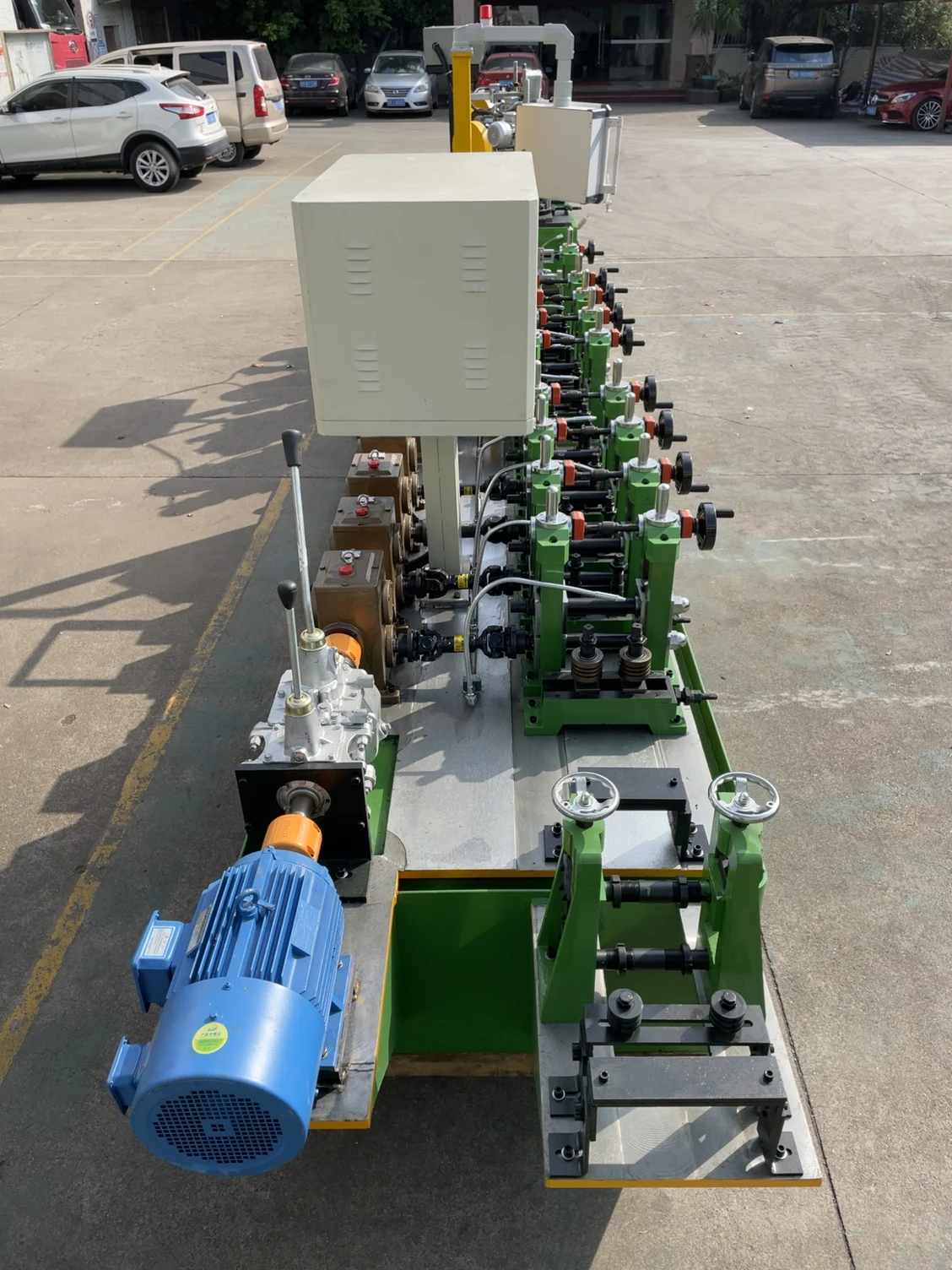

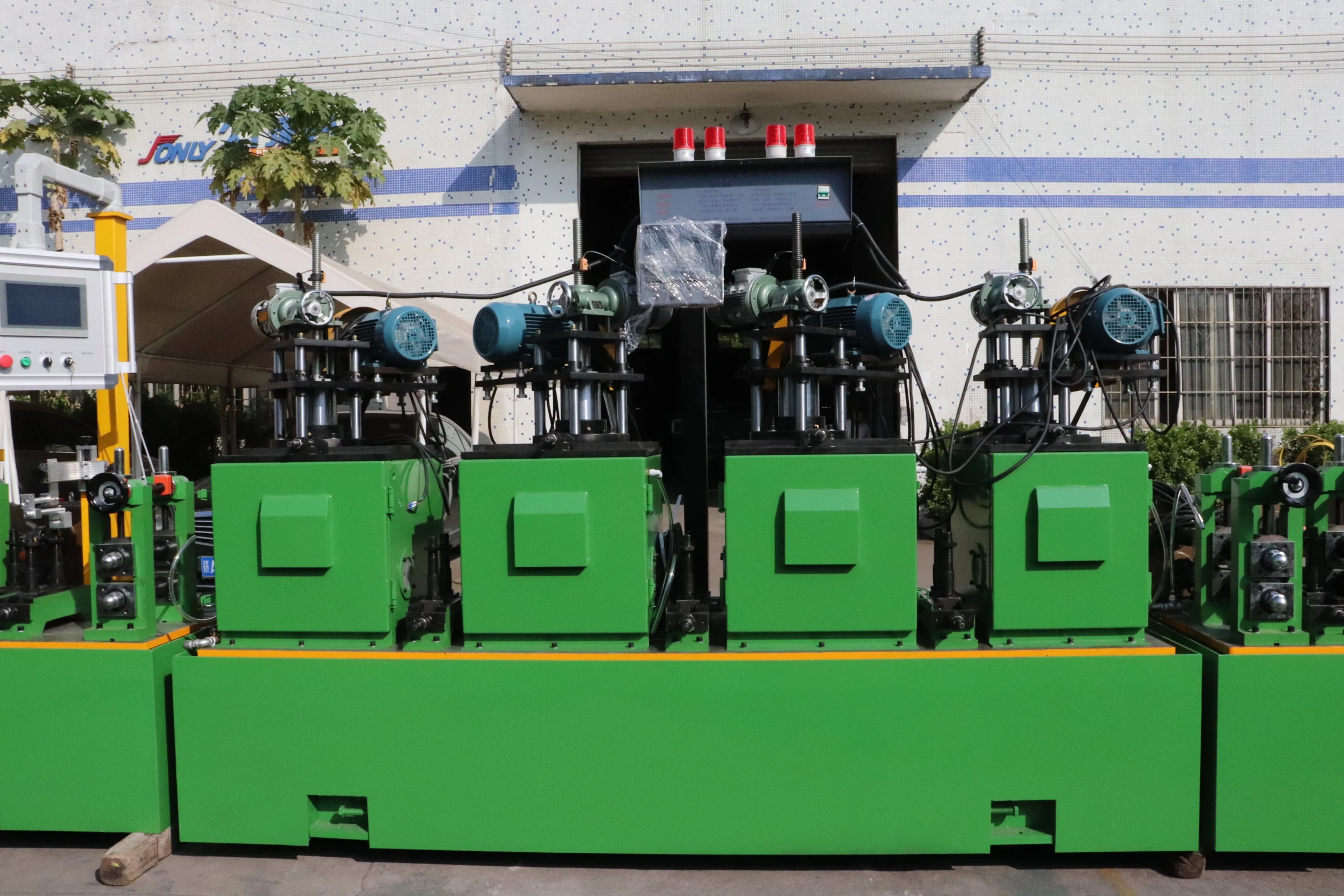

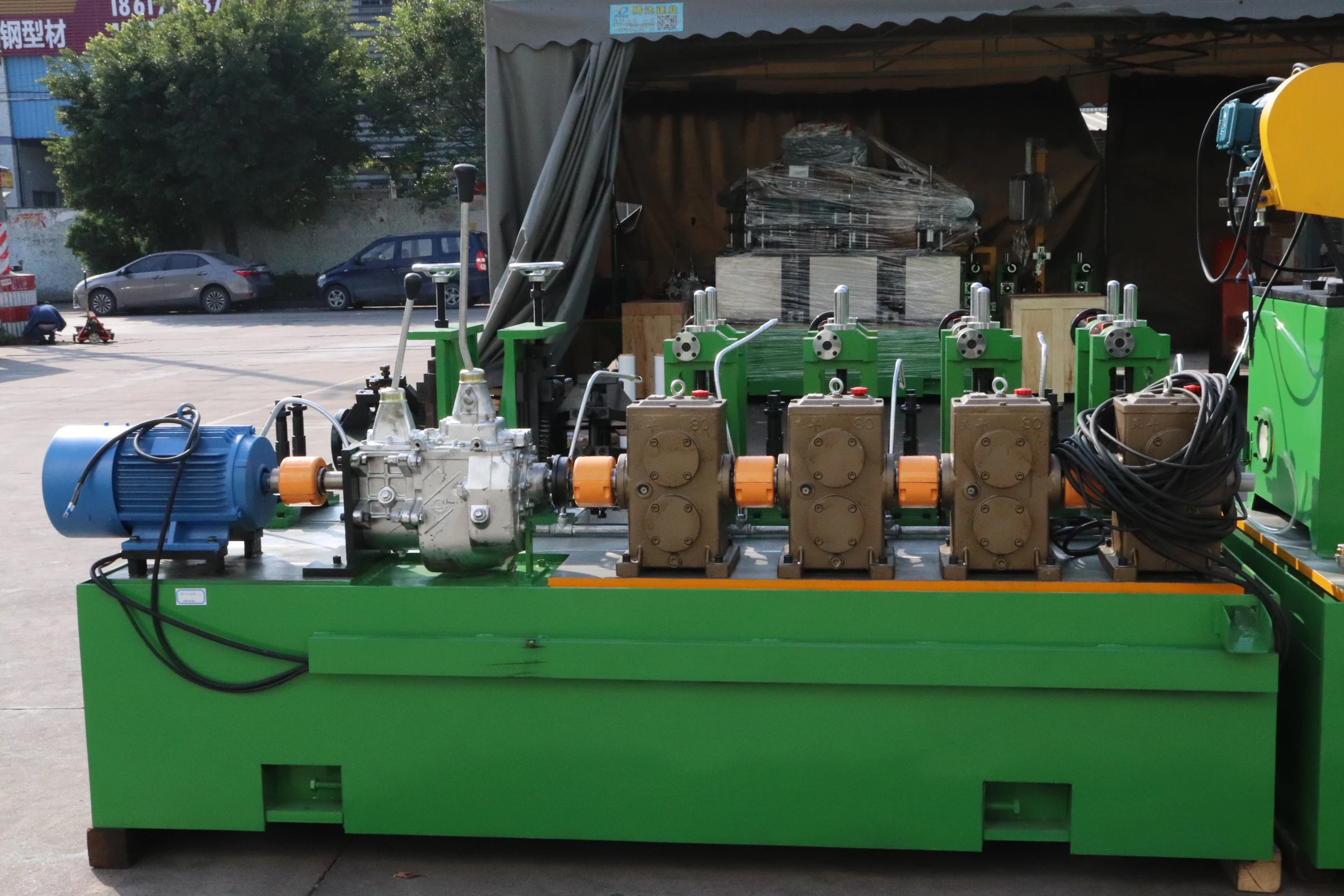

Part 2: Forming Section
Feeding equipment: 2 roller guide apparatus
3 break down+3 by-pass+3 fin pass
Horizontal Stands shaft dia.: 40mm
Vertical Stands shaft dia.: 25mm
Arrangement:
3-3-1-4 or 4-4-1-4 or customized
Horizontal Stand:
Needle Bearings in operation side Horizontal Stand,it is easy to change and adjust roll sets, will take roughly 40 minutes to change full set roll sets


Part 3: Welding Section
Welding Torch: Single
2 sets squeezing Rollers
Advantage for UT Welder:
(1) Dust proof, to protect the machine
(2) Pipe Welding quality will be much better than TIG Welder;
(3) It saves about 30% Argon Gas Consumption;
(4) It will improve production speed about 30%

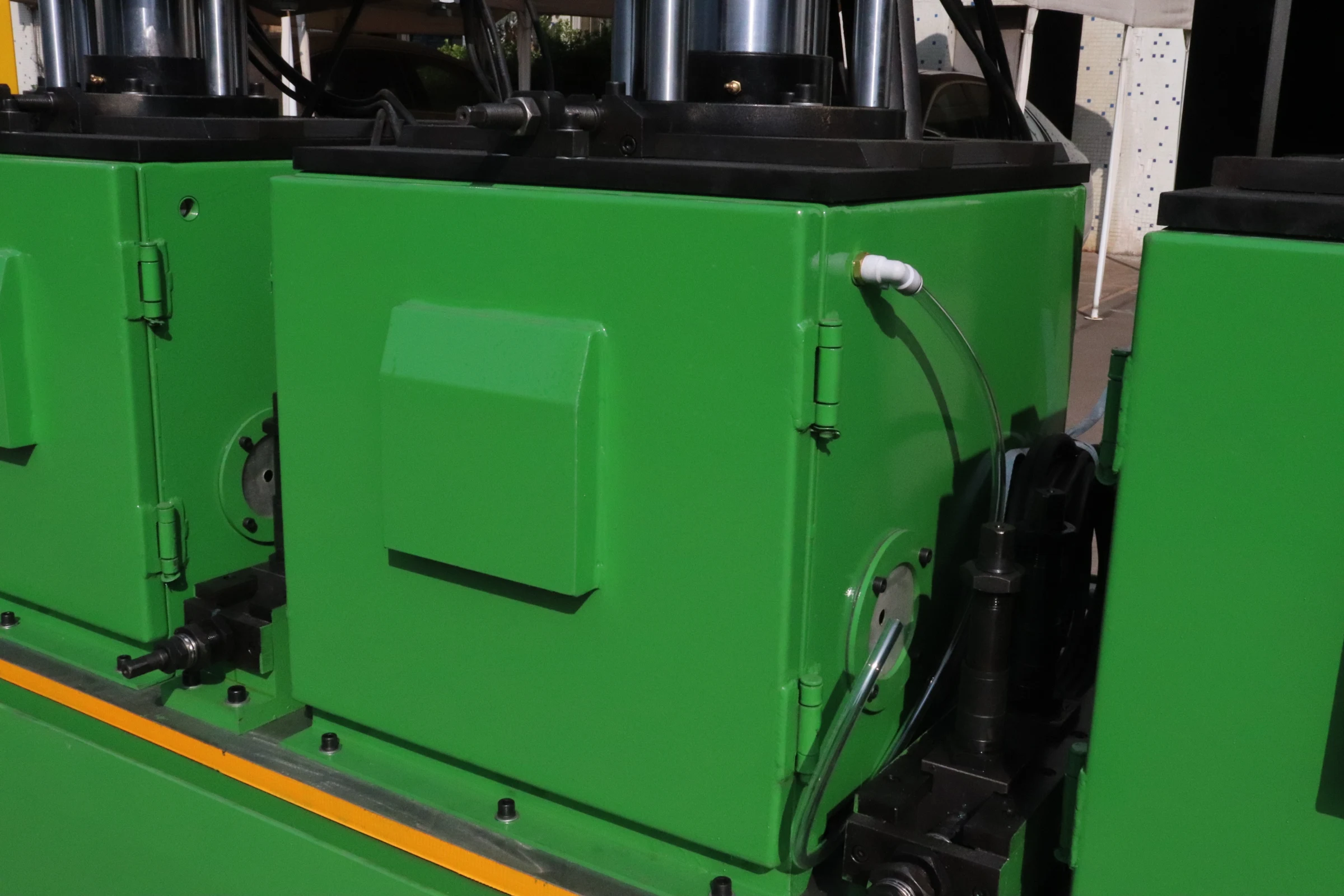

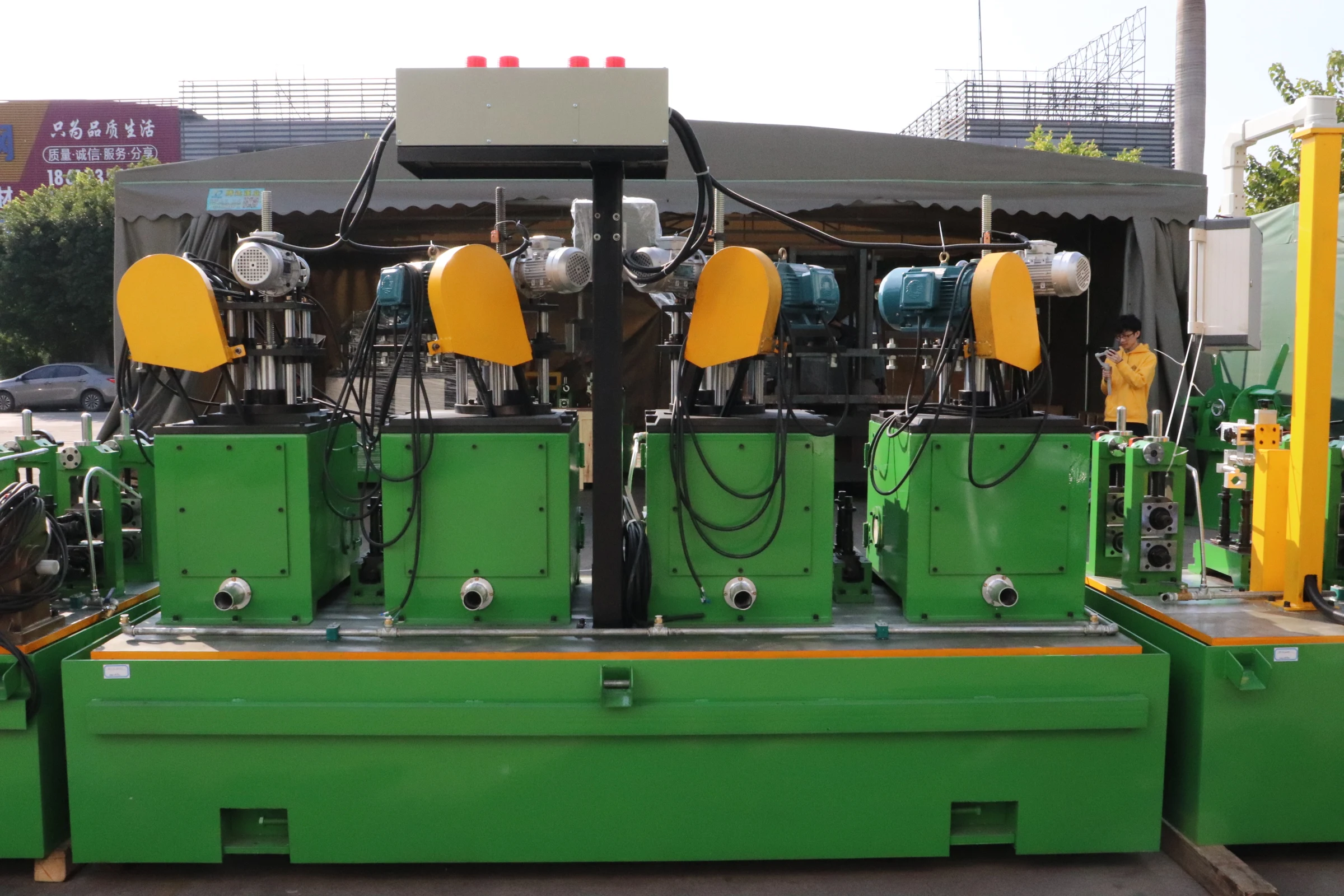

Part 4: Seam Polishing Section

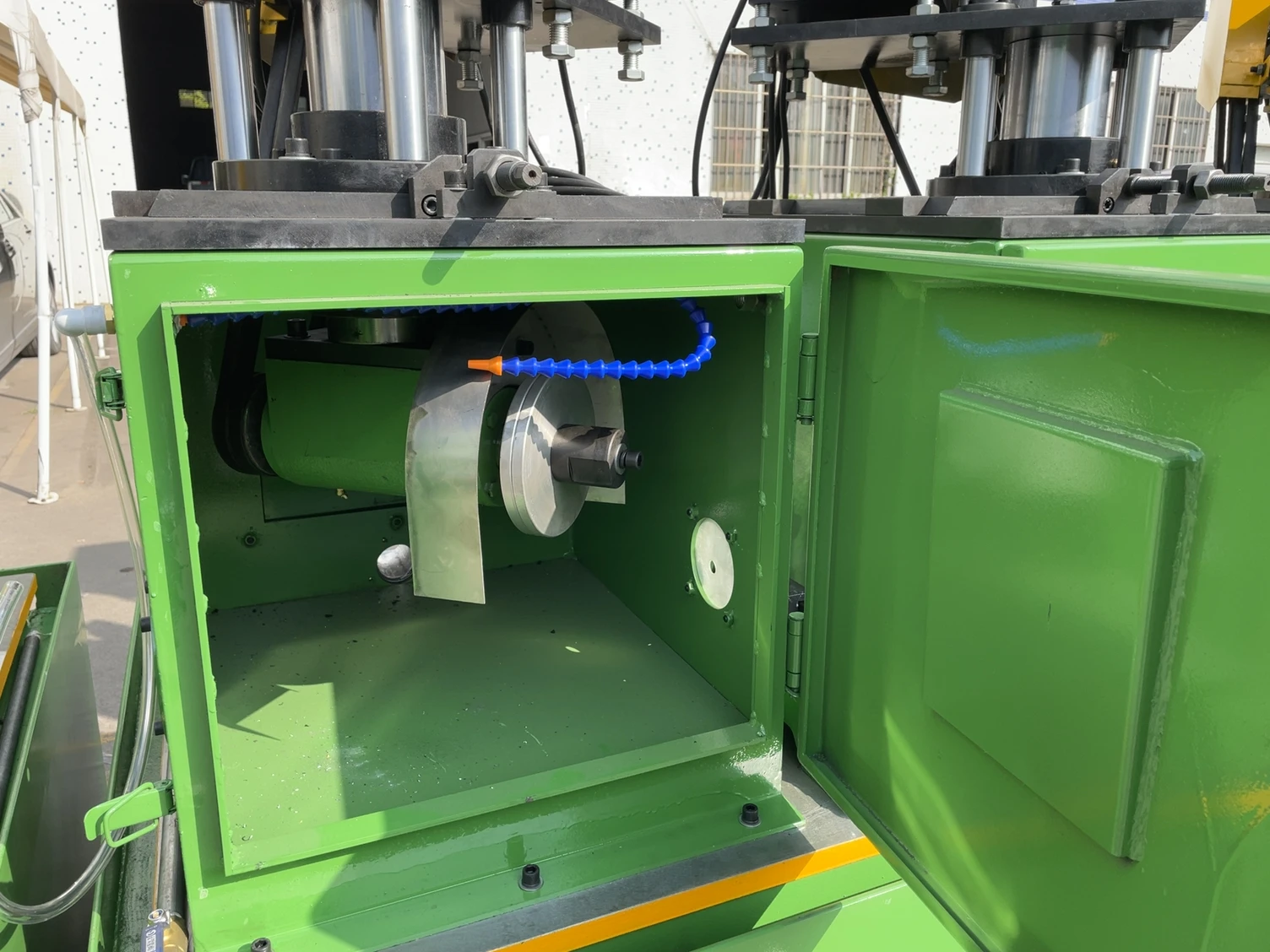

Totally enclosed automatic Grinding head
In automatically pressing down polishing system by electric motor, one engineer can operate five set tube mill. And it can make grinding section cleaner and grinding more stable.Totally Enclosed box with grinding head can make grinding section cleaner.

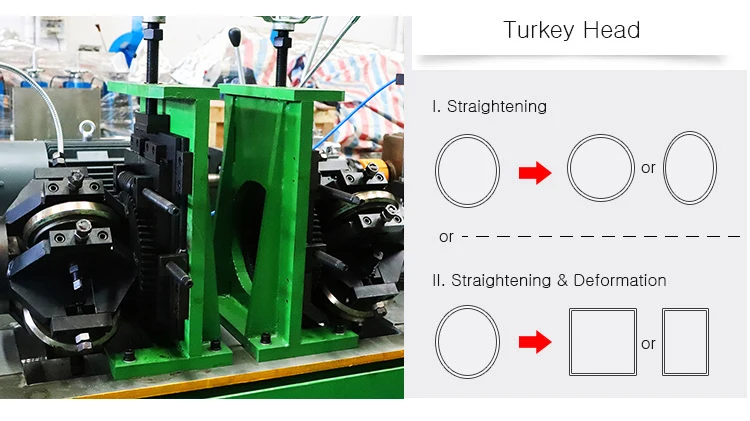

Part 5: Sizing &Turk-Head
Straightening and sizing for pipes
To reset the roundness of pipes
Turk Head: 2 Units


Part 6: Cutting Section
Friction Saw Cutter
Auto-mechanical
Operational panel
Cutting length: 4-10m

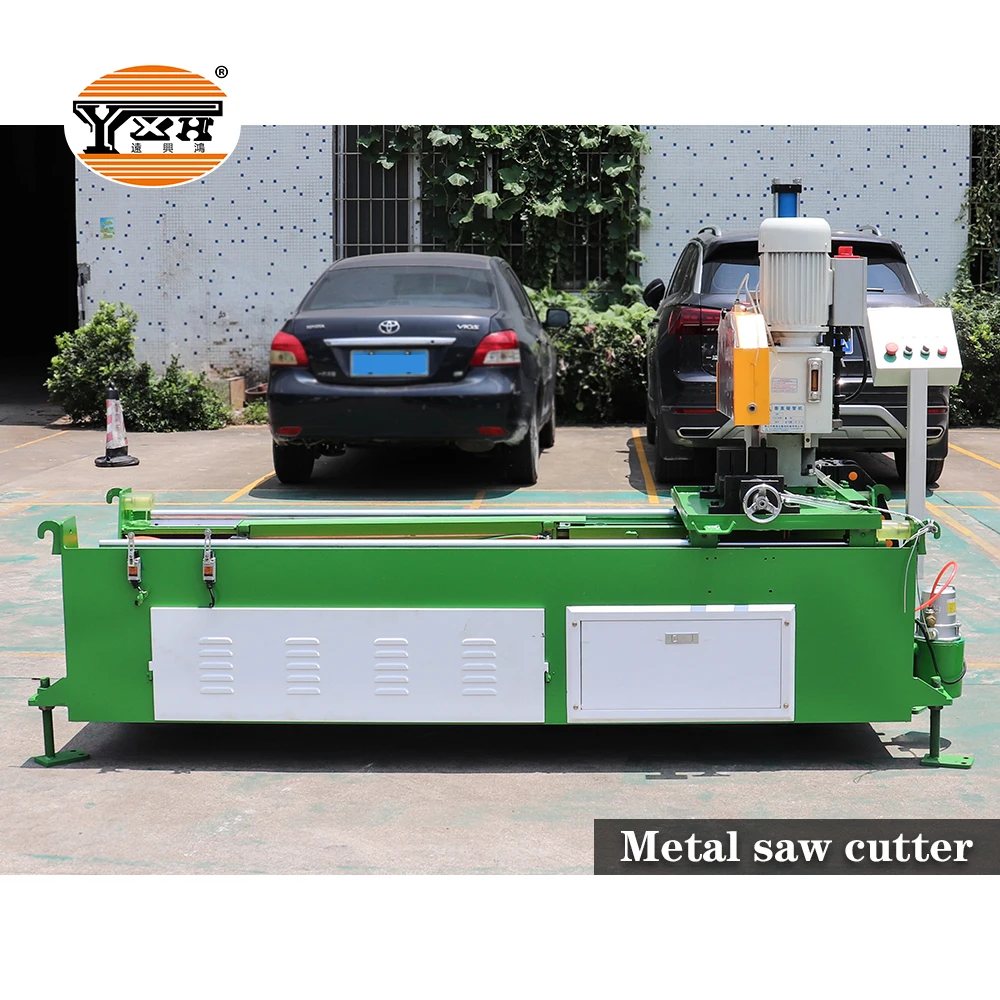

Metal Saw Cutter
Less burr in the end of the pipe


Part 7: Run-out table
IncludedL: 6m


More specifications
Stainless Steel Pipe Making Machine, covering range from 4.8mm to 325mm,and thickness is 0.18mm to 6.0mm. The pipe production machine mainly produces stainless steel pipe, carbon steel pipe. And this pipe making machine not only can make round pipe, square pipe, rectangle pipe, oval pipe and other irregular pipe as well.


Model
Pipe  Diameter
Pipe Thickness
Capacity
Major Power
S-ZG40
6-31.8mm
0.2-1.2mm
1-20m/min
5.5KW
ZG40
8-50.8mm
0.2-1.5mm
1-15m/min
7.5KW
B-ZG40
12.7-63.5mm
0.3-2.0mm
1-10m/min
11KW
ZG50
25.4-76.2mm
0.4-2.5mm
1-7m/min
15KW
ZG60
38.1-114mm
0.5-3.0mm
1-5m/min
18.5KW
ZG80
76.2-168mm
1.0-4.0mm
1-3m/min
22KW
ZG100
159-325mm
1.0-6.0mm
1-15m/min
30KW




Packing & Delivery




Company Profile




As one of the leading enterprises in stainless steel tube mill machine industry, YXH has been specializing in producing steel pipe making machine, tube polishing machine and Rollers etc.In last 20 years.To ensure the finished tube mill product quality,YXH controls every production process by professional teams, such as design, purchasing of raw material, prouction, process and quality inspection. High quality, competitive price, we are pretty sure that we will be your best choice.










FAQ


1. who are we?
Foshan YXH Tube Mill & Mould Co., Ltd, founded in 2001, As a manufacturers and exporters for 19 years. We have a high-quality team, 15 persons of foreign service team;Professional Engineer with 25 years experience of adjusting machines;Professional design term with 20 years design experience.

2. how can we guarantee quality?
In order to ensure the processing accuracy of the machine and ensure the stability of the machine's operation, the accessories on the pipe making machine are independently processed and produced. We have a variety of processing equipment,such as Horizontal machining center,Vertical Machining Center,CNC lathe,Coordinate Boring Machine.
Our products have been widely used in multiple well-known stainless steel enterprises, and won wide recognition and good reputation.

3.what can you buy from us?
As one of the leading enterprises in stainless steel tube mill industry, YXH has been specializing in manufacturing Pipe Making Machine, Rollers(Toolings), Pipe Polishing Machine, Pipe Embossing Machine and Slitting Machine in last 20 years.

4. why should you buy from us not from other suppliers?
1.Have an excellent service team;
2.Customized service for client's requiement;
3.High quality, competive price.

5. what services can we provide?
Offer Services
We can provide pre-sales consultant& On-purchase for everyday
1.Reply Time: Within 1 hours(Not 24 hours)
2.Provide Tube Mill Machine relevant product information
3.Give you technical good suggestion
After Service--Provide service 24 hours*7 days per week
1.Test the tube mill machine before shipment
2.Provide installation service, according to customer needs;
3.Training service: teach customers how to use the machine
4 Assistance service: ①Improve pipe quality;②Improve production capacity;③Reduce production cost;④Reduce warehouse storage
