High Quality 1D 2D USB barcode reader Portable QR Bar Code Reader wireless Barcode Scanner For Warehouse
- Category: Scanners >>>
- Supplier: Shenzhen,Edoo,IOT,Technology,Co.,Ltd.
Share on:
Product Overview
Description
R43/2D Bt Ring Barcode Scanner
Image Sensor | 640*480 |
Symbologies | 2D: PDF417、QR Code、Data Matrix 1D: Code128、EAN-13、EAN-8、UPC-E、UPC-A、ISBN、ISSN、Code11、Interleaved 2 of 5、Code39、Code93、Code32、Codabar、Matrix 2 of 5、Industrial 25、IATA25、MSI Plessey、GS1 DataBar、Plessey、Febraban 、etc |
Scan precision | ≥5mil |
Depth of field | EAN-13 60mm~325mm (13mil) Code 39 40mm~135mm (5mil) QR Code 30mm~165mm (15mil) PDF 417 50mm~125mm (6.67mil) Data Matrix 45mm~120mm (10mil) |
Scan angle | Pitch: ±55°; Roll: 360°; Skew: ±55° |
Symbol Contrast | ≥25% |
Interface | Micro USB, 2.4G,Bt3.0+4.2 |
Transmission distance | Wide empty area: 2.4G,150m;Bt, 50m |

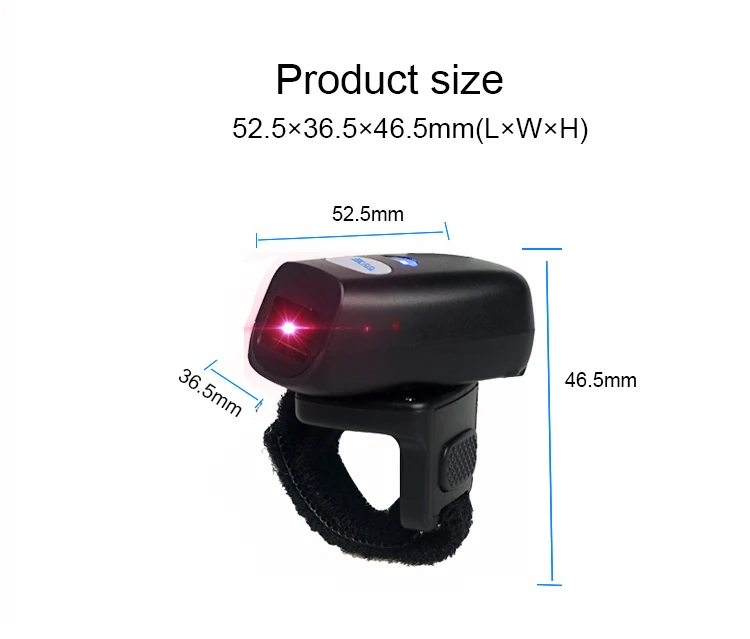

Physical dimension | 52.5×36.5×46.5mm(L×W×H) |
Weight | 40g |
Notifications | Sound, LED and vibration |
Battery type | 3.7V 500mAh rechargeable Li-ion battery |
Usage hours per charge | 14hrs of continuous use（EAN13 barcode，scan and transmit the data every each 5 seconds） |
Charging hours | 2hrs |
Power supply | Output: DC 5V, 2A input: AC100 ~ 240V, 50~60Hz |
Operating temperature | -20℃ to 50℃ (-4°F to 122°F) |
Storage temperature | -40℃ to 70℃ (-40°F to 158°F) |
Operating humidity | 5%~95% (non-condensing) |
ESD | ±8 KV (Contact discharge); ±15 KV (Air discharge) |
Drop | 1.2m |
Shell protection | IP42 |
product Feature
1.Core Technology：
Adopt the self-developed core decoding technology, with excellent decoding capabilities for 1D/2D.
2. 3.0+4.2 Bt transmission：
Via Bt 4.2 Class 1 wireless technology, it can be paired with any Android, iOS or Windows device.
3.Can be used anywhere, anytime.：
Small enough to fit into your pocket and light enough to carry around all day, providing you with the convenience of always having a scanner at your fingertips.
1.Core Technology：
Adopt the self-developed core decoding technology, with excellent decoding capabilities for 1D/2D.
2. 3.0+4.2 Bt transmission：
Via Bt 4.2 Class 1 wireless technology, it can be paired with any Android, iOS or Windows device.
3.Can be used anywhere, anytime.：
Small enough to fit into your pocket and light enough to carry around all day, providing you with the convenience of always having a scanner at your fingertips.
4. Compatible Multiple Platforms：
Fully compatible with Windows,Android,Linux systems.
Fully compatible with Windows,Android,Linux systems.
