LY Gaohua is a professional design & manufacturer of Industrial Air Cooled Heat Exchanger with Fin Tube in China. Our main products are Industrial Air Cooled Heat Exchanger with Fin Tube, evaporative condenser, closed cooling tower, Industrial Air Cooled Heat Exchanger with Fin Tube, "air cooling + evaporative cooling" composite closed cooling system, anti-white mist efficient cooling system, etc. The products are be used in power, chemical, metallurgy, petrochemical, coal chemical, air condition, food refrigeration industries and so on. We covers an area of 13,500m² and hold certificates of ISO. Our products are popular in domestic and international markets.





Industrial Air Cooled Heat Exchanger with Fin Tube, or called Air cooler, is an industrial heat exchanger that uses Ambient air as cooling medium, where the fan forces air cross the Finned pipes to cool the high-temperature processing medium within the pipes. The air cooler is mainly composed of three basic parts: tube bundle, fan and structure, and auxiliary parts like louver and platform handrails. It uses natural air as cooling medium saving precious water, reducing the discharge of industrial waste water and protecting the natural environment.







Assembly Drawing of Industrial Air Cooled Heat Exchanger with Fin Tube

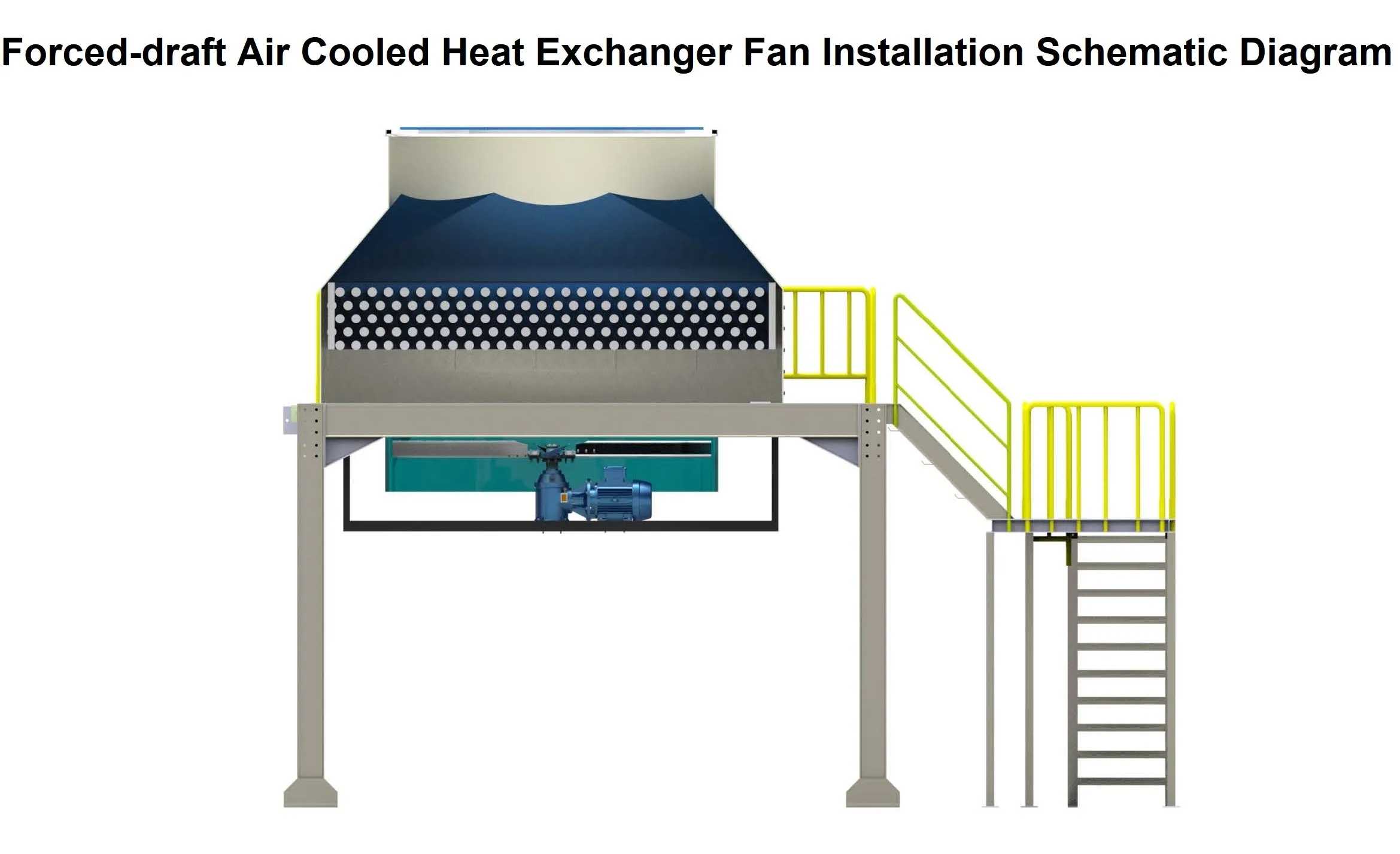

1. Forced-draft Horizontal Industrial Air Cooled Heat Exchanger with Fin Tube

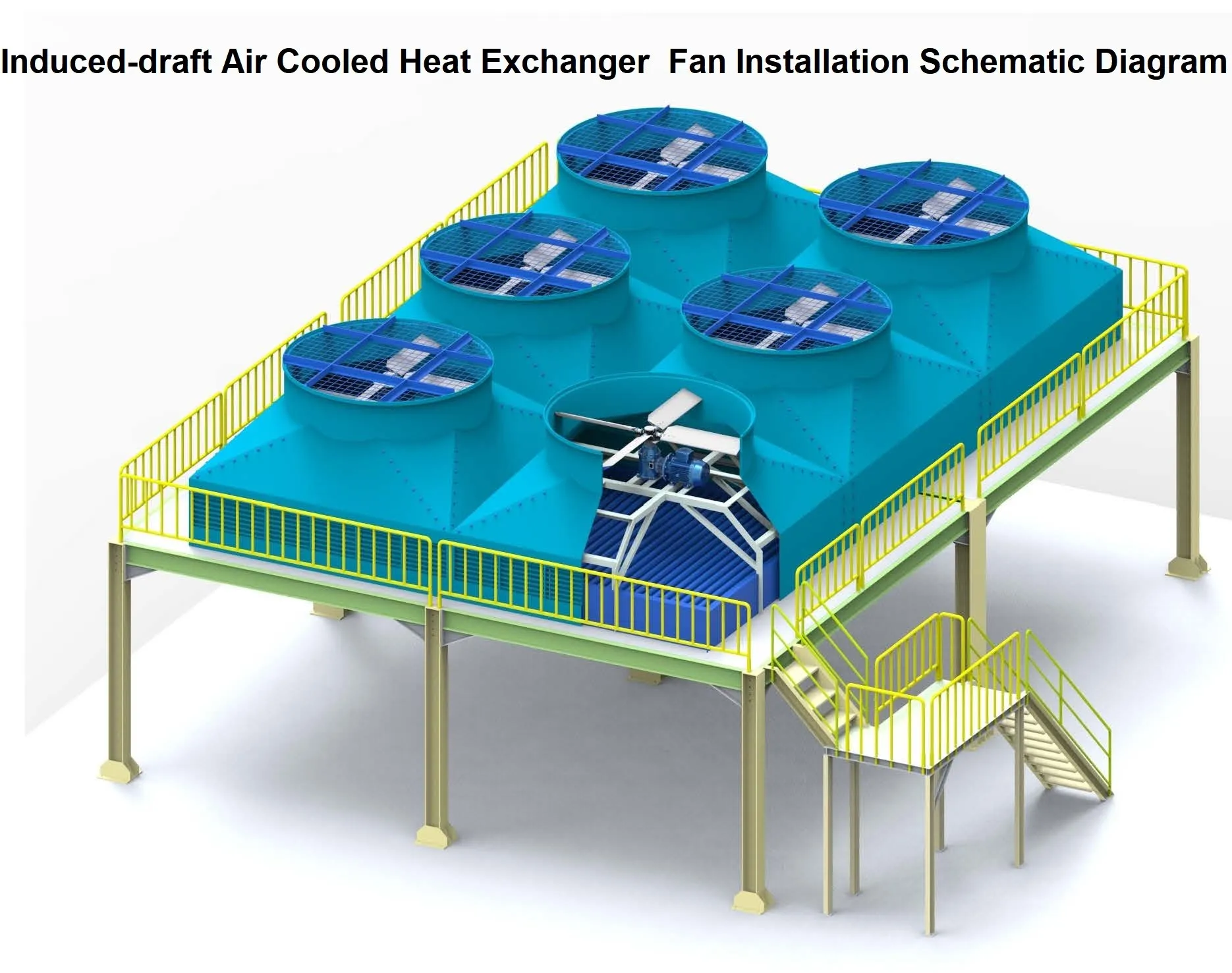

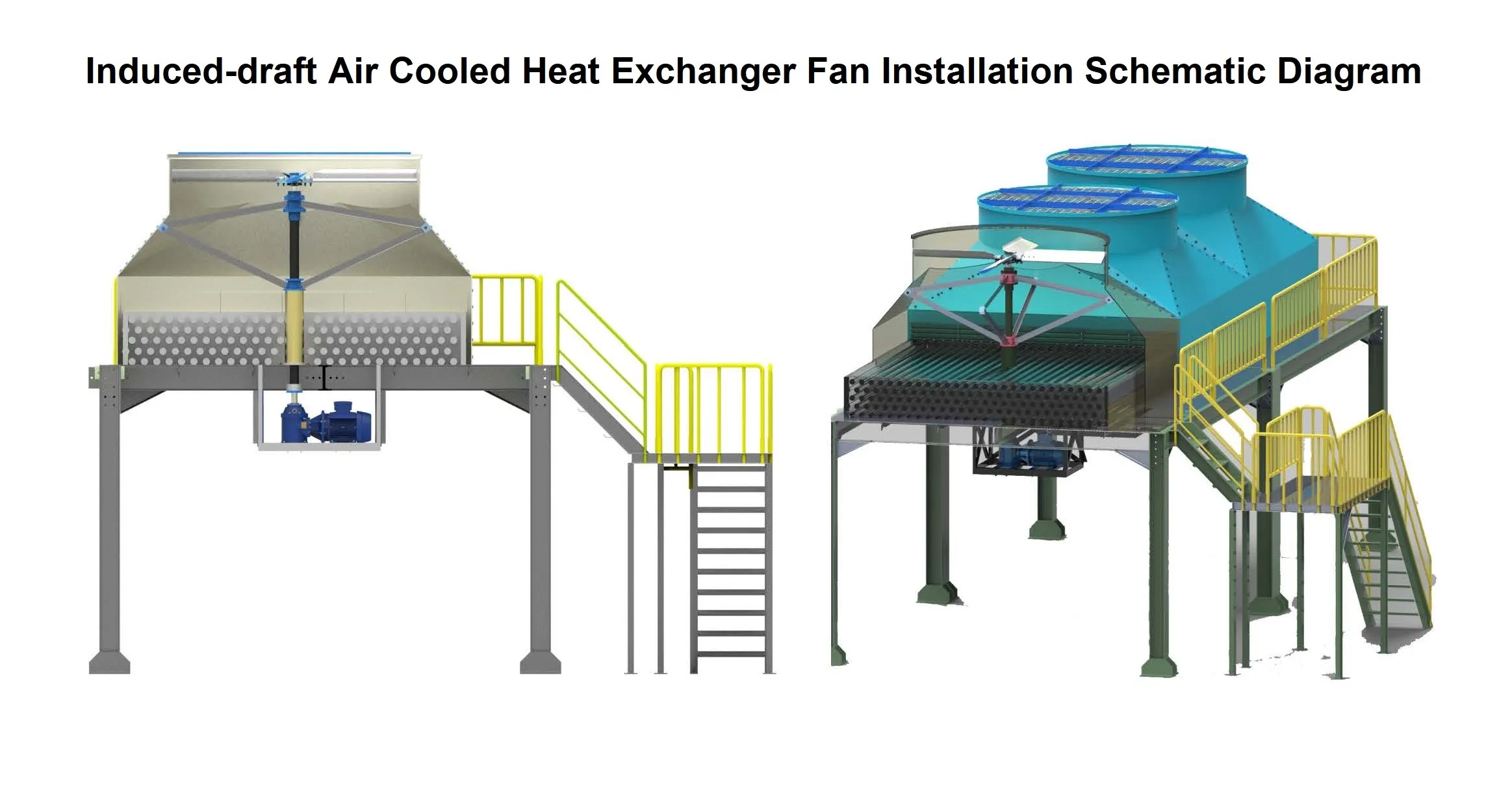

2. Induced-draft Horizontal Industrial Air Cooled Heat Exchanger with Fin Tube

3. Sloped-top Industrial Air Cooled Heat Exchanger with Fin Tube







No.	Tube Bundle Type	Heat Exchanger Tube Qty.	Pressure MPa	Number of tube rows	Base tube area m2	Fin area m2	Net Weight(KG)		Water-filled weight (KG)
							L-Type Finned Tube	DR-Type Finned Tube
1	GP12×3-4-172-1.6S-23.4/L(DR)-la	182	1.6	4	172	4025	7524	8529	810
2	GP12×3-4-172-2.5S-23.4/L(DR)-la		2.5				7563	8568
3	GP12×3-4-172-4.0S-23.4/L(DR)-la		4				7589	8594
4	GP12×3-4-172-1.6S-23.4/L(DR)-la	273	1.6	6	258	6037	10408	11915	1218
5	GP12×3-4-172-2.5S-23.4/L(DR)-la		2.5				10609	12116
6	GP12×3-4-172-4.0S-23.4/L(DR)-la		4				10939	12445



1. More uptime and longer life due to greater fatigue resistance of air cooler;

2. Higher operating pressure of air cooler;

3. Operational gains created by 15-20% higher thermal efficiency;

4. Installation saving through even more compact, lightweight design;

5. Small scaling rate, extremely low maintenance cost;

6. Various materials are available.

7. Increase the heat transfer area;

8. Compact structure, easy to operate;

9. Air distribution uniformity;

10. Less noise.



Header Types of Industrial Air Cooled Heat Exchanger with Fin Tube

1. Pipe header

2. Semi-circular bonnet header

3. Cover plate header- for very dirty flows

4. Plug headers-generally the most used

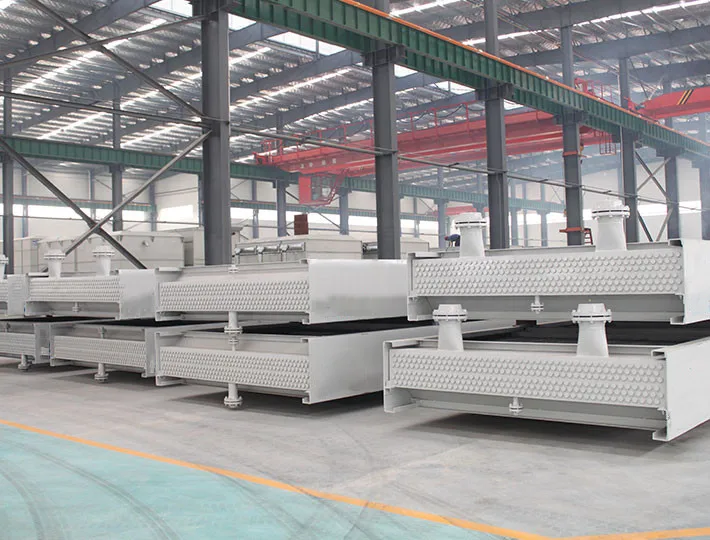

Tube Bundle of Industrial Air Cooled Heat Exchanger with Fin Tube











Fin Type of Industrial Air Cooled Heat Exchanger with Fin Tube

























Q: What's the types of Industrial Air Cooled Heat Exchanger with Fin Tube ?

A: We have induced draft Industrial Air Cooled Heat Exchanger with Fin Tube, forced draft Industrial Air Cooled Heat Exchanger with Fin Tube and slopped top Industrial Air Cooled Heat Exchanger with Fin Tube.



Q: Are you a trader or manufacturer?

A: We are a manufacturer of Industrial Air Cooled Heat Exchanger with Fin Tube, especially in all kinds of air cooling, water cooling, evaporate cooling equipement.



Q: What is the delivery time of Industrial Air Cooled Heat Exchanger with Fin Tube?
A: For Industrial Air Cooled Heat Exchanger with Fin Tube, it will be finished within 75 days once receipt the pre-payment.
