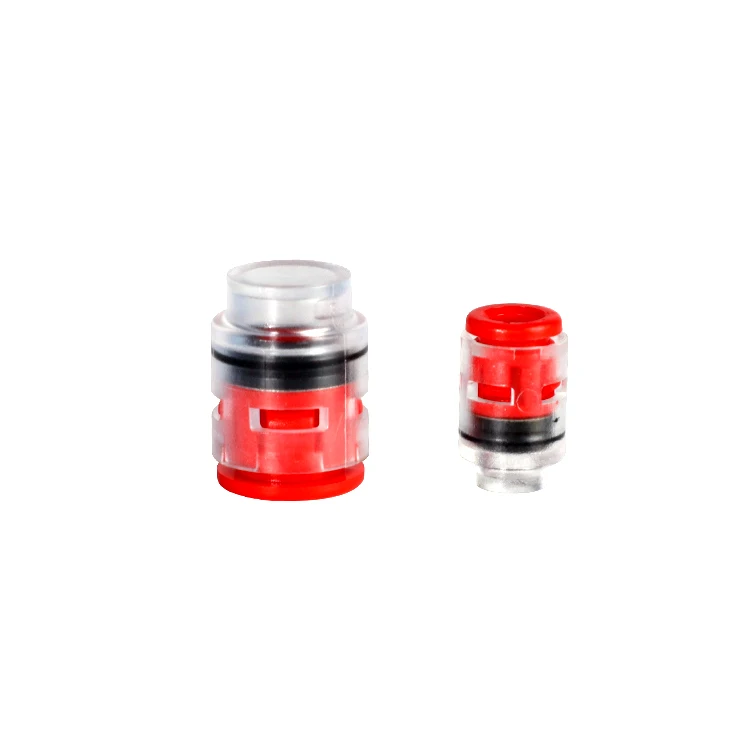

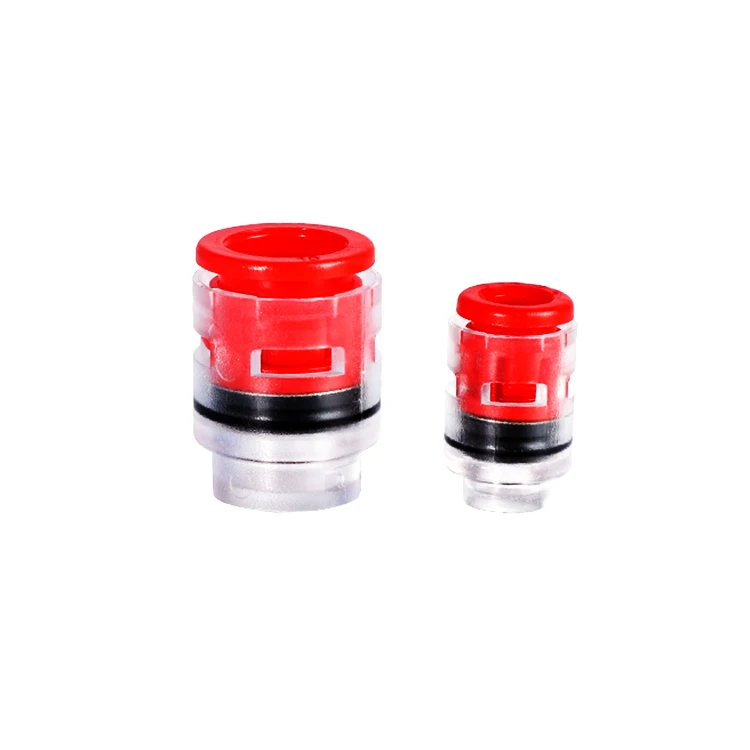

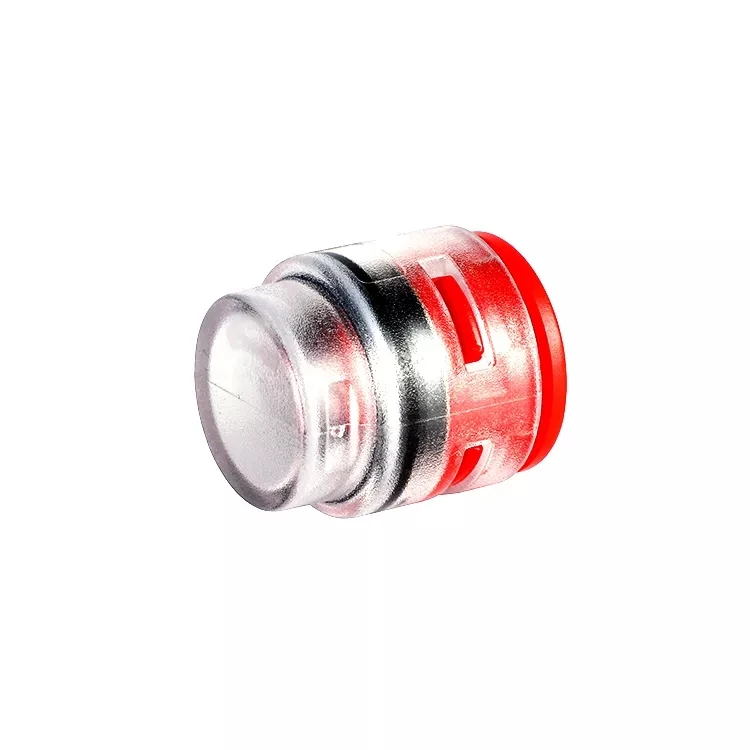

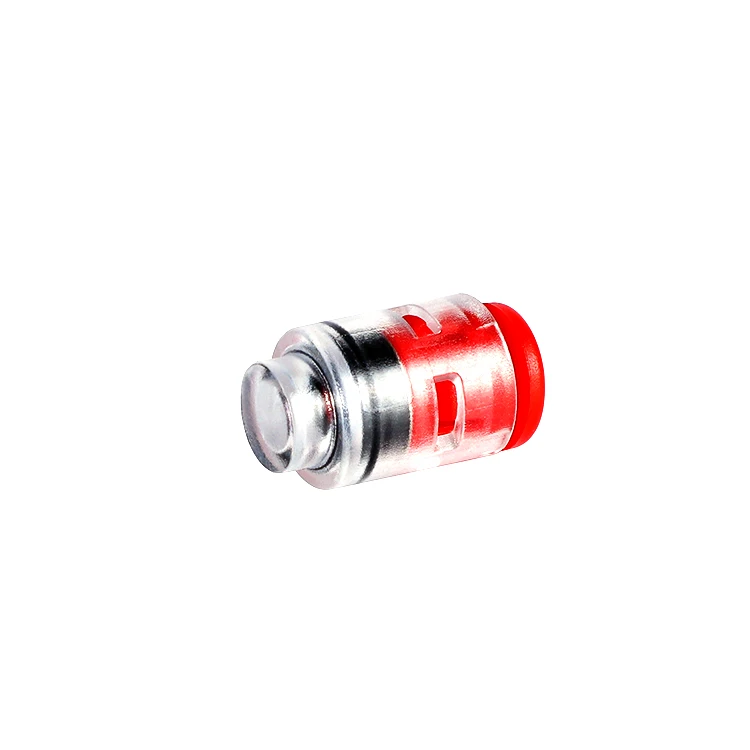

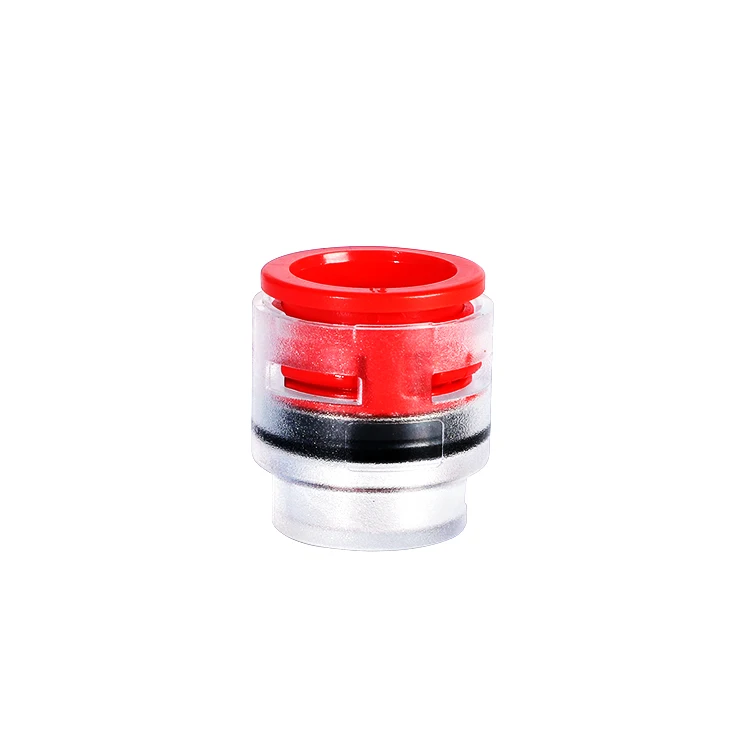

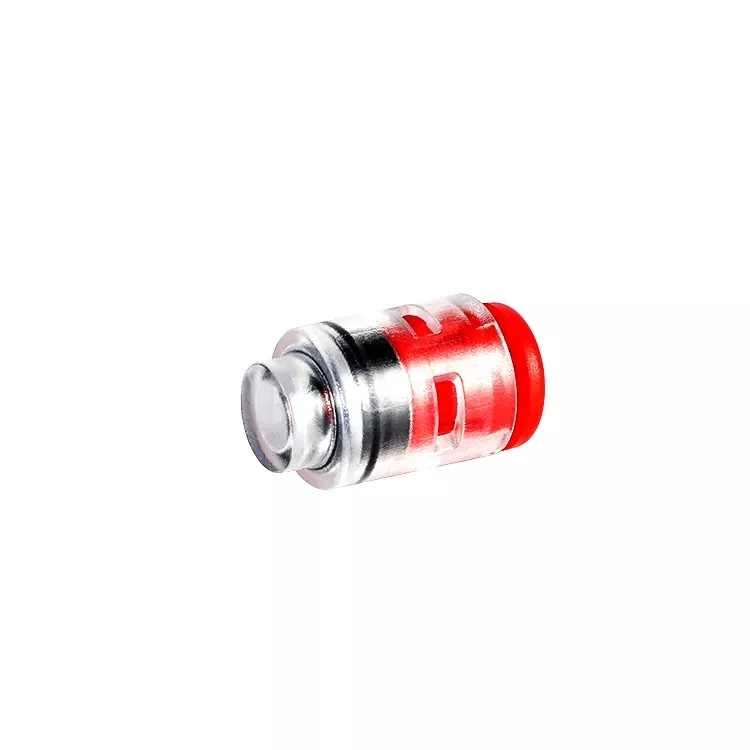

Red seal microduct fittings pipe plug easy observe transparent plastic end stop connector

Product Overview

Description

To keep MicroDuct networks free of debris, seal the system with Micro-duct endstop connector. With the same functionality as the Push-Fit Connectors, installation simply involves pushing the MicroDuct into Micro-duct endstop connector. The Micro-duct endstop connector can be attached and removed 10 times while still maintaining the same high performance characteristics.



Micro-duct endstop connectors operate at 16 BAR (218 psi) with a maximum permissible leakage rate of 1cc/min. This is equivalent to 1 bubble every 3 seconds. Higher pressures have been used in the field with no increase in leakage rate. Quick Burst rating is 25 BARS (363 psi).



Micro-duct endstop connector Feature:



Body Material:	PC, impact resistant
Collect Material:	POM, stainless steel teeth
O-rings Material:	Nitrile rubber
Blowing Pressure:	16 bar
Burst Pressure:	25 bar
Temperature Range:	-10 ~ 60°C
Insertion force:	50N max (5kg)

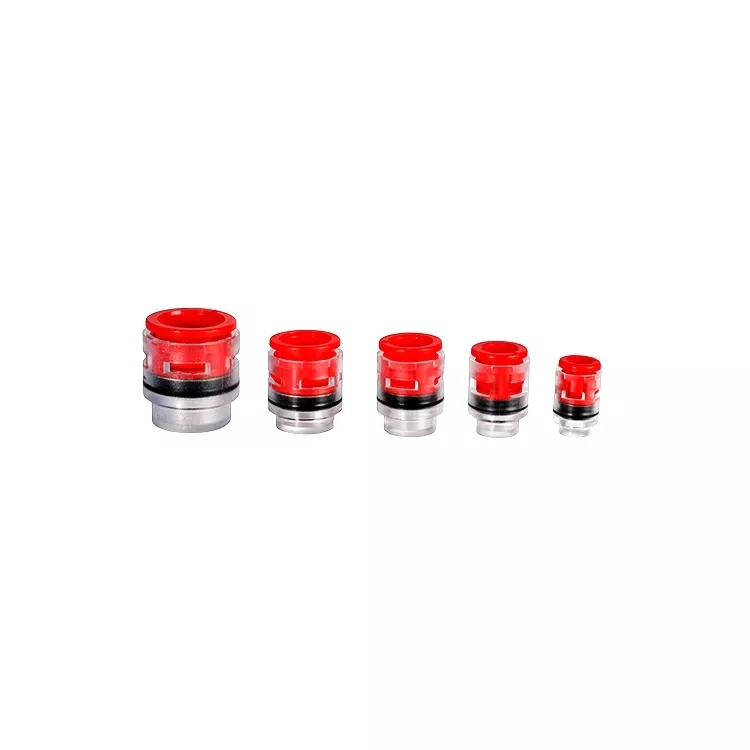

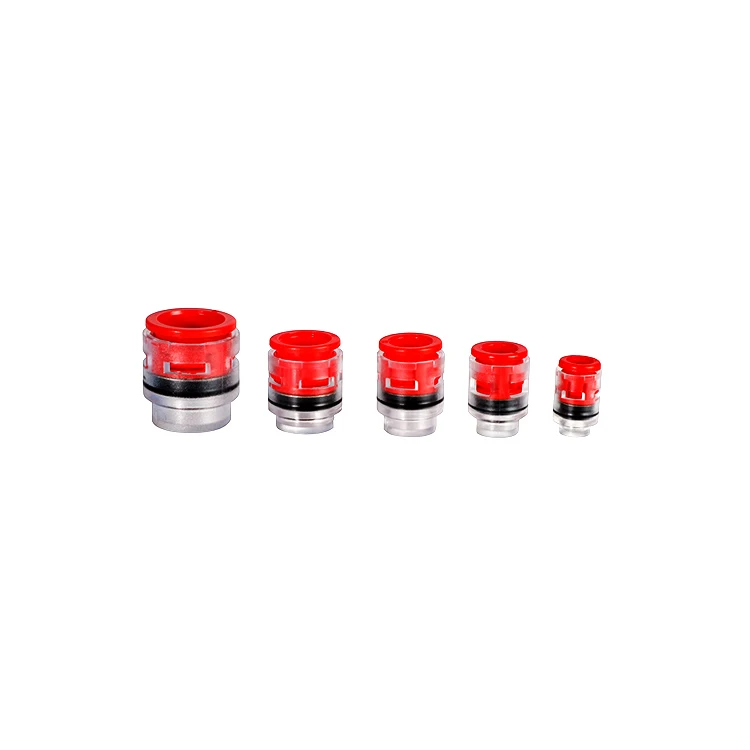

Micro-duct endstop connector Specification:

Reepure code	Description
MEC-3	3mm end connector
MEC-4	4mm end connector
MEC -5	5mm end connector
MEC -6	6mm end connector
MEC -7	7mm end connector
MEC -8	8mm end connector
MEC -10	10mm end connector
MEC -12	12mm end connector
MEC -12.7	12.7mm end connector
MEC -14	14mm end connector
MEC -16	16mm end connector
MEC -18	18mm end connector
