2022 manual clay interlocking block making brick machine machinery in Africa with wholesale price
- Category: >>>
- Supplier: Linyi Dongyue Building Materials Machinery Co. Ltd.
Share on (1600587486555):
Product Overview
Description
QT8-15 automatic hollow block making machine fly ash cement brick plant best price
Products Description
Good quality is always the best choice!
1. More heavier host machine 105000kg
2. More stronger main structure with Reinforce
3. Famous brand motor and electrical components
4. Advanced technology in China
5. After-sales service team, worry-free after-sales
Main technical parameter | ||||||
Dimension of host machine | 3800*2200*2950mm | Host machine power | 45KW | |||
Weight of host machine | 10500kg | VIbratioon force | 100KN | |||
Moulding area | 1240*820mm | Models of mixer | JS750 | |||
Pallet size | 1050*900*30mm | Froming cycle | 15-20 seconds | |||
Theoretical production capacity | ||||||
Size(L*W*H), mm | pcs/mould | pcs/hour | pcs/ 8 hours | |||
400*100*200mm | 16 | 3840 | 30720 | |||
400*150*200mm | 12 | 2880 | 23040 | |||
400*200*200mm | 8 | 1920 | 15360 | |||
400*250*200mm | 6 | 1440 | 11520 | |||
240*115*53mm solid block | 45 | 10800 | 86400 | |||
Paver:200*100*60mm | 28 | 5040 | 40320 | |||
Paver:200*163*60mm | 20 | 3600 | 28800 | |||
S paver 245*122.5*60mm | 20 | 3600 | 28800 | |||
1000*80*200mm curbstone | 6 | 1080 | 8640 | |||
1000*200*300mm curbstone 1000*180*300mm curbstone 1000*150*300mm curbstone | 2 | 360 | 2880 | |||
The block mold is customizable and replaceable to produce different kinds of blocks according to your requirement. | ||||||

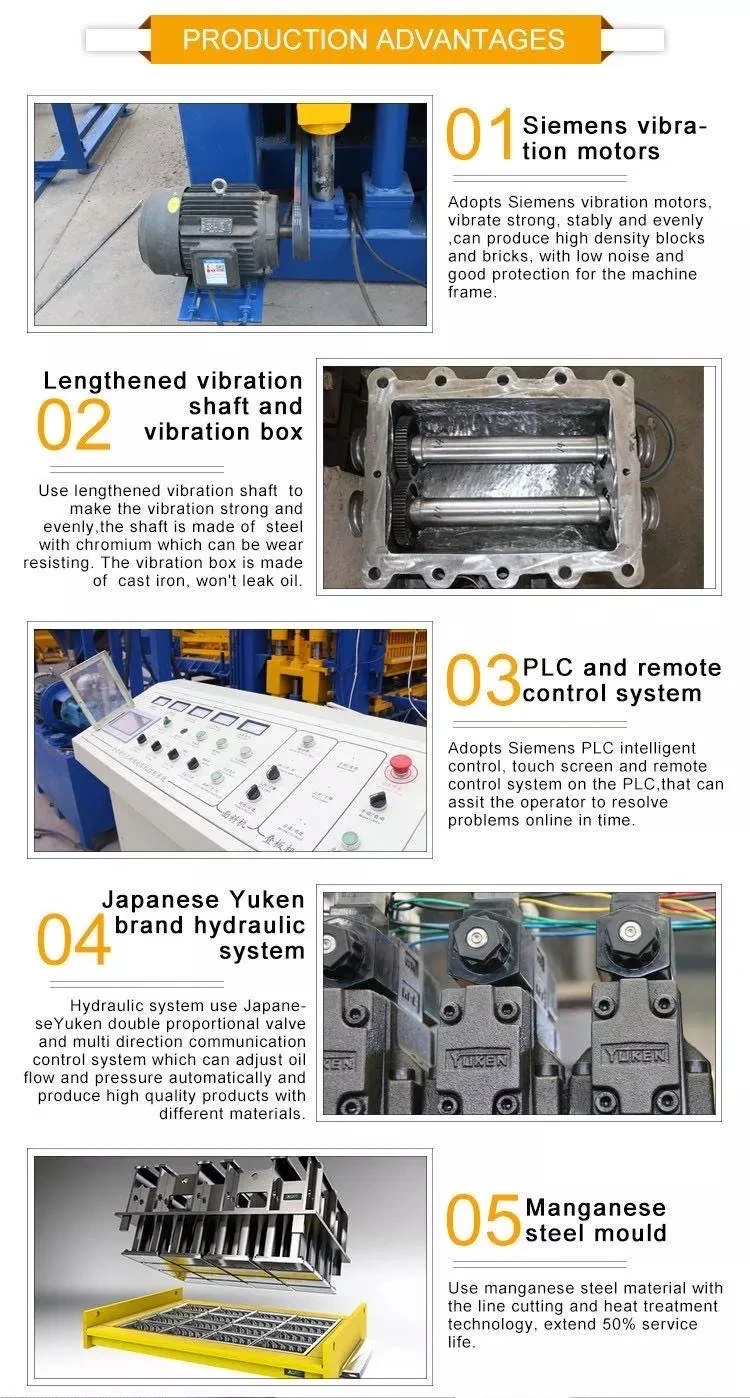

Details Images

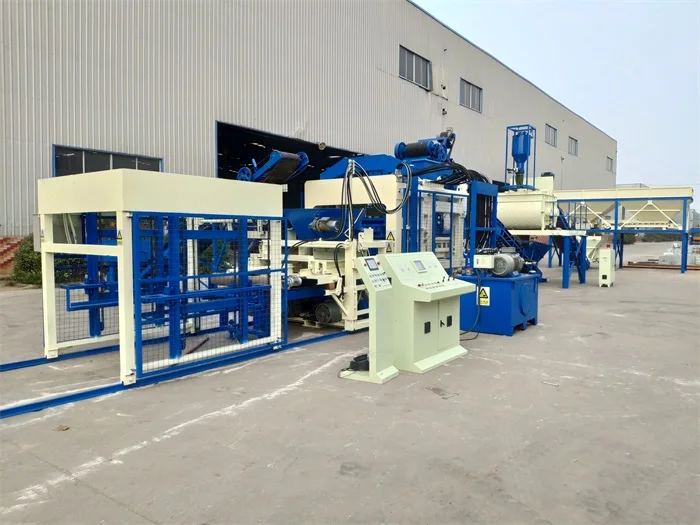

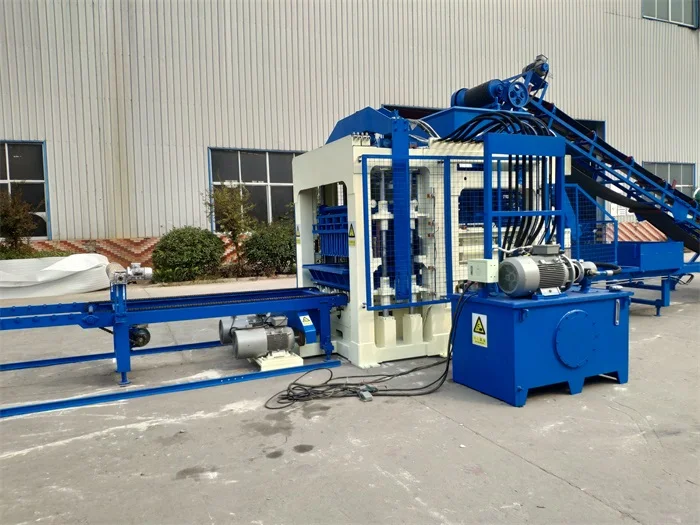

QT8-15 is a full automatic brick machine production line,with reasonable design and high efficiency is high.
1.Material and welding: All material and spare parts selected according to international CE standard, Carbon dioxide protection will assure whole line stable running.

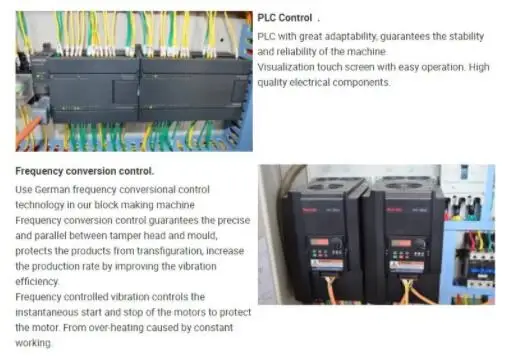

2. Electric control system: We selected original Mitsubishi PLC combine with independent machine control system to assure stable and high-efficiency working status.
3.Switches and motor:Switched will use Japan Omron or France Schneider, motor will use Siemens or ABB band.
4.Hydraulic system: The machine adopting the advanced hydraulic molding technology, it can assure the block machine have stable and high-efficiency working status, and the blocks produced are of better quality,larger density and higher strength.

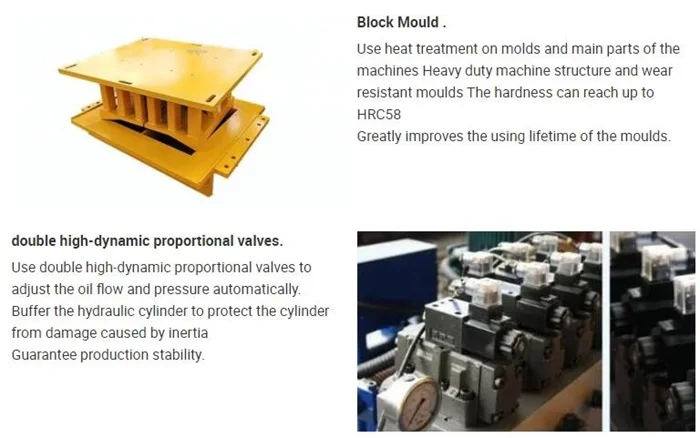

5.Block mould: Our block moulds are made of 16# manganese steel.Besides the good raw material, precise line cutting technology and 900ºC carburizing heat treatment technology are all adopted in the process of brick moulds production.Then the mould size error can be controlled within 0.002mm . The surface layer of the brick moulds get higher hardness (achieving HRC54-58) and better wear resistance.
6. Vibration system: The machine adopts the special technology to optimize the vibration shaft, so that the proportion of vibration is covered in the whole surface range, so the product quality is greatly improved and the noise is effectively reduced. The machine's unique fixed platform design forms can improve the molding speed and dimensional accuracy.

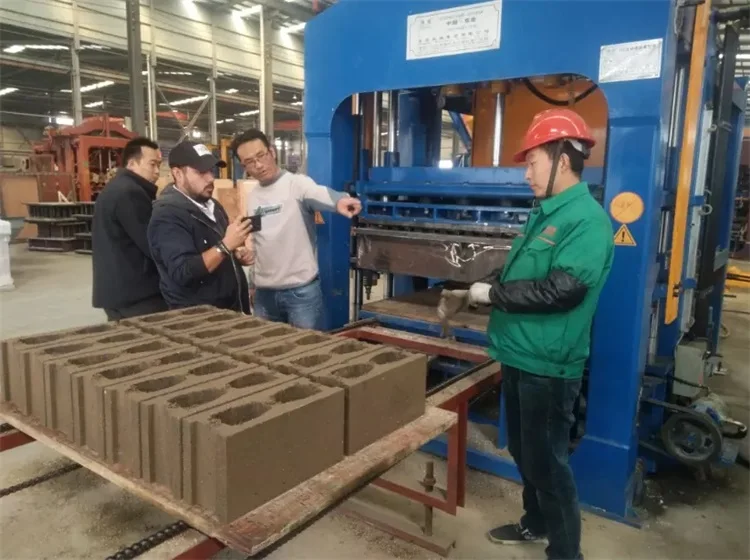

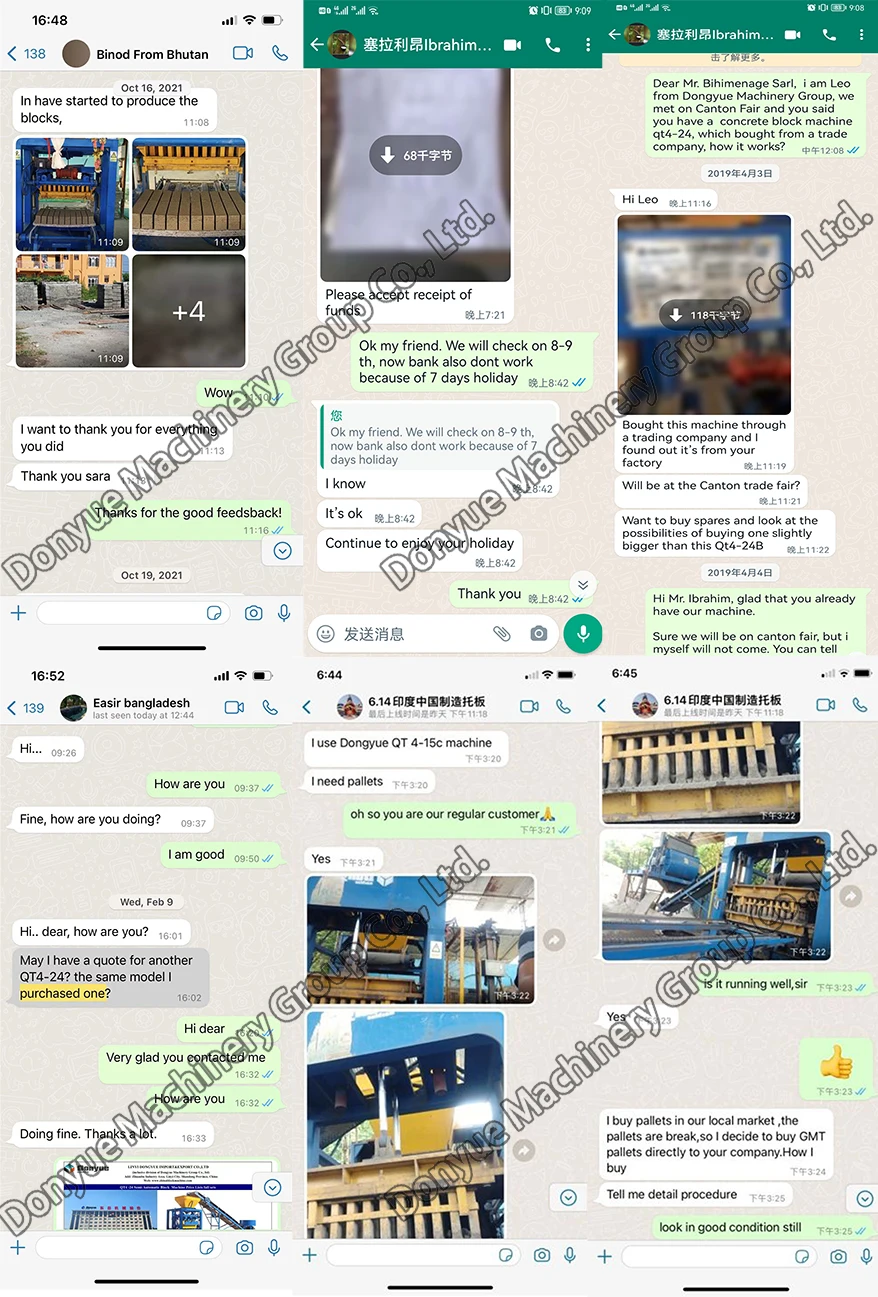

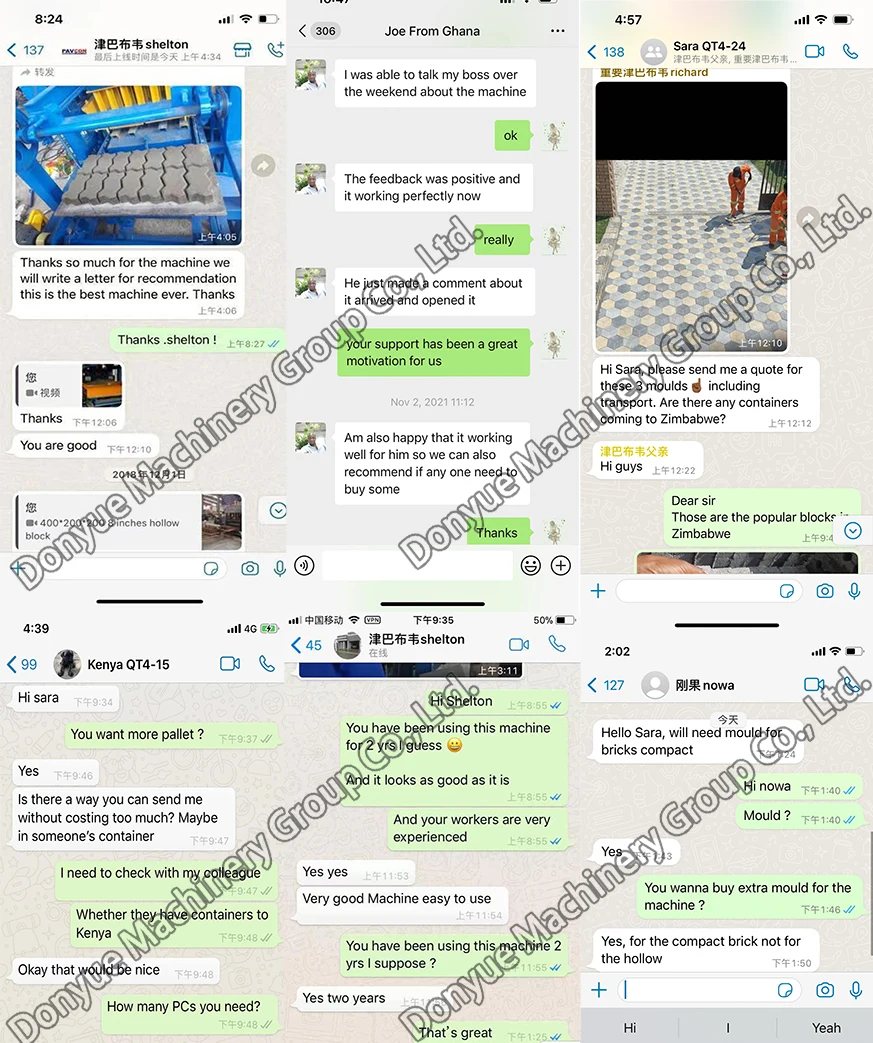

Clients feedback
Production process

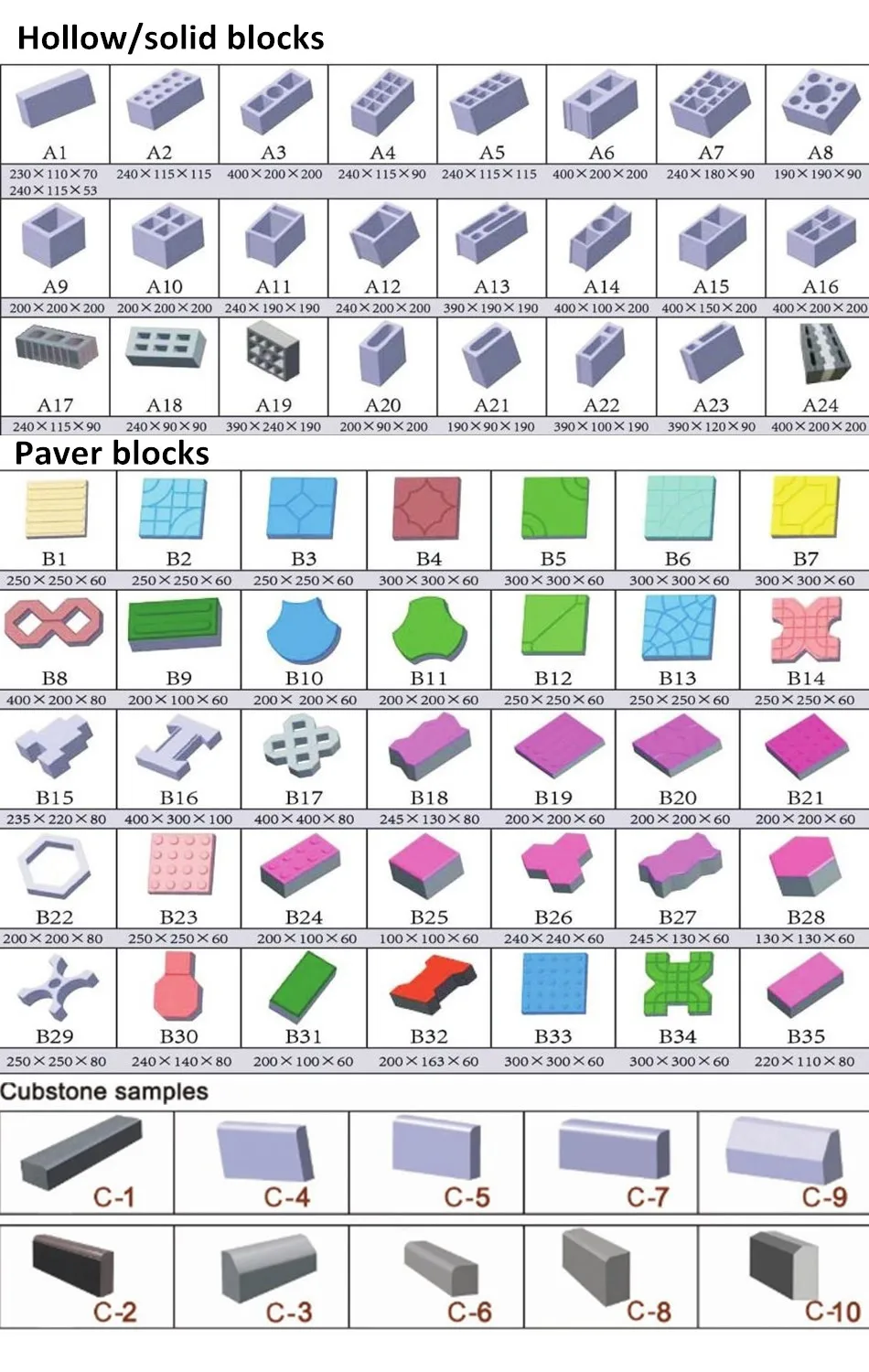

All these can be used as raw materials to produce hollow/solid/paver blocks or curbstones.

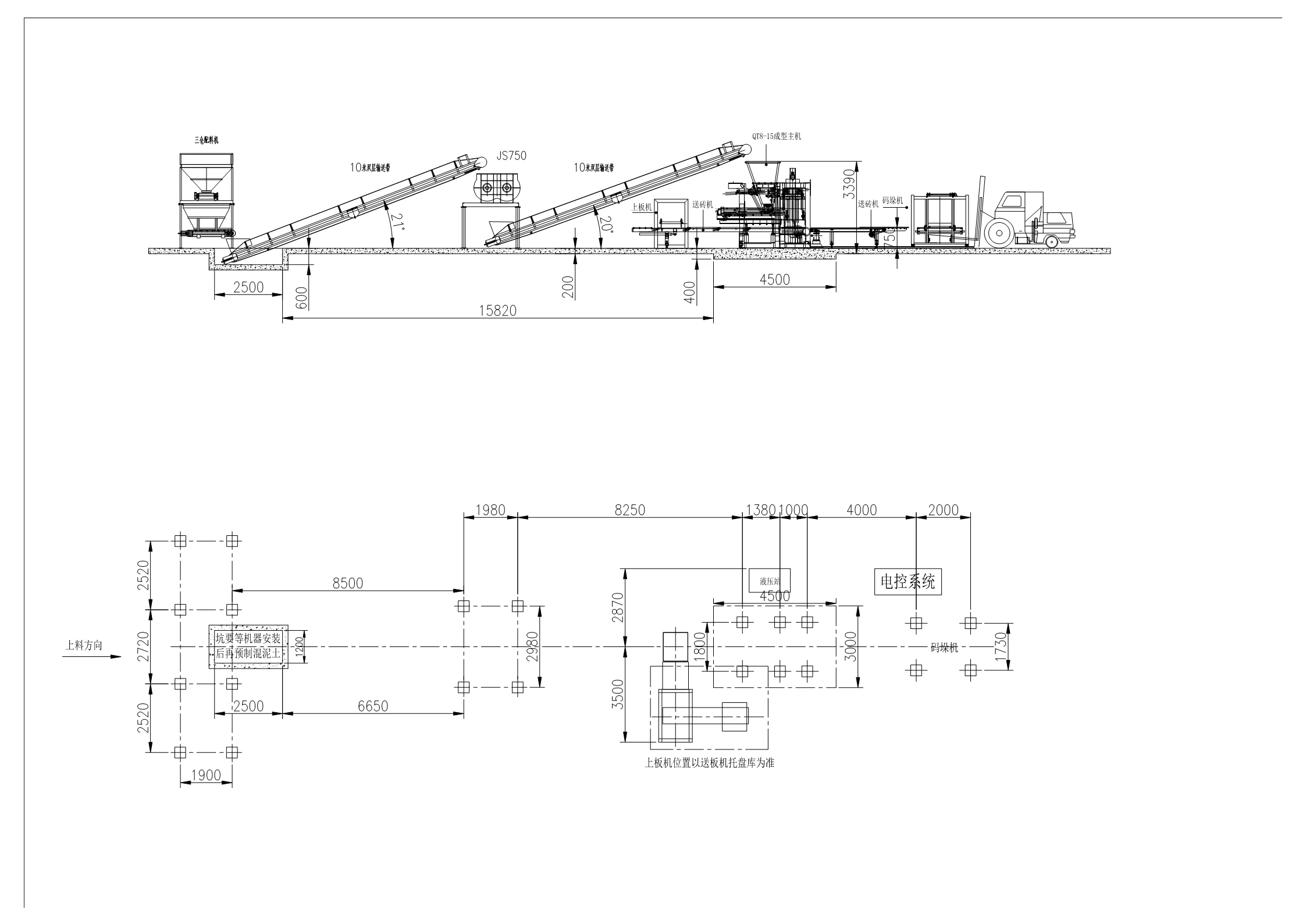

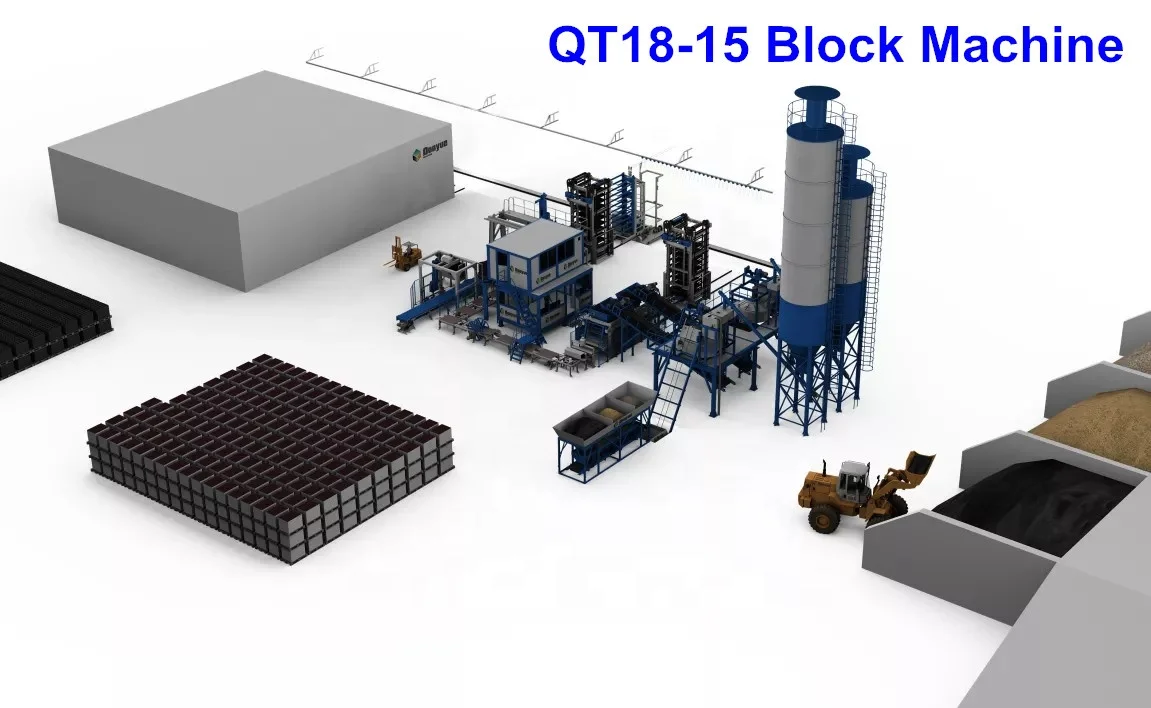

Sketch map：
Production process
1. Material Batching and preparation Section: Raw materials are discharged to the mixer from three Hopper batching machine, as there is a hole under ground. The mixed raw materials are sent to the mixer.
2.Mixing Section: After being mixed evenly with water, raw material are unloaded to the block making machine through belt conveyor.
3.Block forming Section: Mixed raw material are then sent to the mould case. Under PLC computer intelligent control. Hydraulic transmission, vibration, shaping takes place.
4.Automatic Stacker Section: After demoulding ,green brick will be unloaded to the bamboo pallet.
5.Block Curing Section : Wet product will be conveyed through green block conveyor then to the stacker.

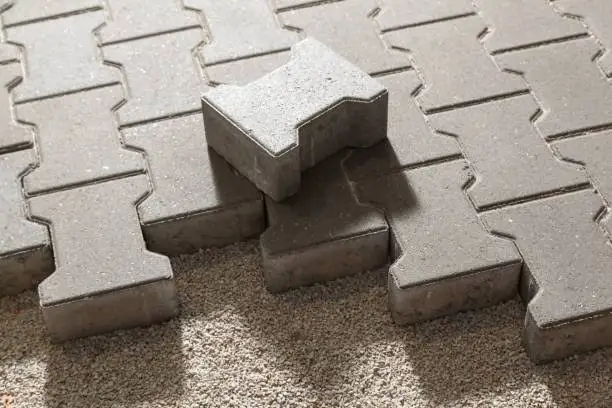

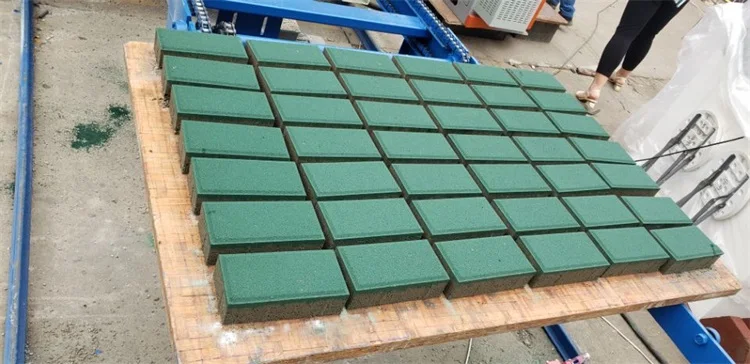

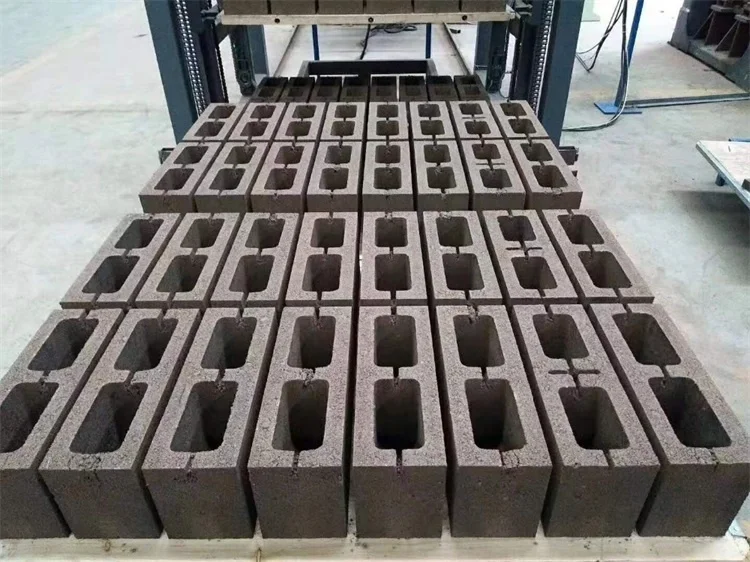

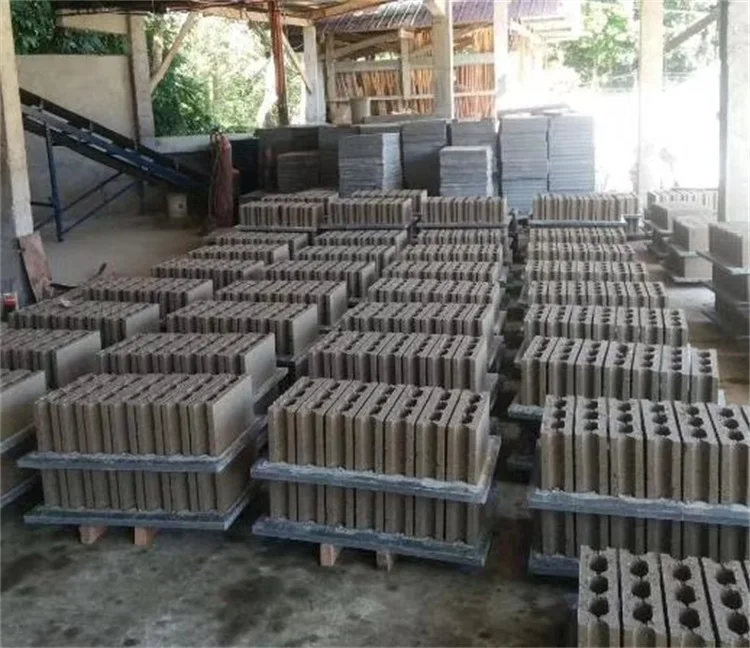

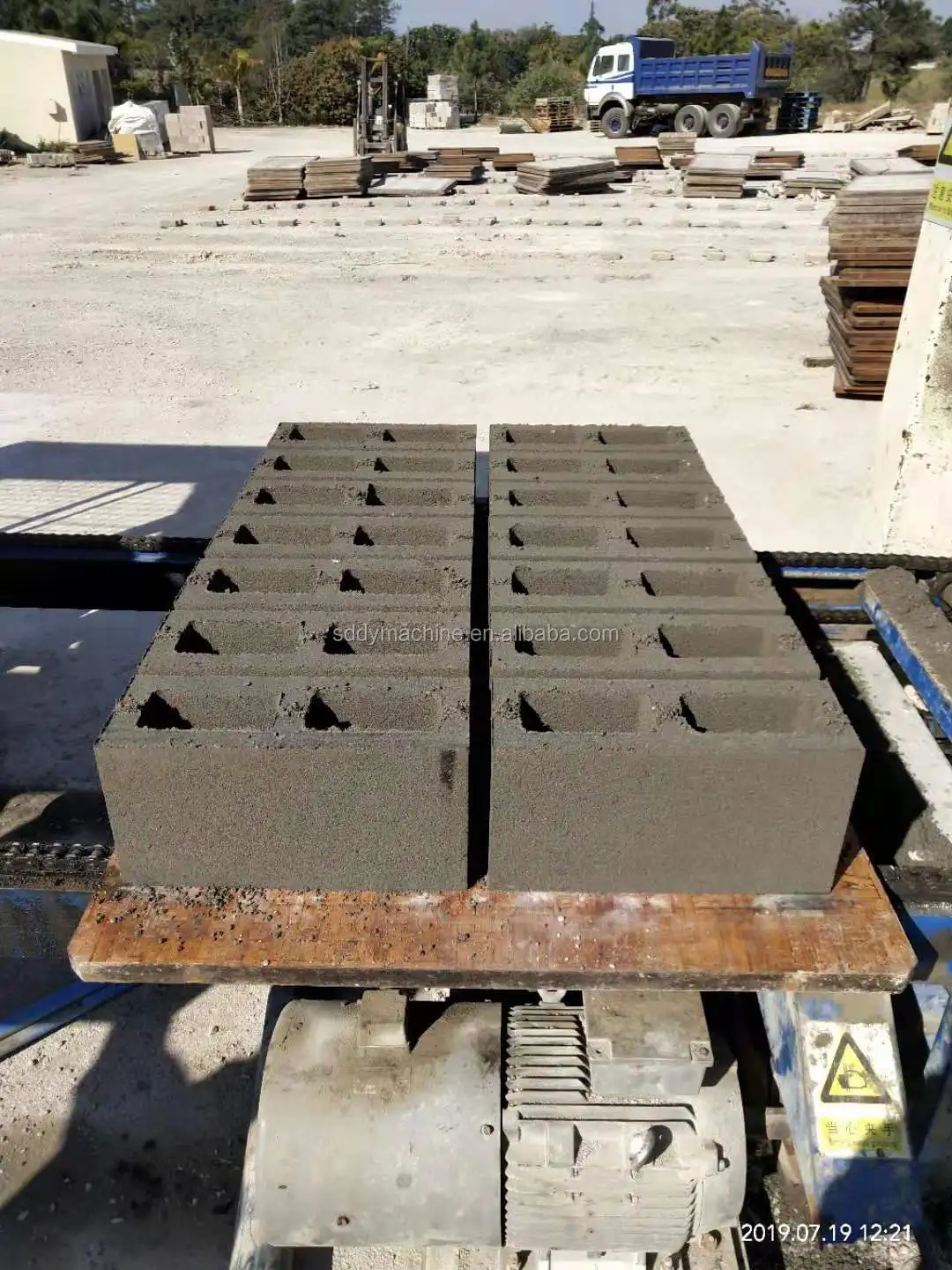

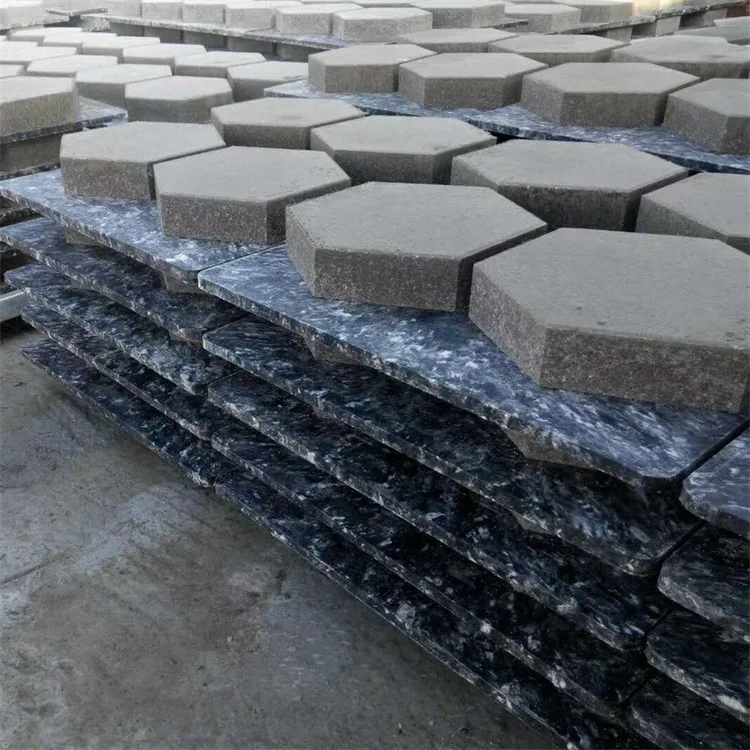

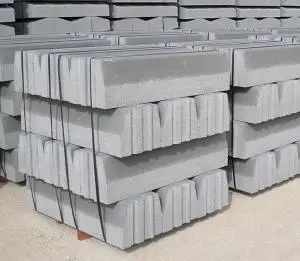

Finished blocks
Company Profile

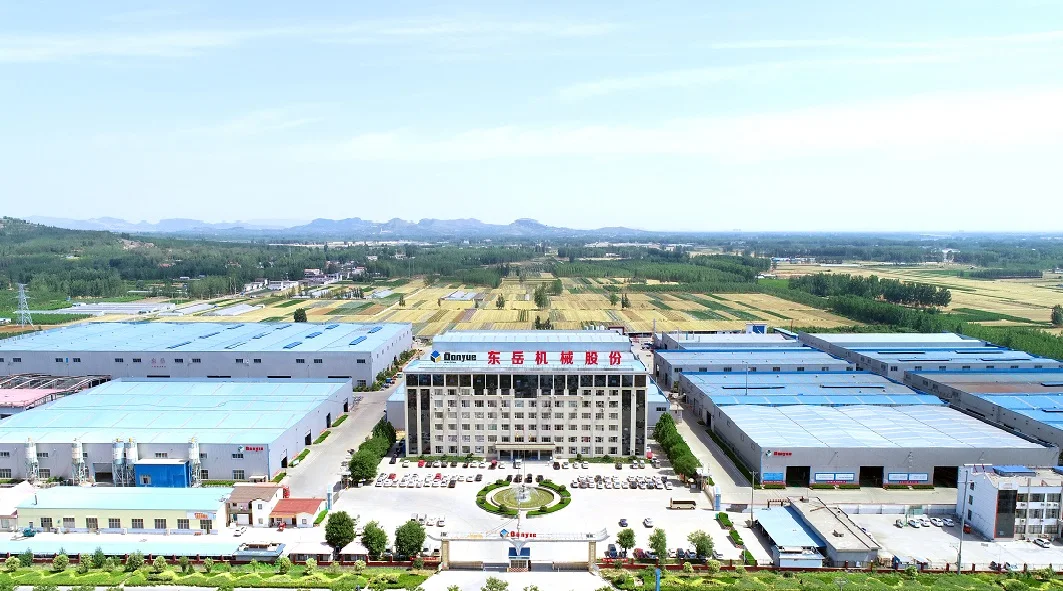

DONGYUE MACHINERY GROUP CO.,LTD - Since 1994
Long History With Rich Experience: Our company has been in brick making machine for 28 years .With long time experience, our customers come from Middle East,South East Asia,Africa,South American and we has exported more than 40 countries.
Sincere Service return to our customers: Our block machine has providedmore than 1,000 sets of block machines to different customers to make huge profit.
Perfect After-sale Service : Up to now,we already have office in India, Vietnam,Indonesia.If any problem can not be solved, we will fly to your site for help.Installation concrete blockmachine& train of workers
LINYI Dongyue Building Material Machinery Co.,ltd , which was organized in 2011 is a Chinese manufacturer of dedicated machinery for construction blocks and panels. Our company offers complete production lines for premium building components such as the autoclaved aerated concrete block, autoclaved lightweight concrete panel. Additionally, we provide various types of pressure vessels and block-making machines. By choosing DONGYUE, customers can enjoy professional benefits with our dedicated services for design, installation, layout planning, technology transfer, and production guidance. we will exceed all expectations. With quality as our highest priority, we have established an optimized control & regulation system. Support from a large distribution network and world-class customer service have allowed our products to gain momentum in a fiercely competitive market. We have led the competition by passing the certifications of both CE and the ISO9001:2000 Management System.Together, we will create a brighter tomorrow!
CE certificate
SGS certificate
ISO9001 certificate

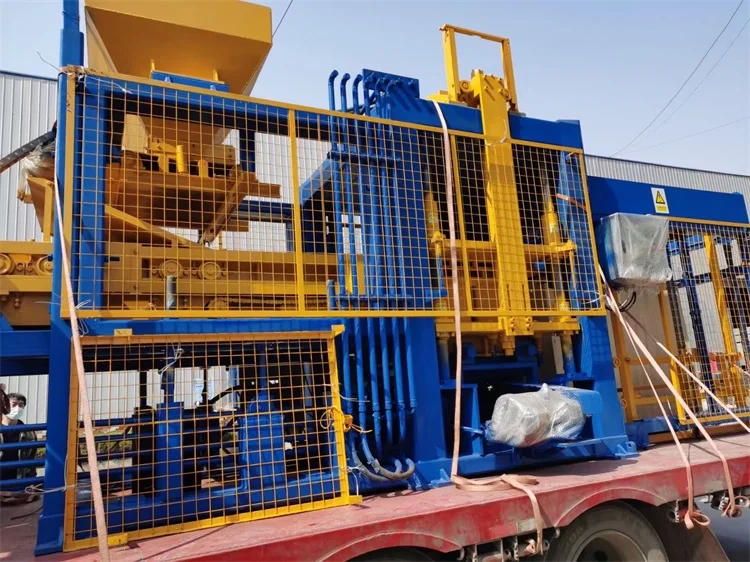

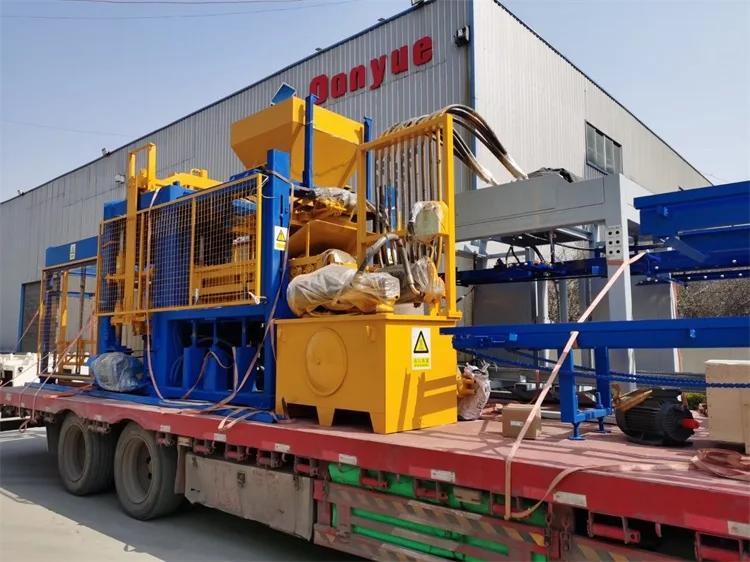

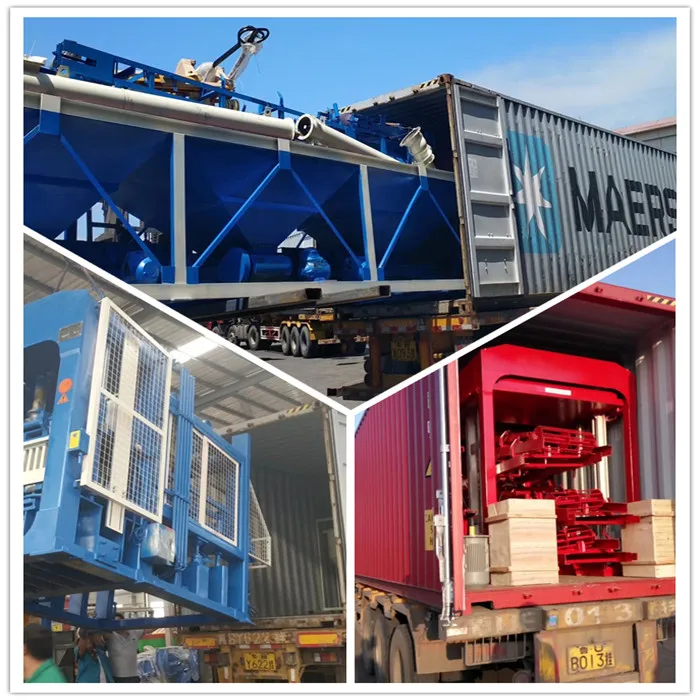

Packing&Delivery
Containers
For QT4A-15, QT5-15, QT6-15, QT8-15, QT10-15, QT12-15 need at least 2*40HQ containers, depends on order.
