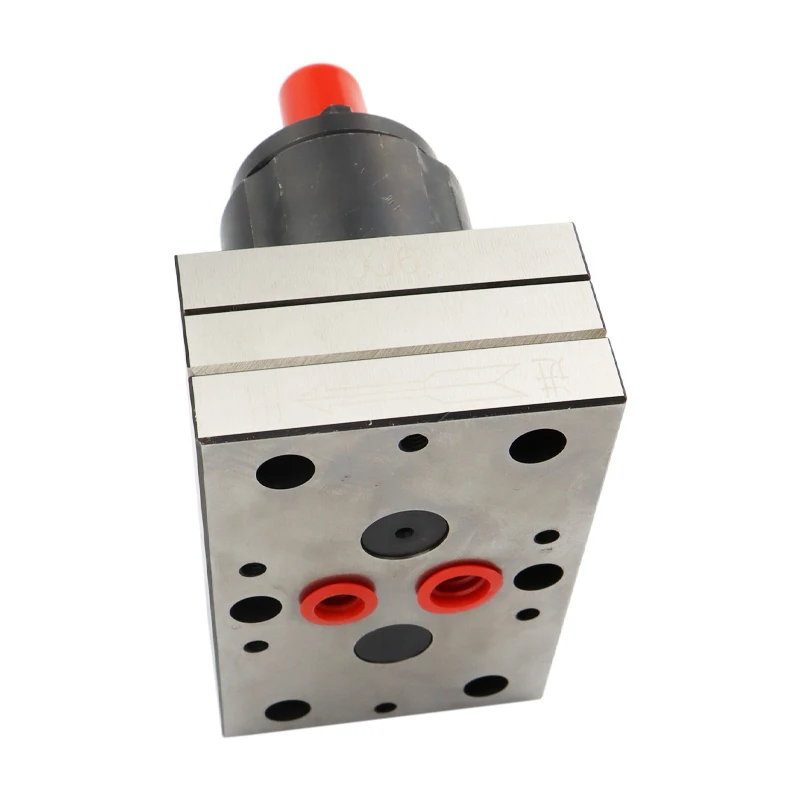

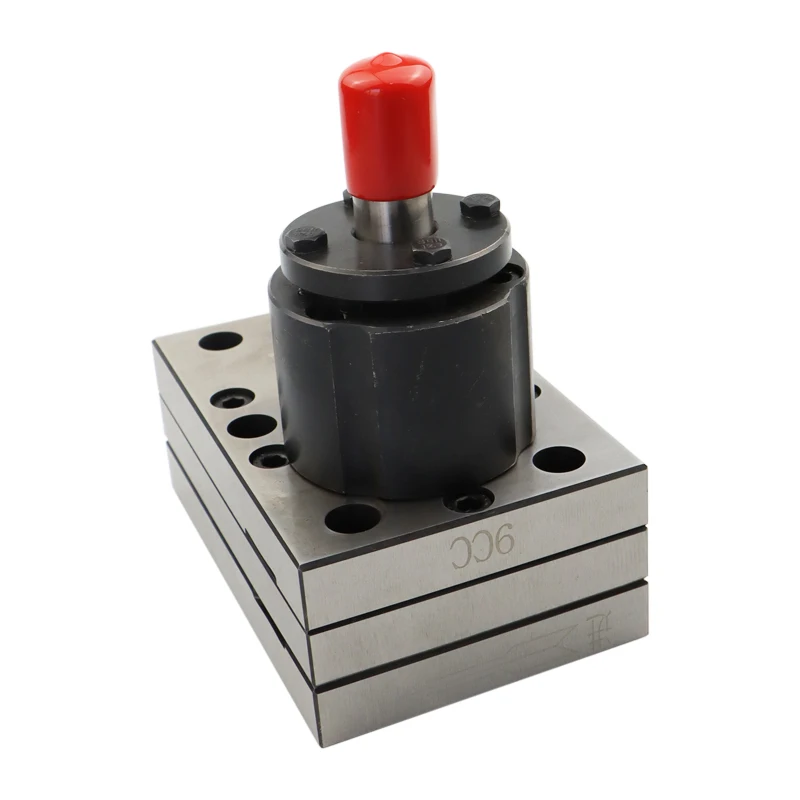

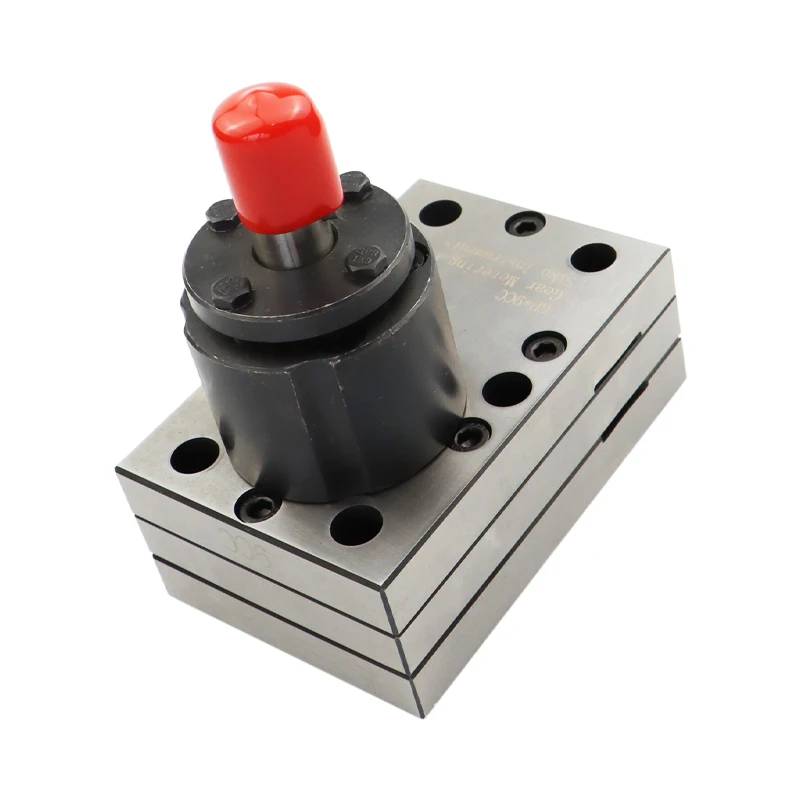

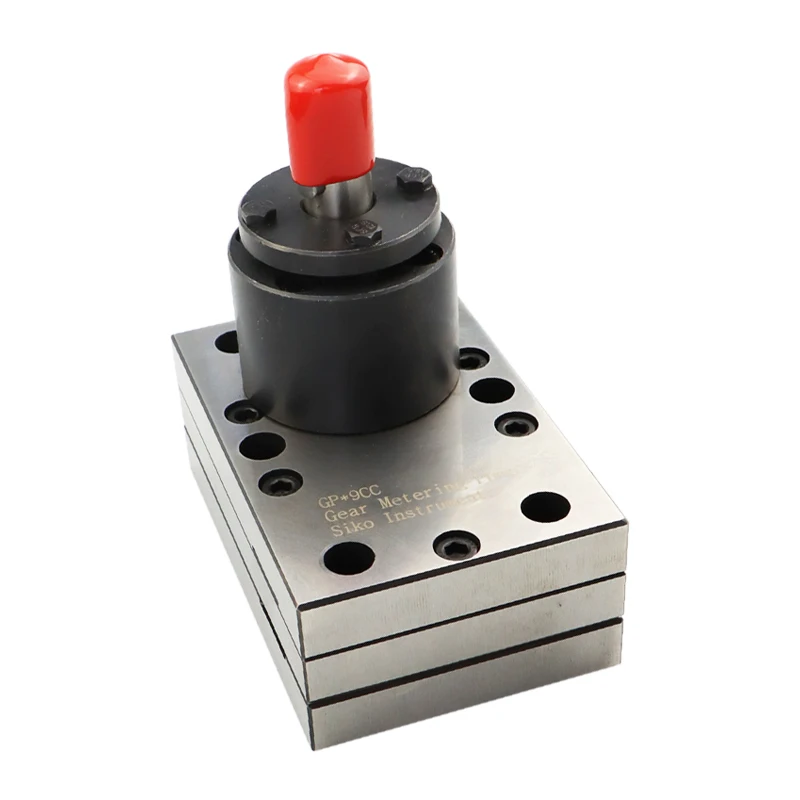

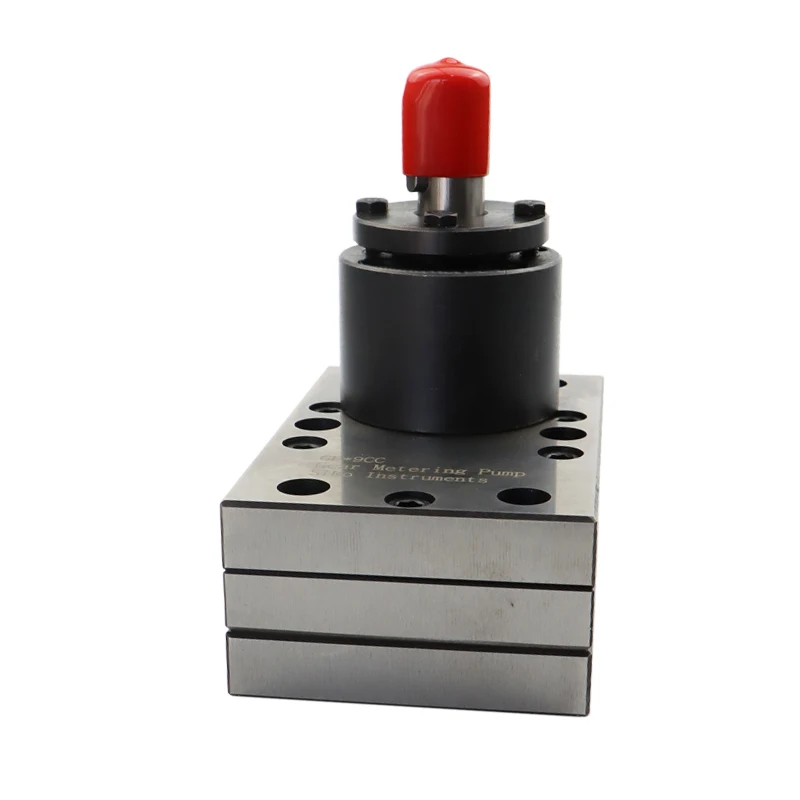

Animal Grease High Viscosity Low Flow Gear Metering Pump
- Category: >>>
- Supplier: Hefei Siko Instruments Co. Ltd.
Share on (1600587495683):
Product Overview
Description
Animal Grease High Viscosity Low Flow Gear Metering Pump
Product Description
Gear Metering Pump is driven by a pair of intermeshing gears, one of which is a driving gear and the other is a passive gear, which is driven by the driving gear to mesh and rotate, and will be a small gap in the cavity of the gear pump.
When the gear rotates, in the suction chamber where the gear teeth gradually disengage, the closed volume between the teeth increases, forming a partial vacuum, and the liquid is sucked into the suction chamber under the action of the pressure difference. It is pushed forward by the gear between it and the casing, and sent to the liquid discharge chamber. In the liquid discharge chamber, the two gears are gradually meshed, the volume is reduced, and the liquid between the gears is squeezed to the liquid discharge port.
Technical Parameters
| Model | Displacement (CC/Rev) | Flow Range (Liter/H) | Electric Power | Working Speed | Max. Head (m) |
| GP-4.0 | 4.0 ml/rev | 0-25 L/H | AC 220/380V | 5-200rpm | 25 |
| GP-6.0 | 6.0 ml/rev | 0-36 L/H | 25 | ||
| GP-9.0 | 9.0 ml/rev | 0-55 L/H | 25 | ||
| GP-12 | 12 ml/rev | 0-75 L/H | 25 | ||
| GP-15 | 15 ml/rev | 0-90 L/H | 25 | ||
| GP-20 | 20 ml/rev | 0-120 L/H | 30 | ||
| GP-25 | 25 ml/rev | 0-150 L/H | 30 | ||
| GP-30 | 30 ml/rev | 0-180 L/H | 30 |
Drawing OF Dimension
(0.15-3.6CC)
| Model | Inlet | Outlet | B | A |
| 0.15CC | 10 | 5 | 24 | 85 |
| 0.3CC | 10 | 5 | 28 | 85 |
| 0.6CC | 10 | 8 | 28 | 85 |
| 1.2CC | 10 | 8 | 32 | 90 |
| 2.4CC | 10 | 8 | 40 | 100 |
| 3.2CC | 10 | 8 | 45.6 | 103 |
| 3.6CC | 10 | 8 | 48 | 105 |
(4-30CC)
| Model | 6C | 9CC | 12CC | 15CC | 20CC | 25CC | 30CC |
| B | 41.6 | 46.4 | 51.2 | 56 | 64 | 72 | 80 |
| A | 130 | 135 | 140 | 145 | 150 | 158 | 165 |
Pump Material of Construction
| No | Material | Material Properties | Field of Application | Operating Temp. Max. | Cleaning Temp. Max. |
| 1 | High Speed Steel (Work Tool Steel) | High tungsten, vanadium and chromium alloyed high speed steel | Highly wear-resistant | 450°C | 550°C |
| 2 | Cold Work Steel (Work Tool Steel) | High chromium alloyed high grade tool steel with additions of vanadium, tungsten and molybdenum | For larger flow rates from 30 cc/rev | 400°C | 500°C |
| 3 | Stainless Steel | High chromium alloyed stainless steel, additions of nickel, molybdenum and titanium | Good resistance. Good weldability. Suitable for higher temp. Suitable in food and pharmaceutical industry. | 300°C | 400°C |
| 4 | Hastelloy (HC1, HC2, HC3) | Acid-resistant nickel alloy, additions of molybdenum and chromium | Good resistance especially to mineral and organic acids | 250°C | 300°C |
| 5 | Stellite (S1, S2) | Cobalt-based alloy with high chromium content and additions of tungsten and nickel | Highly wear resistant corrosion resistant | 150°C | 300°C |
Sealing Systems & Drive Options
| Drive Connection |
|
| Gear Pump With Motor |
|
| Sealing Systems |
|
| Coupling |
|
| Motor |
|
Selection Table
