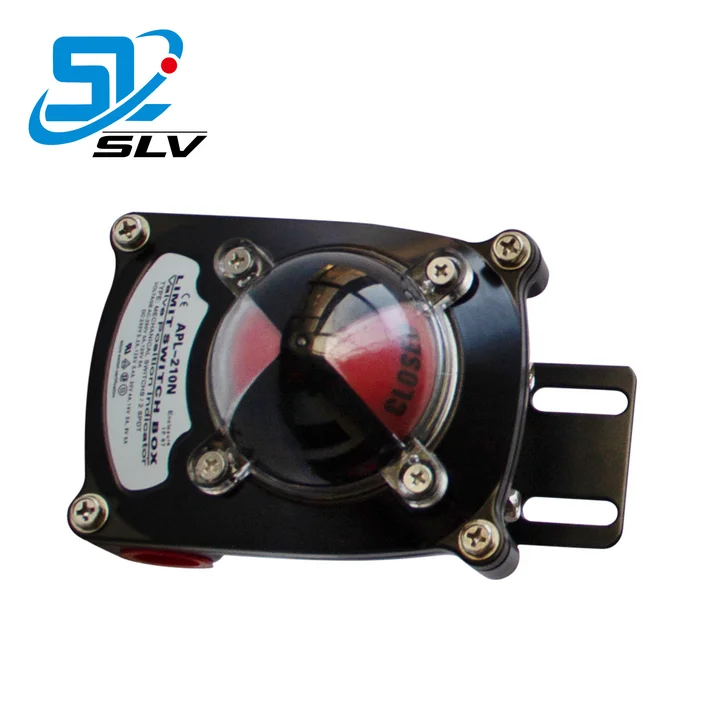

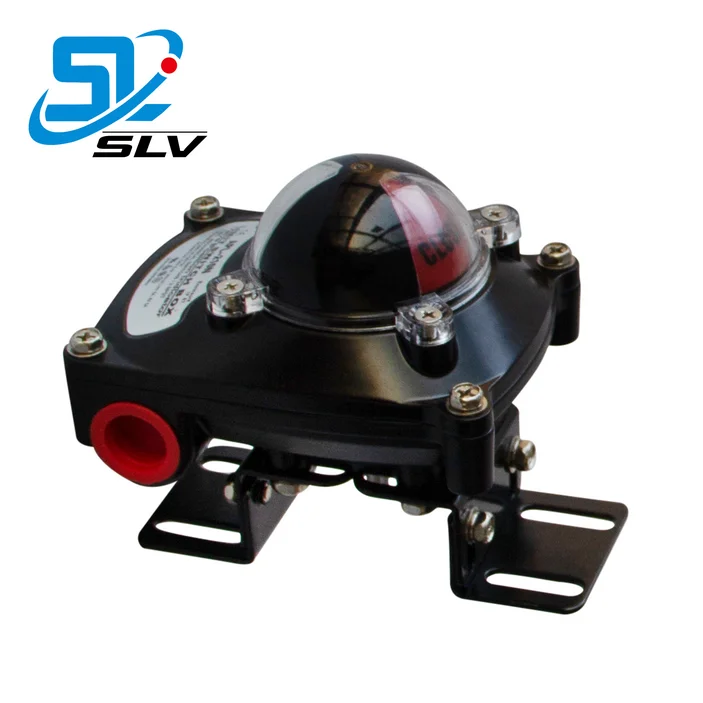

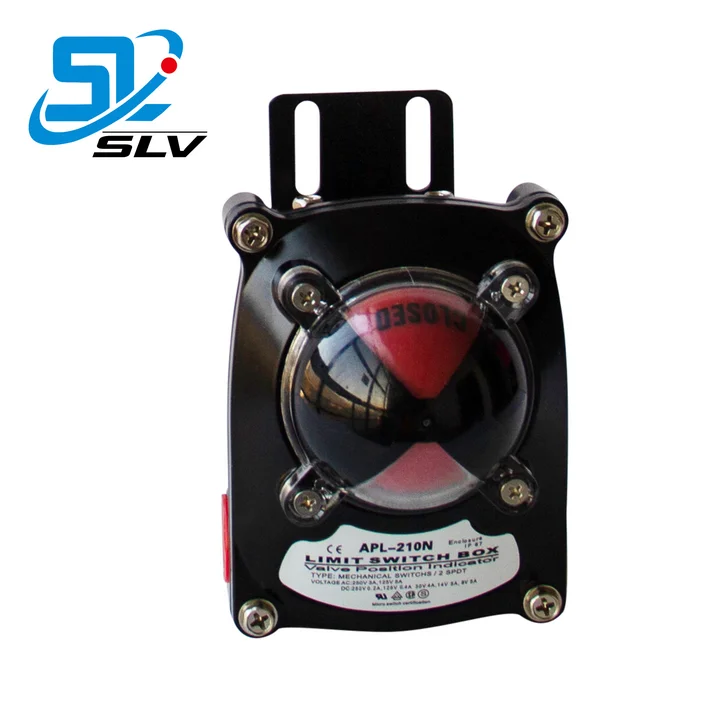

APL Series Limit Switch Box With Position Indicators
- Category: >>>
- Supplier: Jiangsu Shoulong Valve Co. Ltd.
Share on (1600587555422):
Product Overview
Description
Product Specification

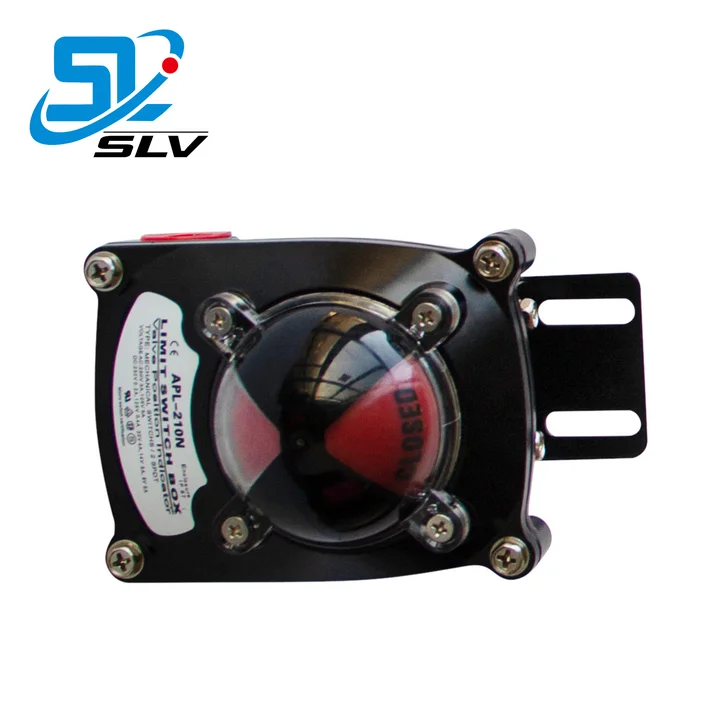

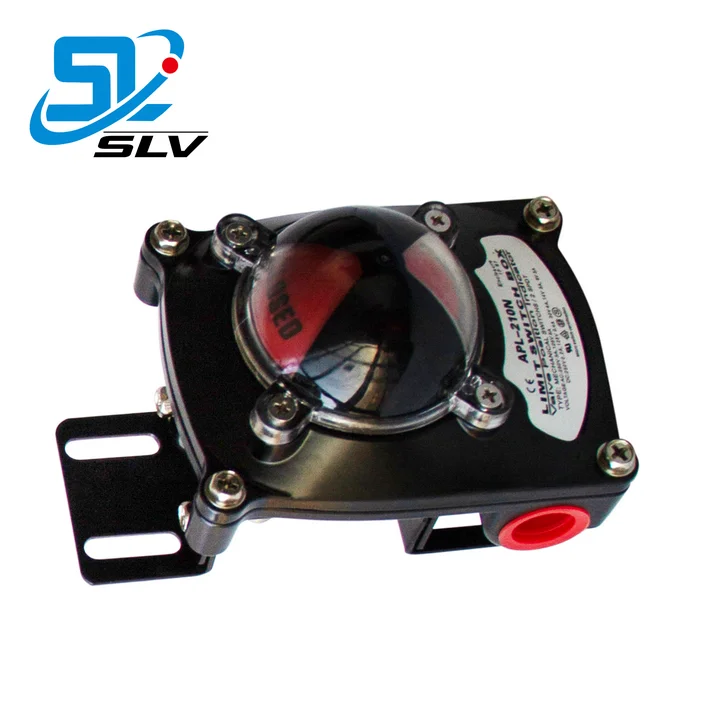

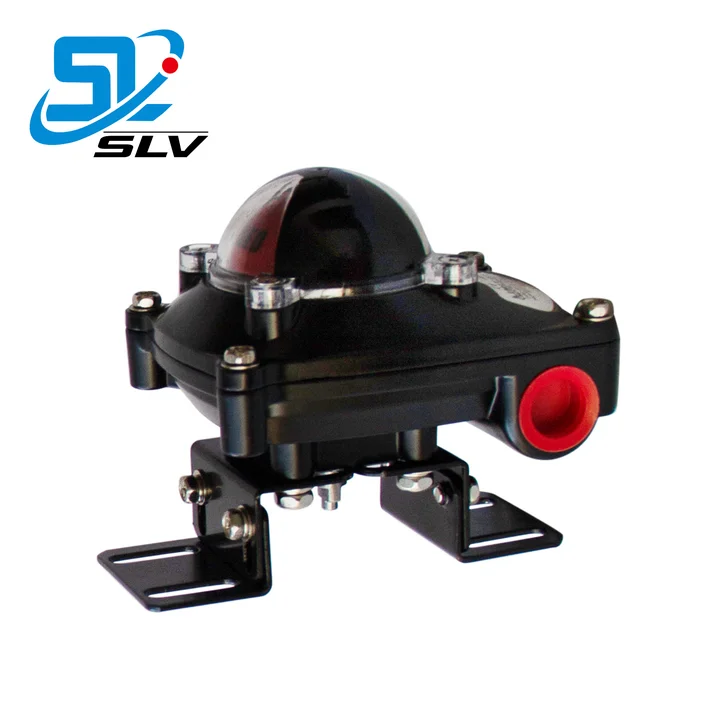

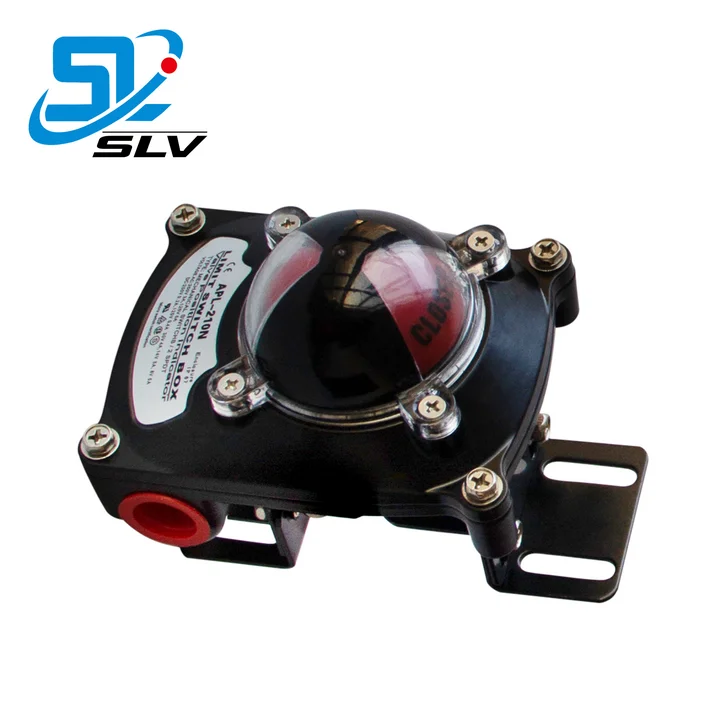

APL-210N Power Coated Aluminium Weather proof Limit Switch Box.
Description:
The APL-2N Series Limit Switch Box is a compact, weatherproof enclosure with internal adjustable position swithes and an external
visual indication.It has NAMUR standard mounting and drive, and is ideally suited for mounting on to quarter turn actuators and
valves.
The APL-2N Series Limit Switch Box is a compact, weatherproof enclosure with internal adjustable position swithes and an external
visual indication.It has NAMUR standard mounting and drive, and is ideally suited for mounting on to quarter turn actuators and
valves.
Other Model: APL-310, APL410
The APL Series Limit Switches features:
1.Solid and compact design aluminium die-cast housing with polyester powder coated finish
2.Bolt-on Visual Position Indicator
3.“Quick-Set” spring loaded splined cam. No need to adjust again after initial setting. Easy setting without tools
4.Dual cable entries
5.Captive cover bolts to prevent loss when cover is removed

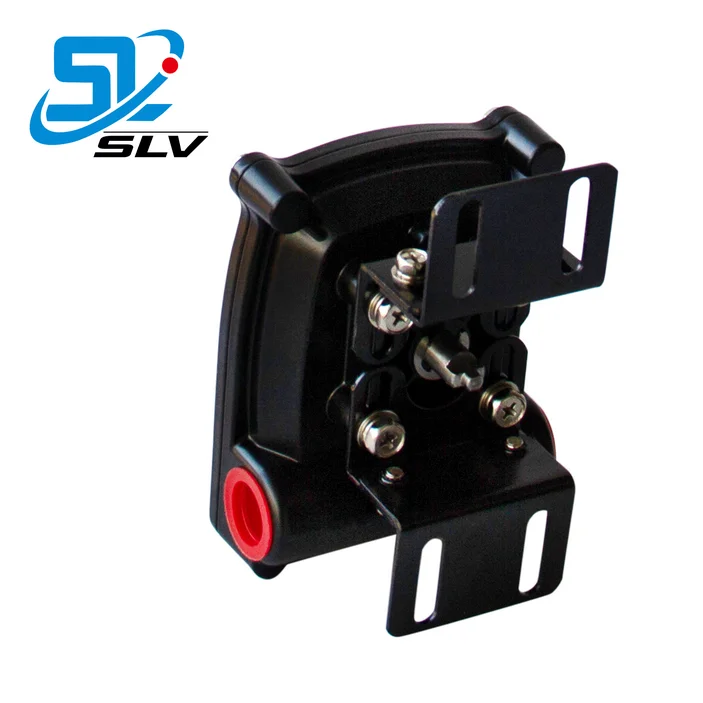

6.NAMUR standard stainless steel shaft and bracket
2.Bolt-on Visual Position Indicator
3.“Quick-Set” spring loaded splined cam. No need to adjust again after initial setting. Easy setting without tools
4.Dual cable entries
5.Captive cover bolts to prevent loss when cover is removed
6.NAMUR standard stainless steel shaft and bracket
7. The limit switch indicator are greatly used in pneumatic actuator. valve position indicator. 2 SPDT switch
Specification | Standard |
Enclosure | Weatherproof IP67 / Nema 4 & 4X |
Temperature Range | -20°C to 80 °C |
Conduit Entries | 2 x ½” NPT |
Terminal Settings | 8 Points |
Position Indicators | Closed: Red, Open: Yellow |
Switches | 2 SPDT Omron Mechanical Switches |
External Coating | Polyester powder coating (silver) |
Shaft | Standard Shaft (17mm) |
Painting | Polyester powder coating |
Voltage | 250VAC, 250VDC, 125VDC, 30VDC |
Function | show the pneumatic actuator or valve positon |
Material: | ||
Housing Cover & Body | Aluminium die-casting | |
Shaft | Stainless steel | |
Indicator Cover | Polycarbonate | |
Indicator | ABS/Polycarbonate | |
Cam | Polycarbonate | |
Spring | Stainless steel | |
Housing Cover & Bolt | Stainless steel | |
O-Ring | NBR | |
Bushing | Bronze | |
E-Ring | Stainless steel | |
Earth Lug | Stainless steel | |
Bracket | Stainless stee | |
Limit Switch box on Pneumatic Butterfly Valve
Limit Switch box on Pneumatic Valve
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Packing: Carton box for small and light products. / Wooden box for big and heavy products
Company Profile
SLV-Jiangsu Shoulong Valve Co., Ltd. is a comprehensive enterprise engaged in research & development, produciton, sales and import & export of automatic control valves.
Founded in 1988, factory area in Nanjing and Wuxi: 30 acres.
Our company has a complete set of prodction and testing equipment, perfect organization and quality system and a number of high-quality professional technicians and also has passed ISO9001-2000, TRD100, CE, API6D, API607, DNV, CNS and other certification successively.
