Электростатический осадитель JUWEI для очистки воздуха от производителя
- Category: Gas Disposal Machinery >>>
- Supplier: Nanning,Juwei,Machinery,And,Electricity,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product description
China juwei electrostatic air cleaner is a filtration device that removes fine particles such as oil, fume, lampblack, dust and smoke,which caused by cooking&grilling&lasering&hot-heating...ect. Using the force of high voltage electric field, charged the particles to positive and negative potemtial, then they will be collected by the negative/positive collectors, turn dirty air into clean air. After tested, our machine can take away up to 98% of particles.

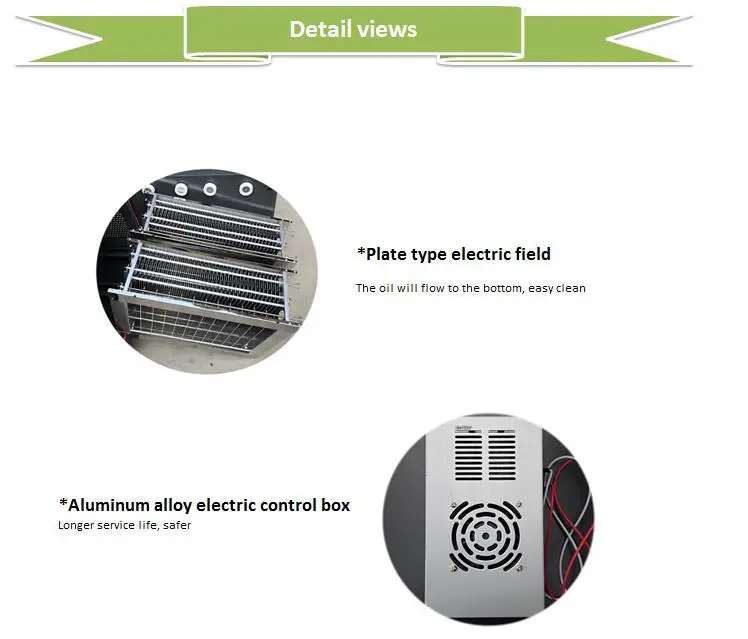

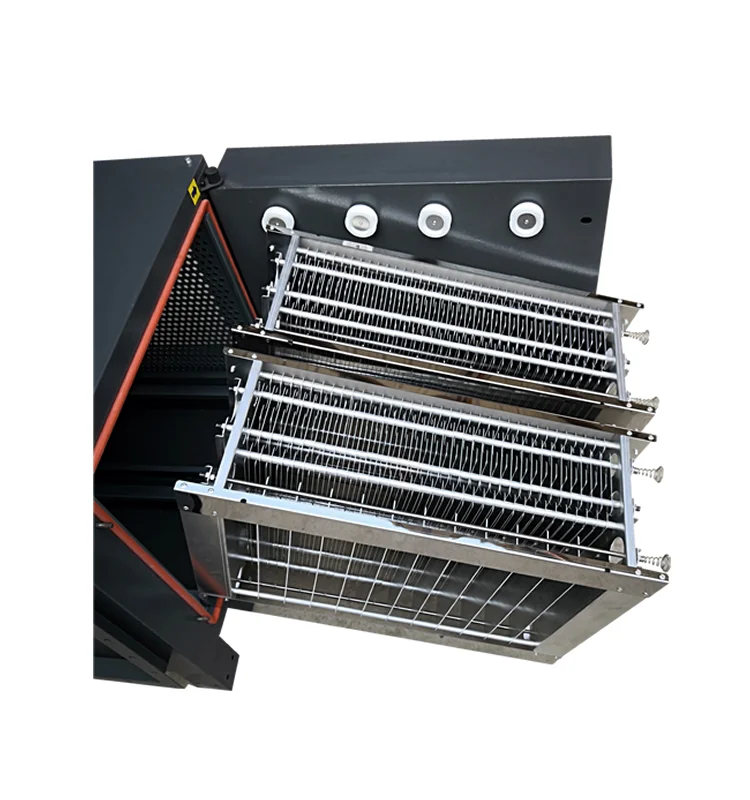

The electric field of the dual-zone air purification system includes an ionization section and a collection section. Each
ionization section is composed of a series of tungsten steel wires, and each collection section is composed of a large number of
parallel plates.
ionization section is composed of a series of tungsten steel wires, and each collection section is composed of a large number of
parallel plates.

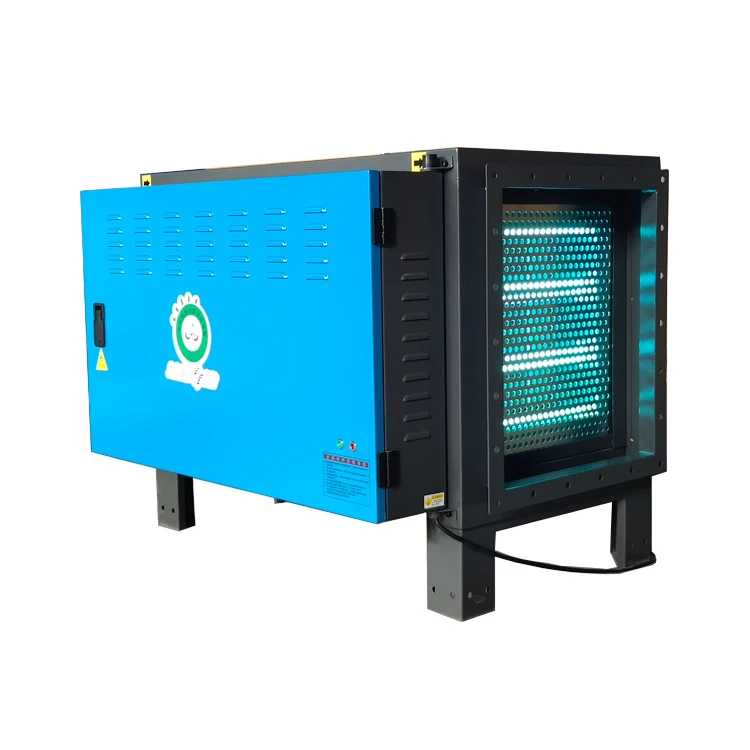

The dual-band UV photolysis matrix can effectively degrade the passing odor gas, remove the odor, and the structure of the patch type is convenient for maintenance and cleaning
Extended product series
This product is suitable for public areas with high traffic, such as hotels, office buildings, roof gardens, etc., used in conjunction with static electricity, UV and activated carbon series, can effectively remove the oily odor generated by hot pot restaurants, barbecue odor and other dining places

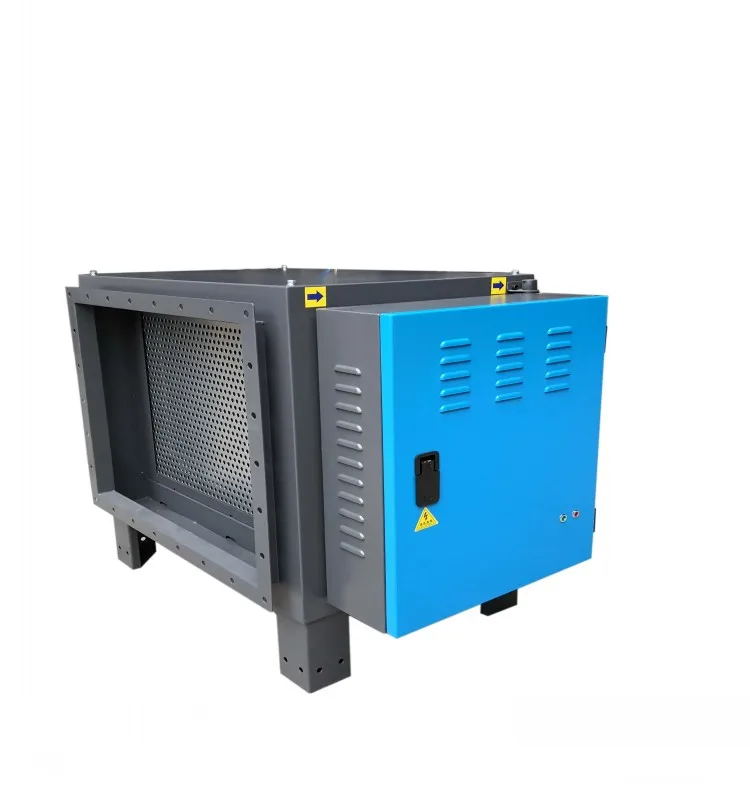

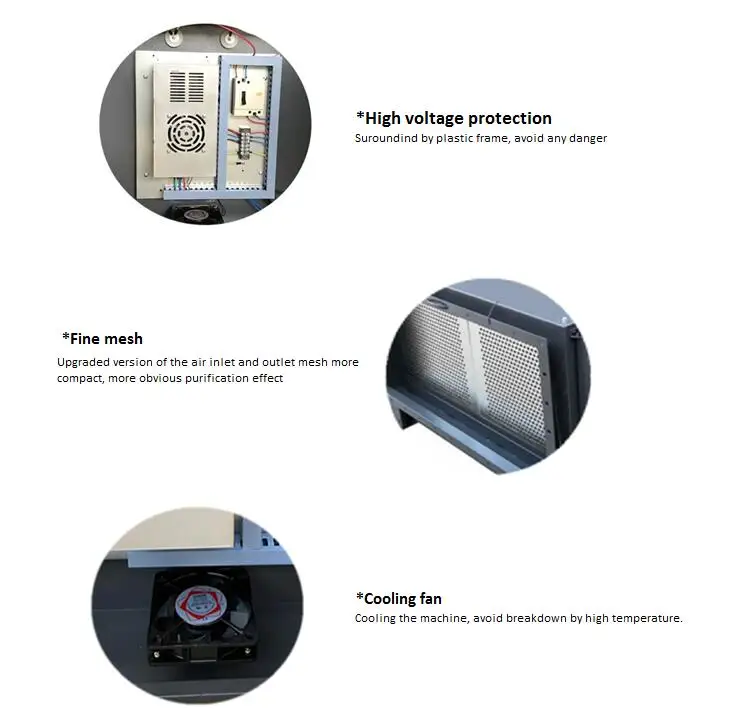

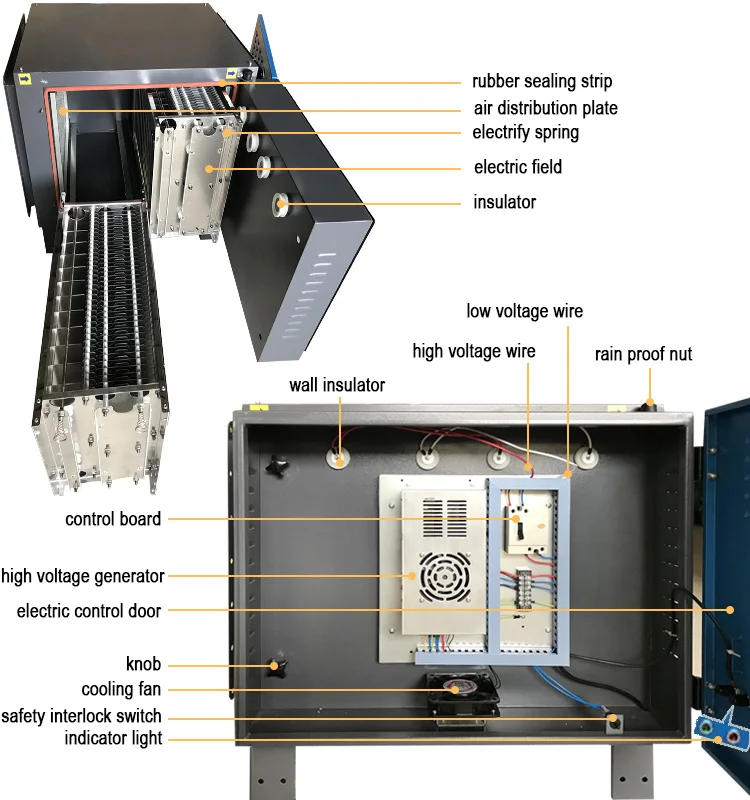

Details Images

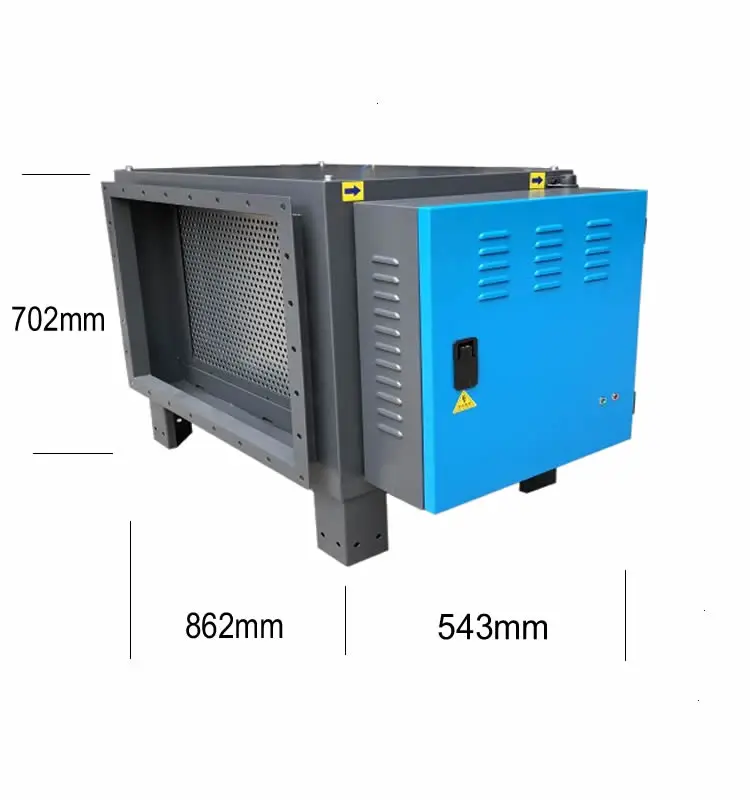

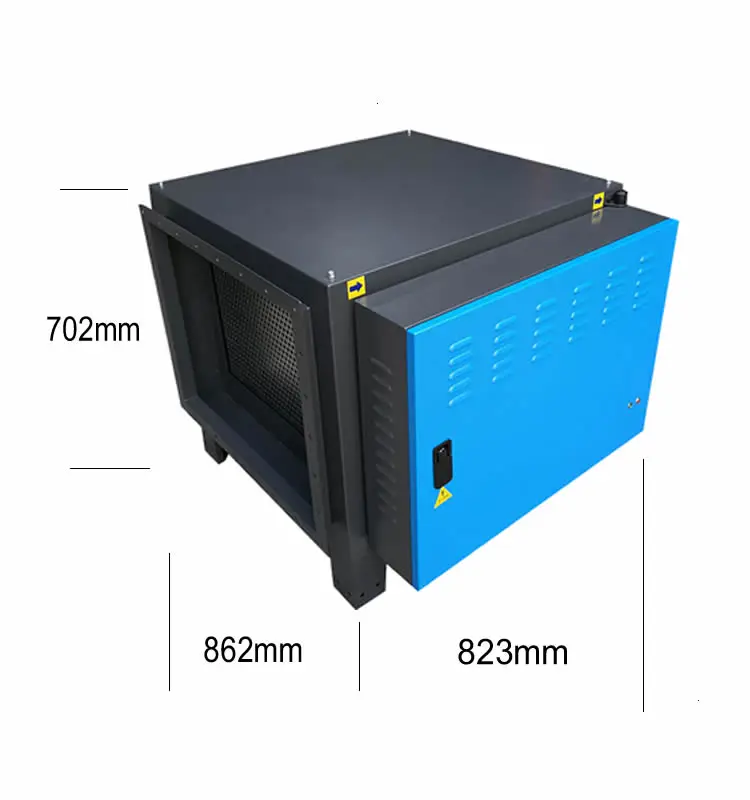

Size information
Model size | power | Air volume(m3/h) | Filtration efficiency | size(L*W*H)mm | Flange size | Net weight/kg |
JW40 | 220V/50hz | 4000 | 97% | 543*862*702 | 584*463 | 52 |
JW60 | 6000 | 823*670*702 | 392*463 | 80 | ||
JW80 | 8000 | 823*862*702 | 584*463 | 104 | ||
JW120 | 12000 | 986*1172*702 | 894*463 | 136 | ||
JW160(horizontal) | 16000 | 986*1154*702 | 1276*463 | 180 | ||
JW160(vertical) | 16000 | 986*862*1273 | 584*1033 | 180 | ||
JW200 | 20000 | 986*1076*1273 | 798*1033 | 265 | ||
JW240 | 24000 | 986*1172*1273 | 894*1033 | 270 | ||
JW280 | 28000 | 986*1364*1273 | 1086*1033 | 283 | ||
JW320 | 32000 | 986*1556*1273 | 1278*1033 | 320 |
The ESP cleaner should be installed before exhaust fan
Our advantages
Related Products
company introduction
FAQ
Q: Are you the factory or trading company?
Q: How long is the quality guarantee of your products?
A: We can offer 1 year quality guarantee and life-long maintenance.
Q: Can you do the OEM and make our own brand?
A: Yes, we can provide OEM&ODM service and also make your own brand on the products.
A: We are professional manufacturer, specialized in electrostatic(ESP) air cleaners, Air blowers, Exhaust fans and so on.
Q: Can we visit your factory?
A: Sure.We located in Guangxi province, China. Come by plane or by high-speed rail are both ok, and then we will pick you up.
A: Sure.We located in Guangxi province, China. Come by plane or by high-speed rail are both ok, and then we will pick you up.
Q: How long is the quality guarantee of your products?
A: We can offer 1 year quality guarantee and life-long maintenance.
Q: How often shoule we clean the electrostatic air cleaner?
A: Normally 1-2 months, depends on the oil fume volume which attached on the surface.
A: Normally 1-2 months, depends on the oil fume volume which attached on the surface.
Q: What is your minimum order quantity?
A: Normally, there’s no MOQ, but as the shipping cost of one piece is very high, so we would suggest more than 5 pcs.
A: Normally, there’s no MOQ, but as the shipping cost of one piece is very high, so we would suggest more than 5 pcs.
Q: Can you do the OEM and make our own brand?
A: Yes, we can provide OEM&ODM service and also make your own brand on the products.
