Share on:


Price:$1.50 - $2.30
Price in USD:Details

Quantity:


Product Overview

Description








Product Description

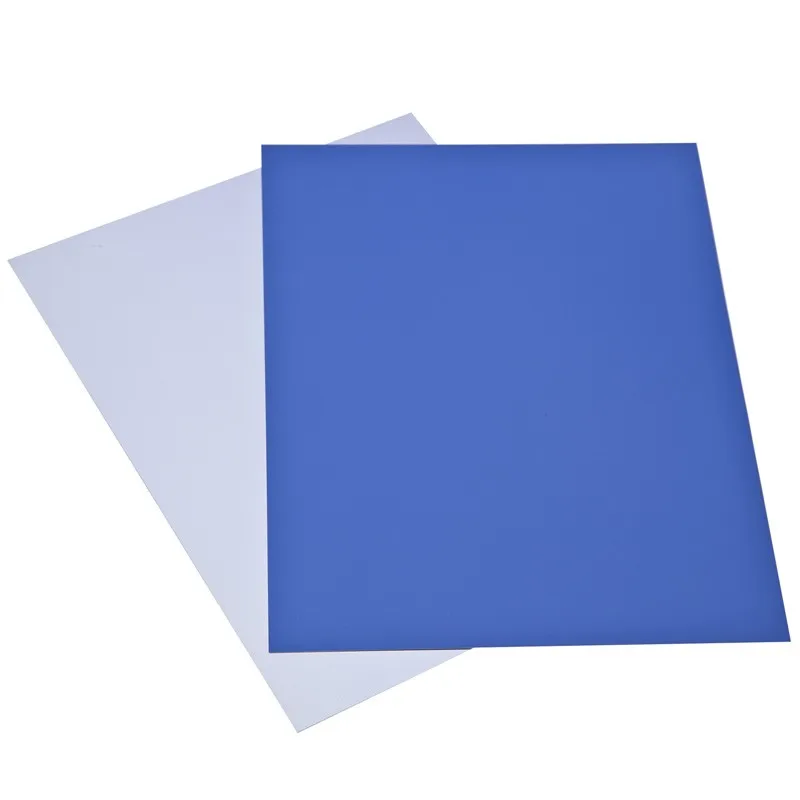

Thermal CTP Plate.




1. High Sensitivity

2. Long Run Length

3. Wide Latitude

4. Outstanding Compatibility

5. Good Stability

































































































Type


Details


Thermal CtP Plate CXK-K1























Parameter


Spectra Sensitivity


830 nm





Laser Power


110-140 mj/c㎡





Resolution


1-99% 200 Lpi/10μ FM





UV Compatibility


Compatible after baked





Baking Condition


230-250
℃ / 8-12 mins (Please use baking solution.)





Thickness


0.15-0.40 mm





Storage


Store in a dry, bleak place.


(Temperature range 5-30℃ , RH around 40%-60%)





Warranty Period


18 months



















Developing


Developer/Replenisher


CXK-K1-DVP, Kodak Golad Star Premium, etc.





Developer Temperature


24℃ ± 2℃





Process Speed


23-27 seconds





Replenish Rate


Dynamic 100 ml/㎡ ; Static 40-80 ml/㎡





Brush Speed


90-110 rpm





Chemical Replacement


2500-3000 ㎡


(The replacement cycle shall not exceed 8 weeks





Run-length


60,000 - 100,000 (Ordinary ink)


Varies with its printing conditions and imaging content.









Strict Material Selection: Superior CtP specialized aluminum, good planeness, unique electric-chemical grain, anodic oxidization and hydrophilic processed substrate.




Strong Stability: Advanced automatic production equipments, strict quality inspection to guarantee the plate consistency of each batch.




Compatibility: Compatible to most common CtP machines, processors and developer.




Cost-effective: Fast exposure, excellent ink-water balance, high ink efficiency, and good chemical resistance.




Convenience: Daylight process, pre-heated free.

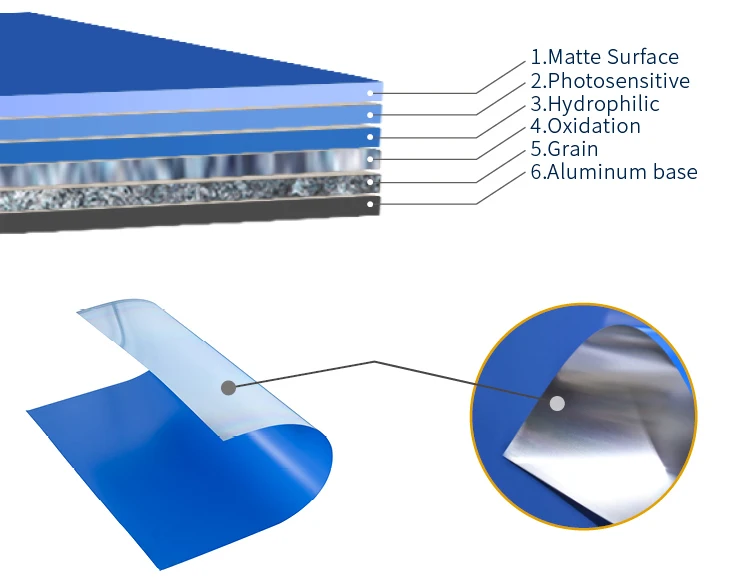

PRODUCT MATERIAL






CXK-K1 HIGH RESOLUTION THERMAL CTP PLATE





Thermal CTP plate, UV ink resisted thermal CTP plate, UV CTP plate and Positive PS plate, which are widely used in printing industry, like paper printing, cans printing, electronic printing etc.























CXK-K1 CTP PLATE WITH THE FEATURE OF



WIDE DEVELOPING TOLERANCE




Superior CTP specialized aluminum, unique electric-chemical grain and hydrophilic processed substrate.








PRODUCT ADVANTAGE

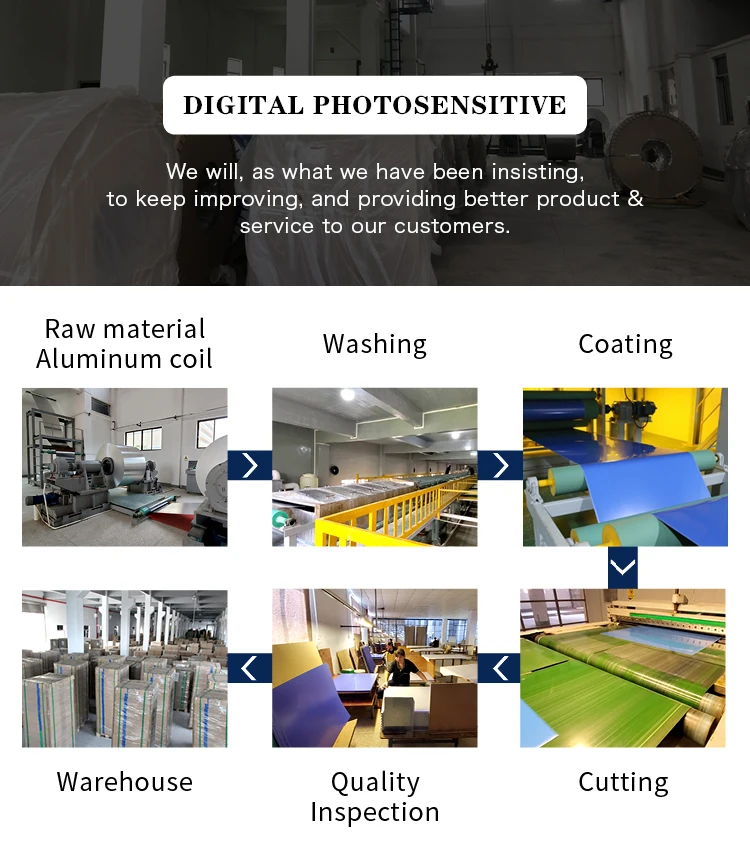

PRODUCTION PROCESS
