  • HONTEC FDA 350E Combined post press equipment for two step two color printing of e type and S type flexo printing
HONTEC FDA 350E Combined post press equipment for two step two color printing of e type and S type flexo printing
HONTEC FDA-350E Combined post press equipment for two-step two-color printing of e-type and S-type flexo printing
HONTEC FDA-350E Combined post press equipment for two-step two-color printing of e-type and S-type flexo printing
HONTEC FDA-350E Combined post press equipment for two-step two-color printing of e-type and S-type flexo printing
HONTEC FDA-350E Combined post press equipment for two-step two-color printing of e-type and S-type flexo printing

HONTEC FDA 350E Combined post press equipment for two step two color printing of e type and S type flexo printing

Share on (1600587684658):


Price:$54,452.00

Quantity:


Product Overview

Description



Product Overview

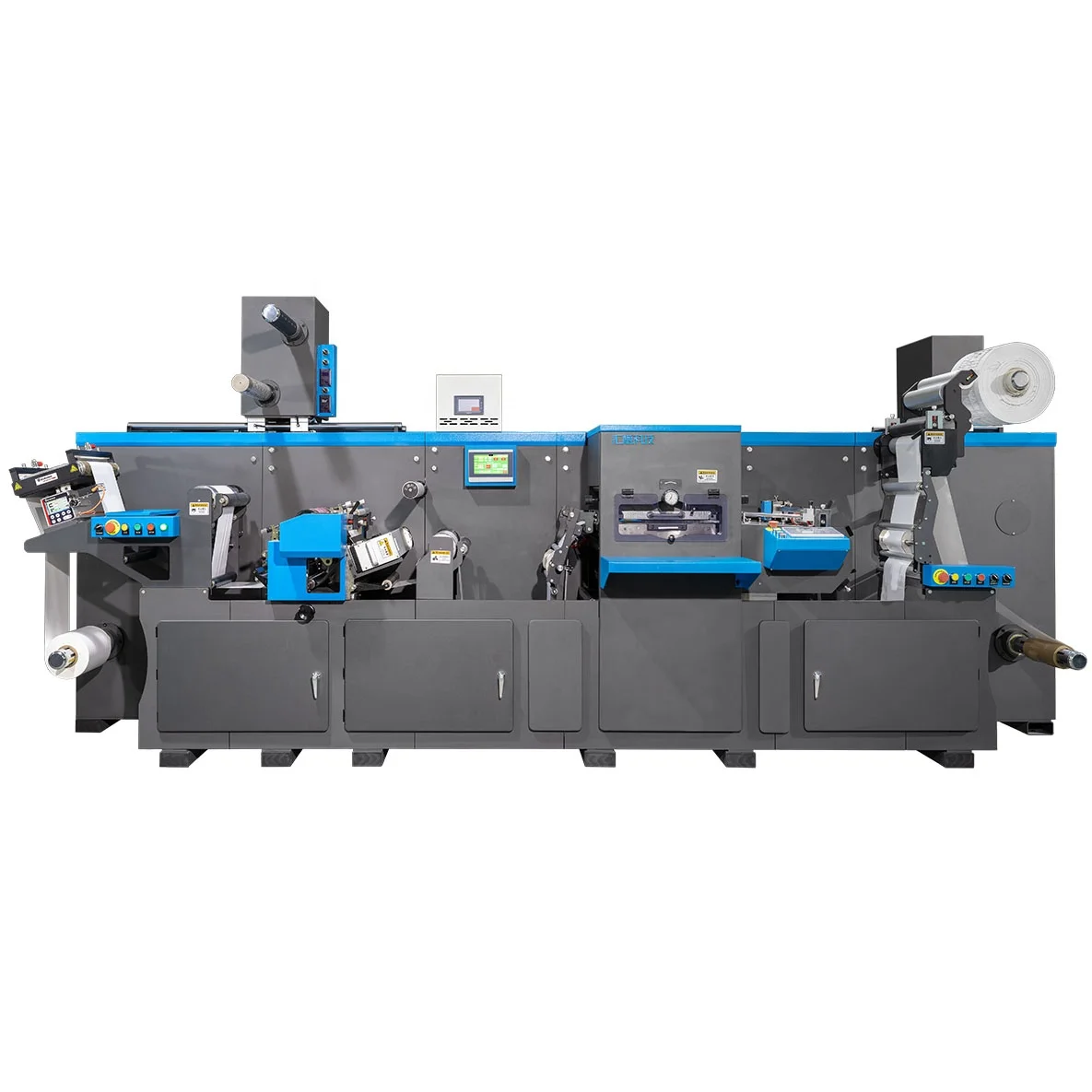

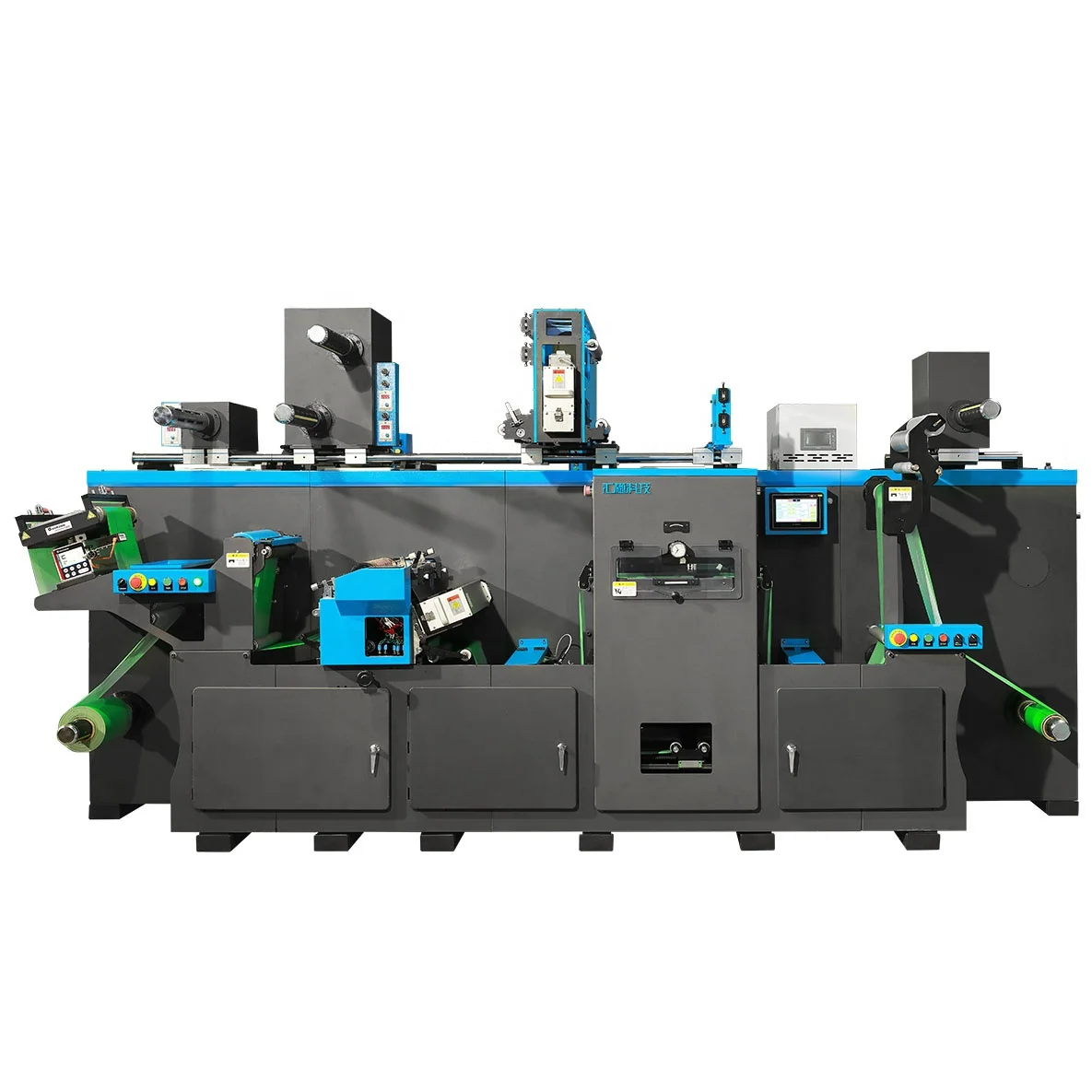

Post press combination equipment
It can be customized according to your requirements, plus E-type and S-type flexo printing. In addition, it can cooperate with other models of pre printed white background and cold pressing in front; Glazing oil; Local varnish; cold wave; Overall varnish; Glue coating; Second back print; Degumming; Die cutting; Rewinding; Optional cutting sheets and processing of film internal standard


FEATURES AT A GLANCE


integrated finishing converter
Features :modular design,multi-axis motion controlled,combined with flesographic printing;cold foil;Glue Killing flat bed cutting,rotary die cutting,slitting and sheet cutting.it is suitable for digital printing and lettepress/offset printing,




PRODUCT SPECIFICATIONS


specifications
maximum web width
350mm/13.7"
maximum web diameter
800mm/31.5
maximum process width
340mm/13.3"
maximum working speed
Rotary Die Cutting
60M/min.forSemi-Rotary model
100M/min.forfull rotary model
Flexo(UV Varnish)
100M/min
Flat bed Die cutting
100M/min，400Circle/min
Main Machinessize(I/D/H)
4500/1400/1950
power supplier
3Phases 380V 50hz 20A
weight
3800KG


FAQ


Q1：What is the price?
A1：For an accurate quote, please provide us with more details like logo or packaging customization requirements, quantity
preference, shipping address, etc.
Q2：Can I customize products?
A2:Yes, we have been committed to providing customized services for overseas customers. From early product communication, to
medium-term machinery manufacturing, and finally to the molding and delivery of machinery, we will have special personnel to
provide services for you。Click this link to see our customized products
https://hontec68.en.alibaba.com/product/1600542576946-916713780/Multi_function_combined_Postpre_for_cold_foil_glue_Killing_flat_bed_die_cutting_rotary_die_cutting_dlitting_and_sheet_cutting_.html
Q3：What is your minimum order quantity?
A3：1 set
Q4 ：How long is the warranty?
A4：It's 1 year. If there is any problem with the machine in the future, you can call us at any time, and we will have professional
after-sales personnel to solve it for you.
Q5：Can you provide your certifications?
A5：You can contact me for any certification you need
Q6：How long will it take to ship to my country?
A6：For international shipping, it depends on the product quantity and delivery
address. For a specific estimate, please provide these details so that I can quote the most cost-effective option.
Q7：How long has your company been engaged in these industries?
A7：With 17 years of industry experience, our company has participated in many overseas label machine exhibitions to provide
pre-sales and after-sales support for overseas customers.
Q8：Product features？
A8：Our company's product philosophy: higher speed, more durable, more reliable, modular design, high positioning accuracy,accurate and stable pressure, intelligent design, magnetic suction knife mold base plate never deforms, high efficiency and energy saving, in line with the ergonomic design concept, greatly reducing the labor intensity of the operator.
