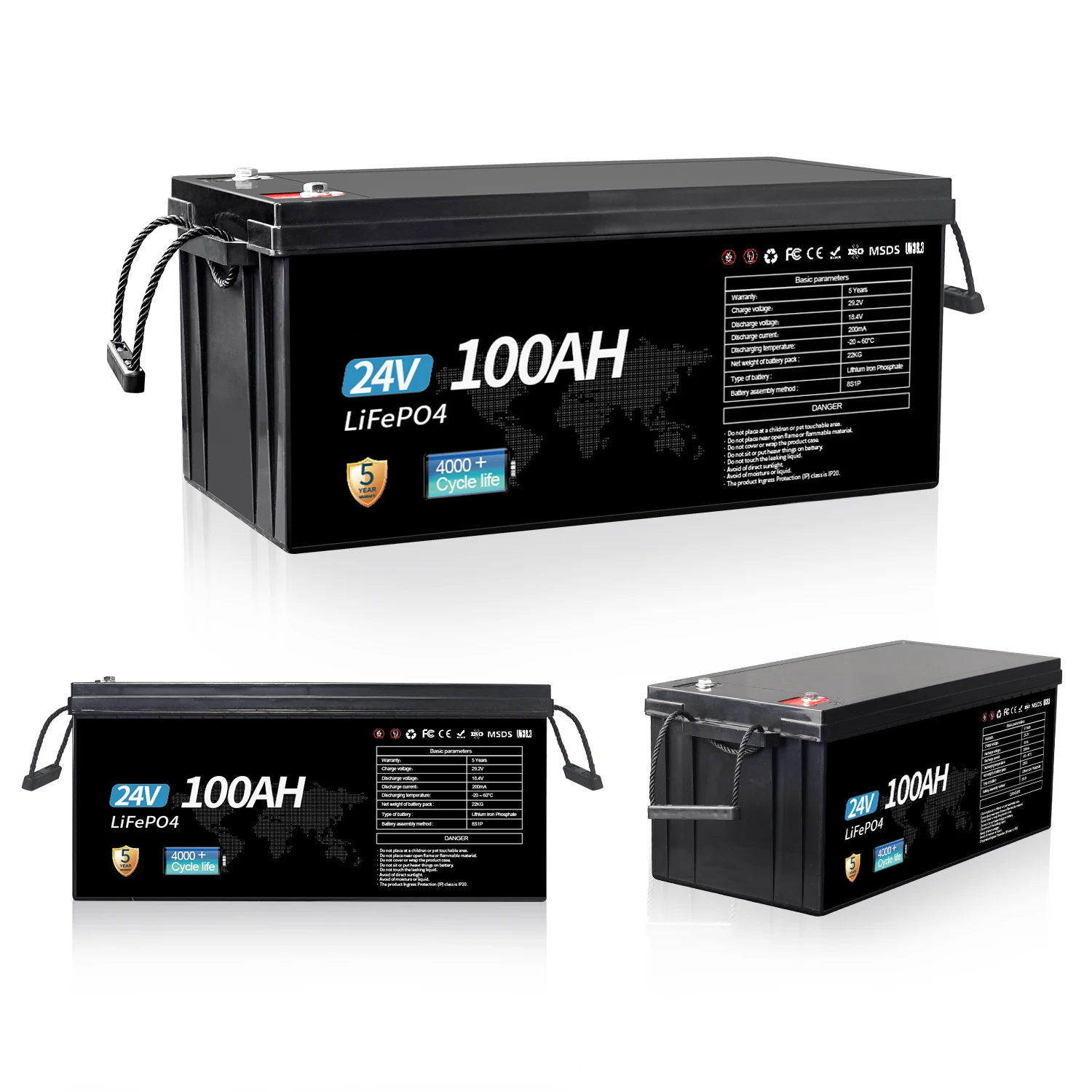

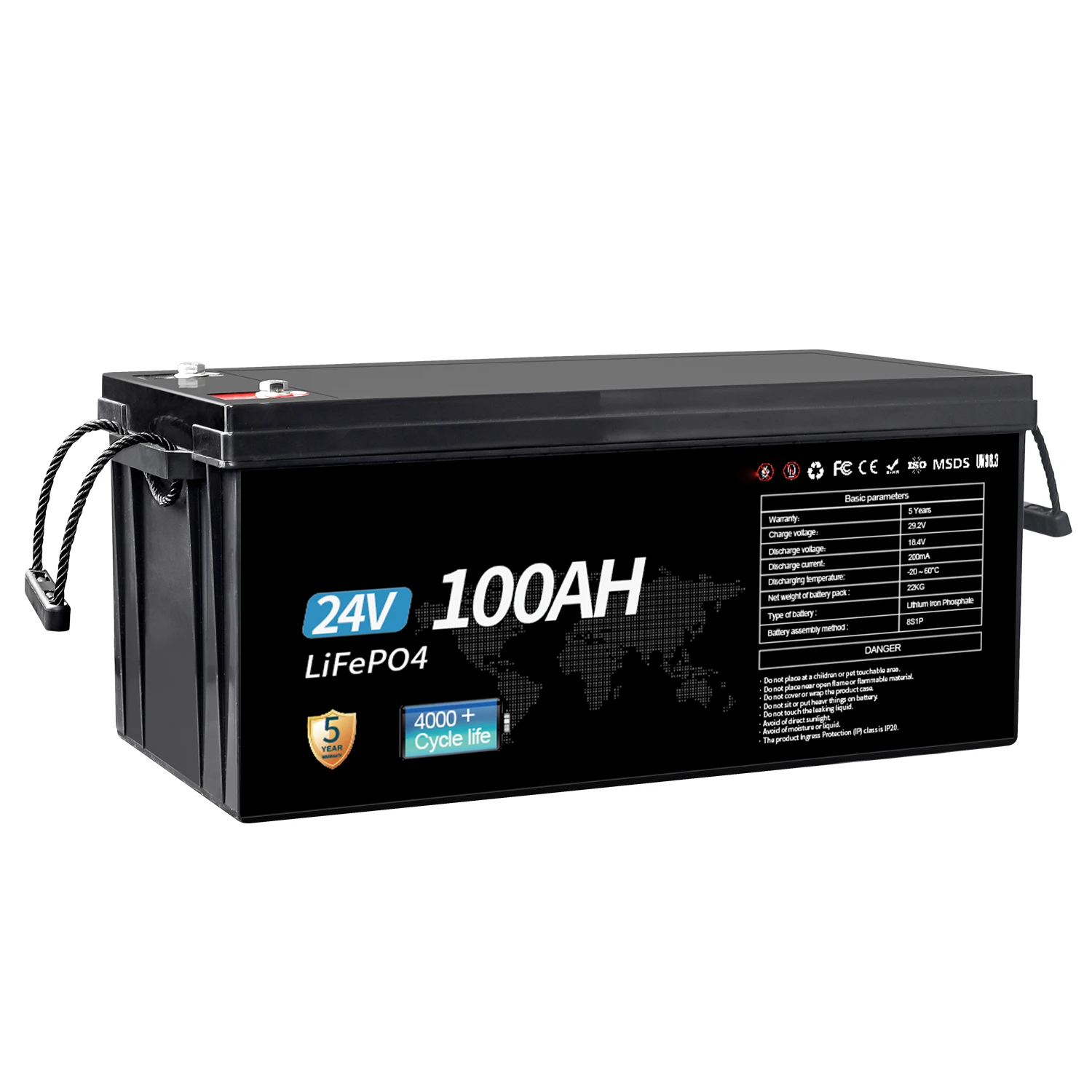

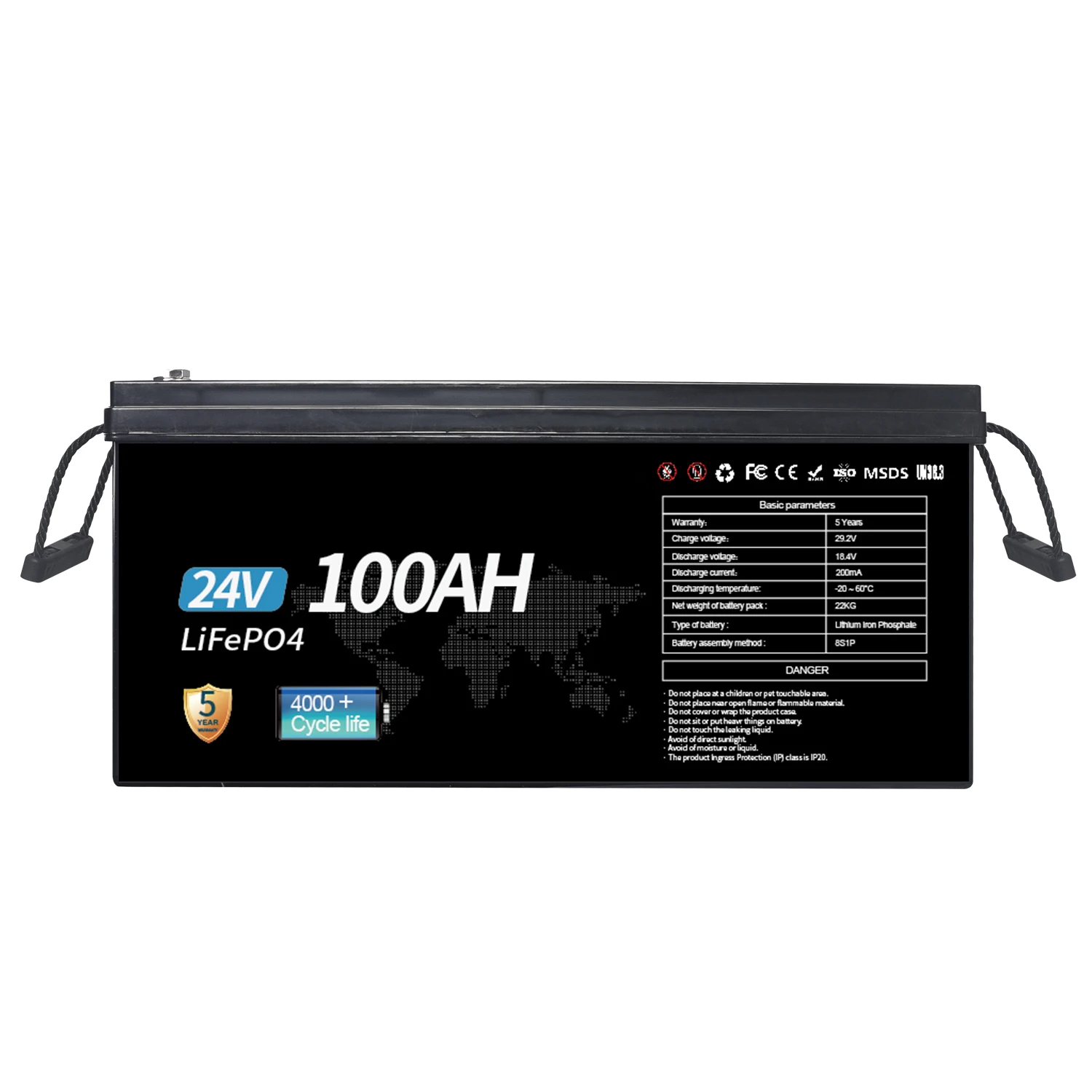

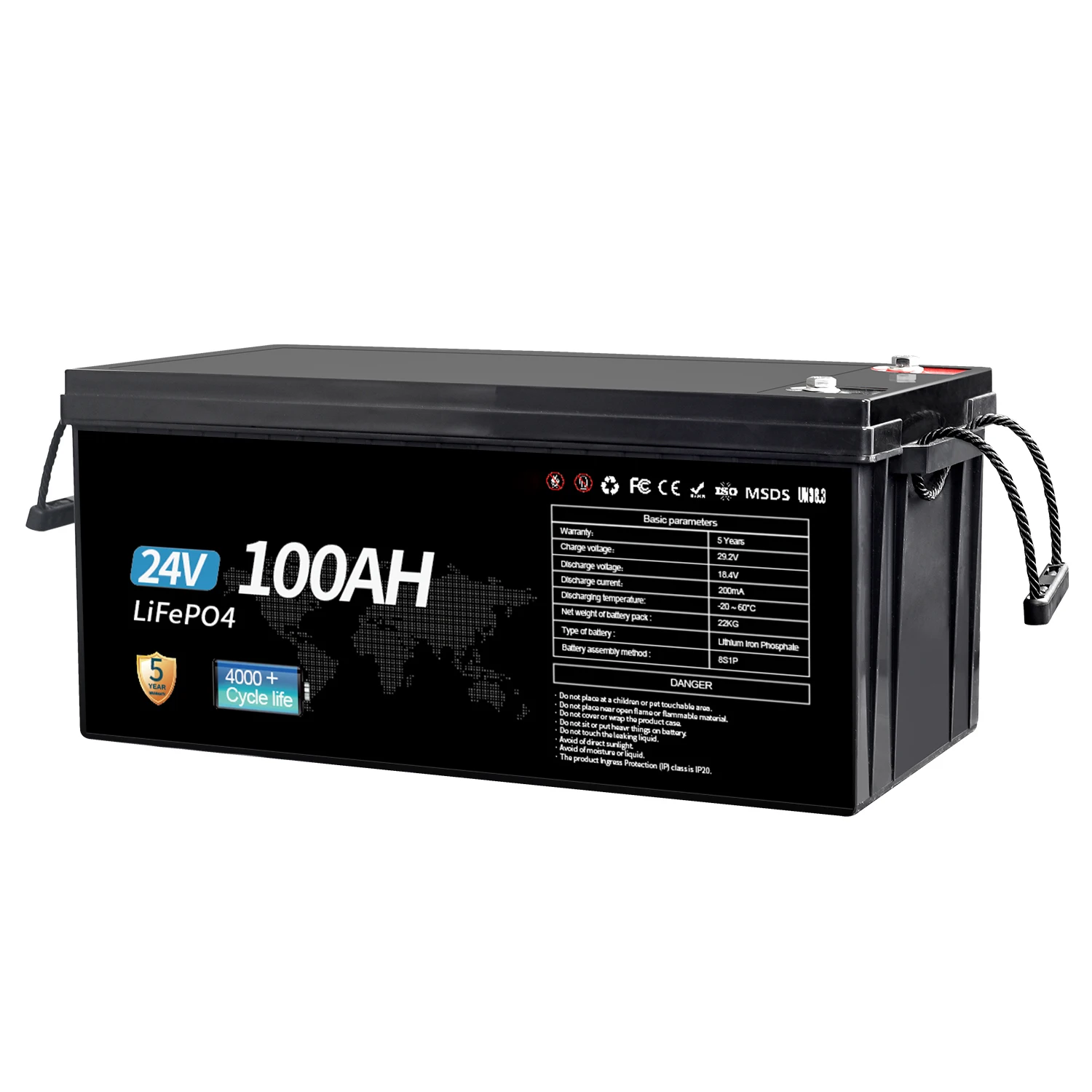

titanate power wall battery 24 v Lithium Batteries Pack 24V 100ah 200ah 24v lithium titanate solar battery for Solar Panel
- Category: >>>
- Supplier: Hunan Sunzone Technology Co. Ltd.
Share on (1600587700757):
Product Overview
Description
Product Description
24v Series LiFePO4 Battery Pack
These are a deep cycle Lithium Iron Phosphate (LiFePO₄) batteries,which features a built-in battery management system (BMS) that keeps the battery running at peak performance while preventing overheating, overcharging, and maximizing cell cycle life.
Internal BMS (electronic chip) monitors battery in real time and alarms the user if any voltage or capacity abnormalities aredetected.
At only half to a third of the weight of a Lead Acid battery, LiFePO4 is the ideal choice used for Home Energy Storage, Electric Power System, UPS Emergency Power Supply, etc.
Without any corrosive or harmful heavy metals, Our lifepo4 lithium Batteries are more environmentally friendly than SLA batteries.
LiFePO4 batteries have a low discharge rate and long service life, with an average life expectancy of about 5 to 10 years
LIFECYCLES (BATTERY LIFESPAN) Up to 85% capacity for 3,000 cycles in recommended conditions- 8,000 times(40% dod)

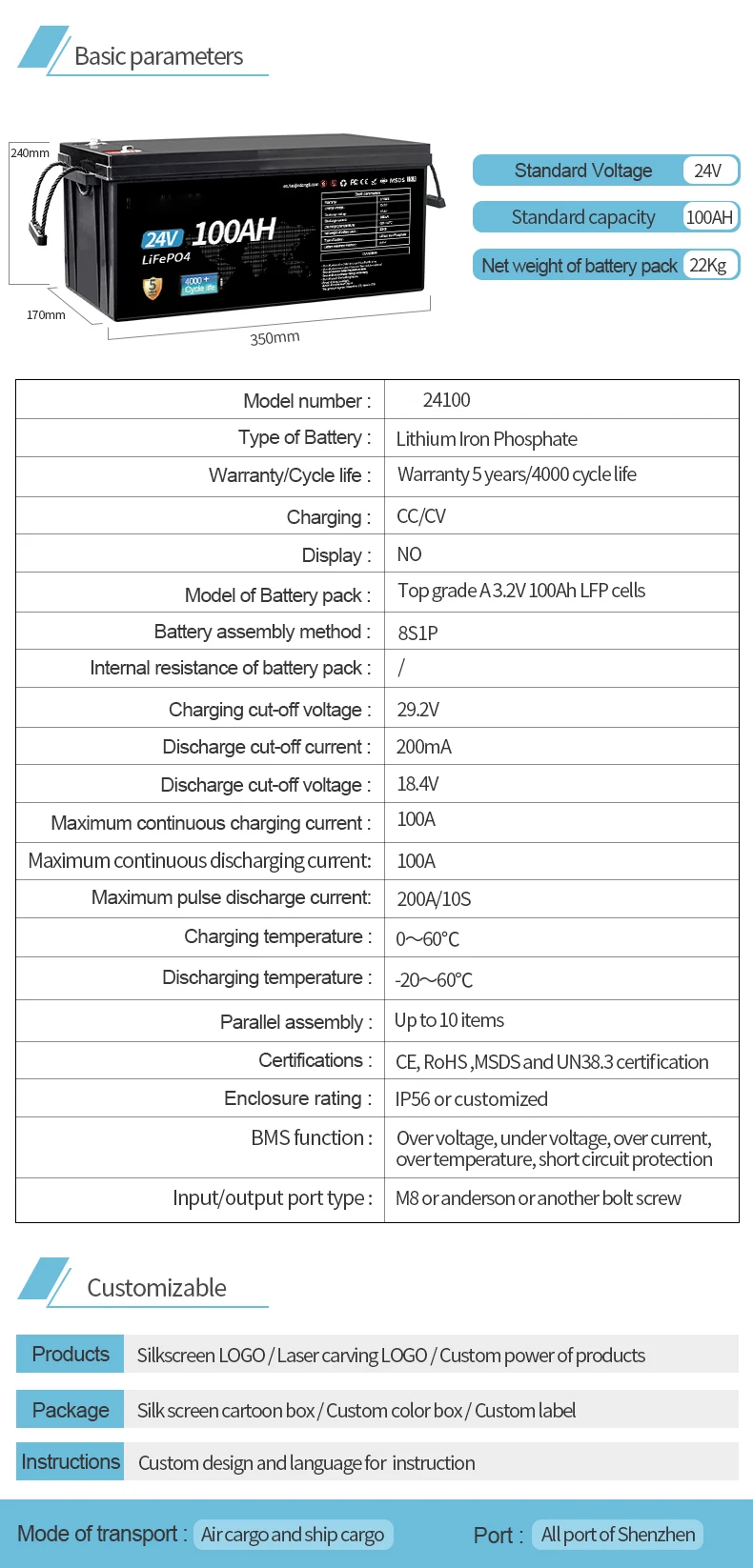

Specification
Type of Battery | Lithium Iron Phosphate |
Standard Voltage | 24V |
Standard capacity | 100AH |
Charging | CC/CV |
Charging cut-off voltage | 29.2V |
Discharge cut-off current | 200ma |
Discharge cut-off voltage | 29.2V |
Maximum continuous charging current | 100A |
Maximum continuous discharging current | 100A |
Maximum pulse discharge current | 200A/10S |

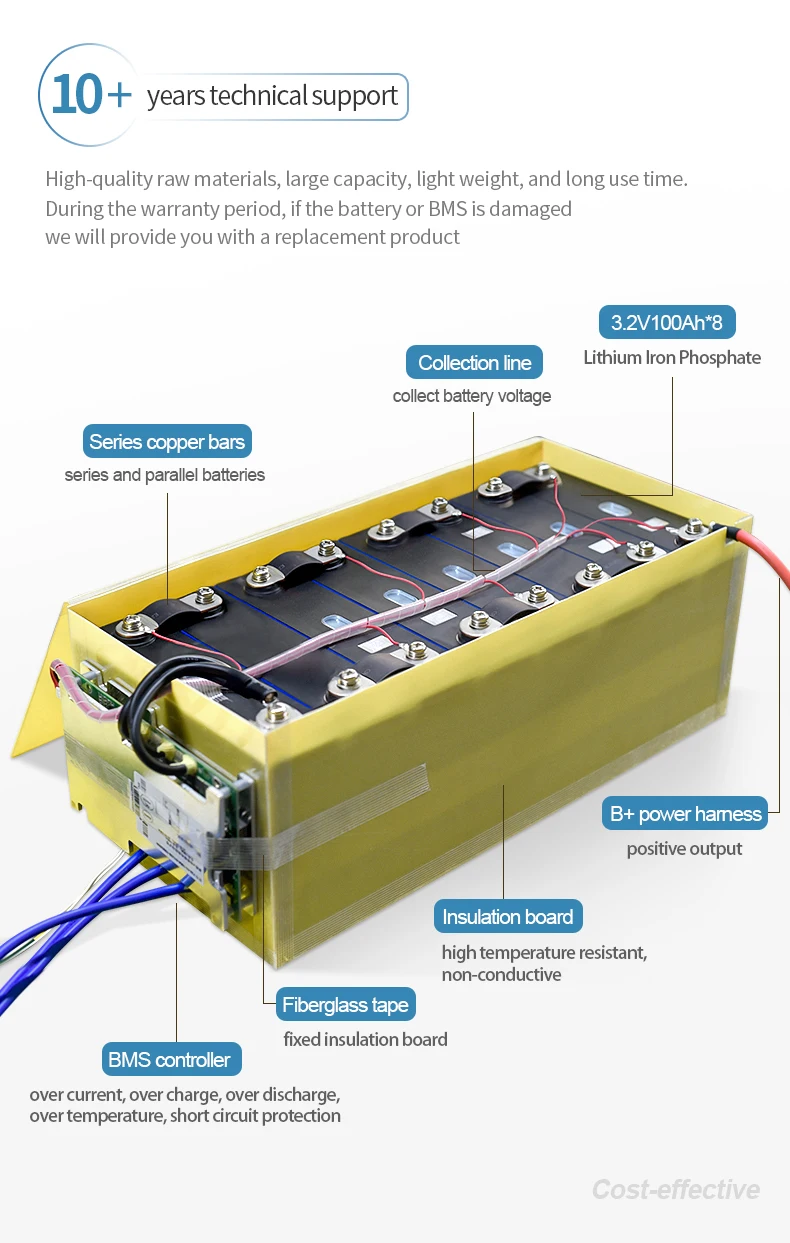

Cell of Battery pack | Top grade A 3.2V 100Ah LFP cells |
Battery pack assembly method | 8S1P |
Charging temperature | 0～60℃ |
Discharging temperature | -20～60℃ |
Protection grade | IP56 or customized |
Input/output port type | M8 or anderson or another bolt screw |

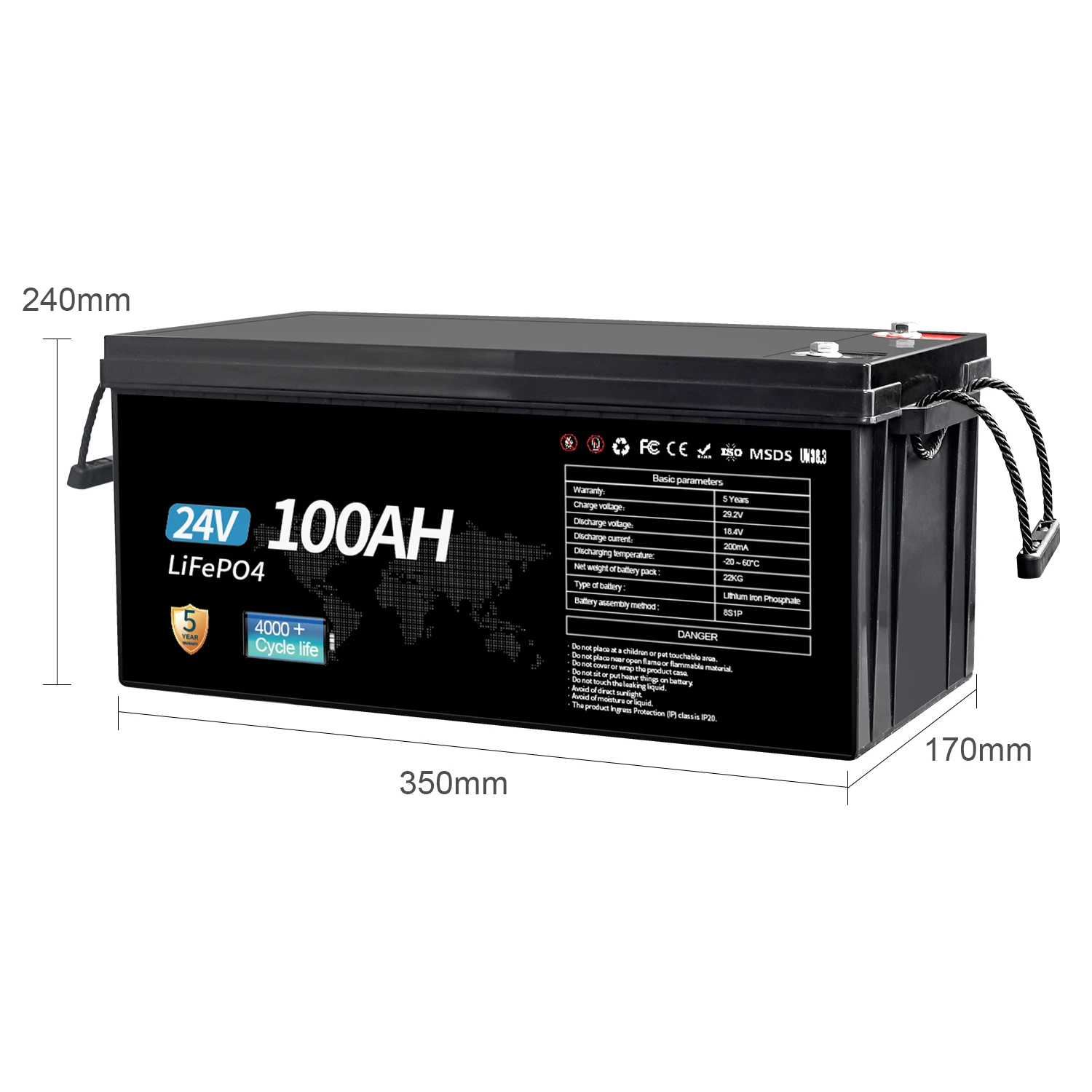

Dimension | 350*170*240mm(L*W*H) |
Net weight | 22Kg |
Certifications | CE, RoHS ,MSDS and UN38.3 |
Details Images
Packing & Delivery
Company Profile
GEA Power is a one stop relative solar energy storage products provider in Changsha, China. We are specialized in researching and developing and exporting from lithium battery, battery pack,inverter,solar panels,to portable power station, residential energy storage system, industrial outdoor battery storage cabinets.
At present our products are widely used in UPS backup,Telecom towers,Solar energy storage system,electric
vehicles,AGV,Golf-cart,Street-cleaner,electric-motorcycle,solar street light, and electric tools etc. GEA Power can provides what you need,if you want to find a long term reliable partner in China,we sincerely would like to support you 100%.
"Survive by Quality, Develop by Service" is our policy to do business. We believe that we will supply you best service and concentrate on building a long-term partnership with you which leading us to create a win-win situation.We are committed to putting you as the first priority,by providing the high quality products, the competitive price, the considerate after-sales service, the satisfying OEM & ODM service !
At present our products are widely used in UPS backup,Telecom towers,Solar energy storage system,electric
vehicles,AGV,Golf-cart,Street-cleaner,electric-motorcycle,solar street light, and electric tools etc. GEA Power can provides what you need,if you want to find a long term reliable partner in China,we sincerely would like to support you 100%.
"Survive by Quality, Develop by Service" is our policy to do business. We believe that we will supply you best service and concentrate on building a long-term partnership with you which leading us to create a win-win situation.We are committed to putting you as the first priority,by providing the high quality products, the competitive price, the considerate after-sales service, the satisfying OEM & ODM service !
FAQ
Q. Can I print my LOGO on it？
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Can your battery be wired in series or parallel?
A: YES，YOUcan connect up to ANY of these batteries in parallel.
Q. Can the bms be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.
Q. What warranty do I have？
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side
in this period, Please show us video or photos for confirm before we sent solution.
in this period, Please show us video or photos for confirm before we sent solution.
Q: Do you accept OEM/ODM?

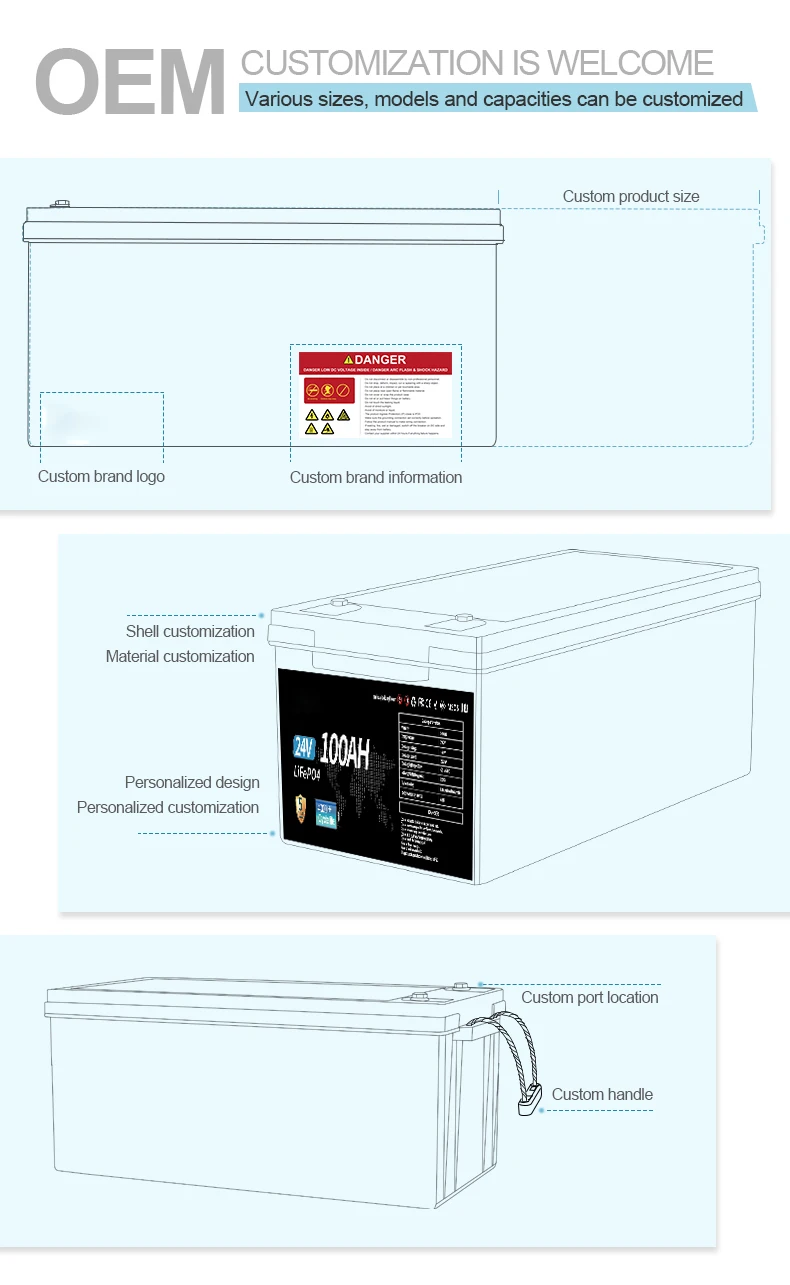

A: Yes,it is available.We have OEM group to design battery case.
Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.
Q. Does the app allow to check the voltage of each cell?
A: YES, the App allows you to read the voltage of each at any time.
Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on. If order amount>10K usd, The payment term will be 30%T/T for deposit and thebalance before shipment
Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Using lithium chargers to wake up the battery. The lithium charger wakes up the batteries automatically.
