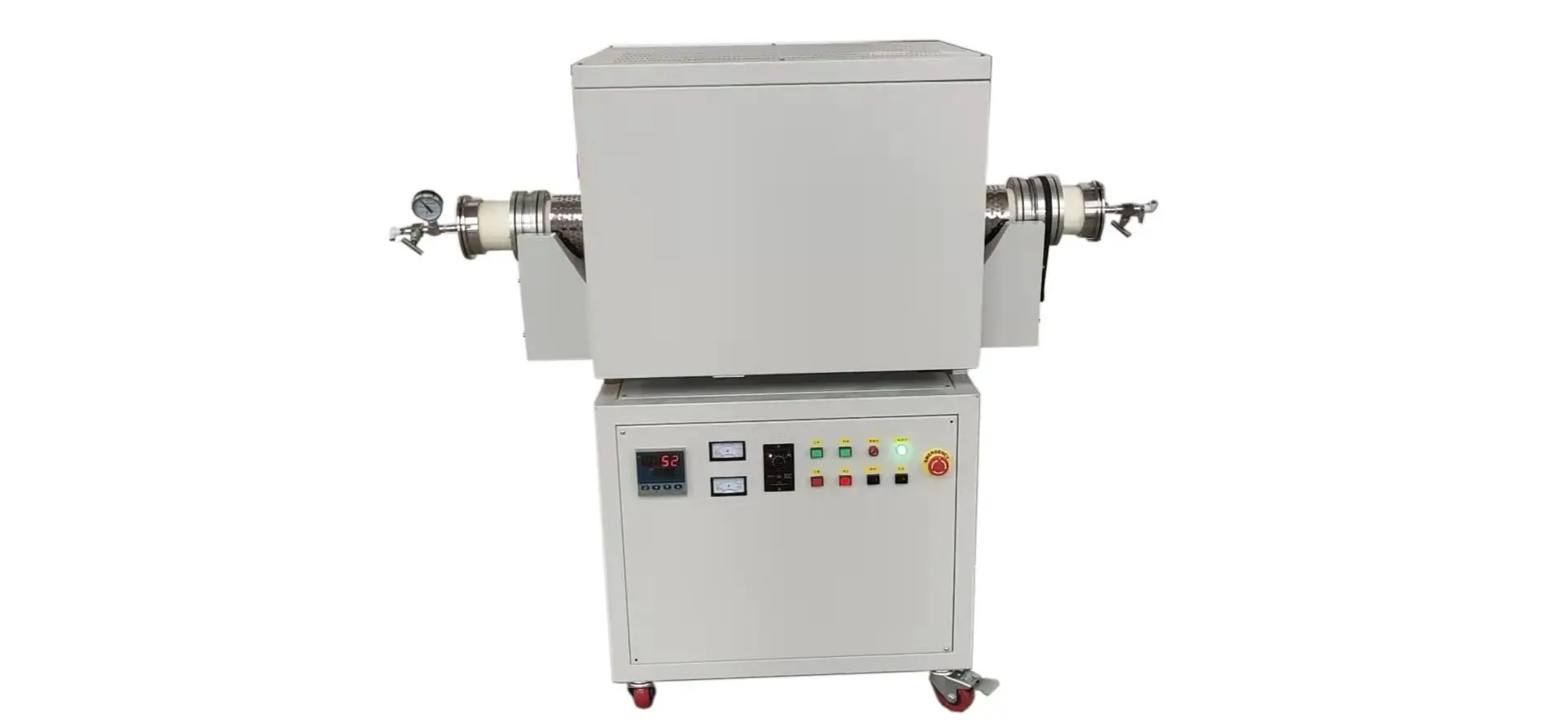

Horizontal Rotary and Tilting Vacuum Tube Furnace For With Customized Temperature and Tube Size
- Category: >>>
- Supplier: Zhengzhou Protech Technology Co. Ltd.
Share on (1600587714434):
Product Overview
Description
Product Description
Detailed Parameters Of The Product
High temperature rotary tube furnace can be used for lithium ion battery anode and cathode materials (aluminum iron phosphate, lithium manganate, lithium cobalt oxide, ternary, graphite anode, etc.), rare earth materials, chemical catalytic materials, magnetic materials, powder metallurgy materials, non-ferrous materials Laboratory calcination and drying, high temperature reaction, heat treatment, carbonization of powder or granular materials of metal materials and kaolin non-metallic mineral materials. Users can also perform atmosphere treatment according to the material firing process.
Main technical parameters of the equipment:
Main technical parameters of the equipment:
| Product name | High temperature rotary tube furnace |
| model | PT-T1700-L80-X |
| Chamber material | Furnace using alumina polycrystalline fiber |
| Tube material | Corundum furnace tube |
| Furnace tube size | OD 80mm*1000mm |
| heating zone | 300mm |
| working temperature | 1600℃ |
| max.temperature | 1700℃ |
| Heating element | High quality silicon molybdenum rod |
| Temperature control accuracy | ±1℃ |
| Temperature Control System | Adopt intelligent 30-segment PID programmable control The temperature control system adopts artificial intelligence adjustment technology, with PID adjustment and self-tuning functions, and can compile 30 sections of heating and cooling programs; 1. Adopt PID method to adjust temperature and control, can set 30 sections of heating and cooling program 2. Temperature control accuracy ±1ºC 3. With over-temperature protection and couple-break protection, the heating circuit of the electric furnace will be automatically cut off when it is over-temperature or broken (when the temperature of the electric furnace exceeds 1200 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, and the main circuit will be disconnected. The ON light on the panel is off, the OFF light is on, the limited protection of the electric furnace). 4. The instrument has the function of temperature self-tuning 5. Using touch screen operation, data can be output and stored |
| Flange joint | Equipped with two stainless steel vacuum flanges with installed mechanical pressure gauges |
| rotating structure | Using the rotation method, the furnace tube can be rotated at 360°C, and the furnace body can be tilted |
| Operating Voltage | AC 220V 50Hz |
| heating power | 5KW |
| temperature test element | Double platinum-rhodium type B thermocouple |
| Provided related accessories | Crucible hook, high temperature gloves, thermocouple, furnace plug, instruction manual, warranty card, etc. |
| After-sales service | 12 months warranty, lifetime warranty (heating elements, furnace tubes and other random accessories are not included in the warranty scope) |
Packaging & Shipping
Packing:
1.Standard exported package: Internal anti-collision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3.Deliver time: 25 days after confirming order, detail delivery date should be decided according to production season and order quantity.
Our Services
1.We have a professional foreign trade staff to provide you with the explanation.
2.24 hours to provide you with services, ready to communicate with you
3.We have a service center, mainly responsible for after-sales service work, technical advice and so on. To ensure that engineers at all times to provide a variety of technical services.
4.Vulnerable accessories: the company spare a variety of commonly used parts of the spot, to ensure that the shortest possible time to solve the problem.
Company Information
Zhengzhou Protech Technology Co., Ltd-owned by Protech(China) Holdings Limited, is founded by a group of technology enthusiastic people who are devoted to probing the newest technology and innovation in thermal field, and serving various clients worldwide for different high temperature processing applications.
We have our own manufacturing base in Zhengzhou City of China, which enable us a reliable manufacturing ability and quality control system.
