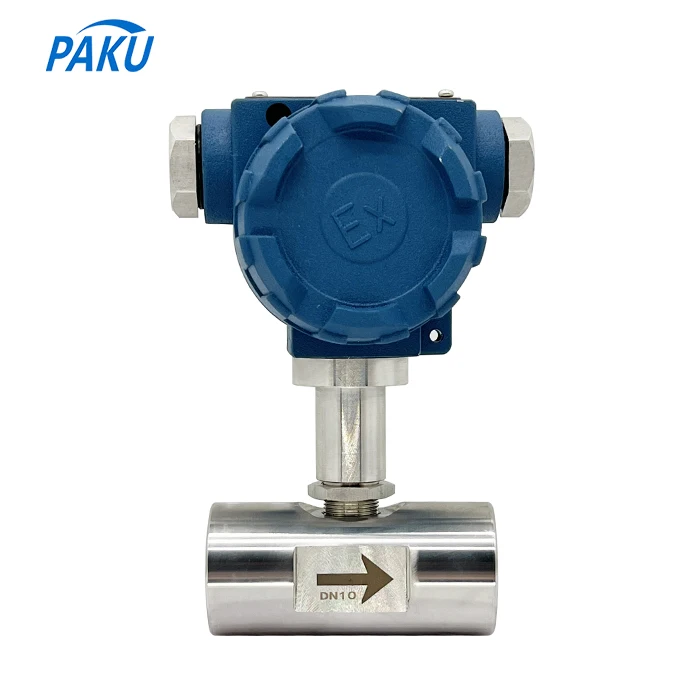

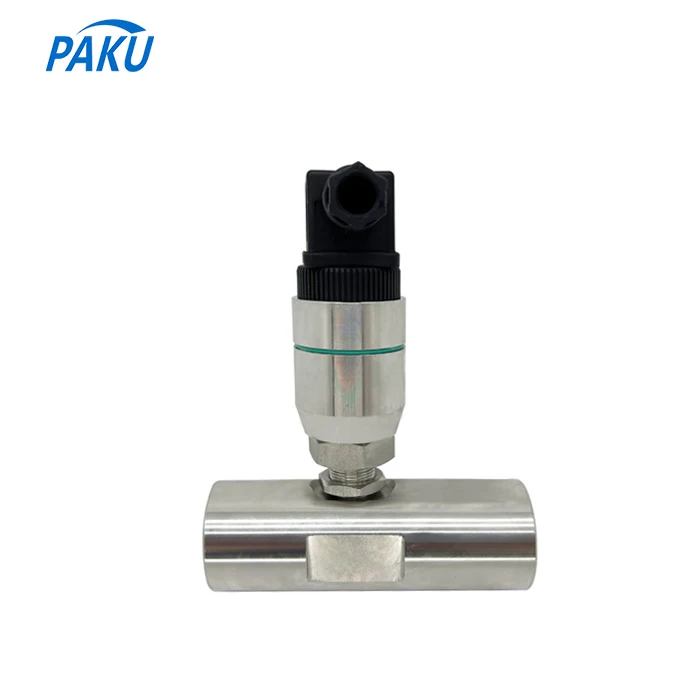

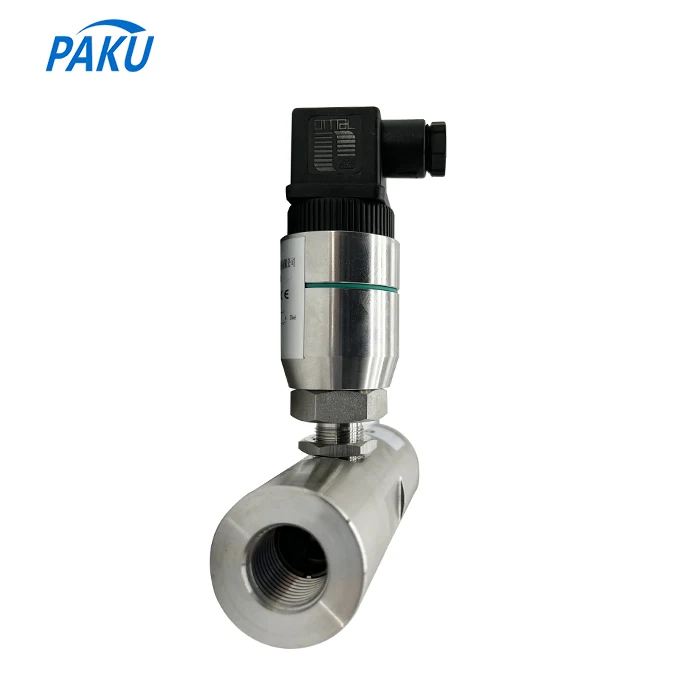

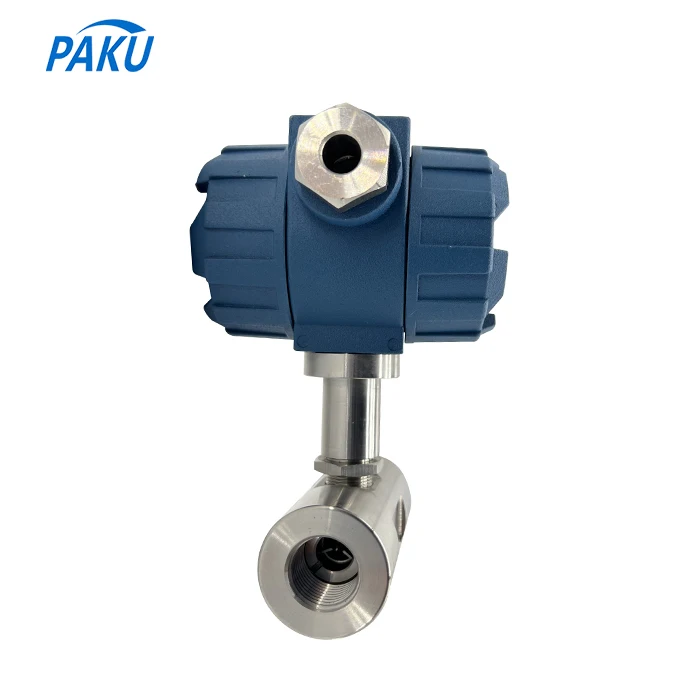

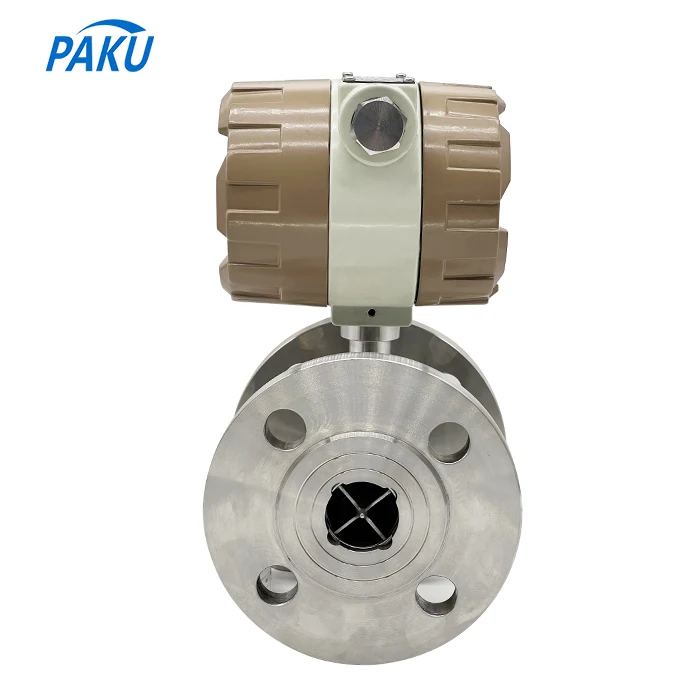

Edible oil turbine flow meter / olive oil flowmeter / vegetable oil turbine flow meter
- Category: >>>
- Supplier: Shanghai Kayuan Electronic Technology Co. Ltd.
Share on (1600587726284):
Product Overview
Description
Product introduction

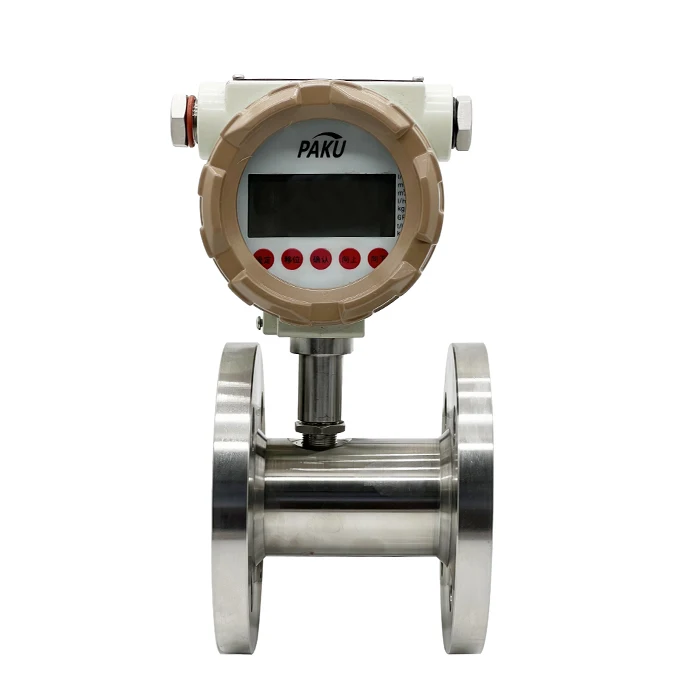

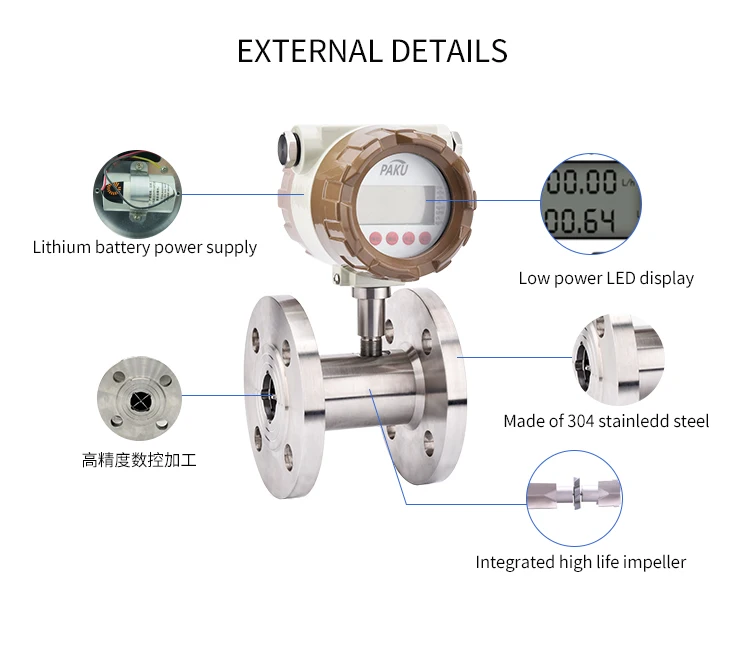

Turbine Flow Meter is a volumetric measuring turbine type of Impeller Flow meters , made up of Sensor and Convertor. The flowing
fluids engages the rotor causing it to rotate at an angular velocity proportional to the fluid flow rate.The Sensor reacts to the
average velocity of fluid with multi-blades rotor so as to speculating the flow value and the accumulative flow value.
Turbine flow meter is an ideal solution when high accuracy, compact size, fast response, and high tolerance to shock and
vibration are critical requirements and suitable for wide range of viscosity medium including oil, gas, water and waste water,
chemical, gas utility, power, food and beverage , aerospace ,pharmaceutical etc.
fluids engages the rotor causing it to rotate at an angular velocity proportional to the fluid flow rate.The Sensor reacts to the
average velocity of fluid with multi-blades rotor so as to speculating the flow value and the accumulative flow value.
Turbine flow meter is an ideal solution when high accuracy, compact size, fast response, and high tolerance to shock and
vibration are critical requirements and suitable for wide range of viscosity medium including oil, gas, water and waste water,
chemical, gas utility, power, food and beverage , aerospace ,pharmaceutical etc.

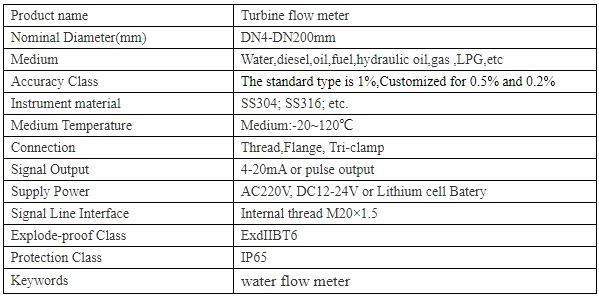

Main parameters
Measurement range and Working pressure for liquid
DN(mm) | Flow rate (m3/h) | Regular tolerance pressure(Mpa) | ||
DN4 | 0.04—0.25 | 6.3 | ||
DN10 | 0.2—1.2 | 6.3 | ||
DN20 | 0.8—8 | 6.3, 2.5(flange) | ||
DN25 | 1—10 | 6.3, 2.5(flange) | ||
DN50 | 4—40 | 6.3 | ||
DN80 | 10—100 | 6.3 | ||
DN100 | 20—200 | 6.3 | ||
DN125 | 25—250 | 6.3 | ||
DN200 | 80--800 | 6.3 | ||
etc... |

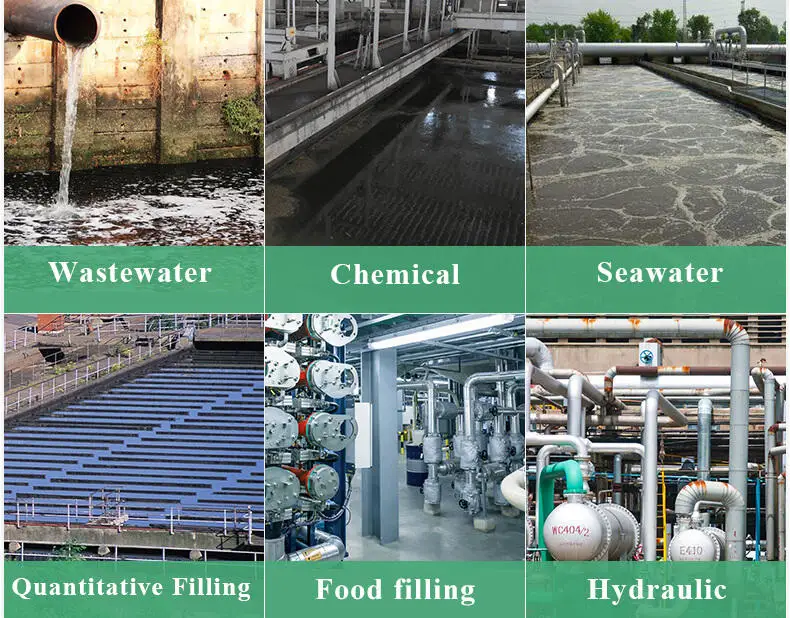

Application Scenario Reference
