Product Overview
Description
Product Description
Product Description

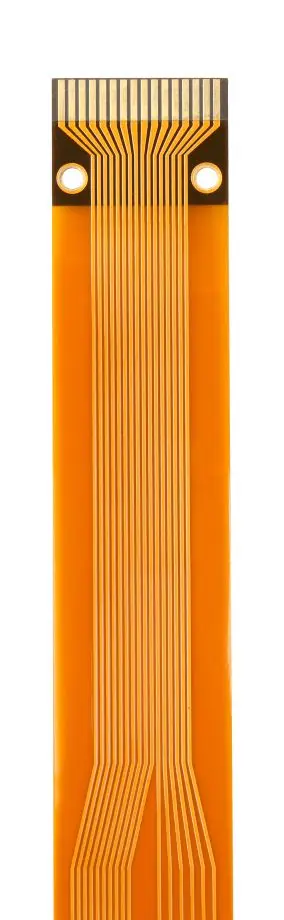

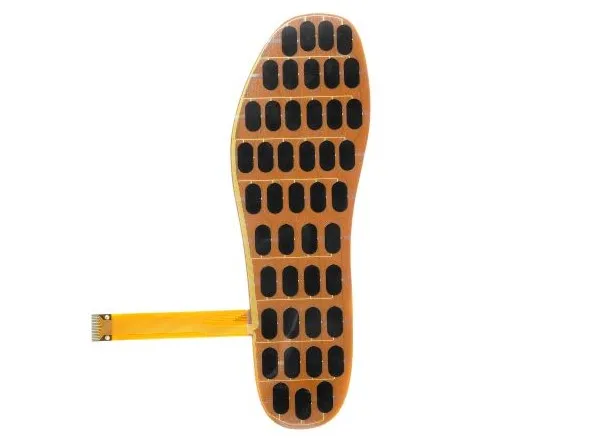

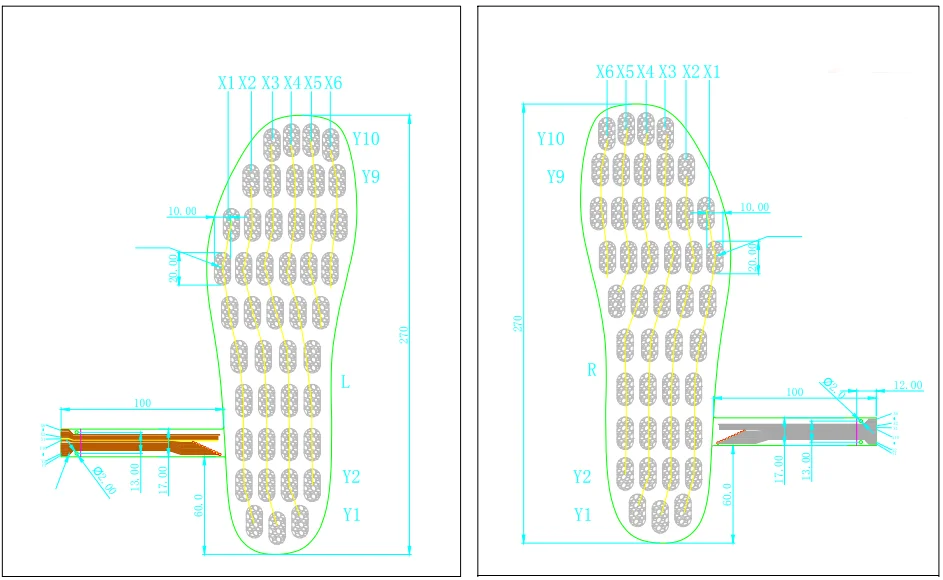

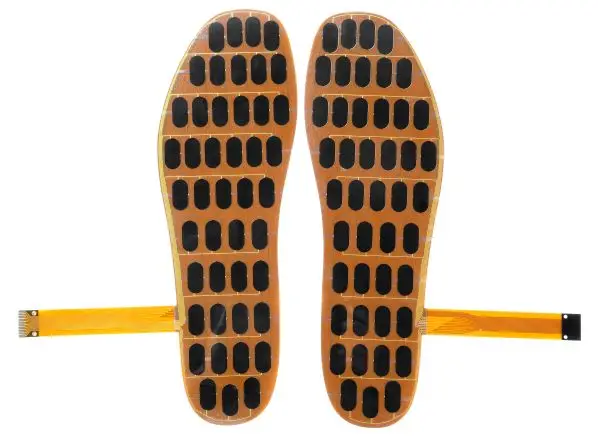

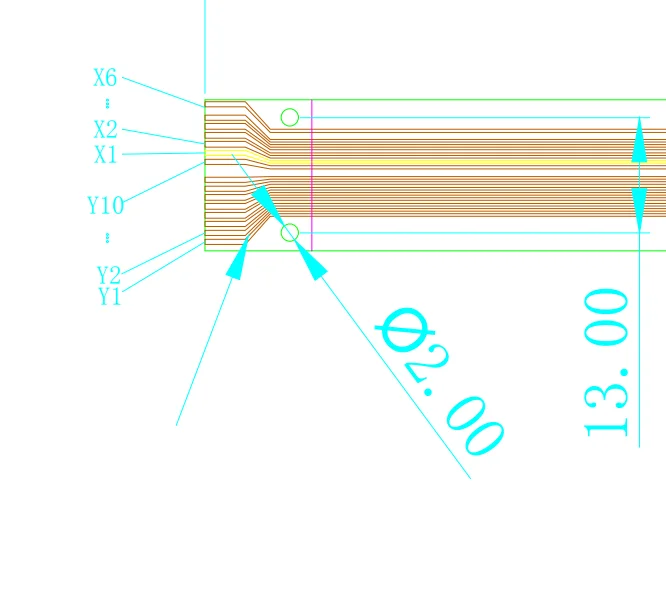

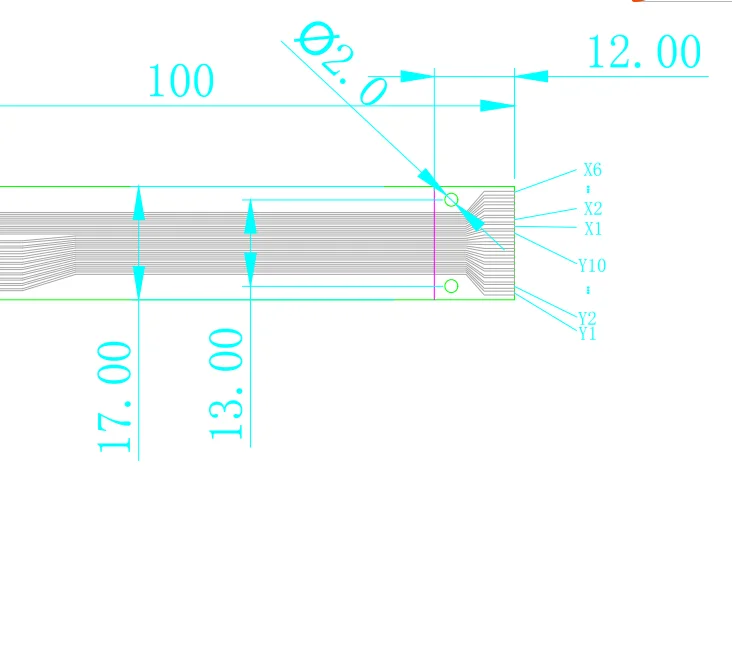

The RPPS-45 plantar pressure sensor has 45 independent sensing areas and adopts a layout of 10 rows and 6 columns of sensing
areas, with a total of 16 interface leads. A flexible thin-film pressure sensor in which the output resistance of the sensing area
changes with the change of external pressure.
areas, with a total of 16 interface leads. A flexible thin-film pressure sensor in which the output resistance of the sensing area
changes with the change of external pressure.
Specification
precious:
Thin-film pressure sensors are sensitive devices. In complex environments, such as stepping on feet or on uneven surfaces, the sensor needs to be protected to increase the service life of the sensor.
Thickness： | 0.5mm |
Style： | flaky, flexible |
Trigger force： | 100g |
Pressure range: | 0.1kg-10kg |
mode of action of pressure： | soft touch press |
Response time： | ＜1ms |
Activation time： | ＜1ms |
Durability： | -20℃~+65℃ |
Operating temperature: | ＞1 million times |
Resistor usage range： | 0.5K~50KΩ |
Whether it is waterproof： | Yes |
Whether it is dustproof： | Yes |
Electromagnetic Interference EMI： | No |
Electrostatic discharge EDS： | No |

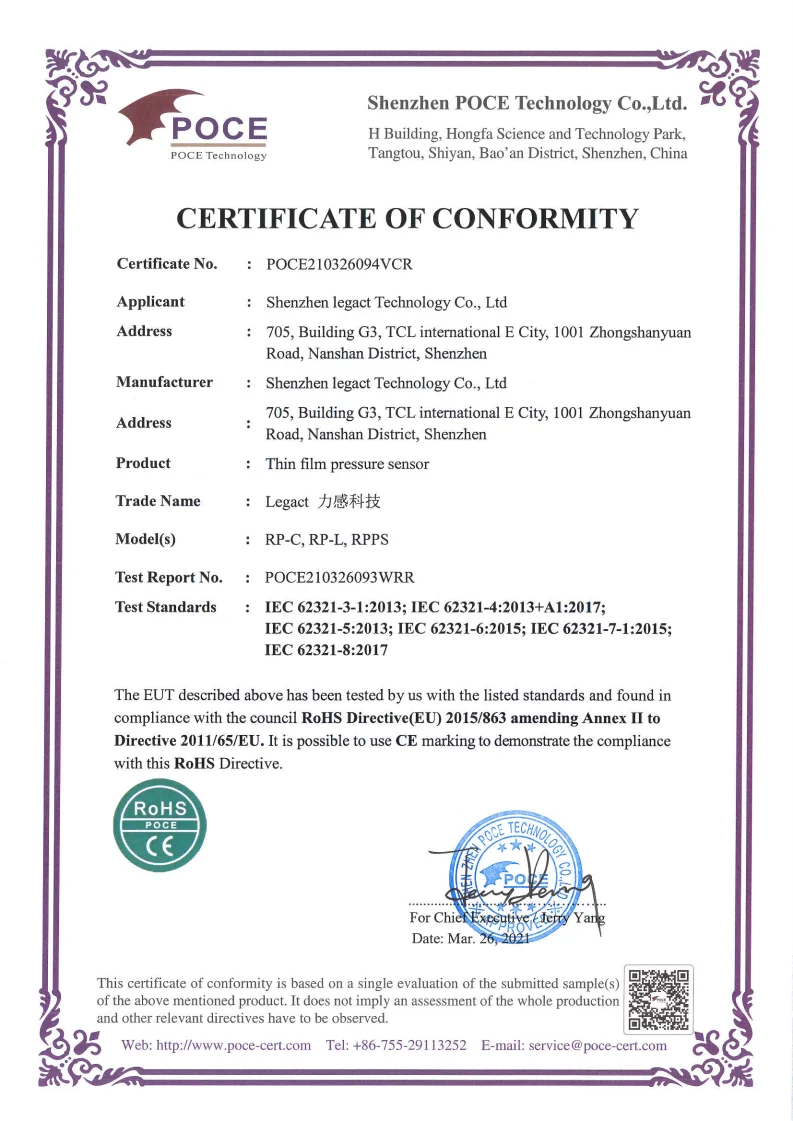

RoHS compliant | Yes |
Product Usage
Paremeter description
Main parameters | Min | Typical value | max | Remark | ||
Operating Voltage （V） | 3.5 | 3.7 | 4.2 | Lithium battery powered | ||
Operating temperature（℃） | 0 | 25 | 55 | Low temperature, high temperature lithium battery capacity will change | ||
Charging interface | USB-C | |||||
Charging voltage （V） | 4.5 | 6 | 5.2 | USB charging | ||
Recharging current (mA) | 160 | 180 | 200 | |||
Battery power （mAh） | 180 | Capacity at room temperature | ||||
Working frequency (MHz) | 2379 | 2430 | 2496 | Support ISM frequency band | ||
Emission current (mA) | 15 | |||||
Average consumption (mA) | 10 | |||||
Max power transmission (dBm) | 4 | |||||
Receive sensitivity (dBm) | -95 | |||||
supporting agreement | BLE4.2/5.0 | |||||
Communication distance (m) | 10 | open space | ||||
sample rate (fps) | 20 | frame rate | ||||
Related Products

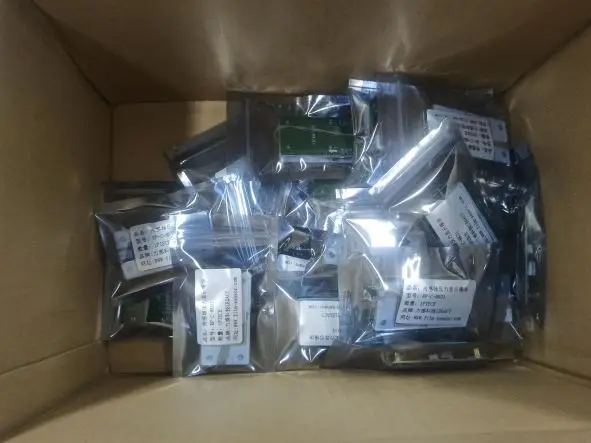

Packing&Shipping
Shipment Detail
Delivery Time: Neutral products normally 7-10days (below 1000pcs)
Branding products: sample 3-5days, mass order 15days (below 1000pcs)
Min. order:
Neutral item: 10PCS
Logo MOQ: 1000pcs
Box customization: 2000pcs
Smart watch Payment terms:
1.Payment:TT,Western Union,Paypal
2.Bulk order:30% deposits;70% balance before delivery
3.Sample fee:Can be returned
Shipping information:Fedex,DHL,UPS.For buyers

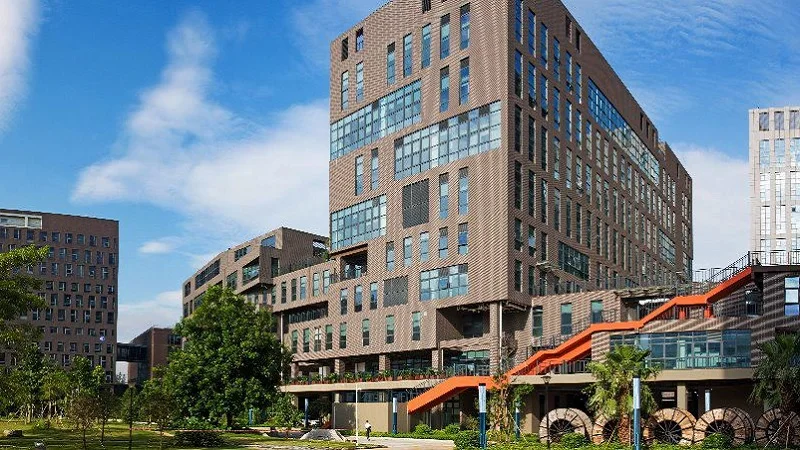

Company Introduction

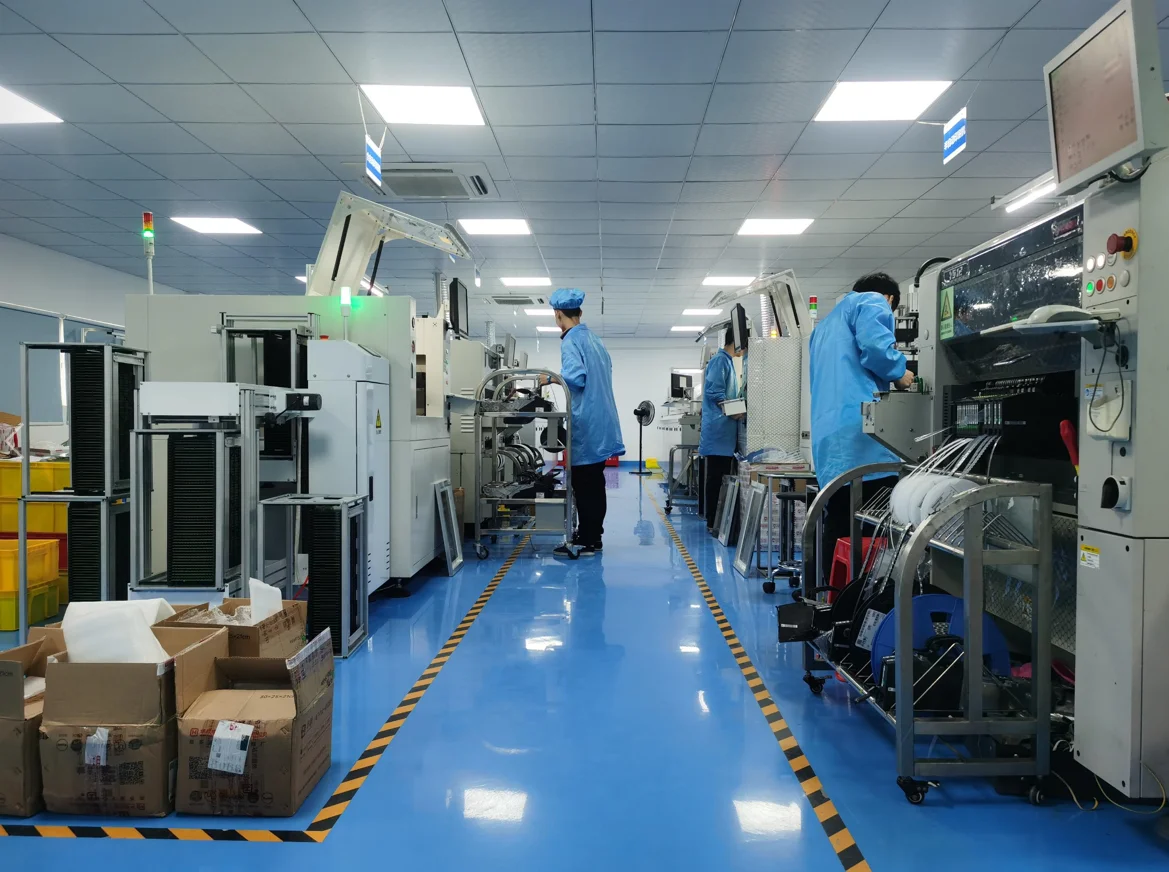

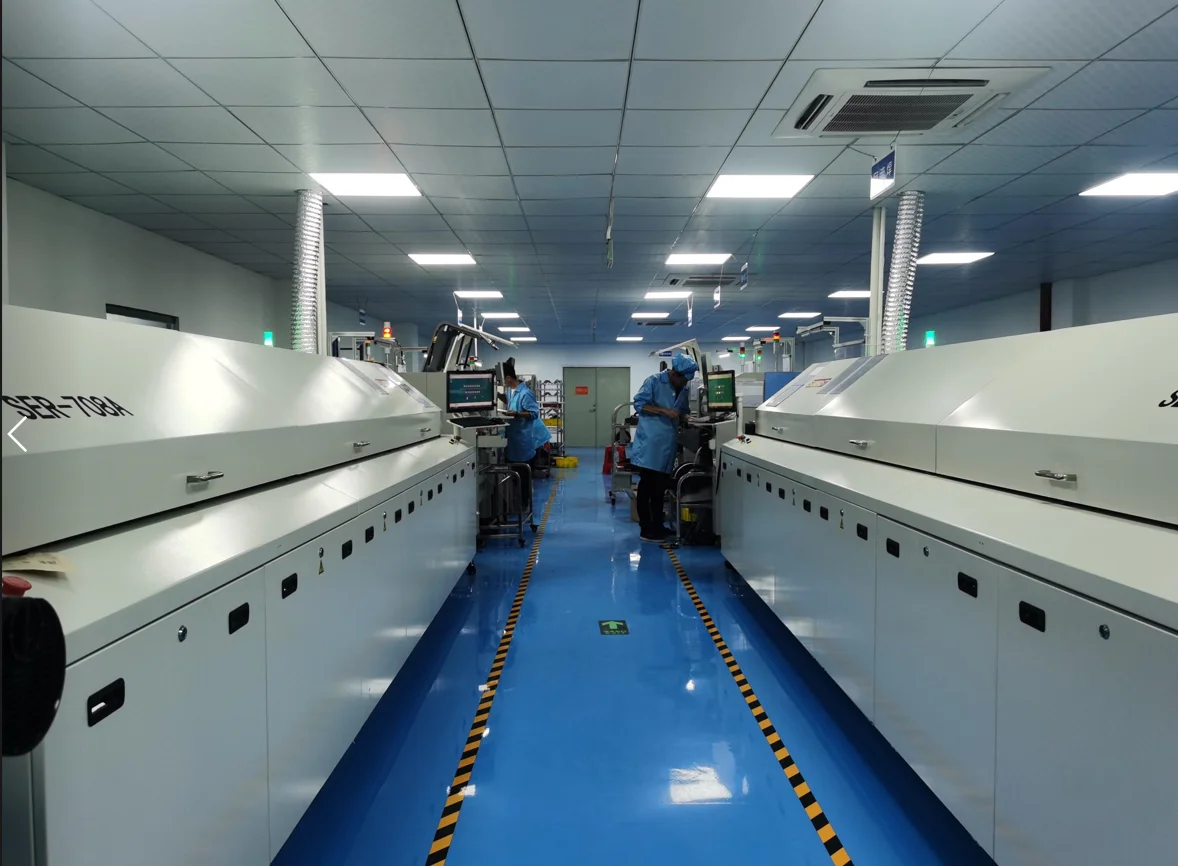

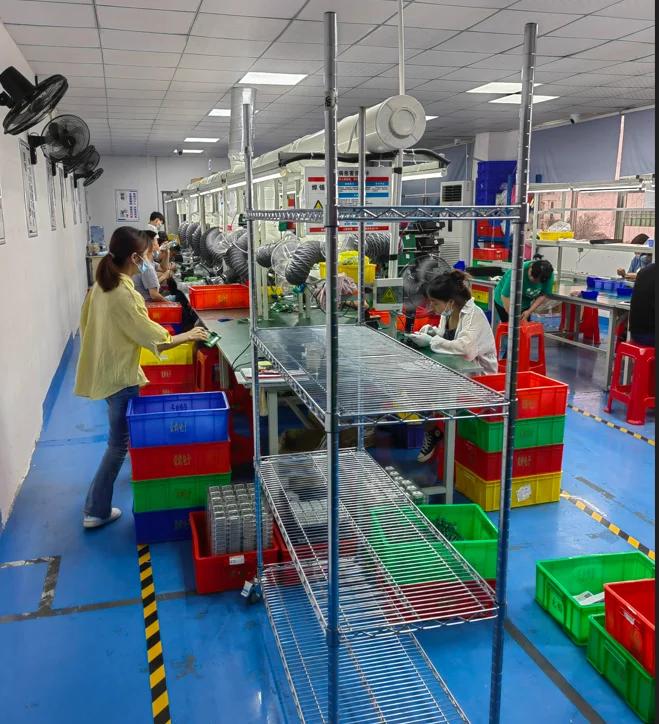

Legact company is committed to providing Force Sensing Resistor(FSR) research and development, production and sales. Legact company has been several domestic smart wear equipment, vital signs monitoring system and personal health products manufacturers.
Our Services & Strength
Customized sensors can be designed according to the special needs of customers. Including special shape and size, pressure resistance characteristics, special material and thickness, special shape and number of sensing area, and specific interface connection.
FAQ
1.Who we are?
We are based in Guangdong, China, start from 2016,sell to North America(50.00%),Southern Europe(30.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
3.what can you buy from us?

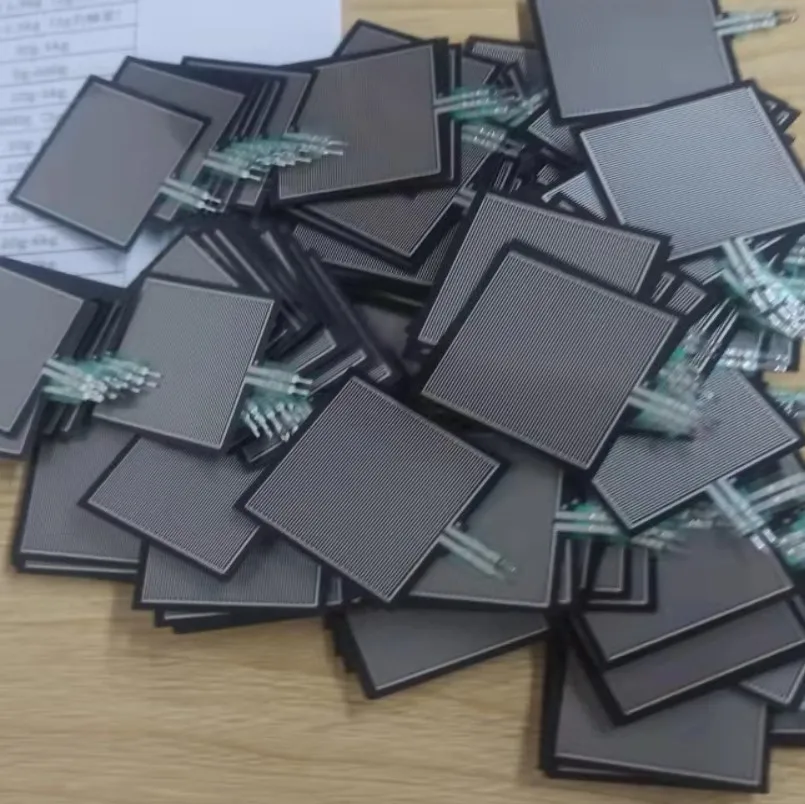

FSR,Flexible force sensor,Force sensing resistor,force sensitive resistor,FSR sensor
