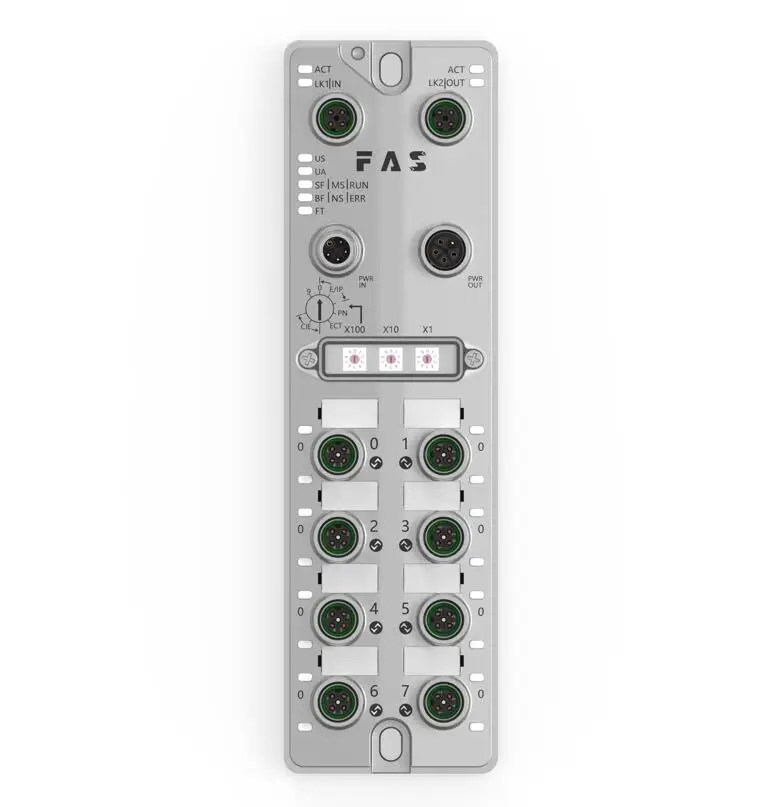

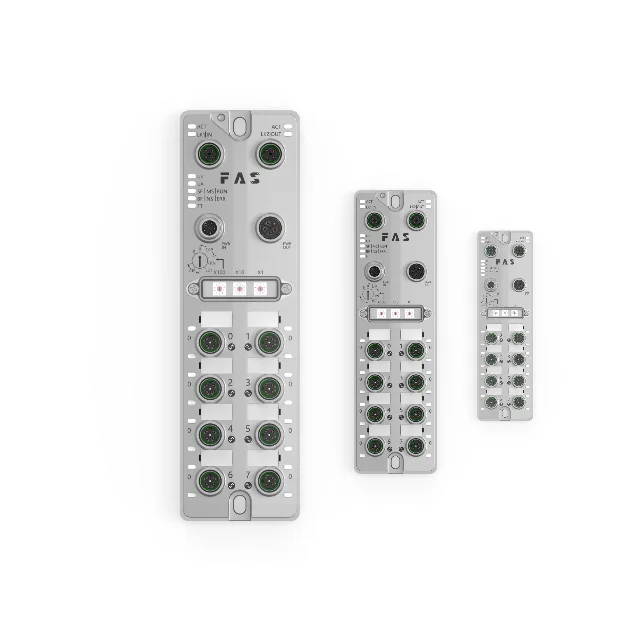

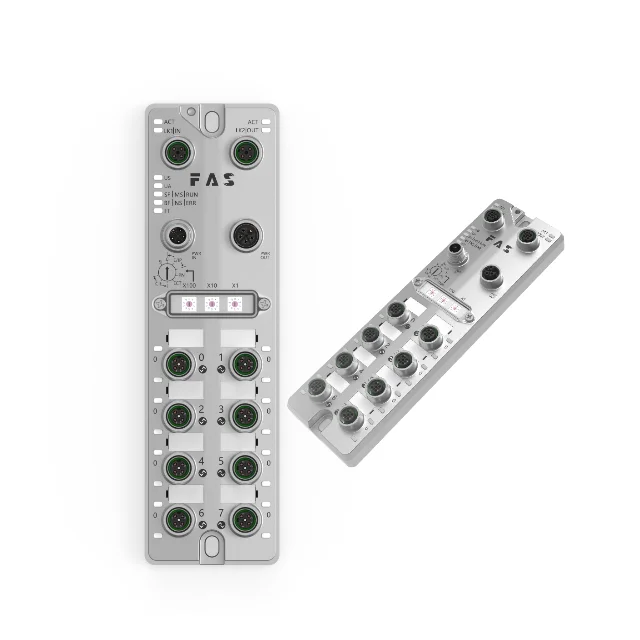

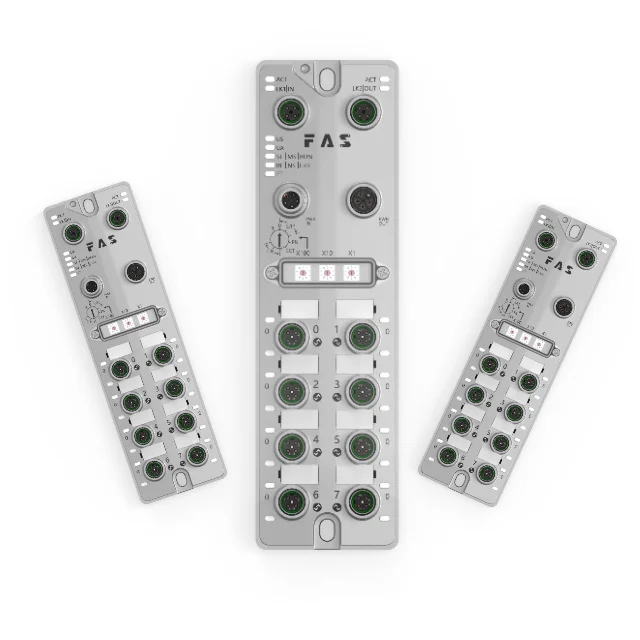

IP67 EMC shell Profinet Ethercat EthernetIP CC Link remote digital bus I/O module for industrial control
- Category: >>>
- Supplier: Fuyansheng Electronic (fujian) Co. Ltd.
Share on (1600587763505):
Product Overview
Description
Technical Parameter
Rated working voltage UB | 18...30VDC |
Function indication light | BUS/RUN |
Port status indication light | Red，Yellow |
Module status indication light:Mod LED | With |
Network status indication light | With |
Housing material | NP Gd-Zn alloy |
Storage temperature | -25...+70 °C |
IP Grade conforms to IEC 60529 | IP 67 |
Working temperature Ta | -5...+70 °C |
Size | 225×68×36.9mm |
FIeld bus Connecting | M12 Dcoded Female plug |
Connection :AUX power supply | 7/8,Male plug,5pin |
I/O port number | 8 |
Port status indication light(signal status) | Yellow LED indication light |
Port diagnosis indication light(overload) | red LED indication light |
Fastener | 2 pcs Mounting hole |
Tpye | PN, E/IP, CIE 8*IOLINK,16DI/D0 PNP | PN, E/IP, CIE 8*IOLINK,16DI/ 8D0 PNP | PN, E/IP, CIE 16DI | PN, E/IP, CIE 16DO | PN, E/IP, CIE 16DI 16DI/DO configurable | PN, E/IP, CIE 16DO | PN, E/IP, CIE 16DI 16DI/DO configurable |
Part number | 007B11 | 007B31 | 007C11 | 007D11 | 007E11 | 007D31 | 007E31 |
Input number | Max 16pcs PNP input | Max 16pcs PNP input | Max 16pcs PNP input | / | Max 16pcs PNP input | / | Max 16pcs PNP input |
Output number | Max 16pcs PNP outputMax 16pcs PNP output | Maximum 8 PNP output | / | Max 16pcs PNP output | Max 16pcs PNP output | Max 16pcs PNP output | Max 16pcs PNP output |
Input/output configurable | YES | YES | NO | NO | YES | NO | YES |
Maximum load current sensor/channel | 200MA | 200MA | 200MA | / | 200MA | / | 200MA |
Maximum output load current | 2 A | 2 A | / | 2 A | 2 A | 0.5A | 0.5A |
Total current Uactuator | ≤ 16A | ≤ 16A | / | ≤ 16A | ≤ 16A | ≤ 16A | ≤ 16A |
Total current Usensor | ≤ 16A | ≤ 16A | ≤ 16A | / | ≤ 16A | ≤ 16A | ≤ 16A |
Communication Indication light | Green LED Indication light | Green LED Indication light | / | / | / | / | / |
Error Indication light | Red LED Indication light | Red LED Indication light | / | / | / | / | |
The max. Load current of IO-Link devices | 2A | 2A | / | / | / | / | / |
Product Description
For high performance applica-tions, we recommend to consider Profinet IO-Link main control unit port. This port goes through EREC200 and also support isochronous real-time communication(IRT).
This module comprises of 4 IO-Link master port. those ports can be configured and used independently. All IO-Link ports support COM1,COM2 and COM3 port (only suitable for 3-wires) and SIO mode.
IO-link port also has an additional input port or input/output port connected by PIN 2. this means it also can be connected to auxiliary normally open/closed and DESINA sensor at SIO mode.
This module comprises of 4 IO-Link master port. those ports can be configured and used independently. All IO-Link ports support COM1,COM2 and COM3 port (only suitable for 3-wires) and SIO mode.
IO-link port also has an additional input port or input/output port connected by PIN 2. this means it also can be connected to auxiliary normally open/closed and DESINA sensor at SIO mode.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Package Type: FAS standard package Or As the customer's requirement.

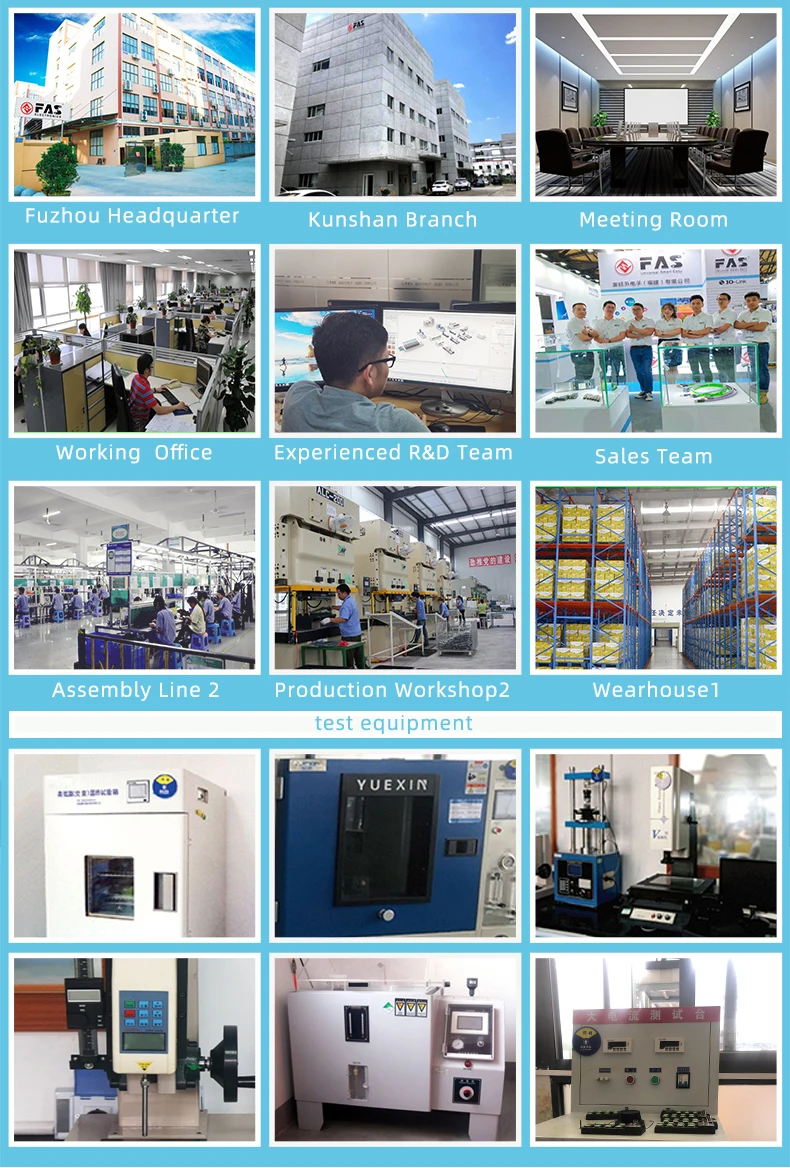

Company Profie
