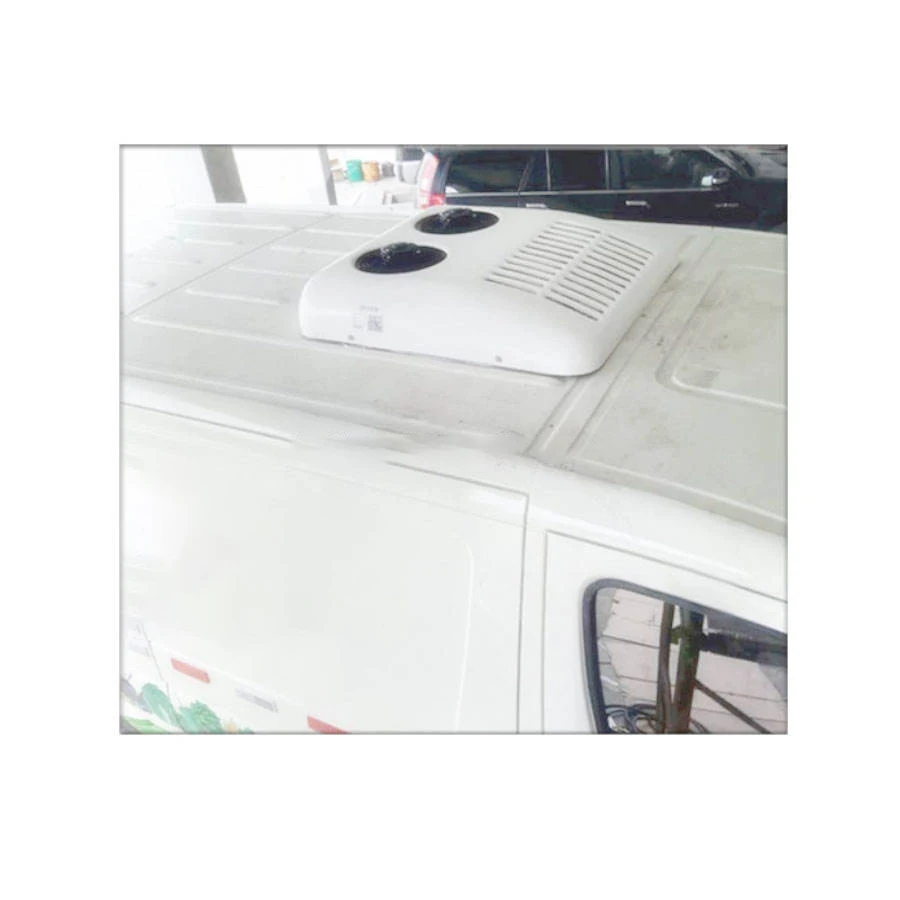

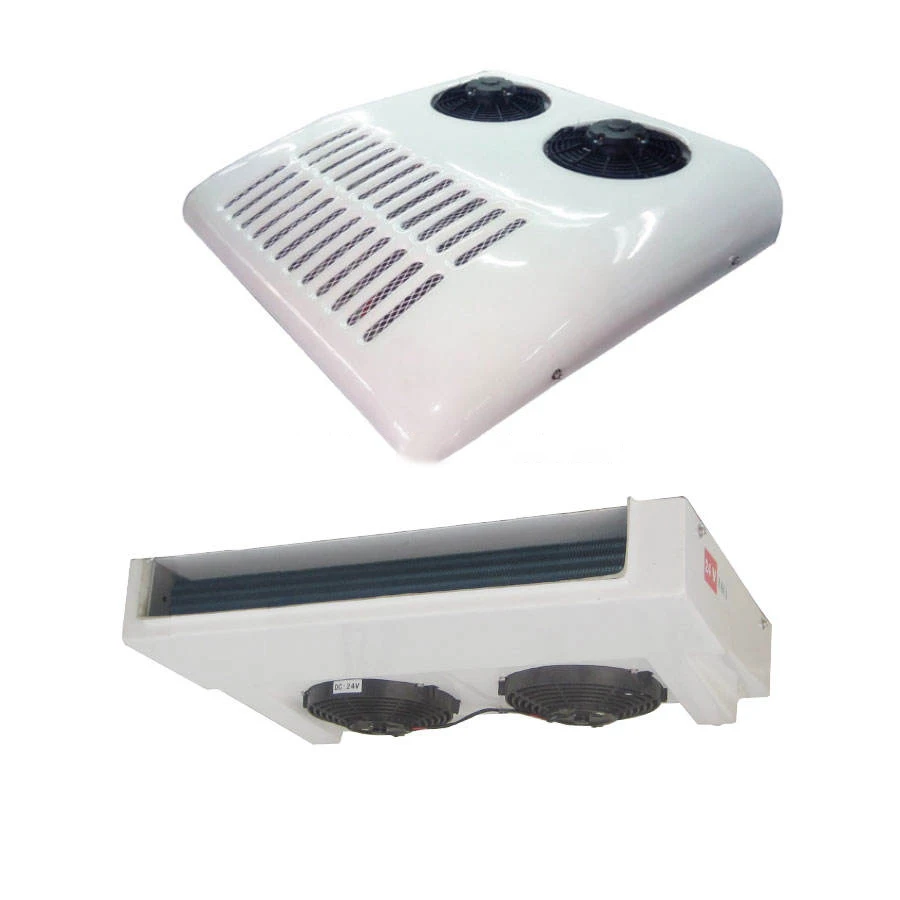

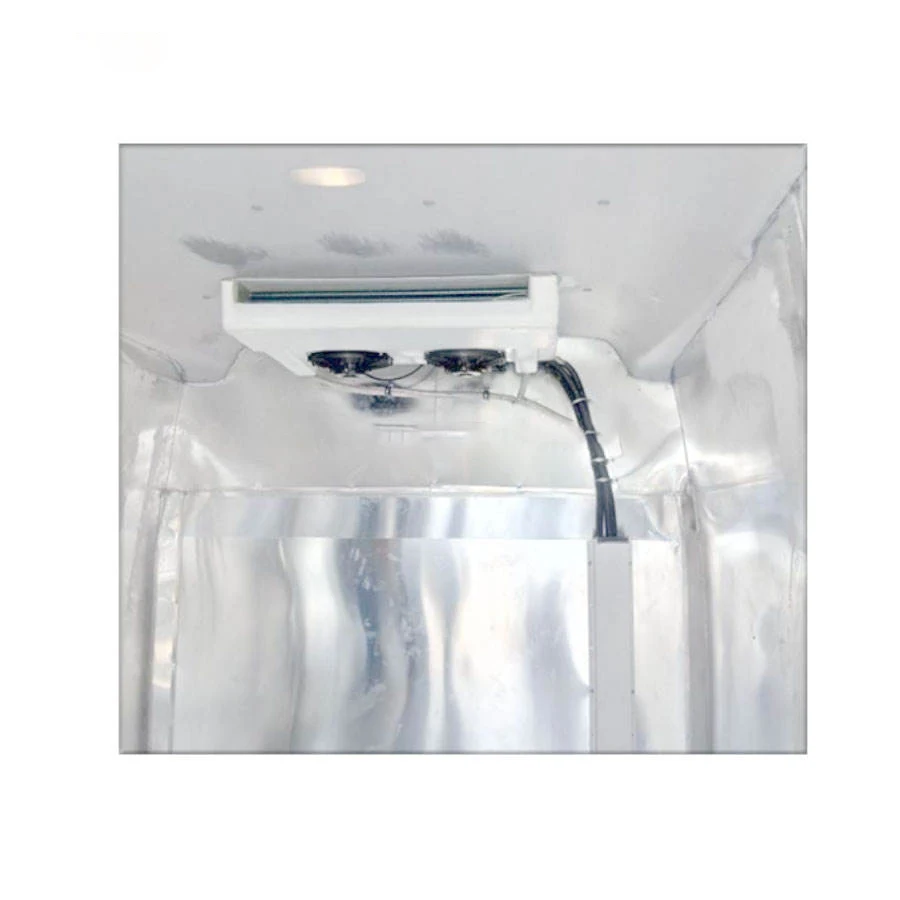

Roof top 12V 24V/van refrigeration unit for cargo vans & refrigerated van
- Category: >>>
- Supplier: Nanjing Futrun Vehicles Technology Co. Ltd.
Share on (1600587765222):
Product Overview
Description
Technical data | ||
Model | R280T | |
Temperature range in box body | -18℃ ~ +25℃ | |
Drive | Engine drive | |
Construction | Split & depend unit | |
Installation | Roof top | |
Voltage | 12V/24V | |
Current draw | 12V/23A, 24V/15A | |
Suggested box body volume | 2m³ ~ 8m³ | |
Control | Digital microprocesser in cab | |
Compressor | 5H11, 108cc/r | |
Refrigerant | R404a | |
Gas charge | 0.6kgs ~ 0.7kgs | |
Protection | High & low pressure switch | |
Defrost | hot gas | |
Size for evaporator | 850*520*175mm | |
Size for condenser | 880*865*209mm | |
Weight for evaporator | 16kgs | |
Weight for condenser | 30kgs | |
Application | Refrigerated van | |
Nanjing FUTRUN Vehicle Technology Co.,ltd
We specializes in products related with environment in vehicle as well as the completed solution of air conditioner and heating system for all kinds of vehicles. Our main products include air conditioner for bus and coach, air conditioner for trucks, air conditioner for off-high, truck refrigeration units etc.
We believe that a comfortable environment in vehicles can bring joy and ease to people and make people's mobility and working more efficient. More than 10 years experiences in field of automobile air conditioning and heating system allows us to be able to understand customer's requirement better. That's why we concentrate on developing customers and market orientation products with our expertise while placing high emphasis on quality.
We set up advanced test lab to guarantee the performance of our design reaches our pre-defined target. Our products have been adopted by some well-known bus and coach manufacturers like Yutong, Kinglong, BYD etc.
We enjoy long-term customer relationships based on a spirit of trust, and will continuously further develop these contacts with existing and new customers. All that we do is to fulfill our slogan: comfortable environment for better life.
We believe that a comfortable environment in vehicles can bring joy and ease to people and make people's mobility and working more efficient. More than 10 years experiences in field of automobile air conditioning and heating system allows us to be able to understand customer's requirement better. That's why we concentrate on developing customers and market orientation products with our expertise while placing high emphasis on quality.
We set up advanced test lab to guarantee the performance of our design reaches our pre-defined target. Our products have been adopted by some well-known bus and coach manufacturers like Yutong, Kinglong, BYD etc.
We enjoy long-term customer relationships based on a spirit of trust, and will continuously further develop these contacts with existing and new customers. All that we do is to fulfill our slogan: comfortable environment for better life.
Type of shipping
We can do EXW, FCA, FOB, CIF, DDU ,DDP . Door to door delivery is available to solve all the headache for transportation. Customer only buy and wait for the parcel.
Q: How long can parking air conditioner keep working with battery of my vehicle?
A: It depends on the capacity of battery equipped by your vehicle, working mode of air conditioner you select and the target temperature you set. Kindly remind that once the target temperature is reached, the compressor will stop working no matter which working mode is set by users.
Example 1: 12V/100Ah battery, strong cooling mode, compressor works in 50% of time, can sustain around 2.8h (100Ah/70A/50%=2.8) of running.
Example 2: 24V/180Ah battery, standard cooling mode, compressor works in 70% of time, can sustain around 9.5h (180Ah/27A/70%=9.5) of running.
Q: Do users need to add refrigerant into our parking air conditioner before turning it on?
A: Yes. Users need to vacuumize and add refrigerant into parking air conditioners before turning it on.
Q: Which type of refrigerant and how much refrigerant should be filled into parking air conditioner?
A: Our parking air conditioner adopts R134a as refrigerant. For split type, 620g refrigerant should be filled in. For roof mount compact type, 600g refrigerant should be filled in.
Q: What warranty you can provide?
A: We provide one year warranty, if there is quality issue during this period, we provide parts to replace free of charge. After
this period, we provide parts in cost price.
Q: can you accept OEM customers' logo
A: Yes, we are factory whom can accept oem with customer logo and also design.
A: It depends on the capacity of battery equipped by your vehicle, working mode of air conditioner you select and the target temperature you set. Kindly remind that once the target temperature is reached, the compressor will stop working no matter which working mode is set by users.
Example 1: 12V/100Ah battery, strong cooling mode, compressor works in 50% of time, can sustain around 2.8h (100Ah/70A/50%=2.8) of running.
Example 2: 24V/180Ah battery, standard cooling mode, compressor works in 70% of time, can sustain around 9.5h (180Ah/27A/70%=9.5) of running.
Q: Do users need to add refrigerant into our parking air conditioner before turning it on?
A: Yes. Users need to vacuumize and add refrigerant into parking air conditioners before turning it on.
Q: Which type of refrigerant and how much refrigerant should be filled into parking air conditioner?
A: Our parking air conditioner adopts R134a as refrigerant. For split type, 620g refrigerant should be filled in. For roof mount compact type, 600g refrigerant should be filled in.
Q: What warranty you can provide?
A: We provide one year warranty, if there is quality issue during this period, we provide parts to replace free of charge. After
this period, we provide parts in cost price.
Q: can you accept OEM customers' logo
A: Yes, we are factory whom can accept oem with customer logo and also design.
