8port POE Switch GIgabit Network Switches With SFP For IP Camera/Wireless AP/Wifi Router 10/100/1000M
- Category: >>>
- Supplier: Henan DK Fiber Communication Co. Ltd.
Share on (1600587767864):
Product Overview
Description
8 Port 10/100/1000Mbps POE Switch
Gigabit PoE switch that provides 10 10/100/1000Mbps RJ45 adaptive ports and supports wire-speed forwarding on all ports. Among them, 8 ports have PoE function, which can be used as Ethernet power supply equipment. It can automatically detect and identify the power receiving equipment conforming to IEEE 802.3at and IEEE802.3af standard, and pass The network cable provides power to it. Unique VLAN isolation can meet various security monitoring networking requirements. The independent Uplink port can ensure that the port can easily cope with sudden high traffic and ensure that the upstream channel is unblocked.
Products Description
I assure you that the quality of our products to ensure that we give you the best service to ensure the fastest shipping, most secure way to deliver the goods to your hands! If you have any questions after receiving the product, or have quality problems,please do not panic, do feel free to submit disputes, please contact our customer service, we will give you the most satisfactory answer! Happy shopping, thank you very much！！
Chip | IP1707+IP808AR | ||||||
Supported standards and protocols | IEEE802.3、IEEE802.3i、IEEE 802.3u、IEEE802.3ab、 IEEE802.3x、IEEE802.3az IEEE802.3az、IEEE802.1q、IEEE802.3af、 IEEE802.3at | ||||||

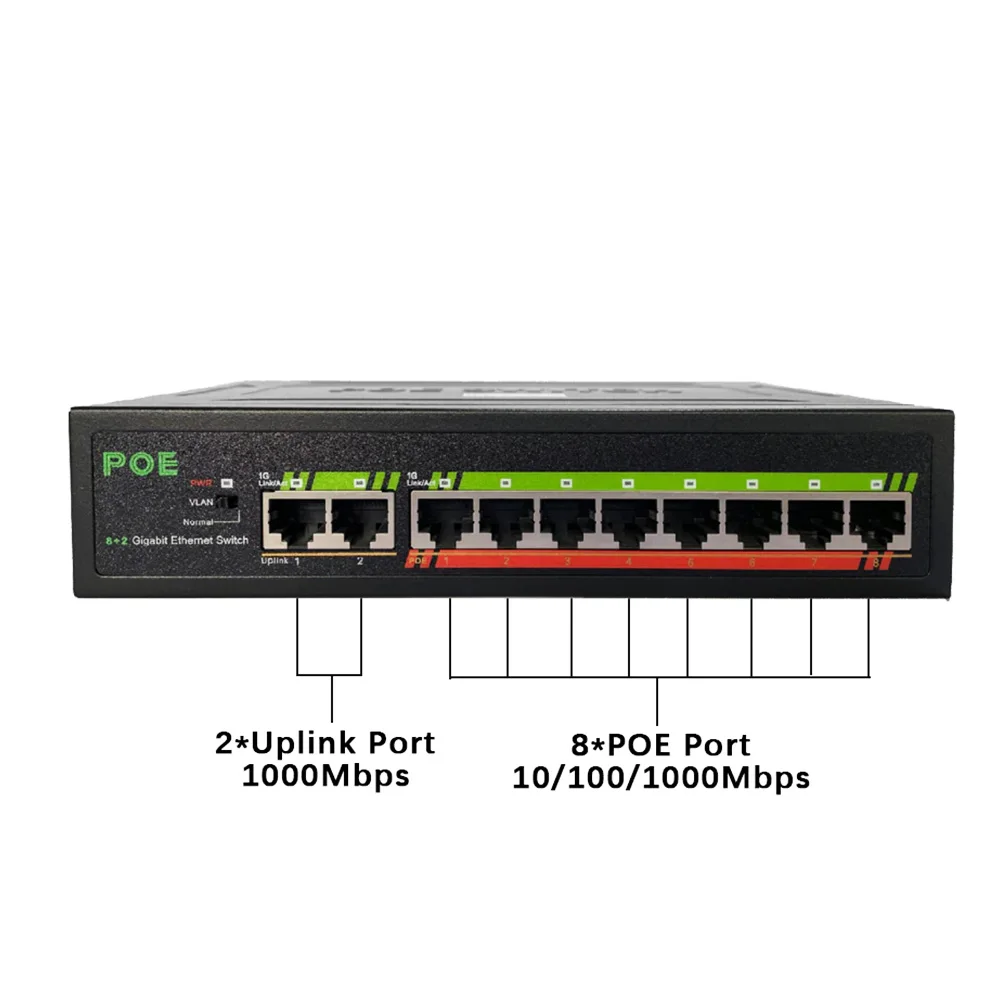

Port | 10 10/100/1000Mbps 10/100/1000Mbps adaptive RJ45 ports (Auto MDI/MDIX) | ||||||
Transfer method | Store and forward | ||||||
Switch capacity | 10Gbps | ||||||
Packet forwarding rate | 7.44Mpps | ||||||
Power supply pin | 1/2(+),3/6(-) | ||||||
POE output power | 100-240VAC,50/60Hz | ||||||
Power supply | 12V 1A, external AC-DC power adapter | ||||||
Power consumption | Maximum (PoE full load): 124W (220V/50Hz) | ||||||
Dimensions (L×W×H) | 200*119*44.5mm | ||||||
Features
* Conform to IEEE802.3, IEEE802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az, IEEE802.lq Ethernet standards
* Support IEEE802.3af, IEEE802.3at PoE standards
* The power consumption of a single port can be up to 30W, and the total power consumption of PoE can reach up to 120W

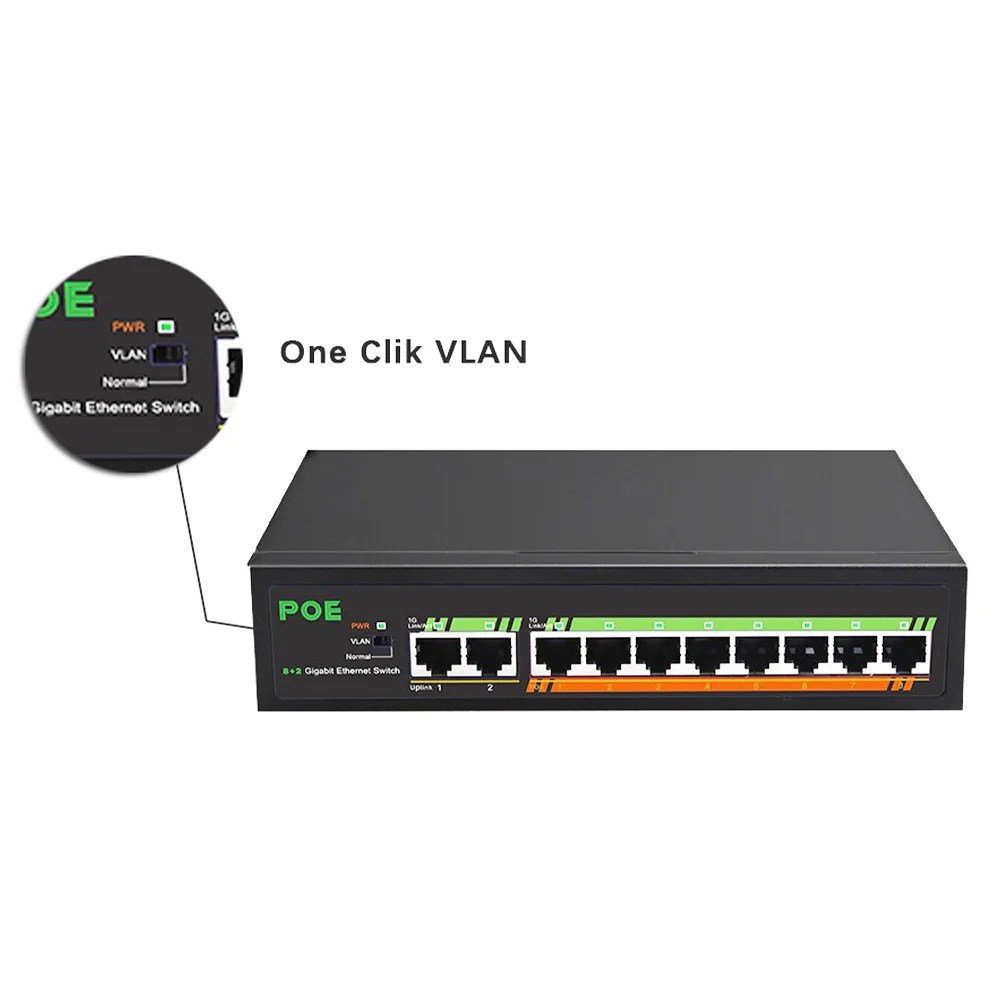

* Unique VLAN isolation, which can meet various security monitoring network requirements
* 10 10/100/1000Mbps adaptive RJ45 ports, support auto flip function (Auto MDI/MDIX)
* The independent Uplink port can ensure that the port can easily cope with bursts of high traffic and ensure that the upstream channel is unblocked
* Support IEEE802. 3x full-duplex flow control function and half-duplex back pressure flow control function
* Easy-to-understand LEDs indicate the link and data transmission status of the port
* Built-in power supply, exquisite structure design, suitable for desktop installation
* Support IEEE802.3af, IEEE802.3at PoE standards
* The power consumption of a single port can be up to 30W, and the total power consumption of PoE can reach up to 120W
* Unique VLAN isolation, which can meet various security monitoring network requirements
* 10 10/100/1000Mbps adaptive RJ45 ports, support auto flip function (Auto MDI/MDIX)
* The independent Uplink port can ensure that the port can easily cope with bursts of high traffic and ensure that the upstream channel is unblocked
* Support IEEE802. 3x full-duplex flow control function and half-duplex back pressure flow control function
* Easy-to-understand LEDs indicate the link and data transmission status of the port
* Built-in power supply, exquisite structure design, suitable for desktop installation
