Product Overview
Description
Product Description

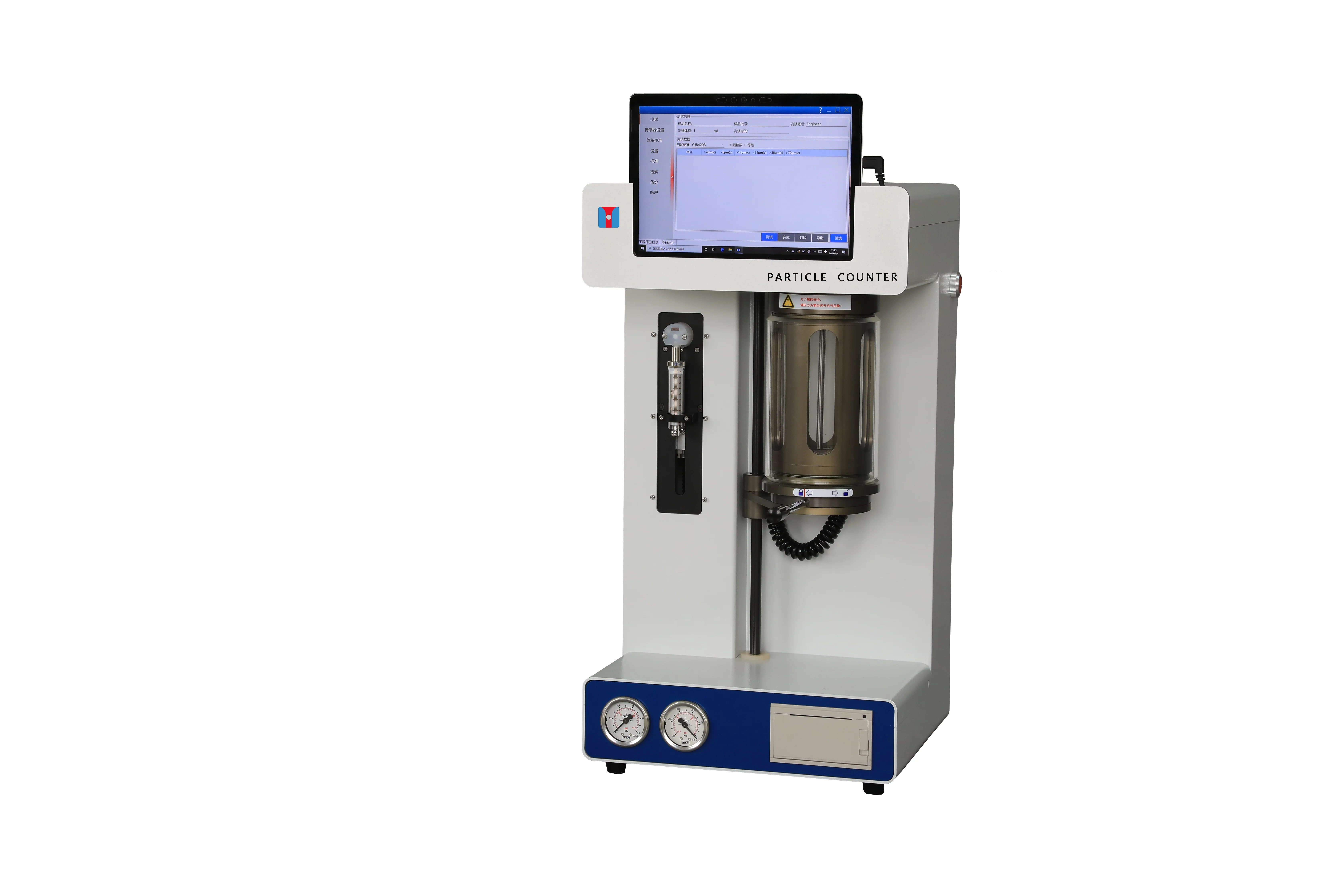

FPC-L3 Oil Liquid Particle Counter
FPC-L3 Oil Particle Counter,based on GB/T18854-2002-(ISO11171 -1999) standard.Use shading counting principle,meeting international standard.Can respond with fast,precise,reliable and repeatable result and complete pollution monitoring analysis report,suitable to detect degree of contaminated particle in hydraulic oil,lubricating oil, fire-resistant fuel, insulating oil and turbine oil . Widely used in aviation, aerospace, electric power, petroleum, chemical, transportation, port, metallurgy, machinery, automobile,
Features
* Use laser shading principle which International Hydraulic Standards Committee specified.
* Strict sensor, large test range, stable function, low noise and high resolution.
* With the advanced sampling system of high pressure injector,sample volume can be set free, stable sampling speed and strict sampling precision.
* Build-in sampling system combine positive pressure with negative pressure, can remove the bubble in the sample, can test various viscoelastic sample.
* Build-in pressure sensor,can set pressure value,and judge inner air pressure automatically,ensure safety.
* With air filter system, avoid any pollution to sample.
* Build-in SAE4059E、SAE4059F、SAE4059F-CPC、NAS1638、ISO4406、GB/T14039、GJB-420A、GJB-420B、ГOCT17216-71、DL/T1096、SAE749D、1、QC/T29104-201、DL-T432-2018、HH005-2018
standard, allow unlimited number of self-set standards ,can set all the standards that user specified.
* Build-in data analyze system,one test can give all standard test data and contaminationgrade.
* With multiple calibrated curves which apply to calibrate standards in common use,can single channel and multiple channel automatic calibration.
* Particle size can be set arbitrarily,build-in nearly ten thousand of particle size setting,easy for granularity level analyze.
* Can satisfy test requirement to various profession, can use standardized sample bottle or other container
* Optional : viscosity,dielectric constant,moisture and temperature sensor module,can multiple parameter detection.
* Windows operation interface,build-in database,unlimited data storage, multiple searching method : detection standard,sample name,sample batch number,testers,test time.
* Multi-level account managing, account authority can be set separately, support digital signature.
* Test result can be printed,exported in pdf、excel format,transported through USB,wifi .
* Strict sensor, large test range, stable function, low noise and high resolution.
* With the advanced sampling system of high pressure injector,sample volume can be set free, stable sampling speed and strict sampling precision.
* Build-in sampling system combine positive pressure with negative pressure, can remove the bubble in the sample, can test various viscoelastic sample.
* Build-in pressure sensor,can set pressure value,and judge inner air pressure automatically,ensure safety.
* With air filter system, avoid any pollution to sample.
* Build-in SAE4059E、SAE4059F、SAE4059F-CPC、NAS1638、ISO4406、GB/T14039、GJB-420A、GJB-420B、ГOCT17216-71、DL/T1096、SAE749D、1、QC/T29104-201、DL-T432-2018、HH005-2018
standard, allow unlimited number of self-set standards ,can set all the standards that user specified.
* Build-in data analyze system,one test can give all standard test data and contaminationgrade.
* With multiple calibrated curves which apply to calibrate standards in common use,can single channel and multiple channel automatic calibration.
* Particle size can be set arbitrarily,build-in nearly ten thousand of particle size setting,easy for granularity level analyze.
* Can satisfy test requirement to various profession, can use standardized sample bottle or other container
* Optional : viscosity,dielectric constant,moisture and temperature sensor module,can multiple parameter detection.
* Windows operation interface,build-in database,unlimited data storage, multiple searching method : detection standard,sample name,sample batch number,testers,test time.
* Multi-level account managing, account authority can be set separately, support digital signature.
* Test result can be printed,exported in pdf、excel format,transported through USB,wifi .
Specification
Model | FPC-L3 |
Optical system | shading principle |
Optical source | laser |
Size range | 0.8μm-600μm |
Channel number | 64 |
Sensitive | 0.8um（ISO4402）or 3um（c）（GB/T18854，ISO11171） |
Resolution | <10% |
Repeatability | RSD<2% |
Dynamic viscosity | ≤400 cSt |
Sampling volume | 0.2-6000ml,0.1ml interval |
Sampling speed range | 5ml/min-80ml/min |
Sampling precision | ≤±0.5% |
Barometric chamber | Barometric chamber combine positive pressure with negative pressure ,can remove the bubble in the sample, can test high viscoelastic sample |
Max.negative pressure | -0.08MPa |
Max.positive pressure | 0.8 MPa |
Coincidence error limit | 12000-40000 particals/ml |
Temperature collection T (Optional) | -40~100℃ ,Precision : ±0.5℃ |
Moisture (Optional) | aw：1～100%RH ,Precision :±1%RH AH：1～300ppm ,Precision :±10ppm |
Dielectric constant (Optional) | 1-6 |
Viscosity (Optional) | 0.5～50cP, Precision :±2%（>10cP），±0.2cP（<10cP） |
Power | 110~245V AC、50Hz，70W |
External Size | 340mm╳310mm╳730mm |
NW | 25kg |
