Product Overview
Description
Product Description
RB760iGS hEX S 5 port Gigabit router optical port POE ROS for locations where wireless connectivity is not required
Product Attributes
MikroTik hEX S RB760iGS full Gigabit 5-port electric port 1 optical port POE ROS router weak current box
Product Description

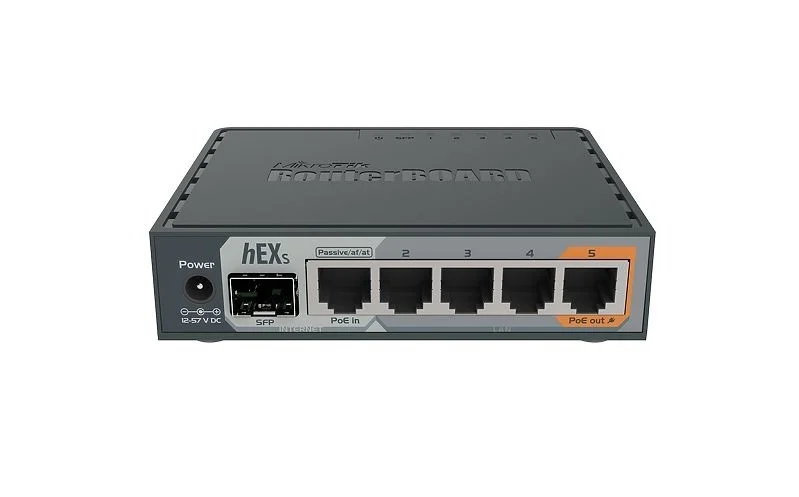

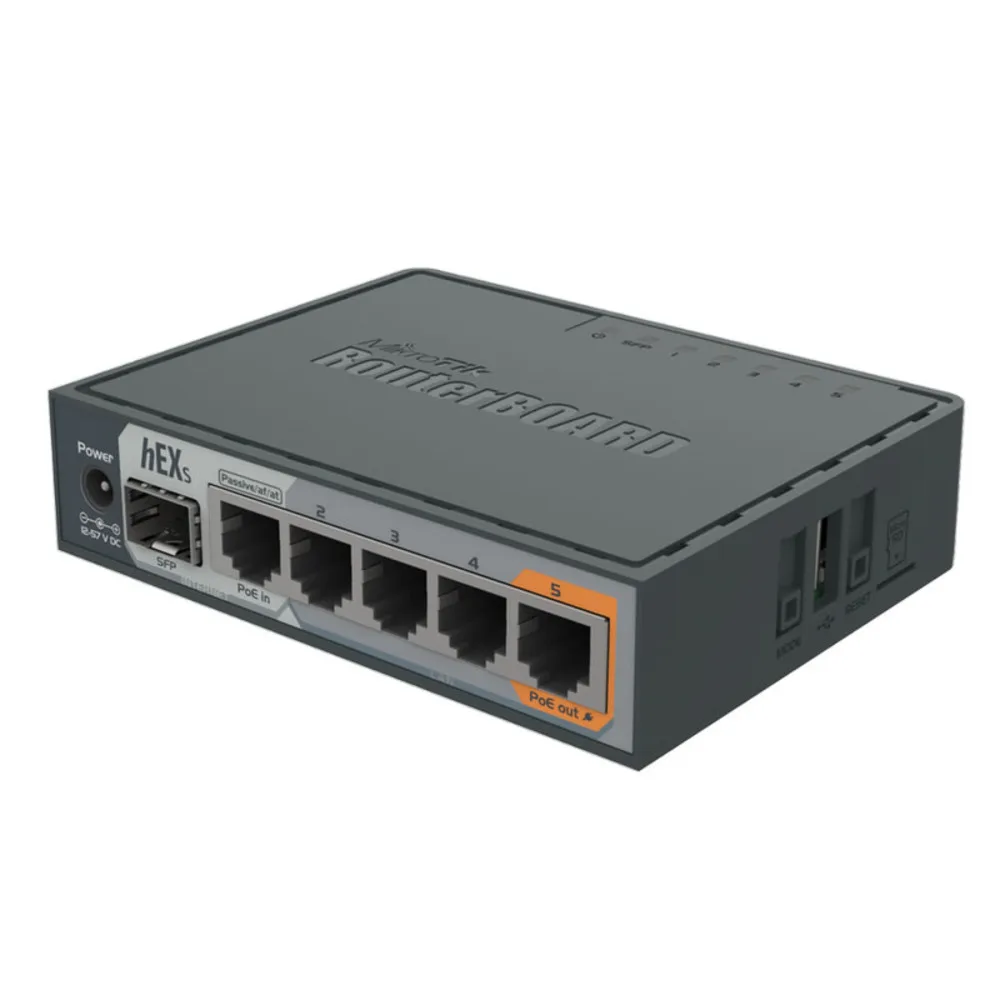

hEX S is a five-port Gigabit Ethernet router for locations that do not require a wireless network connection. Compared to hEX, the latter port of hEX S also has an SFP port and a PoE output.
It's affordable,, small and easy to use, but comes with a dual-core 880 MHz CPU and 256 MB RAM to support all configurations supported by RooterOS. The device has USB 2.0 for PoE output and 1.25Gbit /sFP cage for Ethernet port s5.
IPsec hardware encryption (approximately 470 Mbps) and The Dude server packages are supported, with microSD slots on them providing improved r/w speeds for file storage and Dude.
Product code | RB760iGS |
Architecture | MMIPS |
central processing unit | MT7621A |
The number of CPU cores | 2 |
CPU nominal frequency | 880 MHz |
The number of CPU threads | 4 |
Form factor | 113 x 89 x 28 mm |
License level | L4 |
operating system | RouterOS |
Ram size | 256 MB |
The storage size | 16 MB |
The type of storage | flash memory |
Test the ambient temperature | -40°C .. + 70°C |
Power supply
detail | |
power consumption | 11W |
PoE input | 802.3af/at |
PoE output | Passive PoE up to 57V |
PoE input voltage | 12-57 V |
The number of DC inputs | 2 (DC Jack, PoE-IN) |
DC jack input voltage | 12-57 V |
Ethernet network
detail | |
10/100/1000 Ethernet port | Five |
fibre
detail | |
SFP port | 1 |
peripheral
detail | |
The number of USB ports | 1 |
USB power reset | be |
USB slot type | USB type A |
USB Current (A) | 1 |
