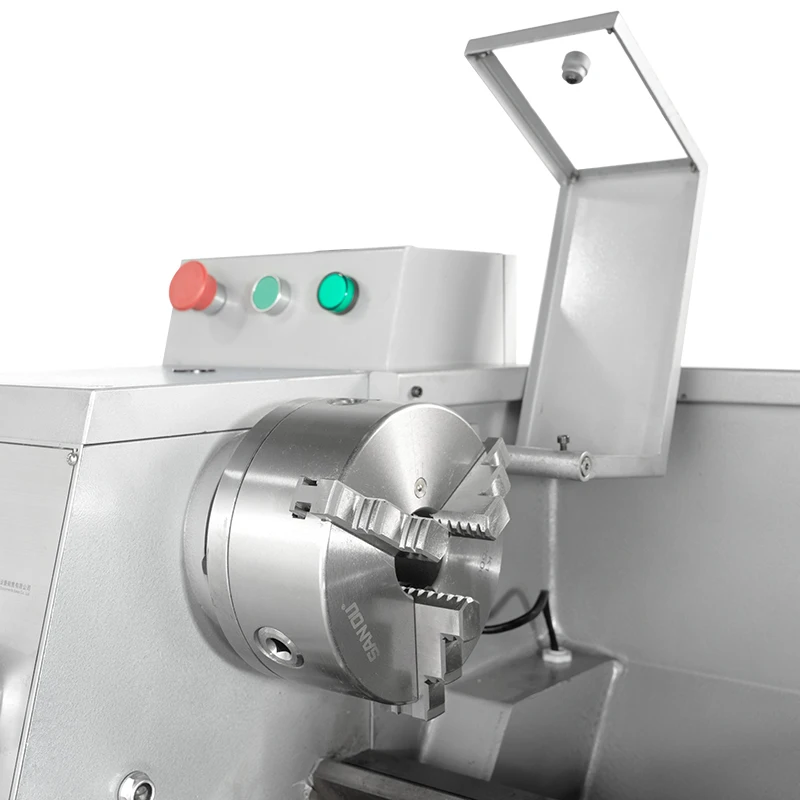

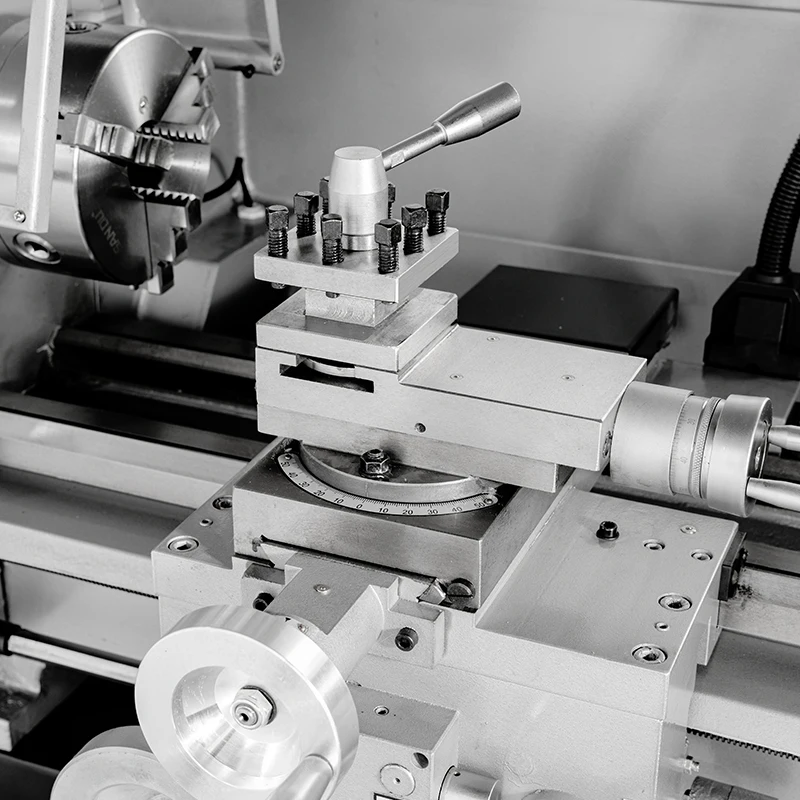

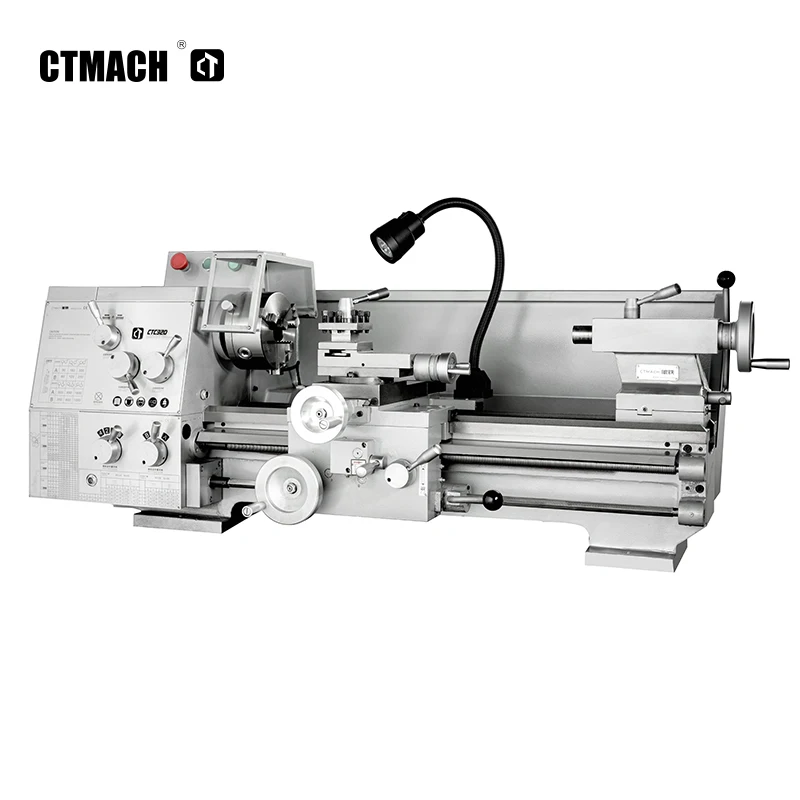

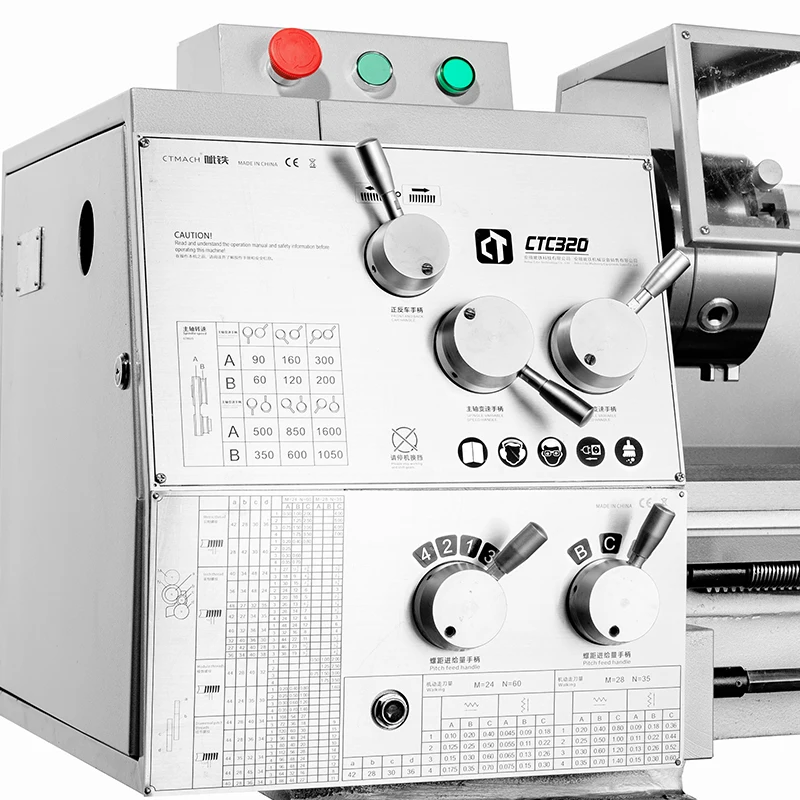

CTC320 precision metal lathe 320 mini hobby bench lathe metal working bench lathe
- Category: >>>
- Supplier: Anhui Sinsun Electronic Commerce Co. Ltd
Share on (1600587791155):
Product Overview
Description

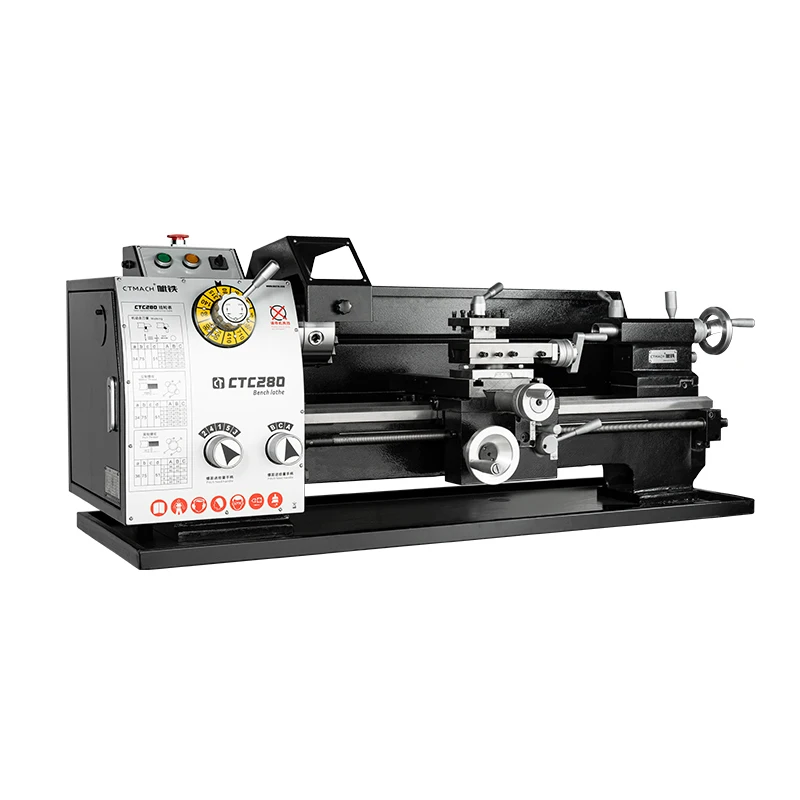

SIMILAR PRODUCTS
CJM320 bench lathe machine
Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Easy operating speed change levers.
Spindle speed range 90-800rpm.

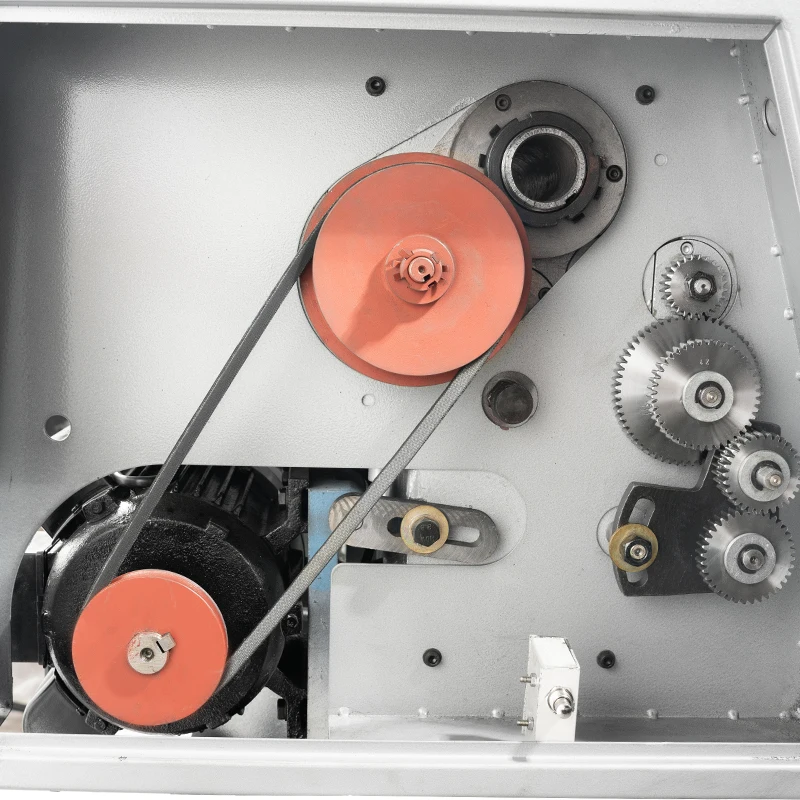

Easy operating gear box has various feeds and thread cutting function.
With or without cabinet according to requirement.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Easy operating speed change levers.
Spindle speed range 90-800rpm.
Easy operating gear box has various feeds and thread cutting function.
With or without cabinet according to requirement.
PRODUCT SPECIFICATIONS
Swing Over Bed | 320mm |
Swing Over Cross Slide | 600mm |
Distance Between Centers | 200mm |
Spindle Taper | MT5 |
Spindle Bore | 38mm |
Middle Carriage Travel | 160mm |
Small Carriage Travel | 100mm |
Metric Threads (Grade) | 0.20-7mm (22) |
Inch Threads (Grade） | 21/2-48 1/n" (45) |
Modulus Thread (Grade) | 0.20-3.5mm (21) |
Diameter Pitch Thread (Grade) | 8-120 1/n" |
Longitudinal Feed | 0.10-1.40mm/r |
Lateral Feeds | 0.045-0.60mm/r |

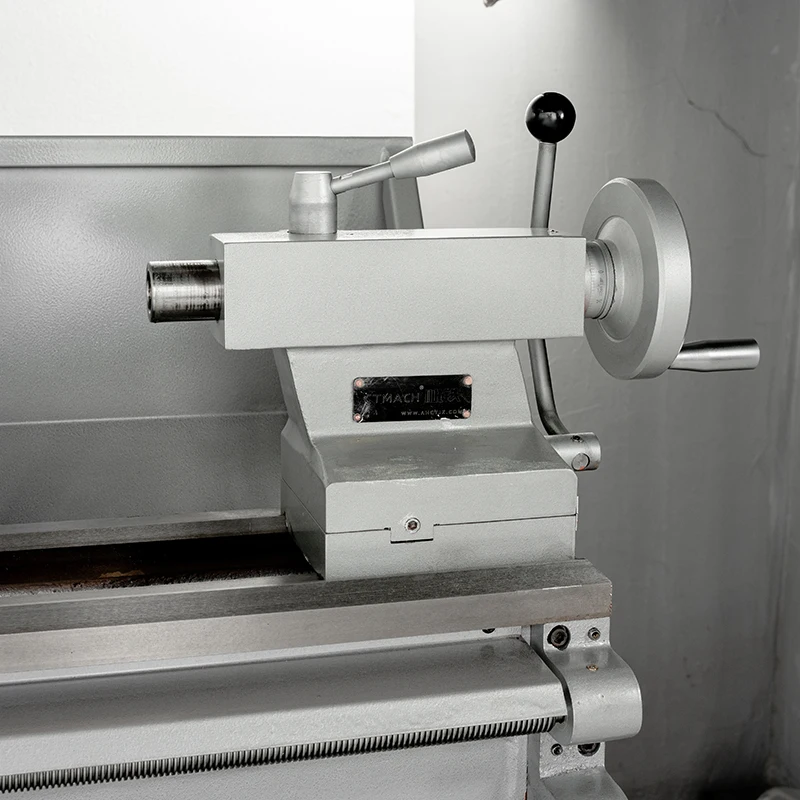

Tailstock Sleeve Travel | 80mm |
Tailstock Taper | MT3 |
Spindle Speeds | 60-1600r/min (12) |
Motor Power | 750w |
N.W. | 340kg |
Overall Dimensions | 1370*685*520mm |
FEATURES AT A GLANCE

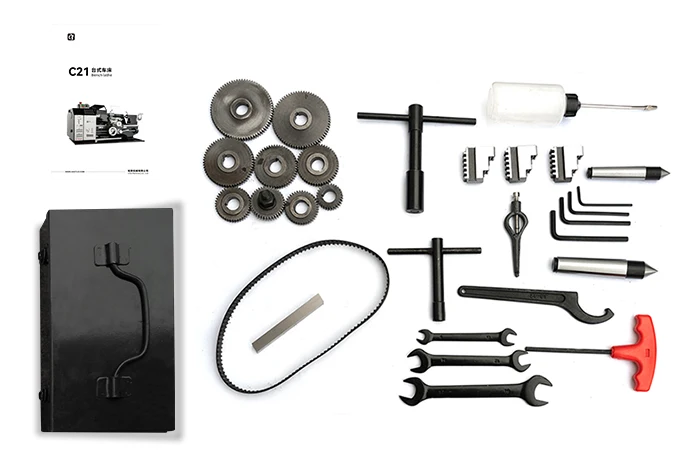

Product Acessories
SALES AND SERVICE NETWORK
Products are exported to more than 30 countries and regions in the world
EU CE standard, safe and reliable
ISO9001 quality system certification
EU CE standard, safe and reliable
ISO9001 quality system certification
Company Profile
FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
