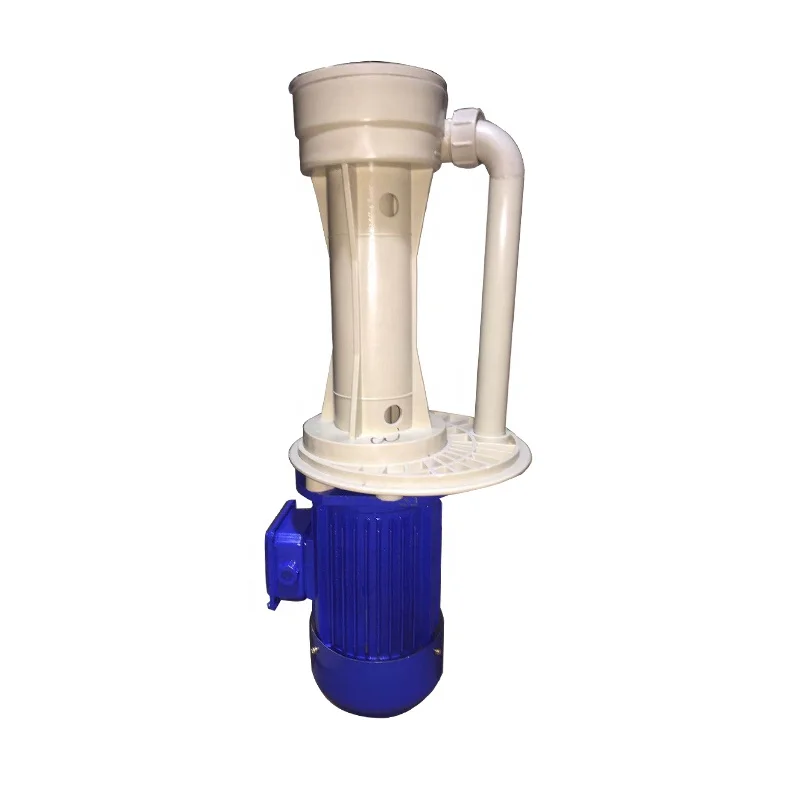

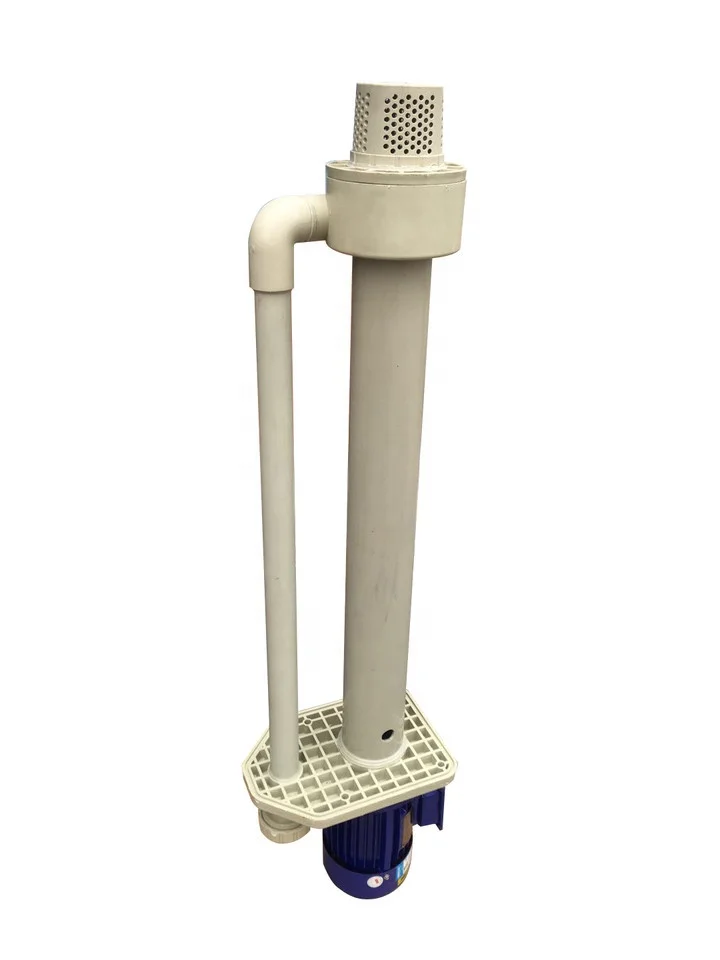

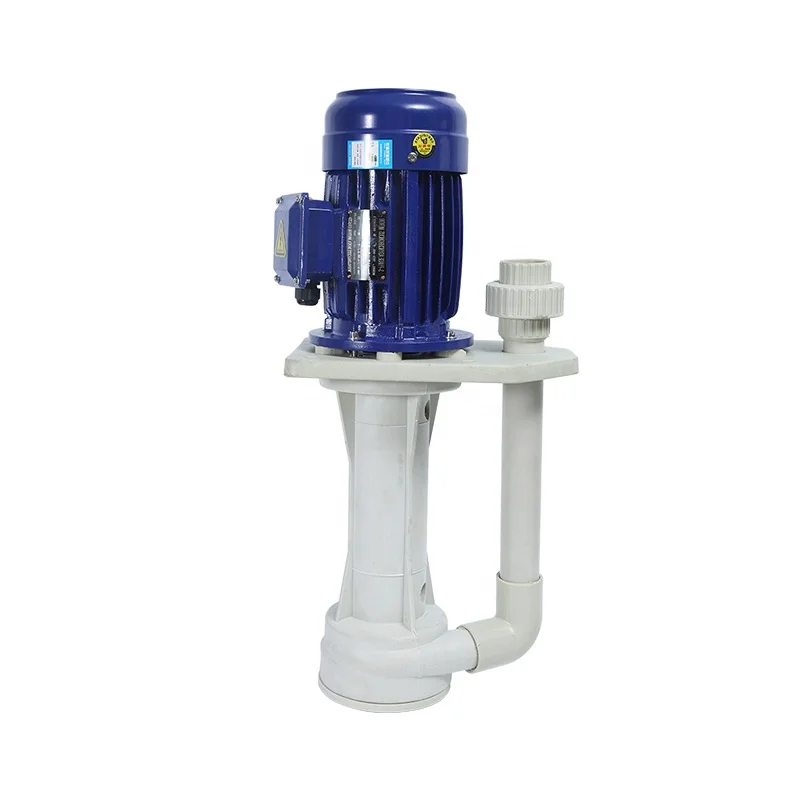

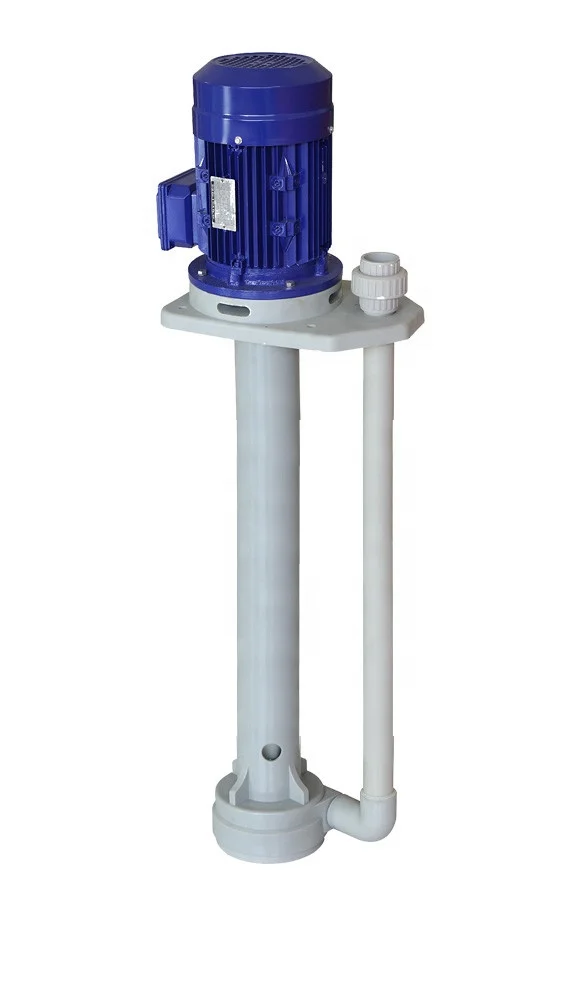

FRPP/ PVDF Material Plastic Acid and Alkali Resistant Centrifugal Chemical Vertical Pump

Product Overview

Description

FRPP High pressure vertical acid alkali pump

Size KD(HP)	Curve No	In X Out	Power				Lift	Flow	Weight
		Dia(m/m)	Phase	Grade		Motor	(M)	(L/min)	(KG)
1	O	50X40	3P		2	1	13	250	31
2	A	50X50	3P		2	2	14.5	320	38
3	B	50X50	3P		2	3	21	380	46
5	C	65X65	3P		2	5	26	550	61
7.5	D	75X75	3P		2	7.5	29.5	750	92
10	E	75X75	3P		2	10	29	825	110.5

feature:

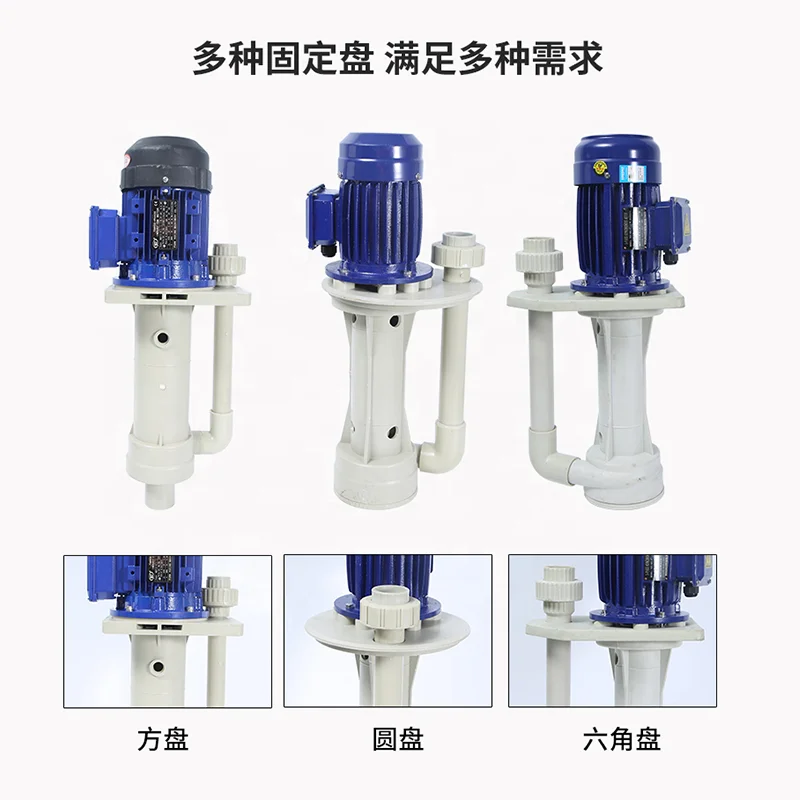

1, the front flanges have active and integrated forming for the customers to choose. The movable flange is convenient to replace the different caliber; the integral forming flange front cover is strong and durable and never leaks.

2, a dry shaft seal design, can protect the motor to prevent acid gas entry, damage motor, prolong the life of the motor.

3. It can be rotten for a long time and will not damage the pump. The crystal powder can be used and the temperature is 80.

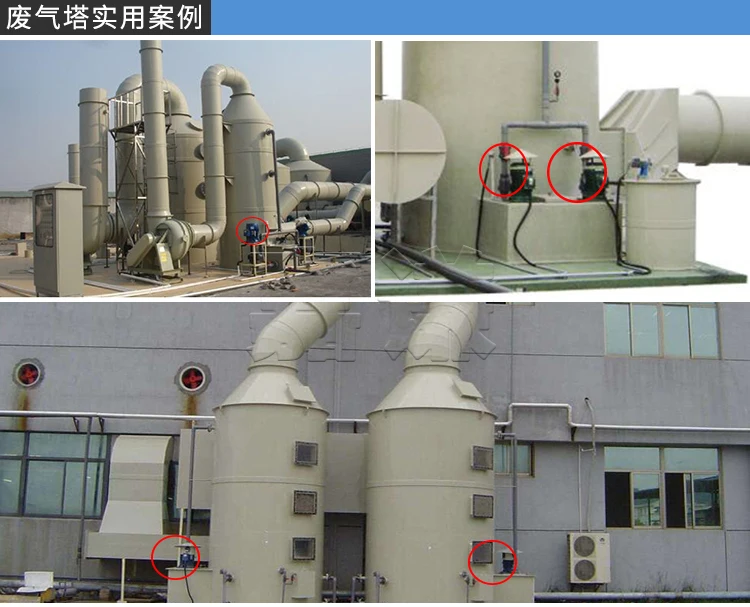

4. It is suitable for various acid and alkali liquid transportation, circulating washing tower, etching machine spray washing, wastewater treatment and electric painting.

5, FRPP, PVDF engineering plastic material ejection processing molding.

6, FRPP is used as a general acid base solution, and PVDF is used as a strong acid and alkali solution.

application:

1,  Chemical liquid circulation or transportation process, electroplating industry, chemical industry, leather, dyeing and finishing wastewater treatment.

2,  according to the chemical liquid pH value, concentration, temperature and so on, choose different material pumping

3,our company pumps can be used anywhere in the world power supply, customers only need to provide motor voltage and frequency can be.
