High speed water waved corrugated zinc sheet making production line bending machine
Metal roof tile rolling forming machine is designed to make metal tiles in batch fully automatic for enhancing production rate.
As to the roof tiles are to keep out rain. And traditional made from locally available materials such as slate and terracotta.
And modern materials such as concrete, plastic and Metals.
Metal Tile is very special and consist of a high percentage of recycled material and is 100% recyclable.
And the Metal Roof Tile is also lightweight, can be installed on top of an existing roof. it’s very useful for a large and old structures( such as wooden structure).
It is interlocked, so it provides increased wind resistance when compared with other roof materials.
BELI® have developed almost 50 types of metal roof tile roll forming machine for different requirements.
This high speed automatic round wave corrugating roll former machine is manfactured for USA customer, the speed can reach 50 m/min.
One set such production line include hydraulic decoiler, main roll former, conveyor, auto stacker.
After production line start work, no need workers, it can totally working automatically and controlled by PLC system.

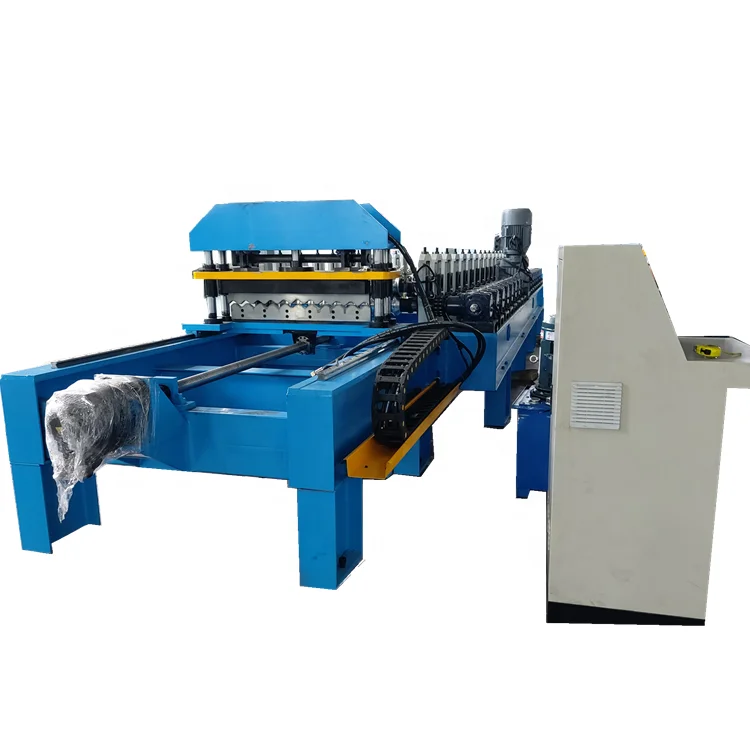

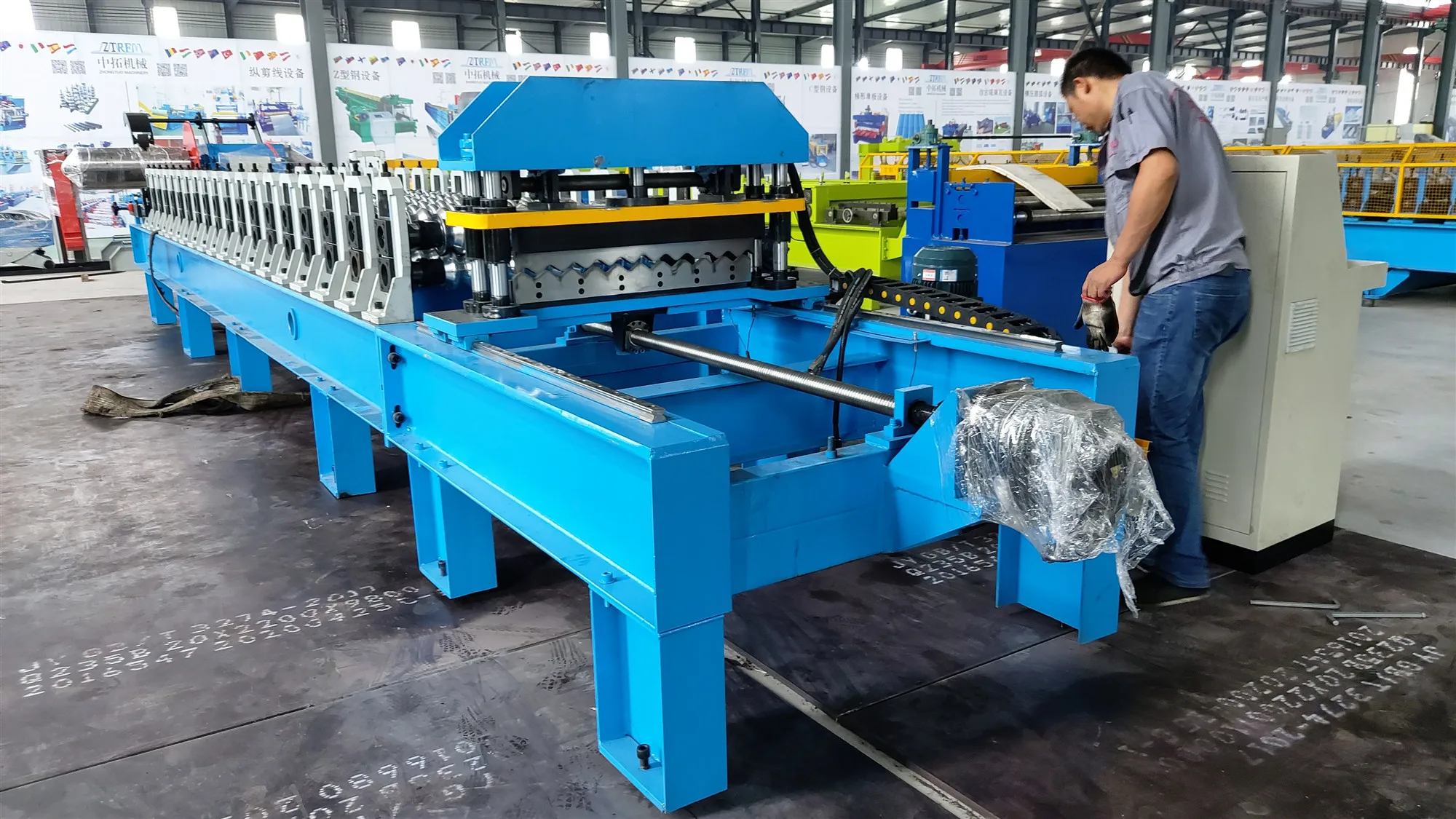

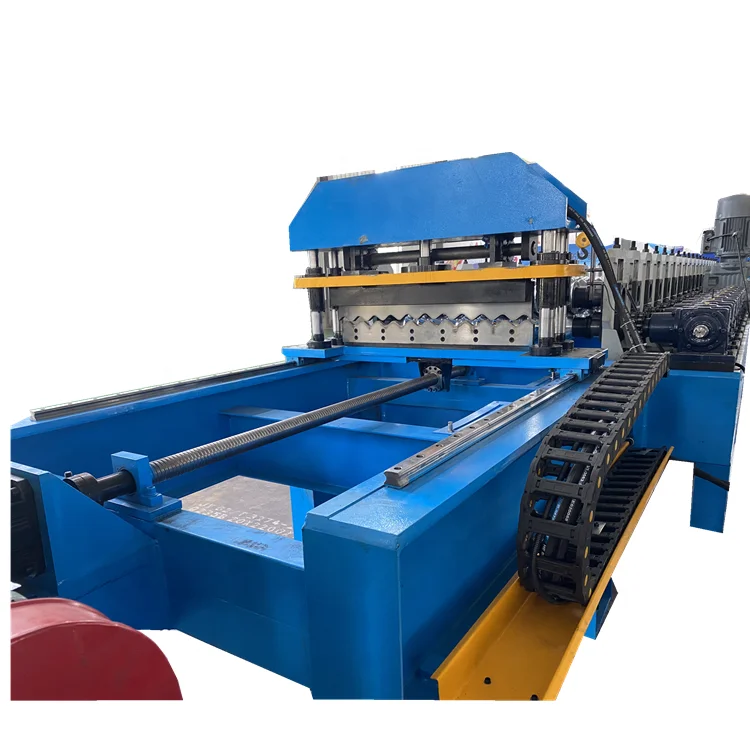

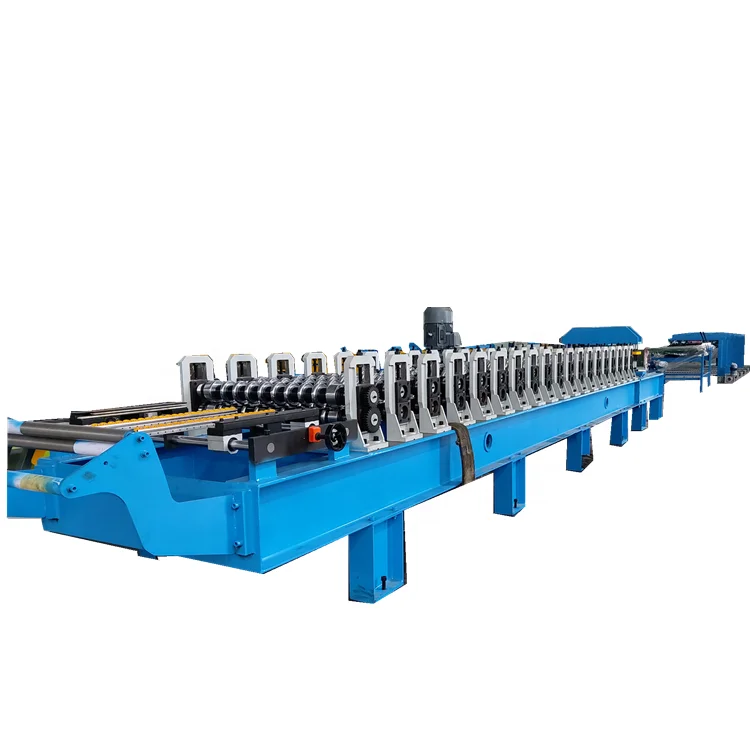

Here is the whole look of this round wave sheet aluminium corrugating roll former machine for your reference:
Product Description
The standard water waved sheet profile drawing:
The normal width coil width is 914, 1000, 1200, 1250 mm, thickness about 0.3-0.8 mm
ZHONGTUO high speed round wave aluminium corrugating roll former machine feature:
- High working effciency, save labor costs, high autumatically level.

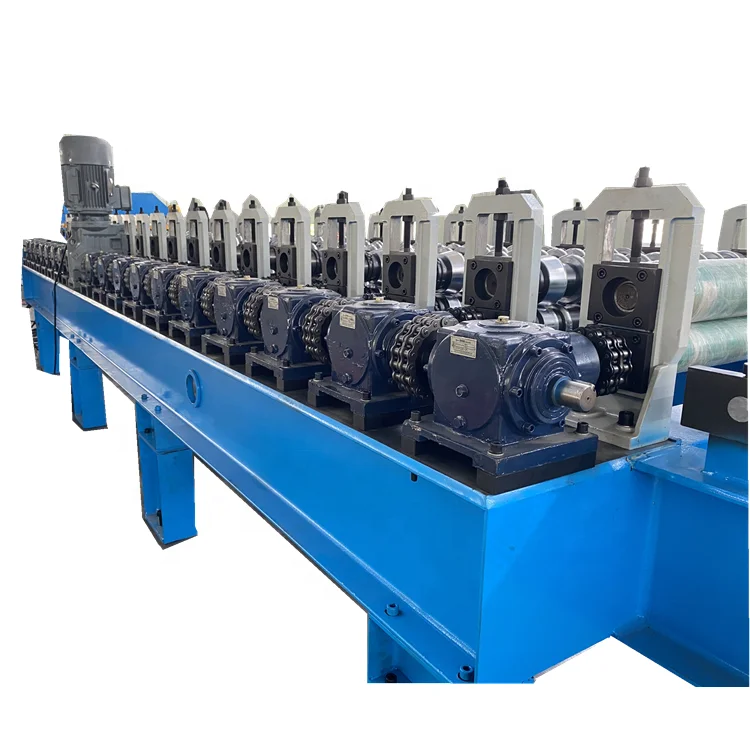

- Use gear box transmission transmission, ensure the machine can stable running in a high speed.

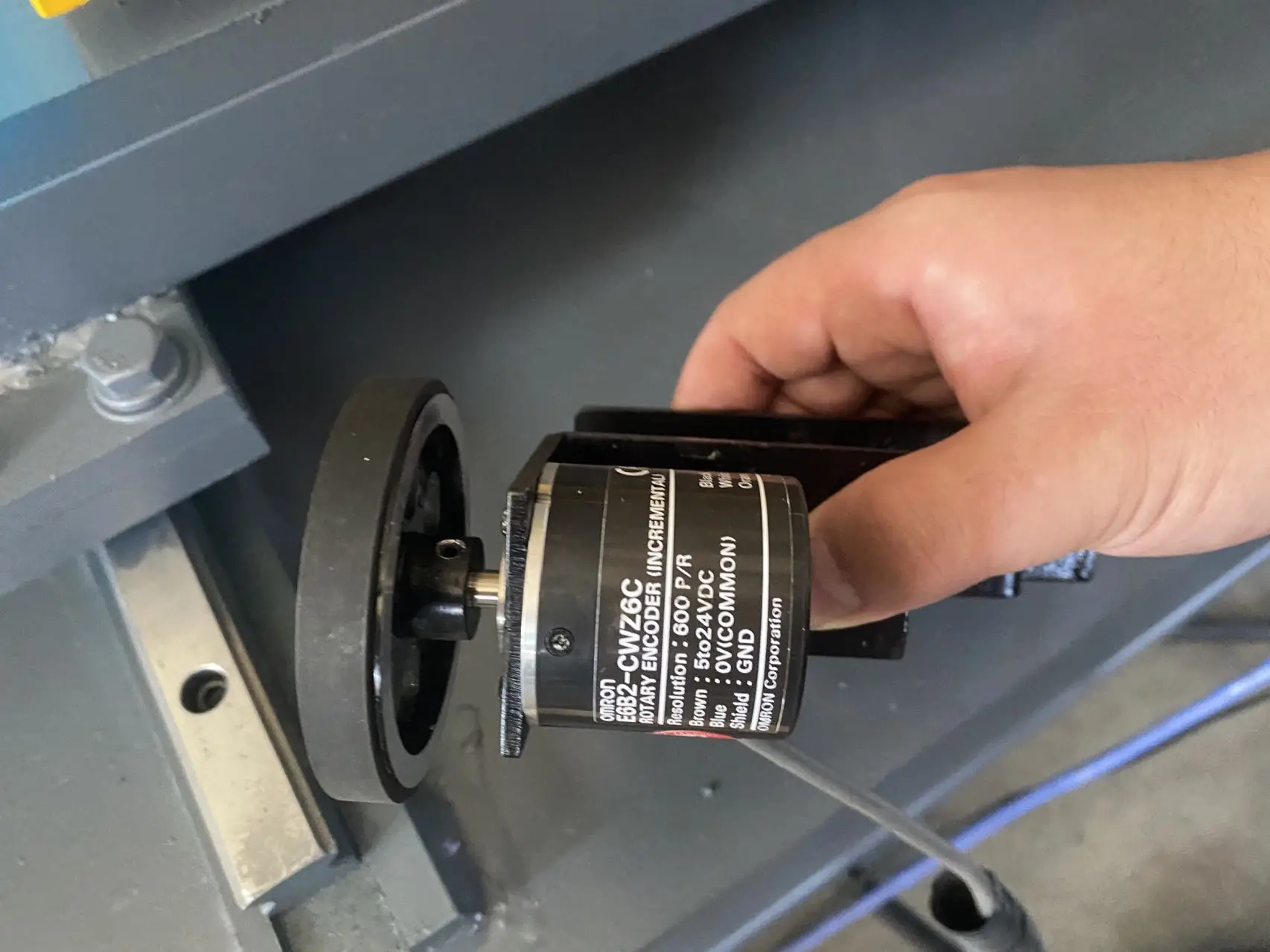

- Servo motor tracking cutting to support high speed cutting water waved sheet
- Famous brand for all electric parts to ensure the low broken rate. If broken, you can easy find new in your local market.
- Large hydraulic oil pump station provide enough power to cutting device.
- Hydraulic decoiler, auto conveyor and stacker will cooperate with main roll former to ensure machine speed higher.

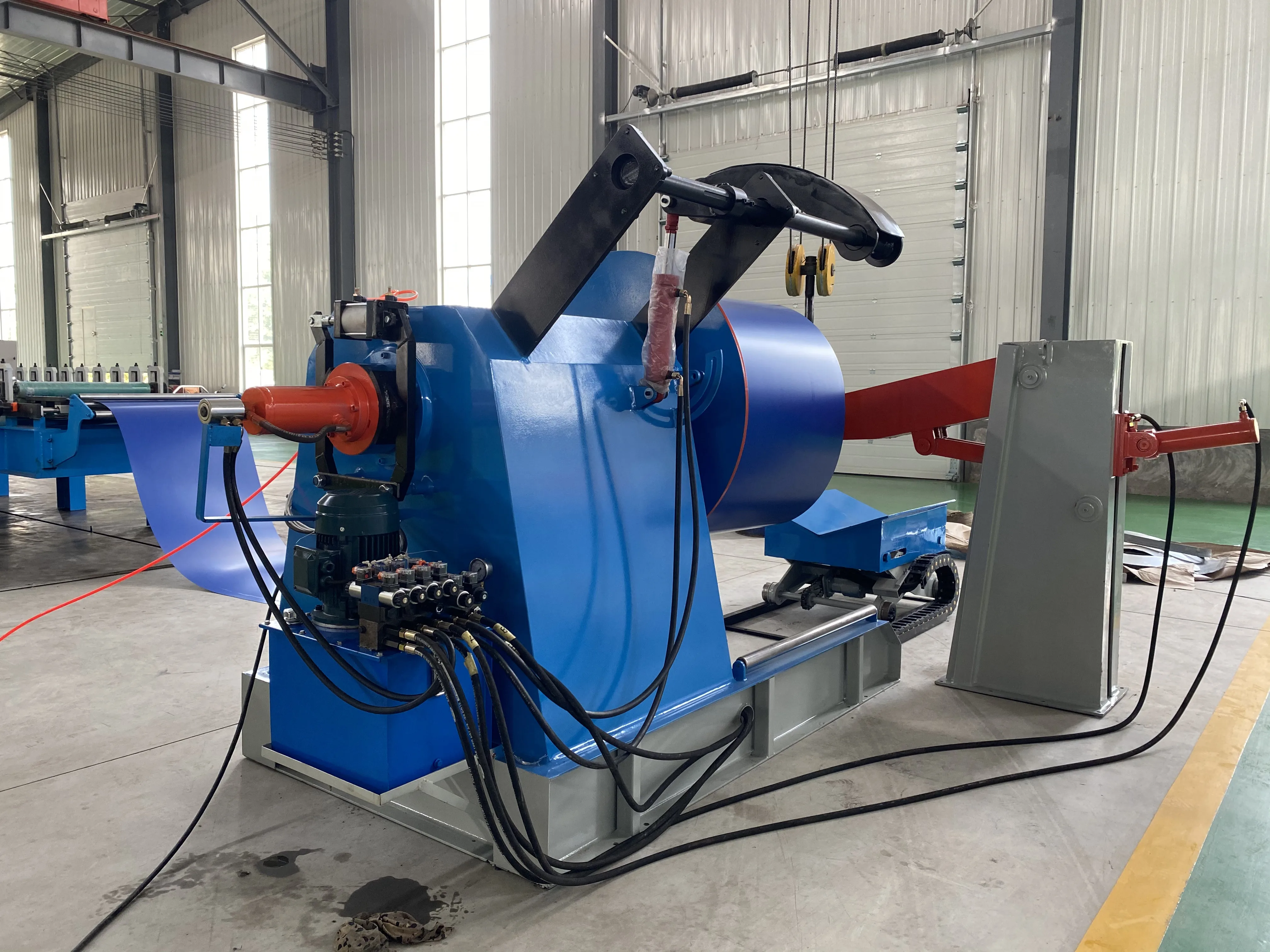

Hydraulic decoiler:
1. Hydraulic expansion, Electric Uncoiling
2. Coil I.D: 480-560 mm
3. Coil O.D: 1200 mm
4. Uncoiling Motor Power: 5.5KW
5. Hydraulic Motor Power: 3 KW
6. Load Capacity: 5 Ton( 10 Ton as an option)
7. Uncoiling Speed: 20m/min, but synchronous with the main roll forming machine

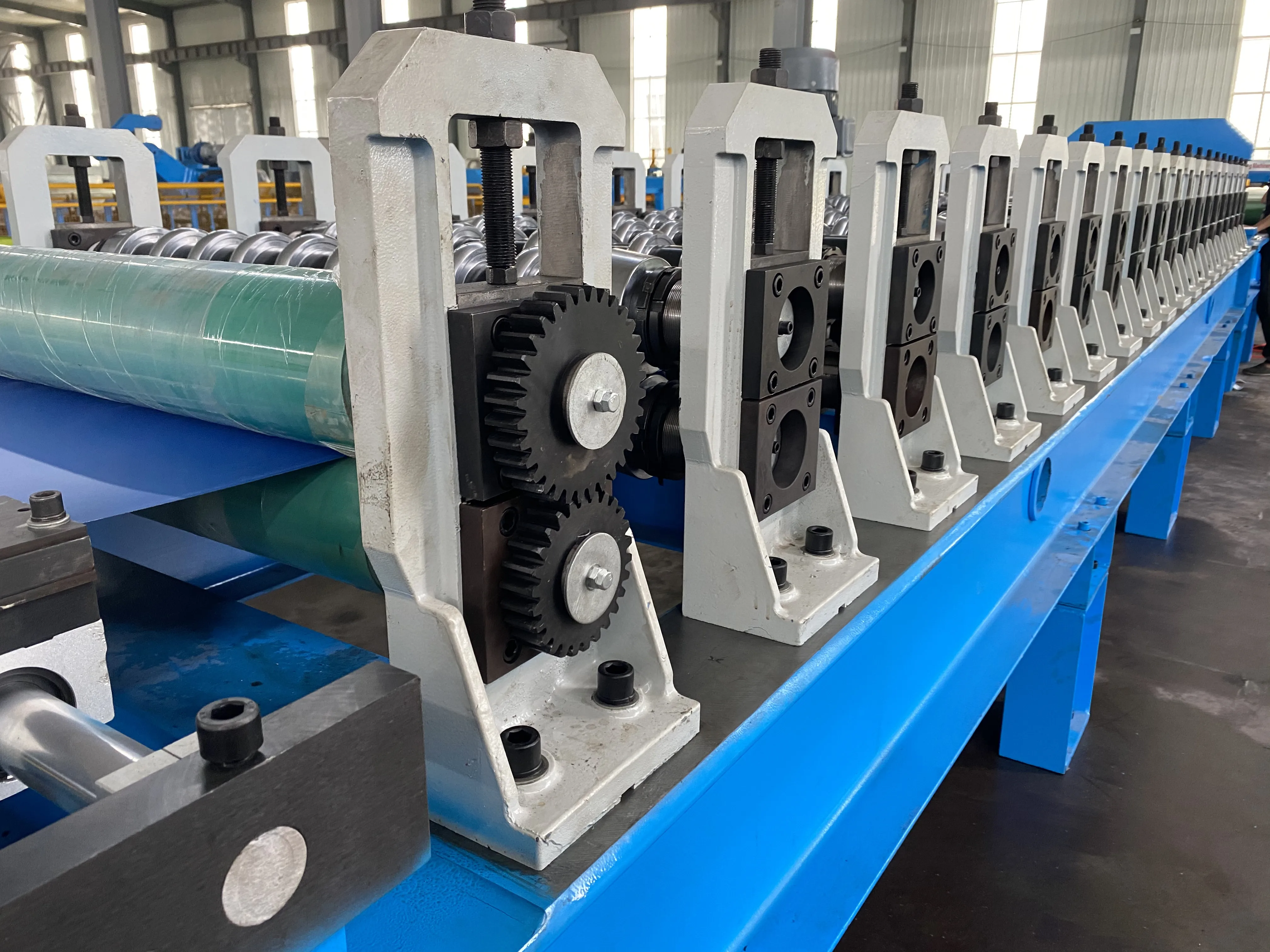

Roll Forming Machine
1. Material Thickness: 0.3-0.8 mm
2. Forming Steps: 18 forming steps
3. Driven Motor Power: 15 KW
4. Line speed: 40-50 m/min
5. Rolls Material: ASTM 1045, hardness treatment and chromed
6. Shaft Material: ASTM 1045, 80 mm O.D

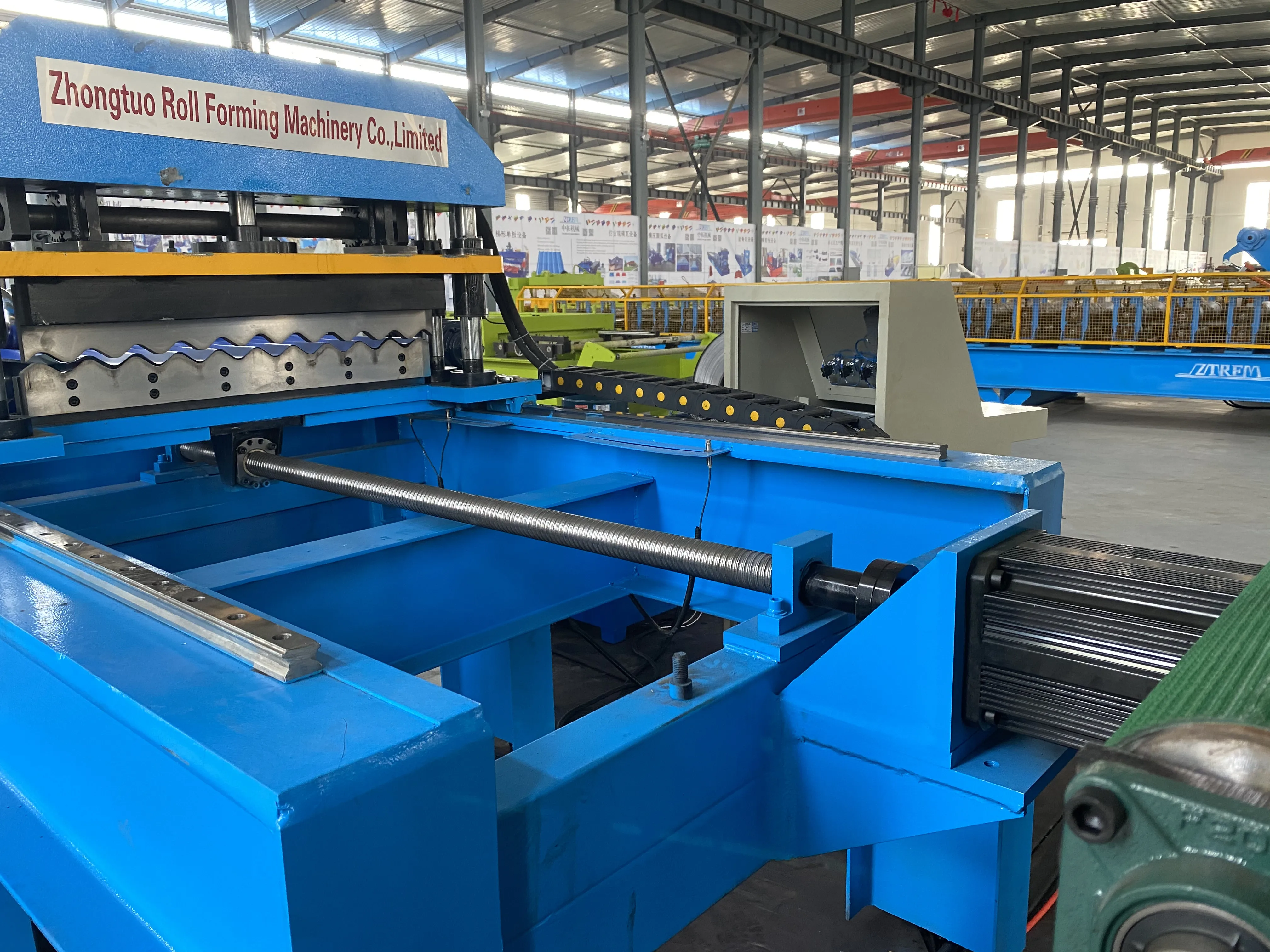

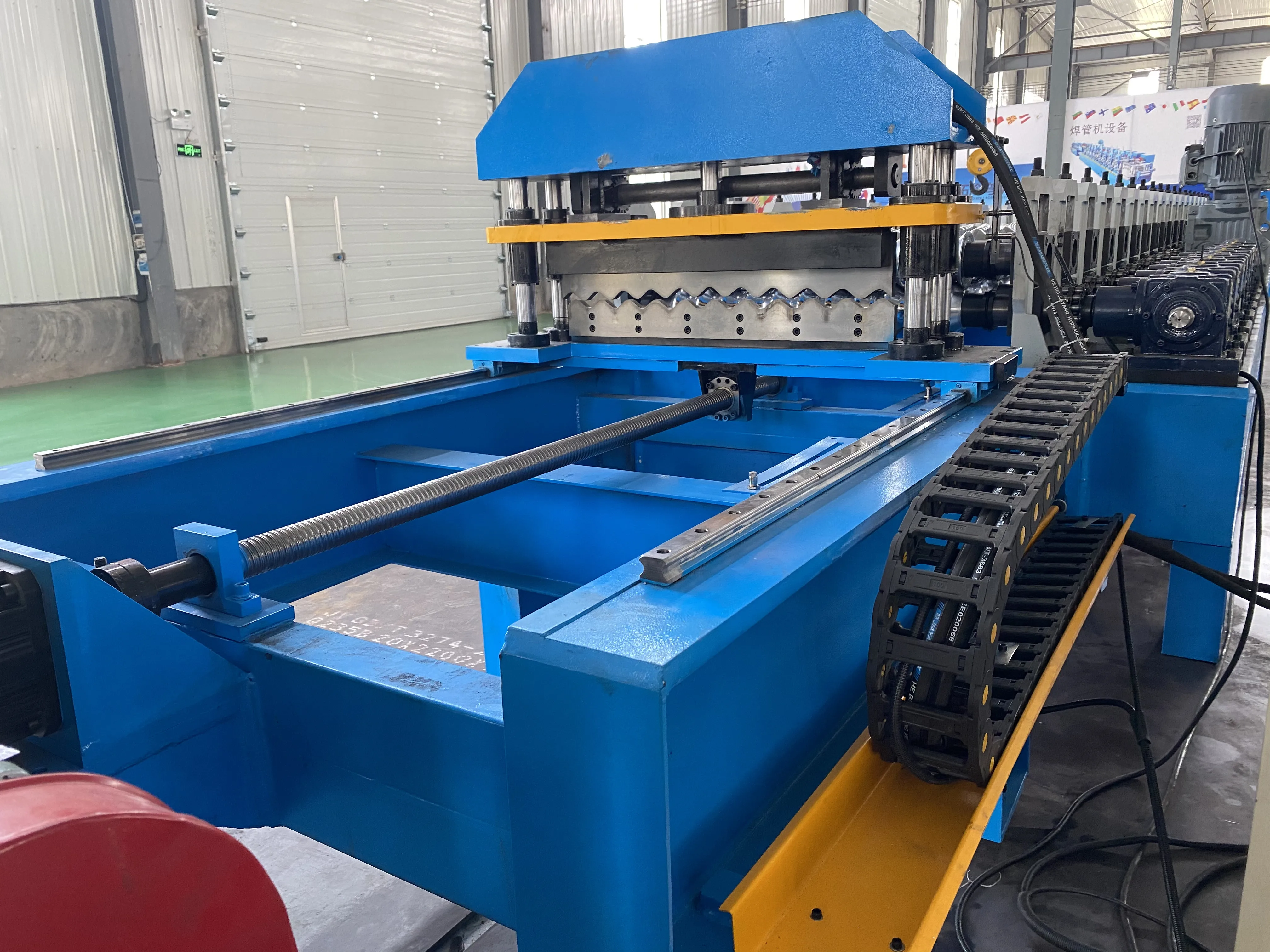

THydraulic cutting device
1. Cutter material: Cr12
2. Hydraulic power: 5.5 KW
3. Cutting type: servo motor tracking cutting
Company Information
Packaging & Shipping
Certifications
After sales service

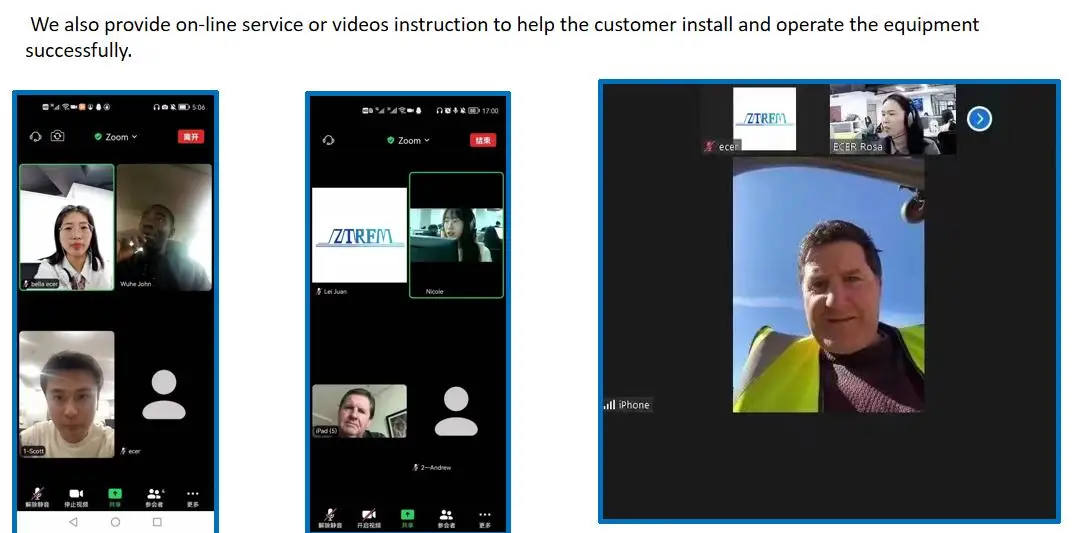

we can provide oversea installation service if you need, enineer can help you install the machine and train your staff to operate and maintain the equipment.
While the buyer shall take charge of the fees including engineer’s salary (100USD/ day each person), VISA fees, Round air tickets and lodging expenses.
These are photos of our engineers at the factories of customers in various countries for commissioning.
Including India, Georgia, France, Philippines, India, Pakistan and South Korea, etc.
Customer reviews

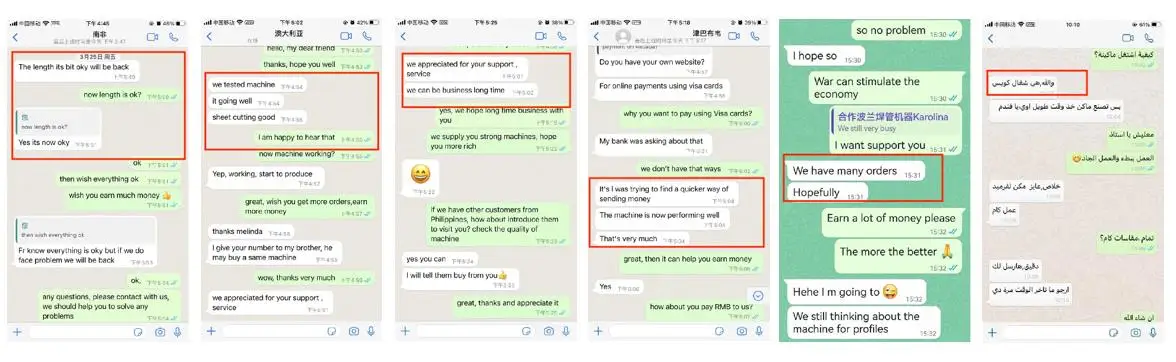

Here are some reviews about our high speed water waved sheet zinc corrugated machine
