50hz three phase 250kw diesel generator with cummins engine NTA855 G1A

Product Overview

Description

Diesel generator Details
Model	JHK-250GF
Power	250KW
Frequency	50HZ
Voltage	380/220v(voltage can be customized)

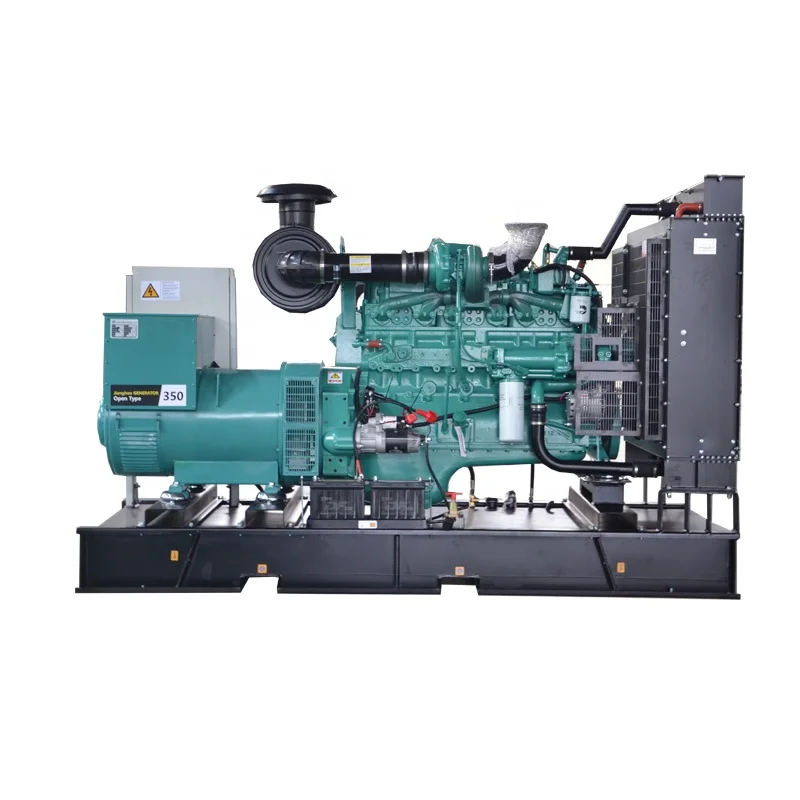

Size of open type	3100*1000*1700mm

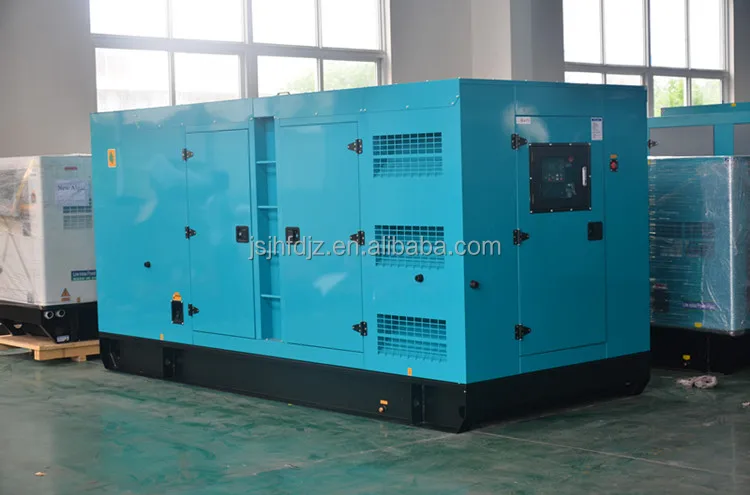

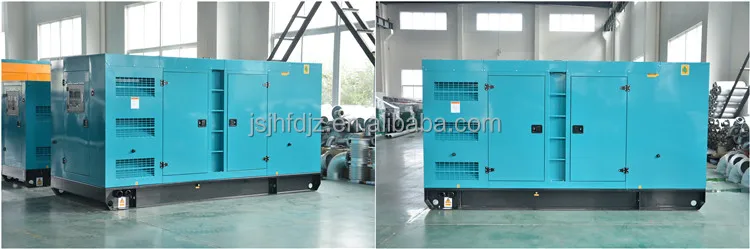

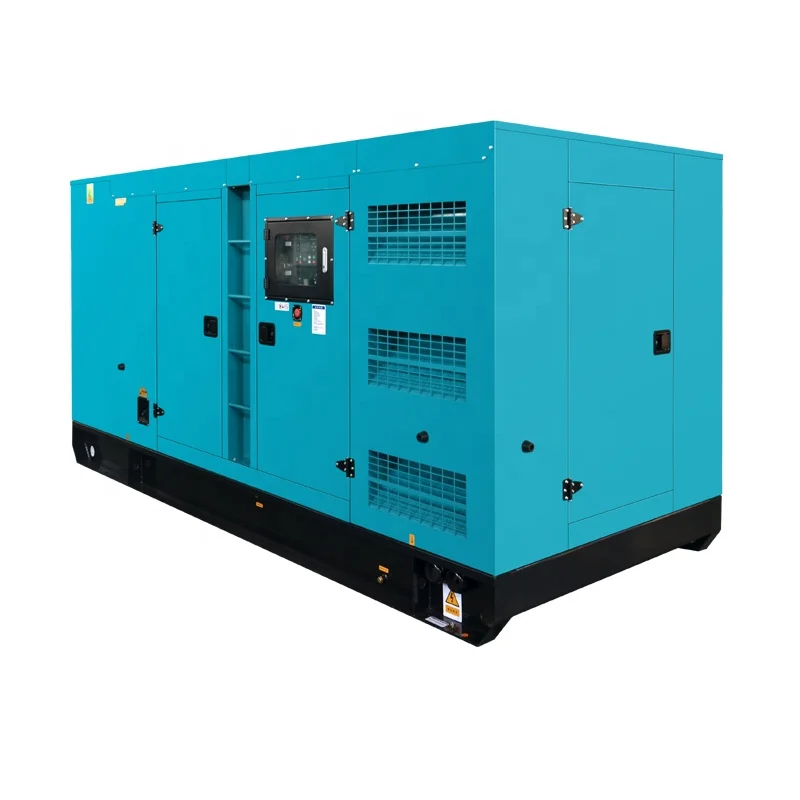

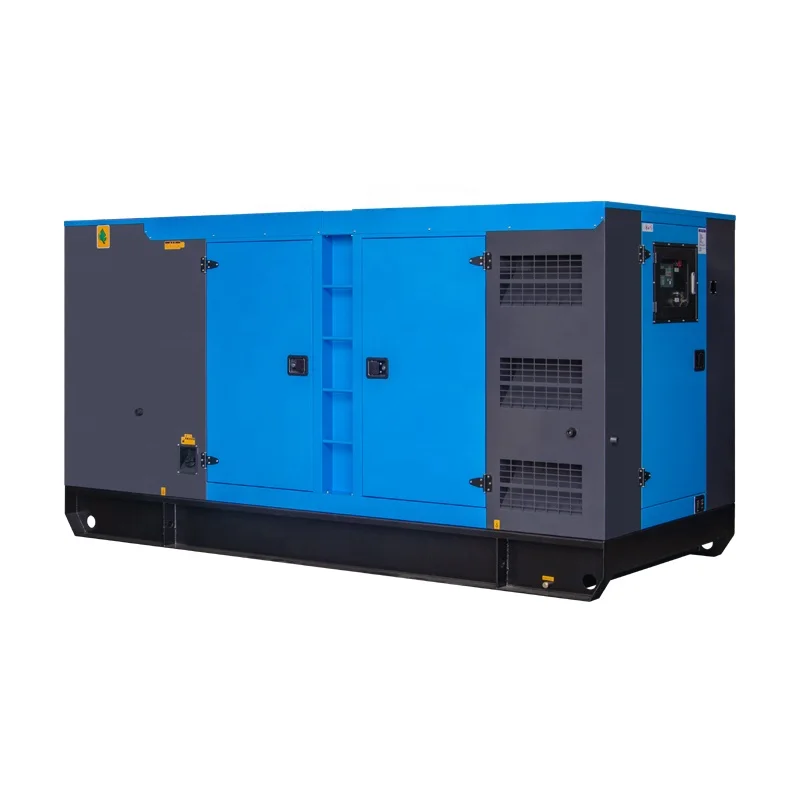

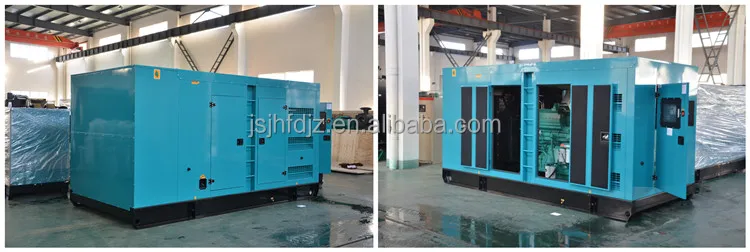

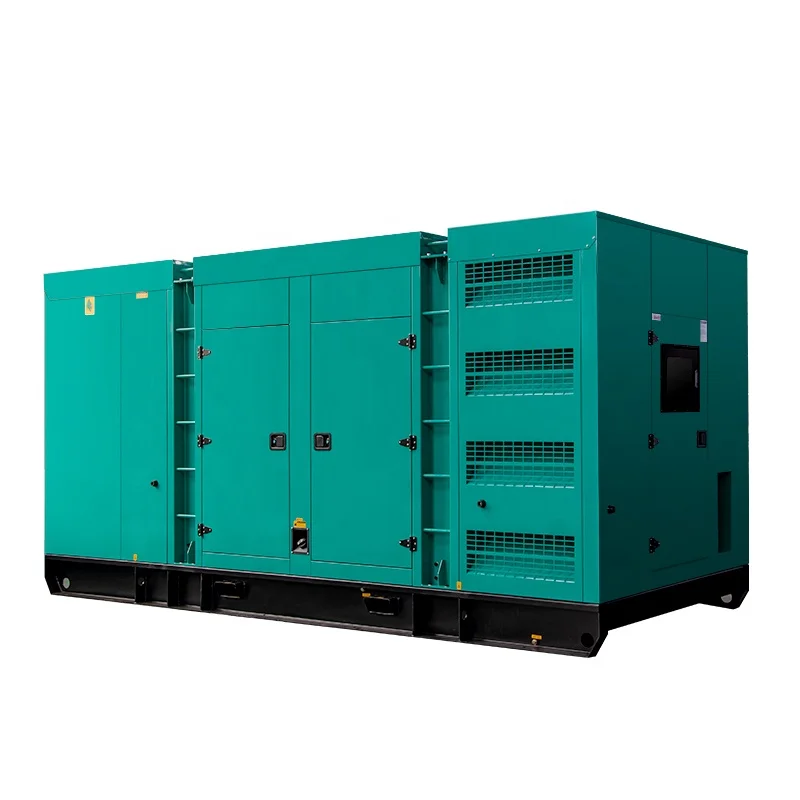

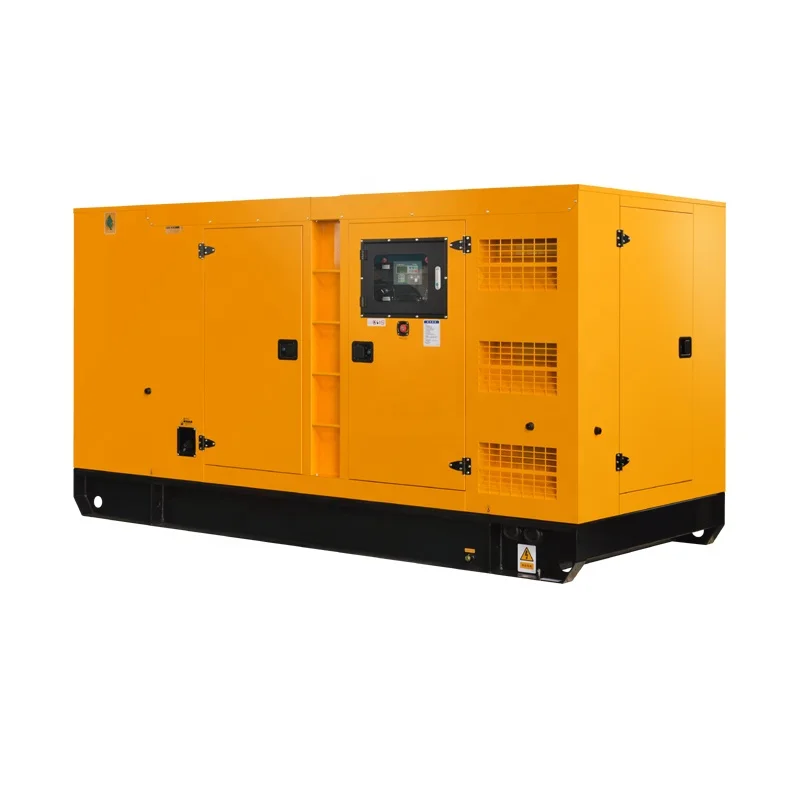

Size of Silent type	4000*1700*2000mm

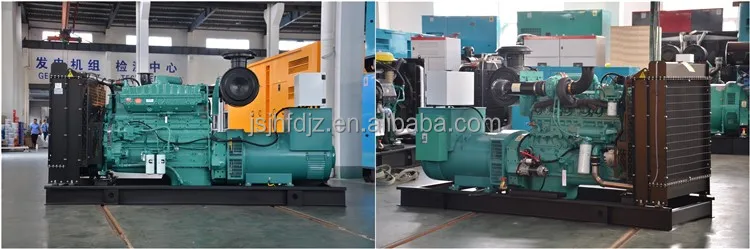

With Diesel Engine
Brand&model	Cummins NTA855-G1A
Pirme Power	264KW@50hz
Standby Power	291KW@50hz
Cylinders	6 in L arrangement
Bore*Stroke	140*152mm
Displacement	14L
Fuel Consumption at 100% Load	177g/kw.h
Speed Governor	Electronic
With Alternator
Optional Brands	Stamford/Leroy Somer/Hengsheng
Exciter type	Single bearing,brushless,Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Insulation Grade	H
Protection Grade	IP23
With Controller
Optional Brands	Smartgen/Deepsea/ComAp

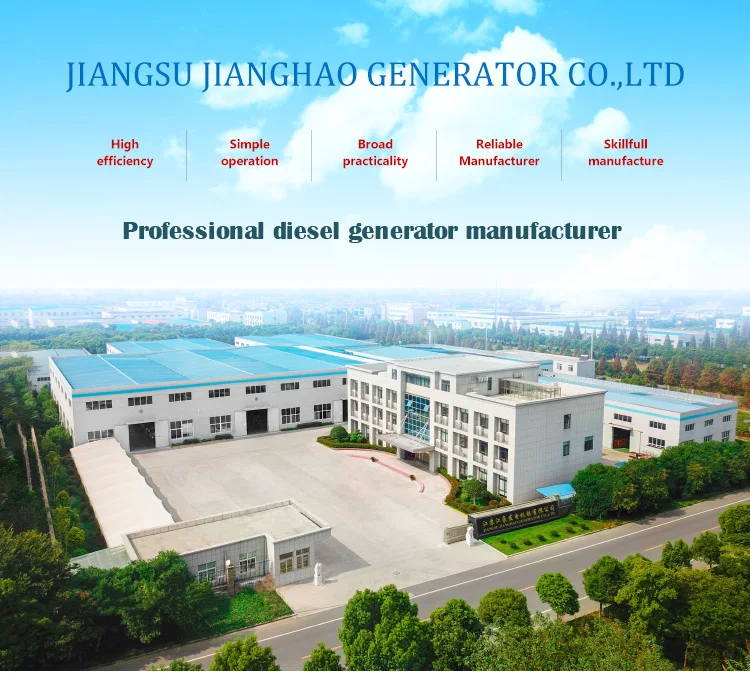

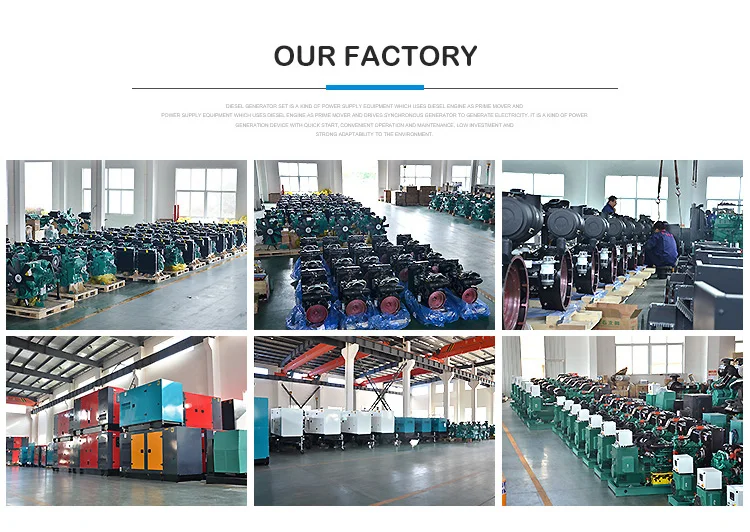

Jiangsu Jianghao generator Co.,Ltd, located in Taizhou city,Jiangsu Province,which is near Shanghai port.We have modern assembly workshop to produce diesel generator sets.Jianghao devote itself into researing,maufac-

ruing and installing superb diesel generator sets ,power range from 2kva to 4000kva,include silent type,mobile    type,container type,mobile power station,multiple parallel,remote control and so on.As the ideal emergency standby power equipment,diesel generator sets are widely used in industrial and mining enterprises,

communication,army,ports,highway,railway,hotels etc places. With the compelling quality and service,Jianghao has built a good reputation with customers in the area of diesel generator sets,our products are exported to over eighty countries and regions,over 70 millions USD in the year 2019.
