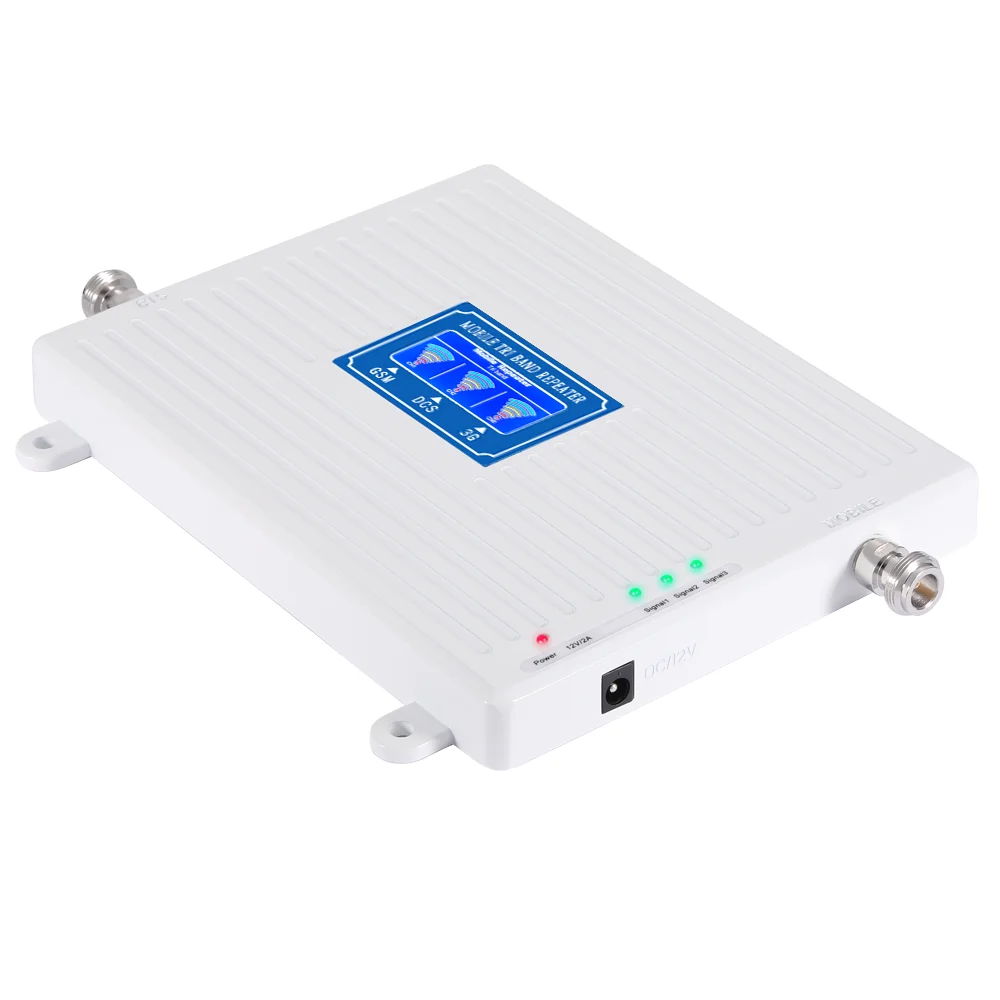

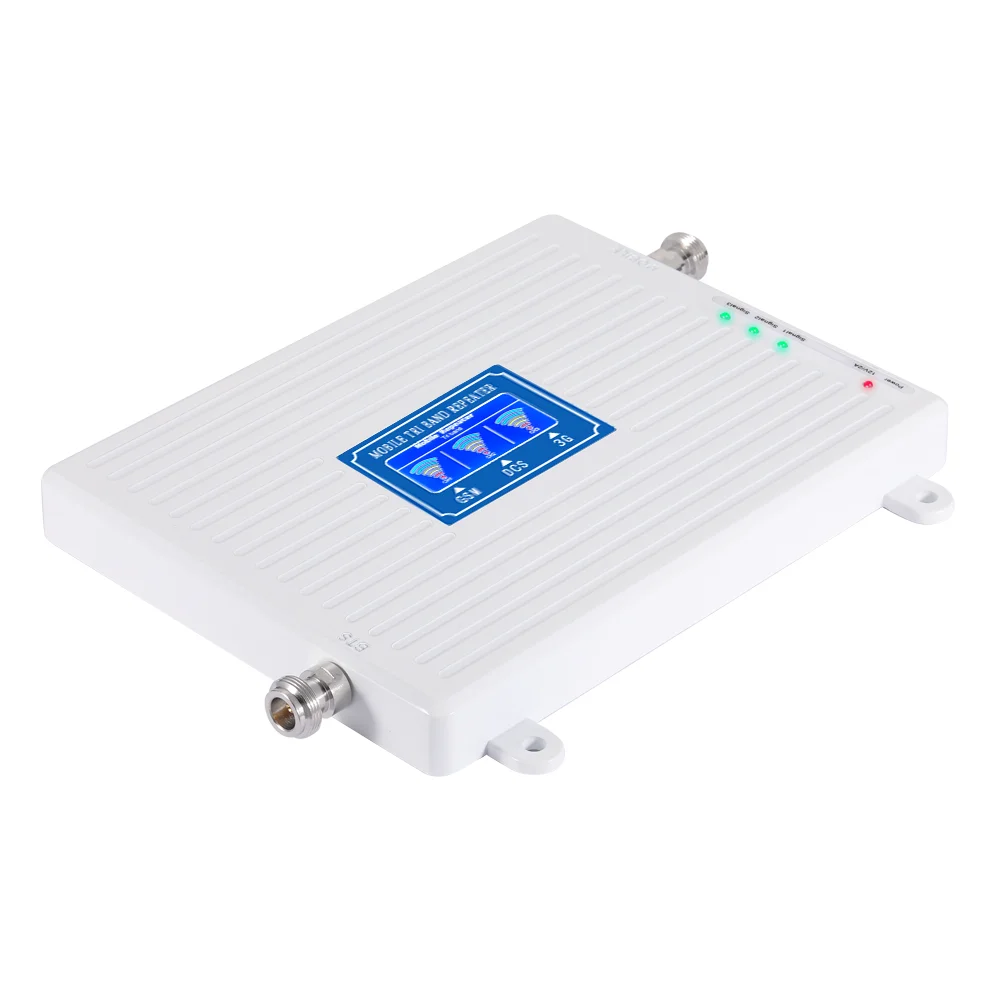

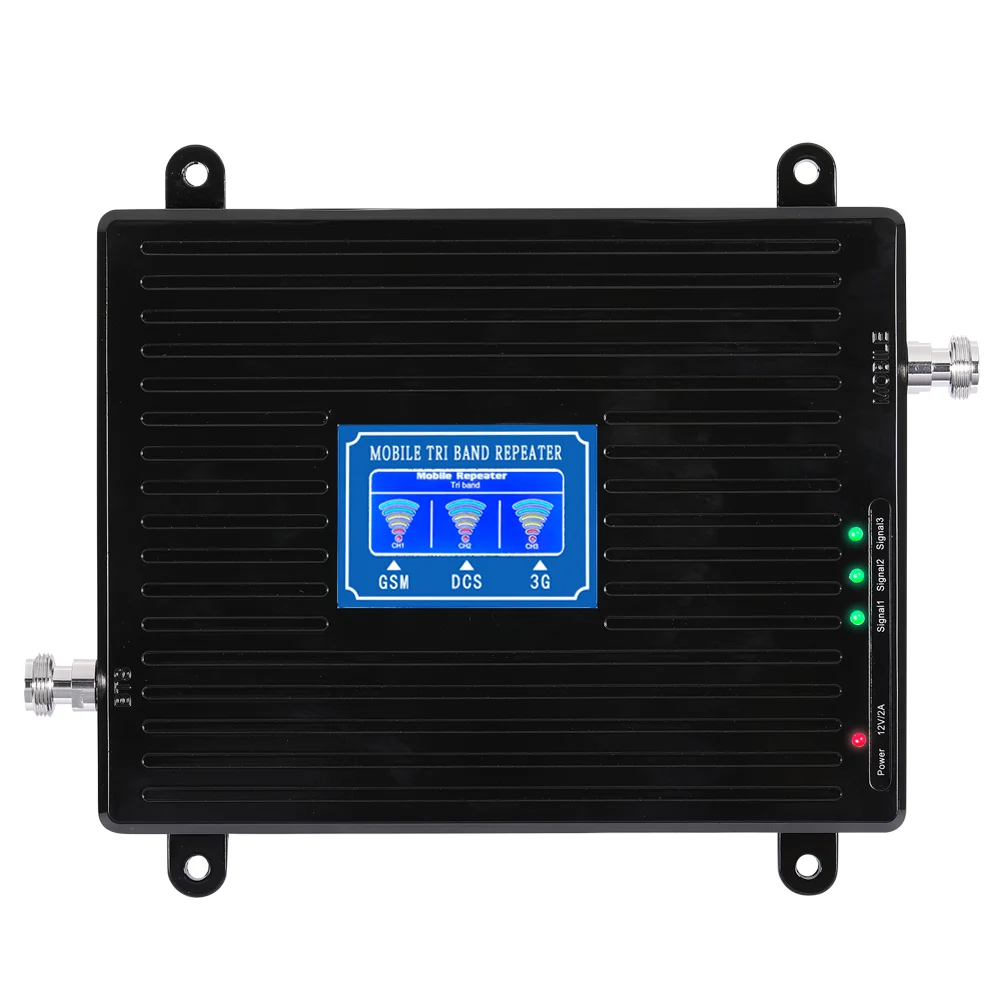

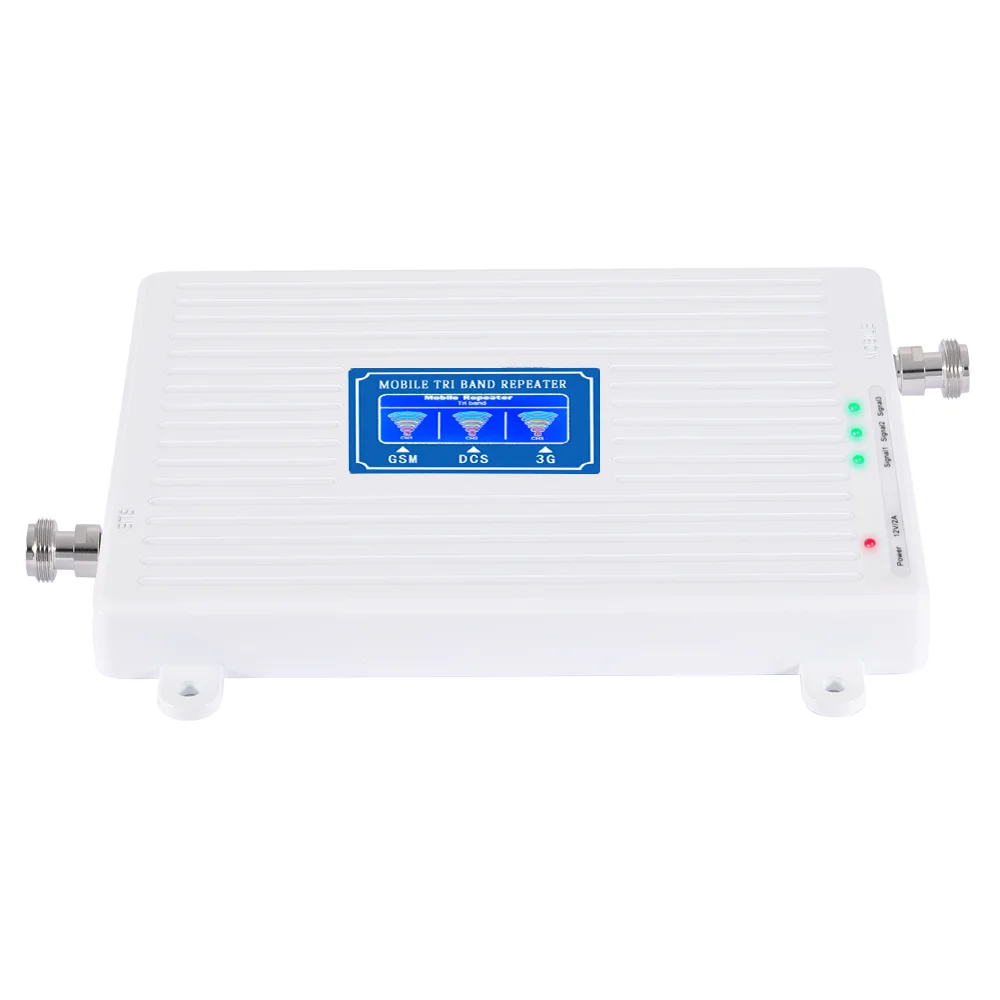

High quality GDW 2g 3g 4G mobile network booster 900 / 1800 / 2100 MHz Tri band mobile signal repeater/GSM signal booster
- Category: >>>
- Supplier: Shenzhen Jiangxin Communication Technology Co. Ltd.
Share on (1600588402800):
Product Overview
Description
Products Description
Product Paramenters
Technique Specification | ||||||
Model No | SS91-GDW | |||||
Parameter data | Uplink | Downlink | ||||
Frequency Range | GSM | 890~915 MHz | 935~960 MHz | |||
DCS | 1710~1785 MHz | 1805~1880 MHz | ||||
WCDMA | 1920~1980 MHz | 2110~2170 MHz | ||||
Output Power | 20 ±2dBm | 20 ±2dBm | ||||
Gain | 65±2 dB | 70±2dB | ||||
Ripple in Band | ≤3dB | |||||
Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | ||||
1GHz~12.75GHz | ≤ -30 dBm | |||||
Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | ||||
1GHz~12.75GHz | ≤ -30 dBm | |||||
Noise Figure | ≤ 6 dB | |||||
VSWR | ≤2 | |||||
Power Supply | AC:100~240V, 50/ 60Hz;DC:12V 2A | |||||
Power Comsumption | <24W | |||||
Impedance | 50 ohm | |||||
Mechanical Specification | ||||||
RF Connector | N-Female | |||||
Dimensions (D x W xH ) | 235*182*21(mm) | |||||
Weight | ≤ 1.2Kg | |||||
Operating Temperature | -10℃ ~ 55℃ | |||||
Product Usage

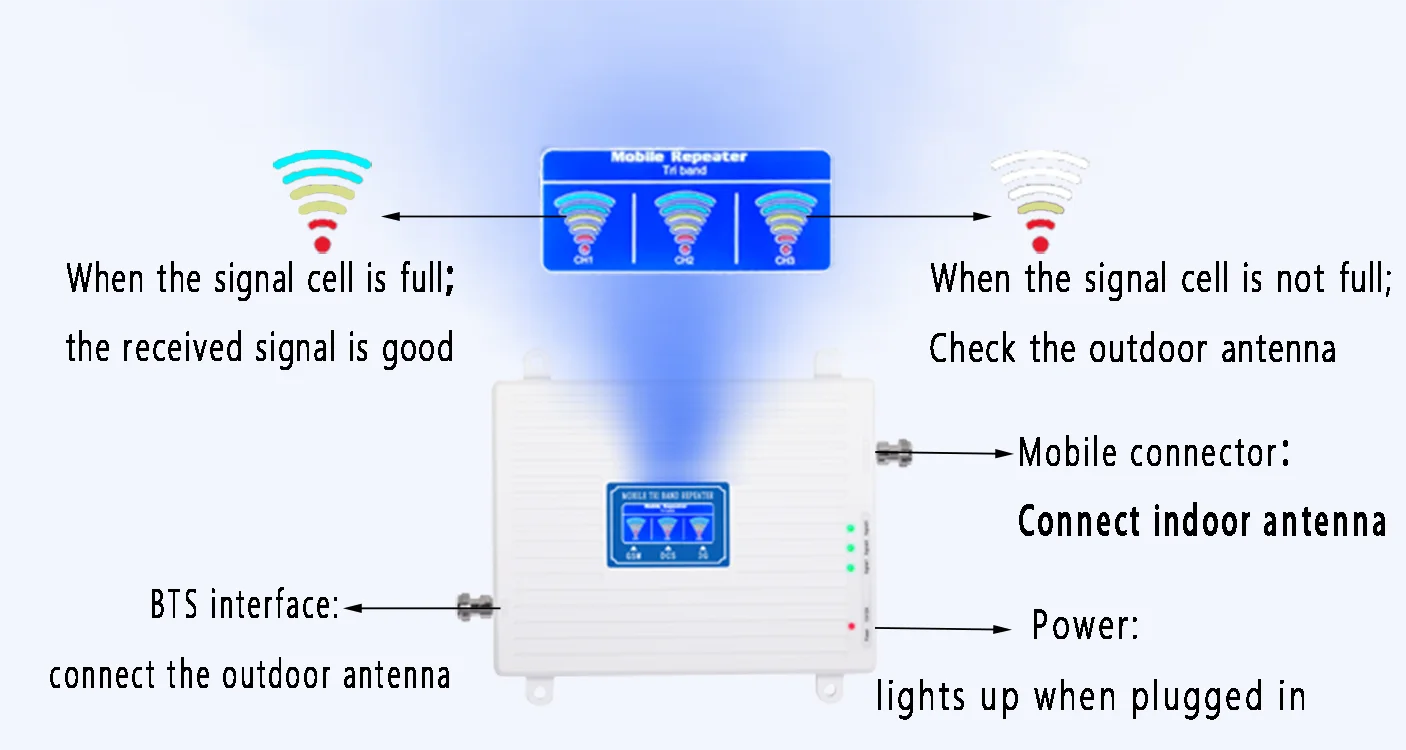

Install the outdoor antenna in an open and signaled position, aiming at the direction of the base station.
Step2：
Use the outdoor antenna cable to connect the outdoor antenna to the BTS (outdoor) port of the host.
Step3：
Install the indoor antenna within the range of signals to be covered and connect it with the MS (Interior) port of the host.
Step4：
Plug in the power adapter and the host can work normally. (adjust the direction, position and height of the outdoor antenna to make the signal grid on the LCD screen display in the best state)
Attention!
Related Products
Packing&Shipping

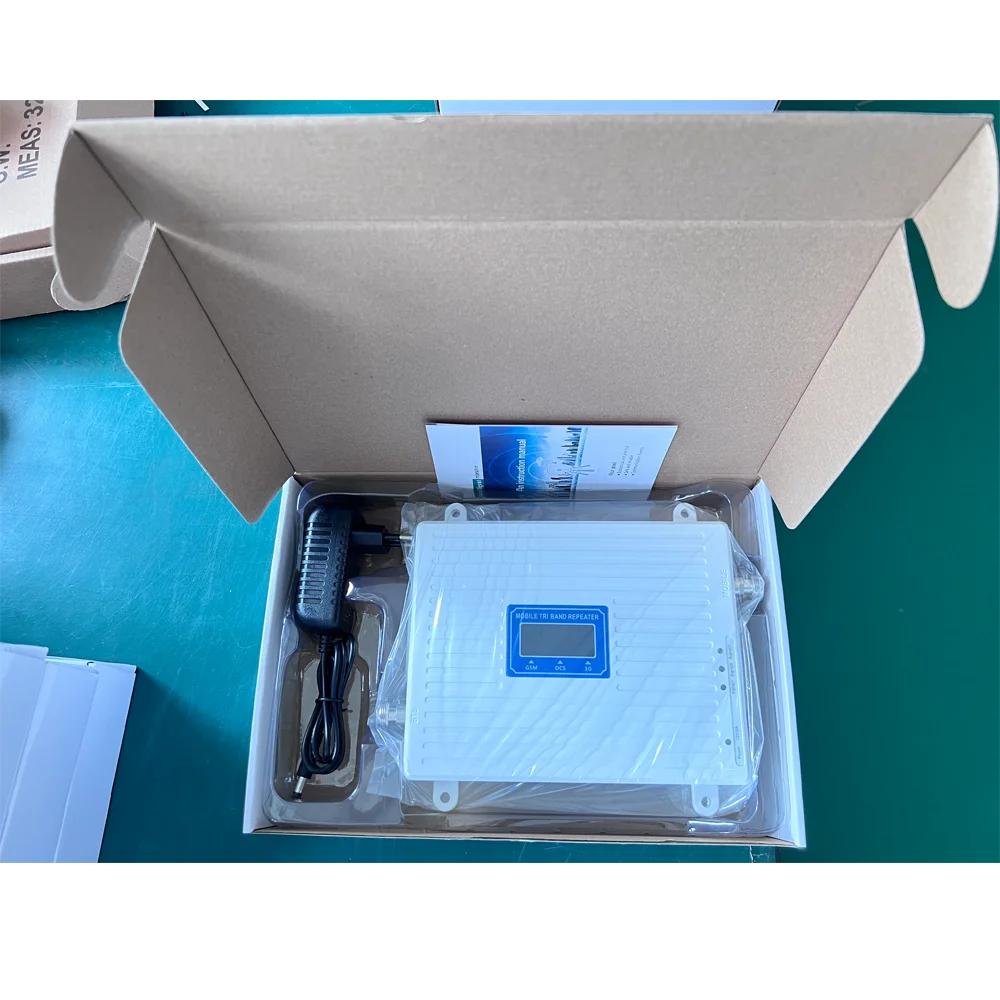

Packaging Details：Each signal repeater is individually packaged, using a neutral carton to fully protect the product from damage.
Delivery Detail：within 7 weekdays after all confirmed.
Shipping Method：by air,land,sea or expression courier.
Company Introduction
The company was founded in 2016 and is located in Shenzhen, China. It is committed to the research and development of mobile phone signal amplification, working hard for the national and even global signal coverage, and reducing the trouble caused by signal blind areas. The company has always adhered to the "credit and people-oriented" business Philosophy, "Science and Technology Innovation, Quality First" management belief, relying on professional technology to quickly lay a solid foundation at home and abroad, and become a well-known brand in the industry.
We are sincerely willing to cooperate with you. let’s win the future together!
Q：Are you a manufacturer？
A：Yes, we have our own factory in Shenzhen, China. We are a factory specializing in the production and sales of repeaters
Q：Can you accept customization?
A：Yes, we accept customized repeater appearance, frequency, logo pattern, etc...
A：Yes, we have our own factory in Shenzhen, China. We are a factory specializing in the production and sales of repeaters
Q：Can you accept customization?
A：Yes, we accept customized repeater appearance, frequency, logo pattern, etc...
