180m 300m Doppler Radar Radar Speed Security Camera

Product Overview

Description

K Band Doppler Radar Speed Detector for Speed Signs



Radar speed signs are usually installed in areas where speeding is a concern or where vehicles come in close proximity to pedestrians such as school zones, construction zones, residential areas, and college campuses. In some instances, these signs are used to gather information to see if additional traffic control measures are needed.



The speed sign system is made up of following:

Speed detection: K Bnad Doppler Radar

Video Records: Camera, Lights

Front Data Process

Unit: Identification on Server

Networking Unit: Switch, Optical Transmitter & Receiver

Multiple installation is controlled at the management center.





Application:

Speed warning of school zones, construction zones, residential areas, and college campuses etc.



Features:

* Advanced AI algorithm technology, which can distinguish vehicle features and avoid target miss & re-catch.

* Distance & speed accuracy enhanced by spectrum zoom

* Vehicle catching location range in ±0.5m, accuracy up to 99%

* Vehicle driving direction recognizable

* Comfort installation design, built-in with level instrument

* Strong environmental adaptability, radar performance is not affected by light, dust, rain and snow, haze and other harsh environment

* It comes with interface:RS485, RS232 & Wi-Fi for easy configuration





Radar Specification:

Parameter	Condition	MIN	TYP	MAX	UNIT
System Performance
Transmit frequency			24.10		GHz
Transmit power(EIRP)			20		dBm
Response time			20		ms
Transmit frequency error		-45		40	MHz
Power			1.6		W
Communication interface		RS484/RS232/Wifi/L(H) level
Distance/speed measurement performance
Speed range		10		300	km/h
Speed accuracy		-1		0	km/h
Direction		Coming/going direction could be distinguish
Distance range		15		150	meters
Distance accuracy			±0.5		meter
Antenna performance
Beam width/TX	Azimuth(-6dB)			7	deg
	Elevation(-6dB)			28	deg
Other performance
Working voltage		9	12	32	V DC
Working current			0.13		A
Working temperature		-40		85	℃
Working humidity		5%		95%	RH
Size		148*124.5*26.5			mm
Protection class		IP66



Speed Radar for LED Display



TSR20 speed detection radar adopts CW modulation to realize the speed measurement. It is mainly deployed in expressway, ordinary highway, community gate, corner intersection and school road section etc to accurately detect and display vehicle speed, timely remind drivers of over-speeding, so as to effectively reduce road traffic accidents.



Nano Radar Advantages:

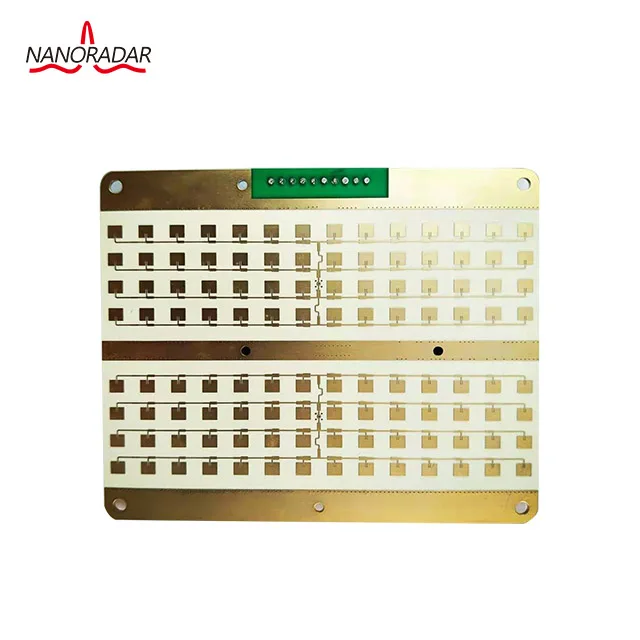

*Adopt 24 GHz MMIC Technology

*Small size, light weight and convenient installation

*Accurate speed measurement and difference within 1km/h

*Trigger distance up to 250-300 Speed measurement range: 10-300km /

*Multiple lanes supported

*All weather resistance, not affected by light, dust, rain, snow, haze and other harsh environment



Installation Cases on Real Site





Snapshot Photos

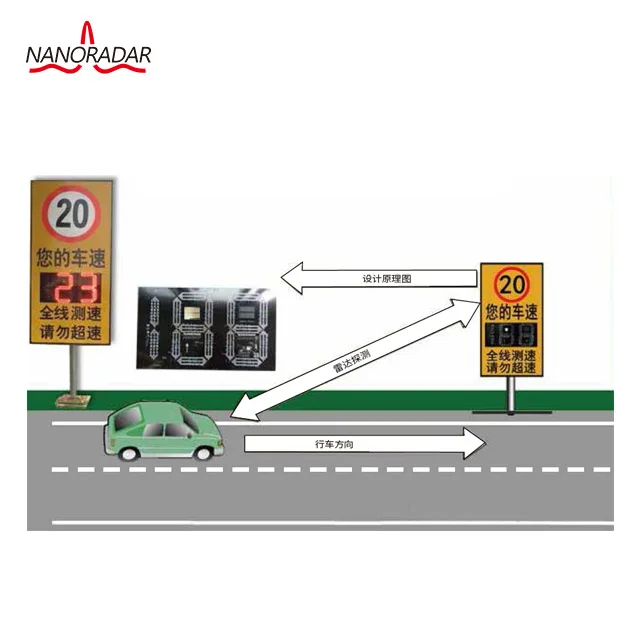

Application Drawing
