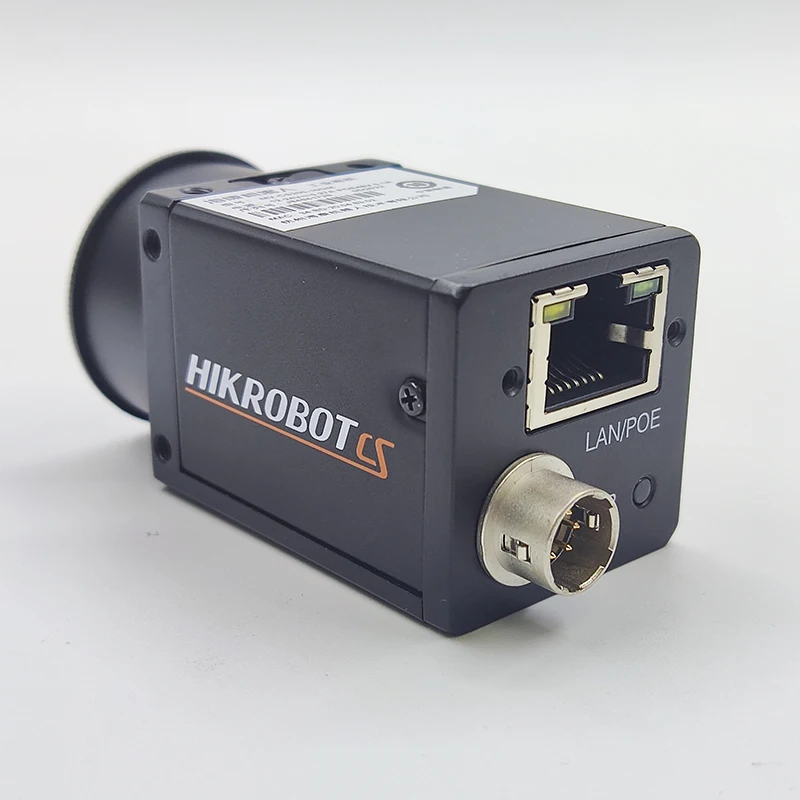

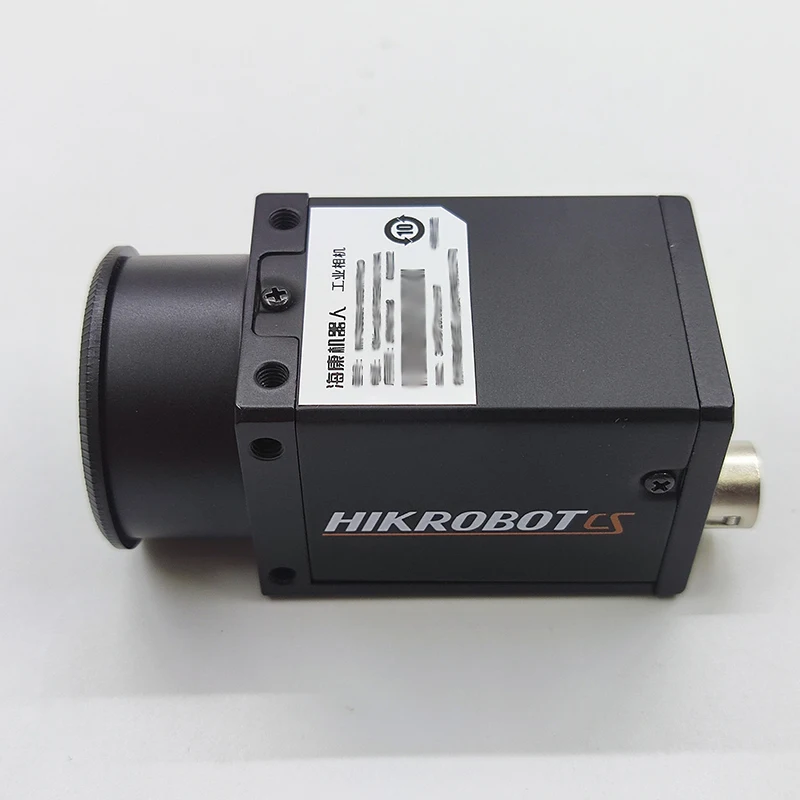

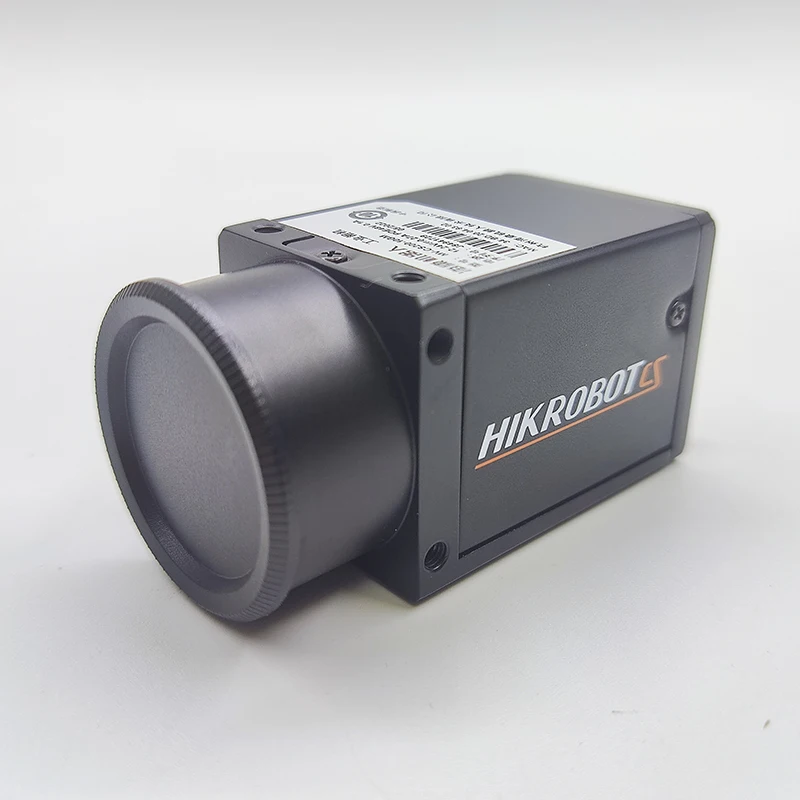

HIKROBOT High Resolution 5.9 fps GigE IMX183 20MP Machine Vision Cameras for Industrial
- Category: >>>
- Supplier: Shenzhen Zhixiang Shijue Technology Co. Ltd.
Share on (1600589403652):
Product Overview
Description
Product Features
1. Support automatic or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc.
2. Integrate a variety of ISP algorithms, support CCM, LSC correction, etc., with rich functions

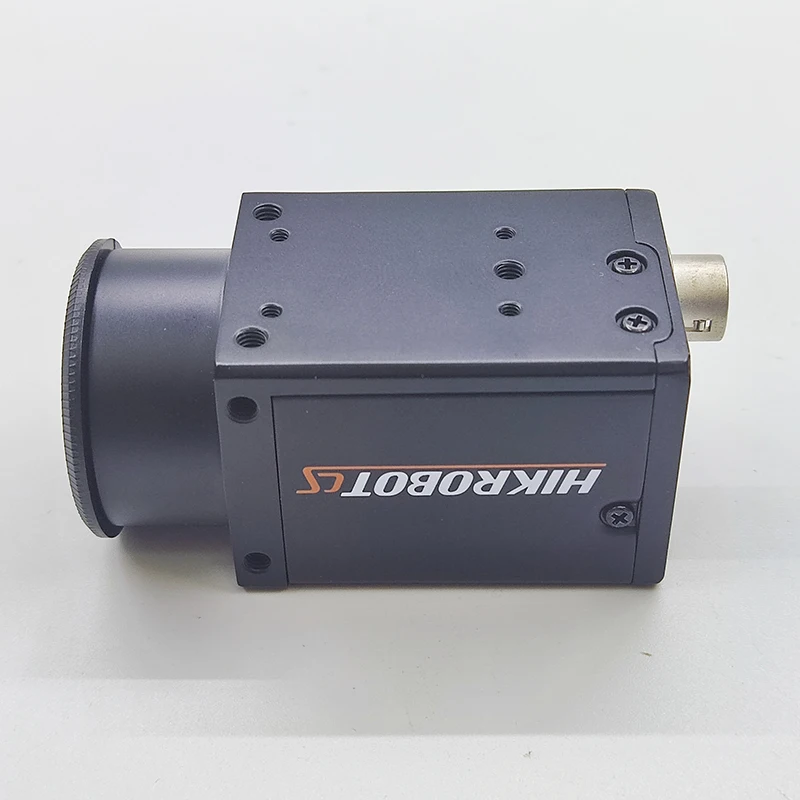

3. The new-generation appearance structure design supports four-side installation
4. Gigabit Ethernet interface, the maximum transmission distance can reach 100m without relay
5. Compatible with GigE Vision V2.0 protocol and GenlCam standard, seamless connection to third-party software
Products Description
Specifications
Model Number | Model | MV-CS200-10GM、MV-CS200-10GC | ||
Name | 20-megapixel network port area scan camera, IMX183, second-generation basic version, black and white | |||
General Specifications | Operating System | Windows XP/7/10 32/64bits, Linux 32/64bits and MacOS 64bits | ||
Protocol/Standard | GigE Vision V2.0, GenICam | |||
Software | MVS or 3rd party supporting GigE Vision protocol software | |||
Certification | CE, FCC, RoHS, KC | |||
Electrical Characteristics | Power supply | 9 ~ 24 VDC, support PoE power supply | ||
Data Interface | GigE | |||
Typical power consumption | 2.4 W@12 VDC | |||

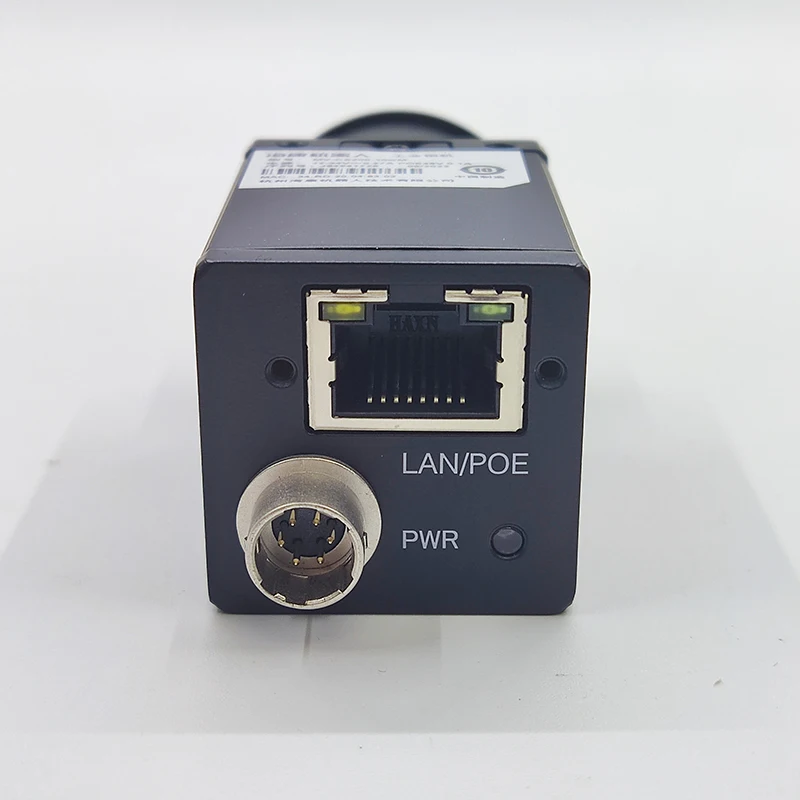

Digital I/O | 6-pin P7 connector provides power and I/O: 1 opto-isolated input (Line0), 1 opto-isolated output (Line1), 1 bidirectional configurable non-isolated I/O (Line2) | |||
Structure | Humidity | 20% ~ 95%RH non-condensing | ||
IP protection grade | IP40 (when the lens and cable are installed correctly) | |||

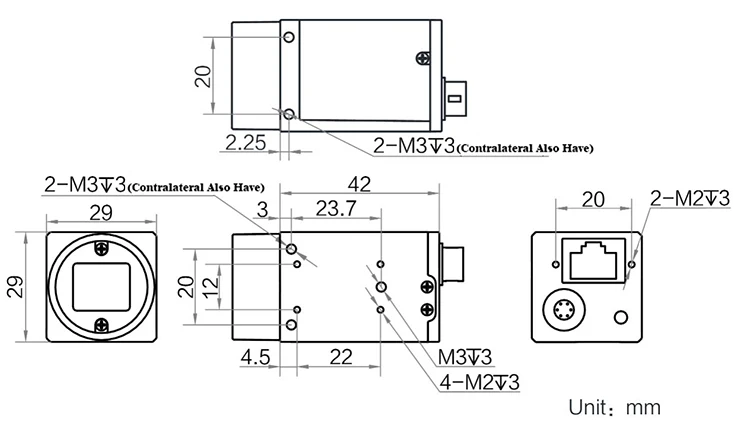

Dimensions | 29 mm × 29 mm × 42 mm | |||
Temperature | working temperature -30℃ ~ 60℃, storage temperature -30℃ ~ 70℃ | |||
Weight | About 100g | |||
Lens mount | C-Mount | |||
Performance | B&W/Color | Black and white and color two styles | ||
Pixel size | 2.4 µm × 2.4 µm | |||
Exposure time | 46 μs ~ 2.5 sec | |||
Sensor Type | CMOS, Rolling Shutter | |||
Signal-to-noise ratio | 41.5 dB | |||
Downsampling | 1 × 1, 2 × 2 supported | |||
Maximum frame rate | 5.9 fps @5472 × 3648 | |||
Pixel Format | black and white | Mono 8/10/10Packed/12/12Packed | ||
color | Mono 8/10/12 Bayer RG 8/10/10Packed/12/12Packed YUV422Packed，YUV422_YUYV_Packed RGB8，BGR8 | |||
Target surface size | 1" | |||
Shutter mode | supports automatic exposure, manual exposure, one-key exposure mode, supports Rolling and Global Reset modes | |||
Sensor model | IMX183 | |||
Gain | 0 dB ~ 24 dB | |||
Mirroring | support horizontal mirroring, vertical mirroring output | |||
Dynamic range | 65.5 dB | |||
Binning | supports 1 × 1, 2 × 2, 4 × 4 | |||
Resolution | 5472 × 3648 | |||
EMVA data (typical) | Dynamic range | 65.7 dB | ||
Signal-to-noise ratio | 41.4 dB | |||
Quantum efficiency | 74.10 % | |||
Saturation capacity | 13.8 ke- | |||
Dark noise | 6.6 e-@10 bit | |||

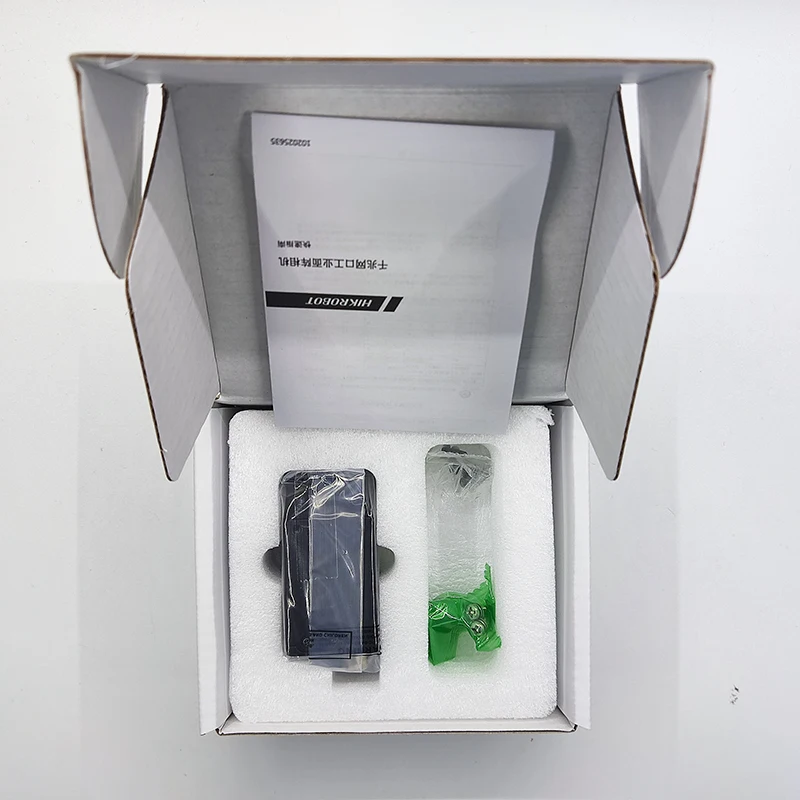

Product packaging
