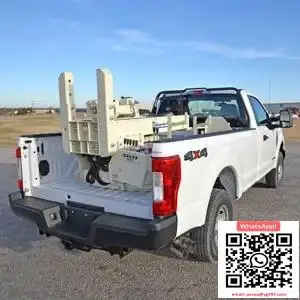

300 truck water well borehole rotary drilling rig machine with famous brand truck Vehicle mounted Water Well Drilling
- Category: >>>
- Supplier: Henan,Yugong,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Success Cooperation cases!!!!!!!
Specification
Product number | YG10Z(T) | YG15Z(T) | YG30CZ(T) | YG40CZ(T) | |||
Maximum hook load kN | 600 | 900 | 1800 | 2250 | |||
Maximum hook load (lb) | -130000 | -200000 | (400000) | -500000 | |||
Nominal drilling depth m | 500~1000 | 800~1500 | 1600~3000 | 2500~4000 | |||
Nominal drilling depth (ft) | (1640~3280) | (2620~4920) | (5250~9840) | (8200~13100) | |||
Diesel engine power kW(hp) | 224(300) | 280(375) | 2×403(2×540) | 2×470(2×630) | |||
Winch rated power kW(hp) | 185(250) | 260(350) | 560(750) | 745(1000) | |||
main brake type | With brake or disc brake | With brake or disc brake | With brake or disc brake | With brake or disc brake | |||
Number of ropes in swimming system | 6 | 8 | 10 | 10 | |||
Drilling wire rope diameter mm(in) | 22(7/8) | 26(1) | 32(1 1/4) | 32(1 1/4) | |||
Outer Diameter of Swimming System Pulley mm(in) | 610(24) | 760(30) | 915(36) | 915(36) | |||
Derrick height m(ft) | 22(72) | 32(105) | 38(125) | 38(125) | |||
Base height m(ft) | 3(10) | 3(10) | 6(20) | 6.7(22) | |||
Turntable beam clearance height m(ft) | 2(6.5) | 2(6.5) | 4.9(16) | 5.5(18) | |||
Through hole diameter of turntable mm(in) | 444.5(17 1/2) | 444.5(17 1/2) | 698.5(27 1/2) | 698.5(27 1/2) | |||
Quantity of mud pumps | 1 | 1 | 2 | 2 | |||
Mud pump rated power kW(hp) | 373(500) | 373(500) | 597(800) | 746(1000) | |||
Riser diameter mm(in) | 64(2 1/2) | 64(2 1/2) | 76(3) | 76(3) | |||
Working pressure of riser MPa(psi) | 25(3600) | 25(3600) | 35(5000) | 35(5000) | |||
self-propelled chassis | 8×4 | 8×8或10×8 | 14×8 | 14×10 | |||
Trailer Chassis | - | 3 axes | 5 axes | 5 axes | |||
The truck-mounted and trailer-mounted drilling rig is a new type of drilling rig with mechanical hydraulic transmission independently developed and manufactured by YUGONG. The power, drawworks, derrick, traveling block system and transmission mechanism of the drilling rig are all mounted on the self-propelled chassis, which is very useful for improving drilling operations. Efficiency has a big advantage. The series of truck-mounted drilling rigs designed and manufactured by YUGONG can cover the drilling depth of 1000m~4000m, and the maximum static load is from 600kN~2250kN. Shallow well drilling operations, and can design and develop products with special requirements for alpine, desert, plateau and other regions.
The truck-mounted drilling rig designed by YUGONG meets the different needs and standards of each project, including geological conditions, drilling design, construction plan, project delivery period, site environment and other factors. After receiving the customer's request, we will review the technical parameters of your project and provide the most suitable solution.
Whether you are preparing a bid or preparing a construction plan, YUGONG can provide the most suitable technical support for your project. If you need to contact YUGONG directly.
The truck-mounted drilling rig designed by YUGONG meets the different needs and standards of each project, including geological conditions, drilling design, construction plan, project delivery period, site environment and other factors. After receiving the customer's request, we will review the technical parameters of your project and provide the most suitable solution.
Whether you are preparing a bid or preparing a construction plan, YUGONG can provide the most suitable technical support for your project. If you need to contact YUGONG directly.
What*app/phone: :0086 155 1568 2190
Our service
Whole process guidance
With more than 15 years of service experience,
we will spare no effort to provide support in selecting equipment, customizing production lines, improving supply chain, and post-optimization etc.
we will spare no effort to provide support in selecting equipment, customizing production lines, improving supply chain, and post-optimization etc.
Provide a full set of construction method and equipment training
Provide design and construction solutions in terms of cost budget / progress improvement / quality control / safety management.
After-sales service system
Fully track the service system, focus on customer needs, first-class speed, skills, attitude, and provide support for customers' construction.
Support customization
Relying on our powerful flexible production line, we can give you the right to fully choose the mold, drive method, accessories upgrade, shell material, appearance color and Logo etc.
Extensive spare parts service
The spare parts warehouse of more than 50,000 square meters can meet the timely replacement and supplement of any wearing parts.
Support sea, land and air transportation
We can ship products to every corner of the world. If you need, we also support a series of tedious tasks such as customs clearance and tail end delivery.
Company Profile
Certification
We have passed CE, ISO, SGS certification! Better quality creates greater benefits for you!
Customer visit
We receive an average of 4 customers every week, visit and audit our factory, and negotiate business. There is a Chinese proverb:
It is always a pleasure to greet a friend from afar.
It is always a pleasure to greet a friend from afar.
Factories and offices
More than 100,000 square meters of manufacturing and warehouse space More than 100 employees in the International Business Department.
FAQ & Contact
Q: How to select and determine the model?
A for water wells or oil fields? Drilling depth? Drill diameter? For what terrain? Total purchase budget?
Q: I just started to enter these industries? Don't know what to do?
A: We will assist you to choose a cost-effective machine; we will provide assistance in purchasing raw materials, equipment debugging, and later technical guidance.
Q: How can I ship these machines to my company after purchase?
A: We have a stable and cooperative freight forwarder and have rich experience. We can be responsible for the whole process of transportation/customs declaration/customs clearance/transportation, and transport the goods to your company.
Q: Can you tell us about your service and support throughout the process?
A: I think selling a machine is just the start of our partnership
1.We will provide technical solutions, product selection guidance, and related supporting equipment support before sales
(For example, to help you identify hot-selling products in the market to determine machine selection)
2.Provide regular feedback on manufacturing progress in production Pictures or videos
3.Provide machine testing after sale; free accessories; stable packaging; product shipping to your factory , customs clearance and shipping services we can also cover;
4.During production: continuous debugging of the machine; raw material supply etc.
A for water wells or oil fields? Drilling depth? Drill diameter? For what terrain? Total purchase budget?
Q: I just started to enter these industries? Don't know what to do?
A: We will assist you to choose a cost-effective machine; we will provide assistance in purchasing raw materials, equipment debugging, and later technical guidance.
Q: How can I ship these machines to my company after purchase?
A: We have a stable and cooperative freight forwarder and have rich experience. We can be responsible for the whole process of transportation/customs declaration/customs clearance/transportation, and transport the goods to your company.
Q: Can you tell us about your service and support throughout the process?
A: I think selling a machine is just the start of our partnership
1.We will provide technical solutions, product selection guidance, and related supporting equipment support before sales
(For example, to help you identify hot-selling products in the market to determine machine selection)
2.Provide regular feedback on manufacturing progress in production Pictures or videos
3.Provide machine testing after sale; free accessories; stable packaging; product shipping to your factory , customs clearance and shipping services we can also cover;
4.During production: continuous debugging of the machine; raw material supply etc.
