Made In China Semi Automatic POS Paper Thermal Paper Roll Slitter Rewinder Machine
- Category: >>>
- Supplier: Jota Machinery Industrial (Kunshan) Co. Ltd.
Share on (1600589602863):
Product Overview
Description
Product Overview

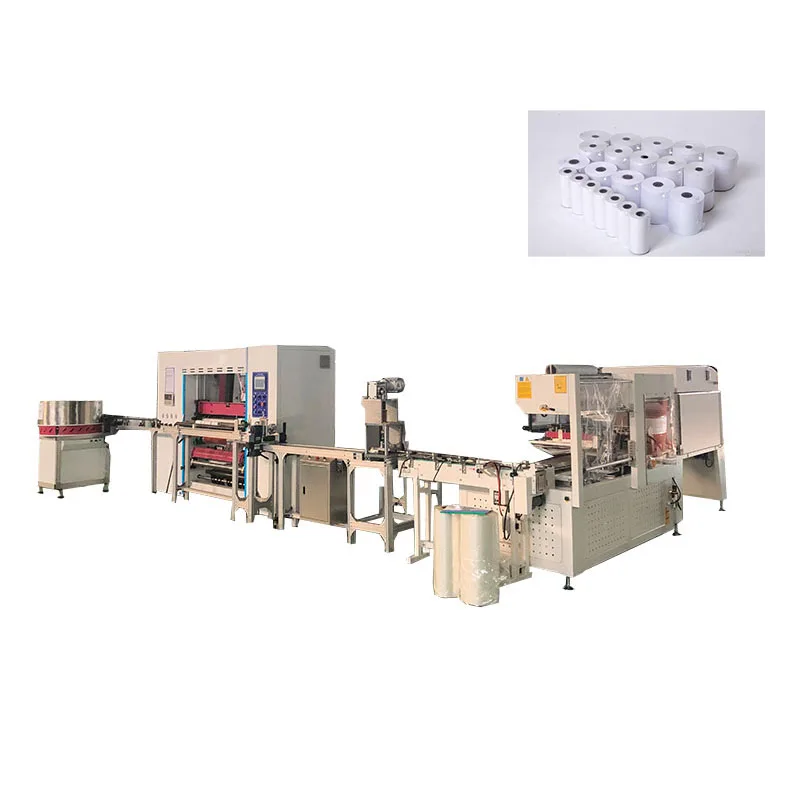

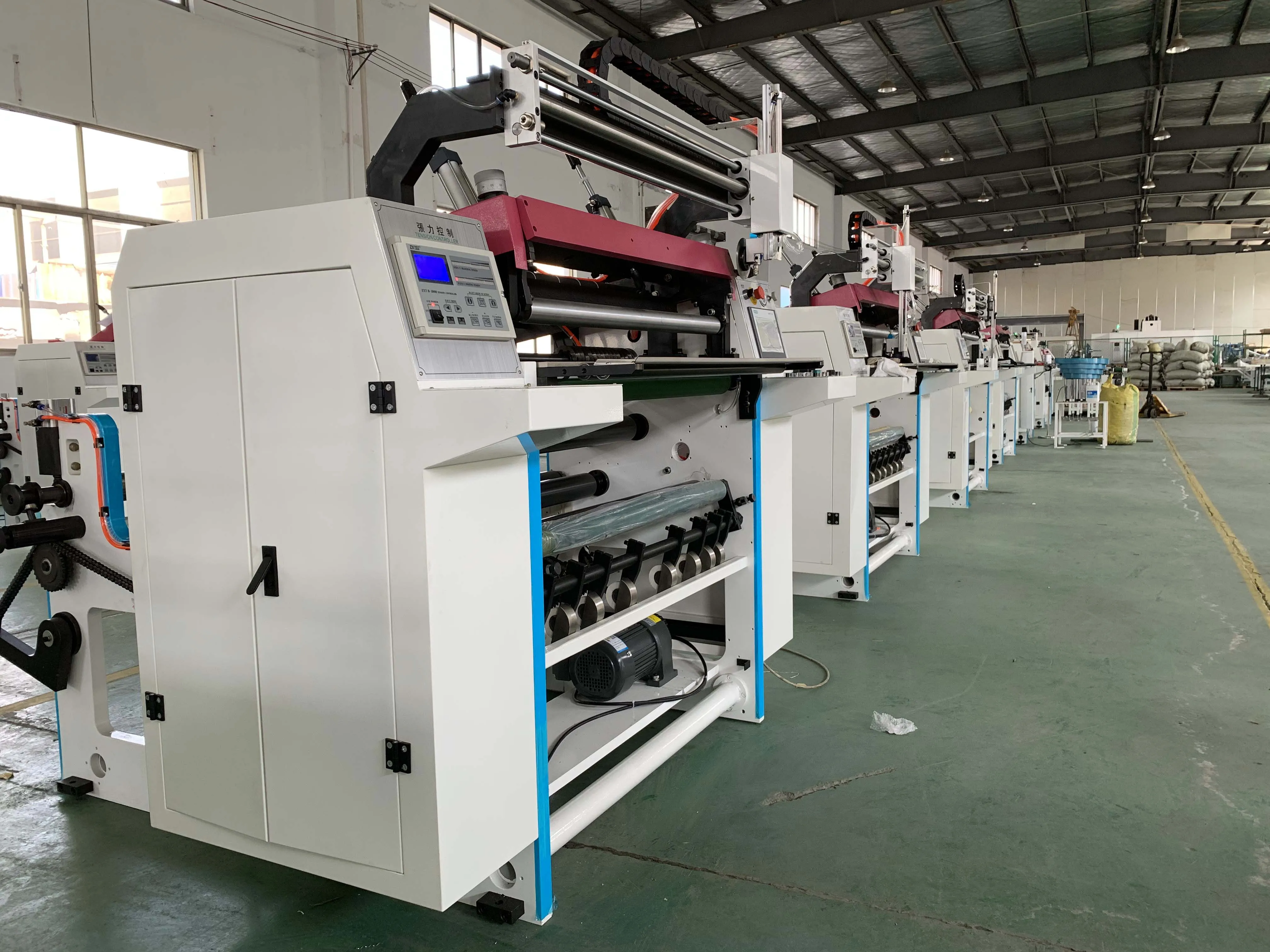

PLC Controlled Semi Automatic POS Paper Thermal Paper Roll Production Line
PLC Controlled Semi Automatic POS Paper Thermal Paper Roll Production Line is used for slitting and rewinding all kinds of thermal paper, including fax paper, cash register paper, ATM paper, ECG paper, medical record paper, POS paper, self- adhesive trade marks, non - woven cloth, films and so on.
Specification and Parameters
1. PLC Controlled Semi Automatic POS Paper Thermal Paper Roll Production Line adopts Siemens PLC control system and touch screen, all the parameters are displayed on the monitor, and it will operate automatically. |
2.The main motor adopts Siemens inverter motor and frequency inverter control. |
3. Adopts automatic lift-up loading system, controlled by a separated motor from Taiwan. |
4. All transmission rollers have been dynamic / static balance treated. |
5. It adopts red marking device, printing red line at the end of paper reel. |
6. It adopts automatic inserting device, and adjusting tightness of rewinding materials. |
7. Unwinding adopts automatic tension control system to keep constant tension. |
8. It adopts auto meter counter, and when reached the setup data, the machine stops and alarms. |
9. Avoiding overlap of paper reels when finishing slitting. |
10. Equipped with emergency switch. |
Max. Unwinding Width. | 900mm |
Max. Unwinding Dia. | 1000mm |
Max. Rewinding Dia. | 160mm |
Min. Slitting Width. | 25mm |
Machine Max. Speed | 150m/min |
Main Power | 2.95Kw |
Unwinding Shaft | 3” air expanding shaft |
Rewinding shaft | 0.5”, 1” are available (or as your request) |
Dimension | 1900mm x 1900mm x 1500mm |
Weight | 1200Kg |
Detailed Images

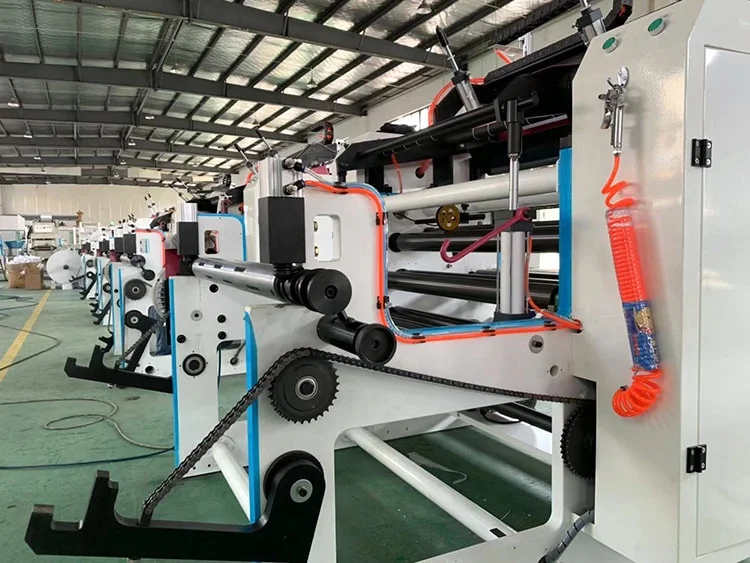

Unwinding Section
1.It adopts automatic tension control
system to keep constant tension.
2.Unwinding shaft is 3” air expanding
shaft
3.It equipped with magnetic powder brake
4.It adopts automatic lift-up loading system
system to keep constant tension.
2.Unwinding shaft is 3” air expanding
shaft
3.It equipped with magnetic powder brake
4.It adopts automatic lift-up loading system

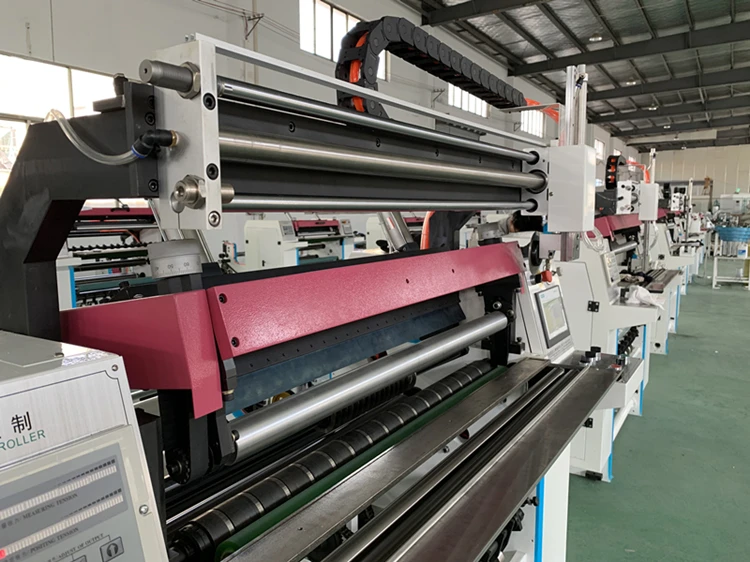

Slitting Section
1.It adopts round blades to slit
2.Equipped with automatic wasting material trimmer
3.Avoid overlap of paper reels when finishing slitting
4.The Min. Slitting Width. is 25mm
5.Upper knife 40*68*1mm + Lower knife 45*70*10/8mm + Spacer
2.Equipped with automatic wasting material trimmer
3.Avoid overlap of paper reels when finishing slitting
4.The Min. Slitting Width. is 25mm
5.Upper knife 40*68*1mm + Lower knife 45*70*10/8mm + Spacer
Control System Section
1.PLC and HMI from Siemens
2. Frequency inverter （ Inovance /
Yaskawa）
3.PLC include English and Chinese language, we also can customized buyer’s country language
4.All parameters present on the monitor, it will operate automatically
2. Frequency inverter （ Inovance /
Yaskawa）
3.PLC include English and Chinese language, we also can customized buyer’s country language
4.All parameters present on the monitor, it will operate automatically
Rewinding Section
1.The Max. Rewinding Diameter
is160mm
2.Rewinding shaft is 0.5”, 1” are
available (or as your request)
is160mm
2.Rewinding shaft is 0.5”, 1” are
available (or as your request)

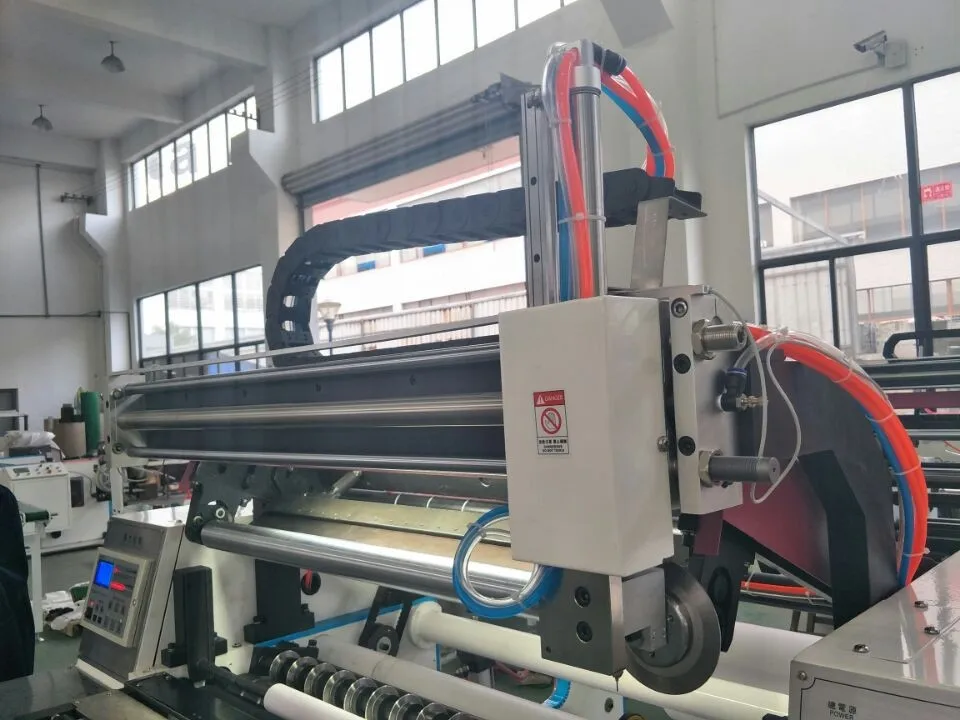

Red Line Marking Section
Red Line Marking Section
Trimmed Waste
Edge Waste Blower with Expulsion Tube

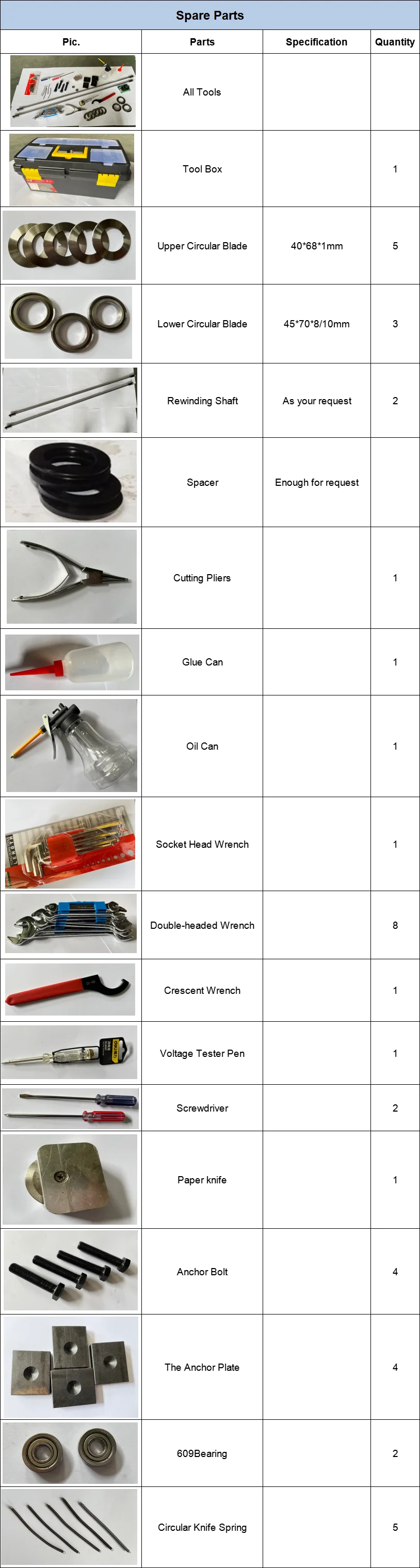

Configurations and Spare Parts
Name | Model | Pieces | Remark |
Computer System | PLC+HMI | 1 | Siemens |
Master Motor | 1 | Siemens | |
AC Drive | 1 | Inovance (China) | |
Air Pressure Valve | 1 | SMC | |
Cylinder | 2 | AIRTAC | |
Unwinding Shaft | 3”(76mm) air expanding shaft | 1 | |
Rewinding Shaft | 0.5’’ 1’’ or as your request | 2 | |
Upper / Lower Knife | 16 | ||
Sensor | 2 | ||
Low Voltage Electrical Switch | Schneider | ||
Spacer | As your request | China brand | |
Manual clutch | 1 | China brand | |
Relay | Omron |

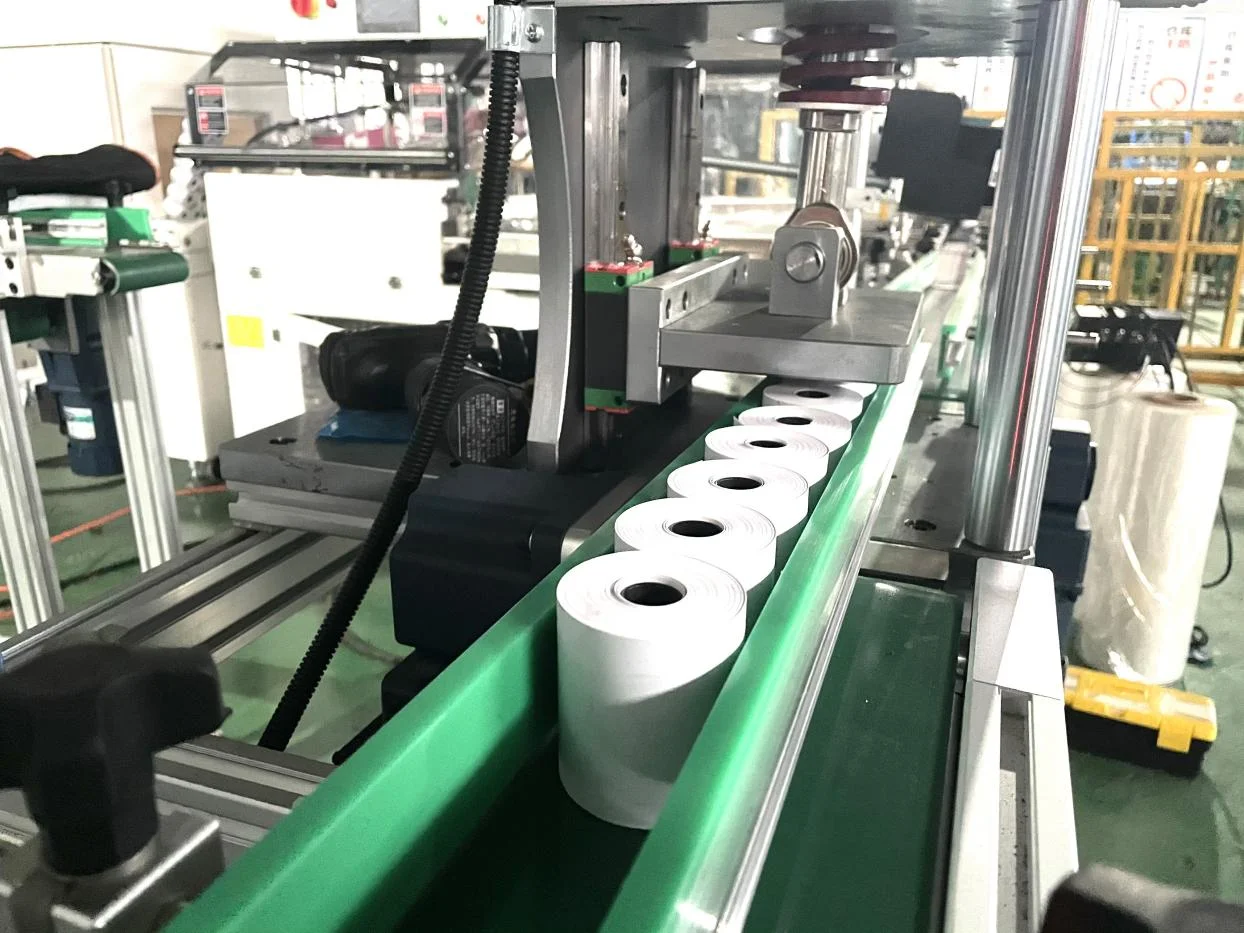

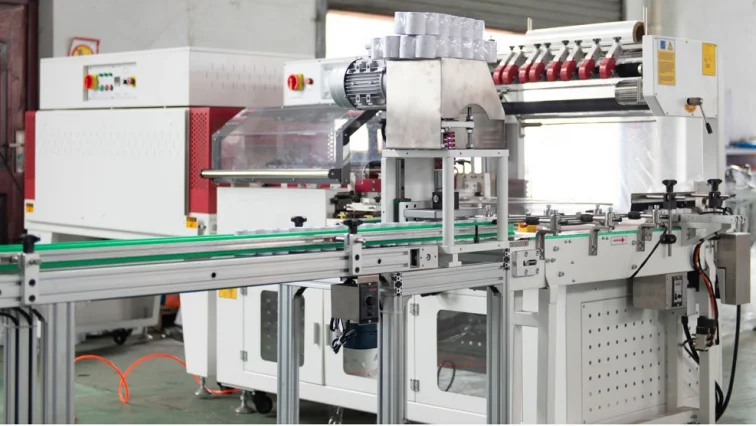

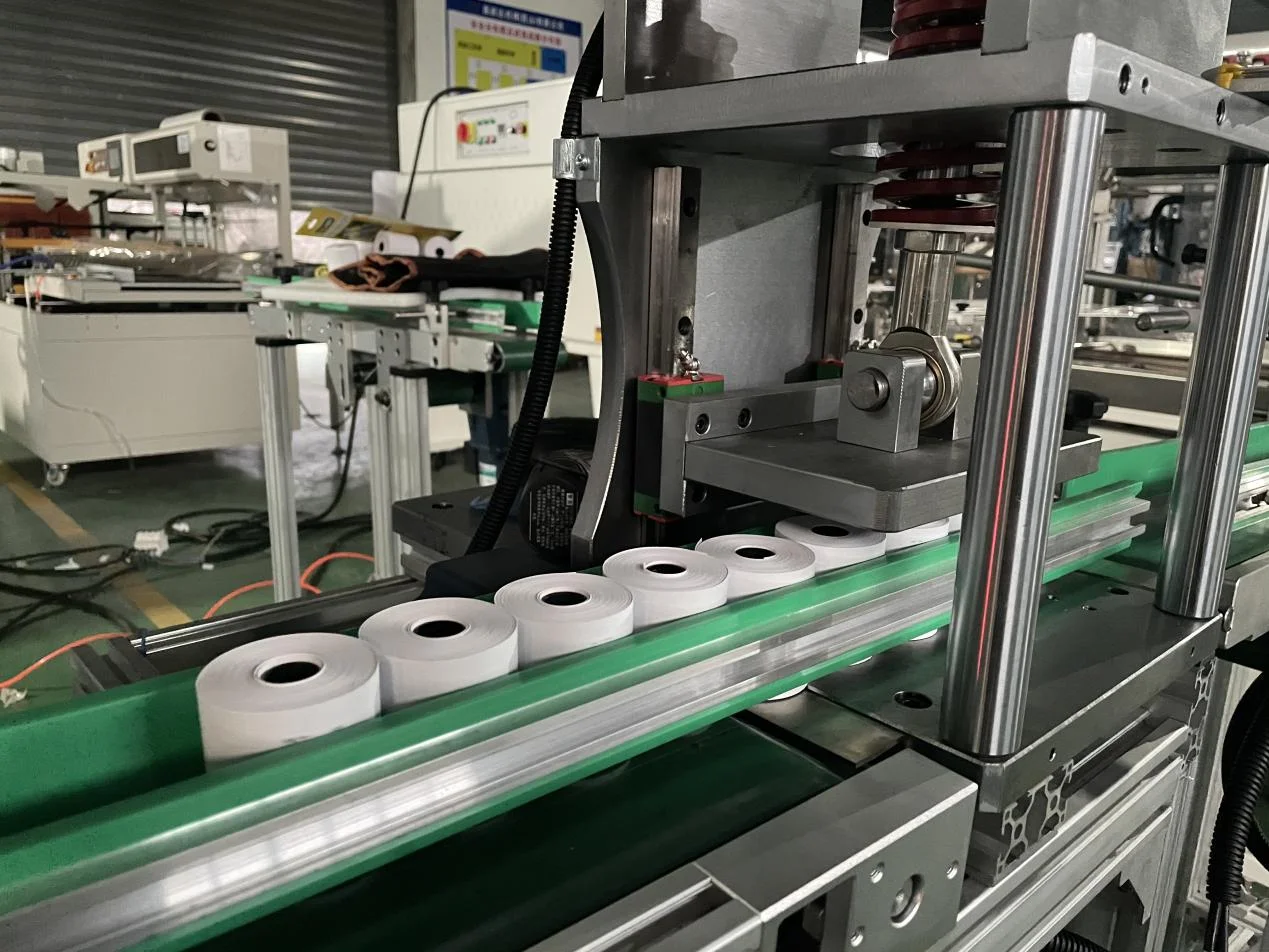

Packing Line
222
The conveyor line is composed of European standard aluminum material, aluminum alloy and 45# surface chrome plating machine parts. The surface of the aluminum alloy parts is sandblasted and bright silver treated, which is more high-grade.
The aluminum rail guardrail on the conveyor line is equipped with a wear-resistant sheath. This has a certain protective effect on the small rolls. The width and height of the conveyor line can be adjusted according to actual needs

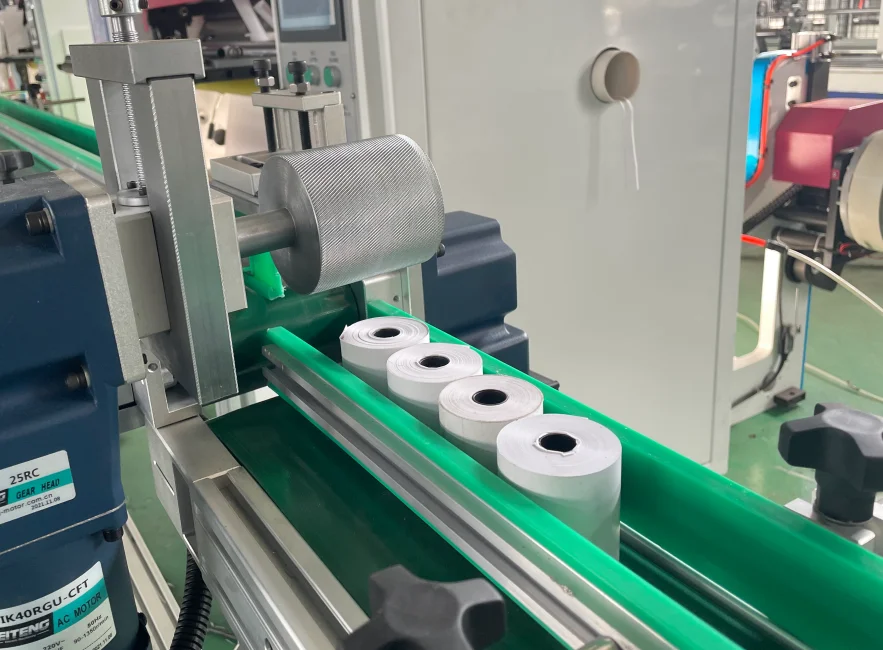

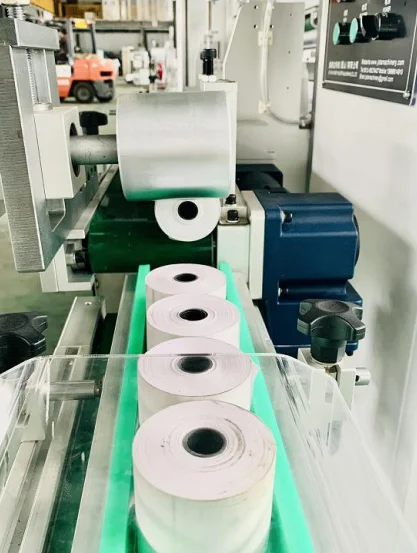

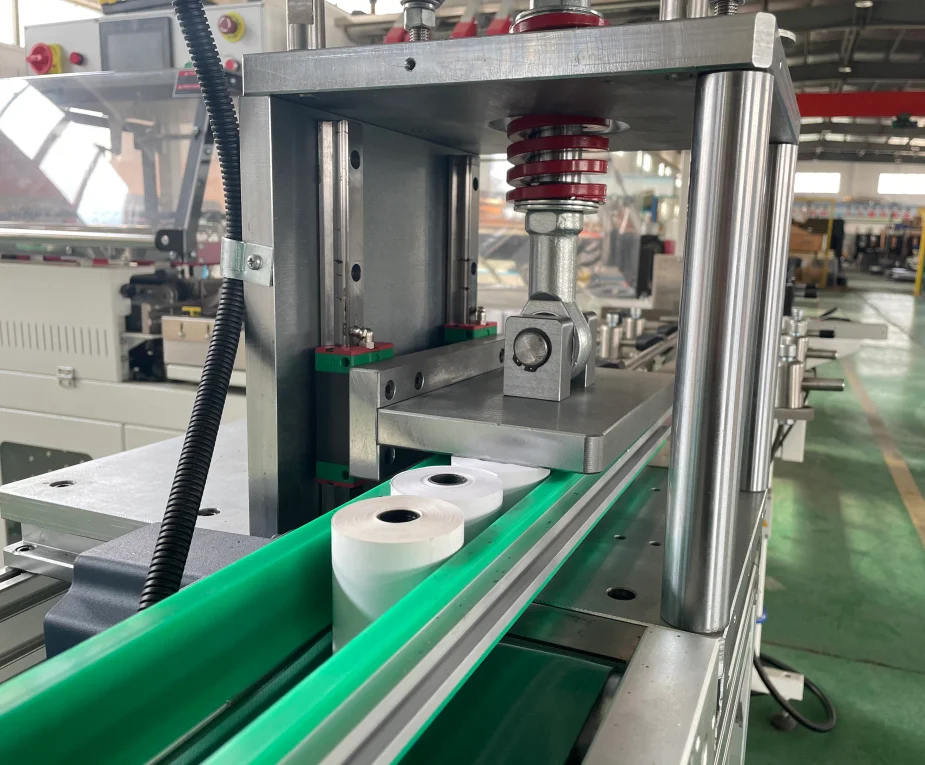

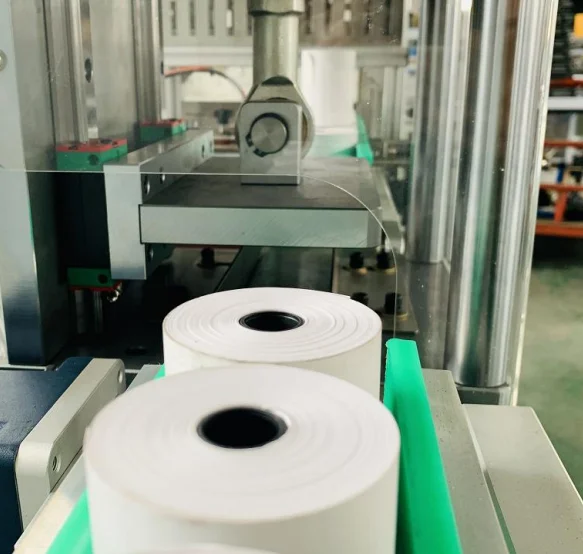

The finished small rolls are first opened and inverted by the cylindrical roller, so that they can stand stably on the second conveyor line until they are sent to the flattening and beating device

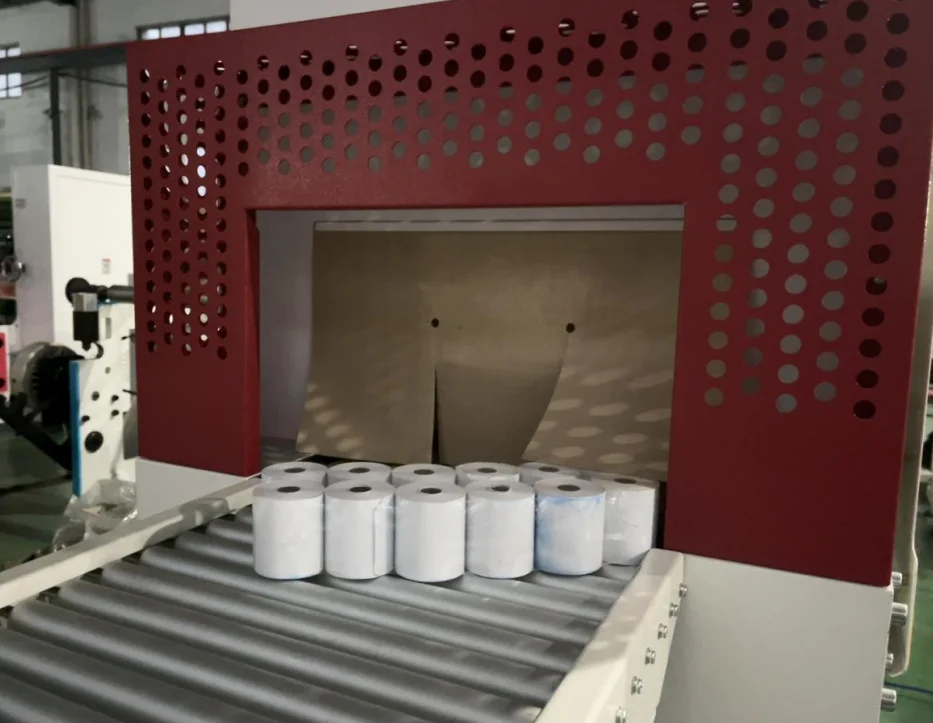

The final product palletizing can be customized according to the packaging requirements, and can be directly connected to the packaging machine. For example, the paper wrapping machine can adjust the distance according to the width of the finished product, and the heat shrinkable film wrapping machine can be divided into single-row or double-row packaging, and the effective width is 120-500mm. easy to adjust
Company Introduction

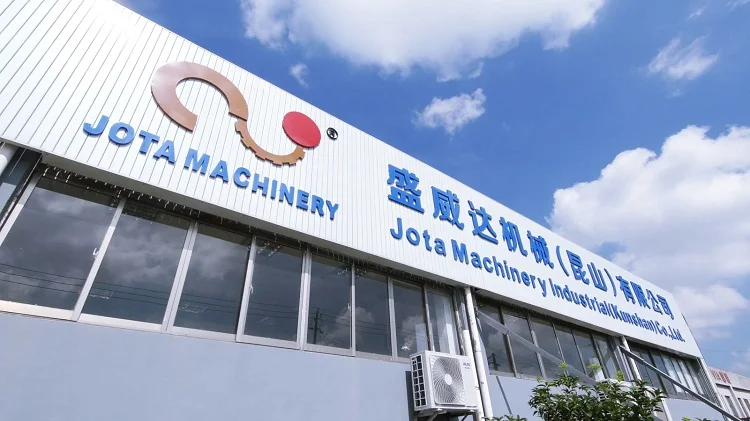

Jota Machinery Industrial (Kunshan) Co.,Ltd is the original manufacturer in designing and manufacturing converting equipment, slitter rewinder machinery for flexible packaging related industry.
