Factory price 5.8GHz wifi flat patch panel antenna high gain 23dbi wifi wireless communication antenna

Share on (1600589644752):


Price:$30.00 - $41.00

Quantity:


Product Overview

Description



Product Description





Introduction

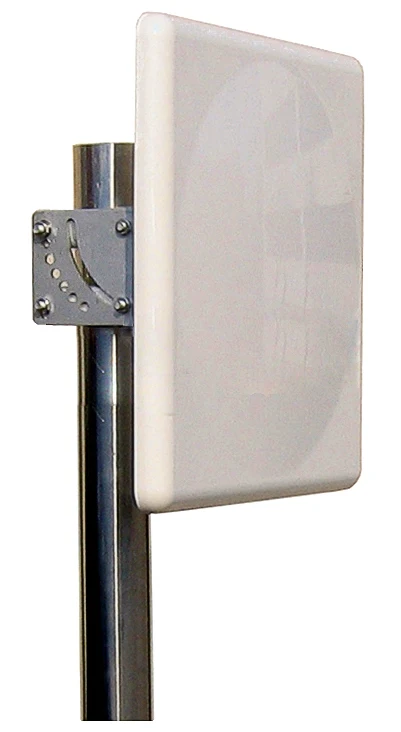

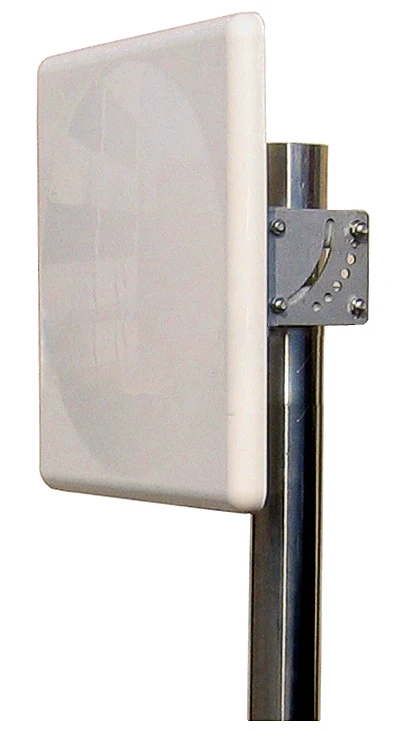

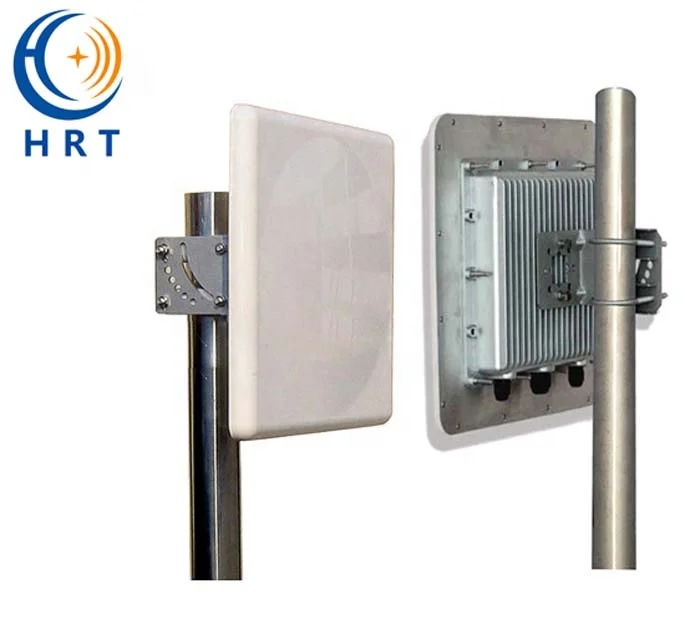

The IP65-rated High-Gain Panel Directional Antenna is made from weatherproof and


corrosion-resistant material, and is suited for both indoor and outdoor applications.


It extends the coverage range of a wireless network in a single direction.


It is ideal for delivering extended access range when positioned in the corner of a


building, or between buildings in a campus-type environment.


It requires an access point or wireless router with a extra pigtail cable connect.





Datesheet:










































































Category



 Panel Antennas






Model



TDJ-5800BKD23






Frequency range



5150-5850






Bandwidth



700






Gain



23






Horizontal Beanwidth-°



9






Vertical Beamwidth-°



12






F/B Ratio-dB



25






VSWR



1.5






Nominal Impedance-Ω



50






Polarization



Vertical






Maximum Power-W



100






Dimensions-mm



305x305x25






Weight-kg



2






Connector



N Female






Mounting Mast Diameter-mm



Φ40-50





















Packaging & Shipping





Packing details


1, Using waterproof bags to pack each products ,then Beautiful box ,then strong standard carton for outer packing .





2, Generally we are neutral packaging, Special packaging can be customized according to customer requirement.








Shipping details


1, we can support EXW ,FOB ,CIF ,CFR,DDP





2, we can delivery the goods by the following express ways : DHL ,UPS,FEDEX ,TNT and EMS . It will take 4-8 working days to arrive in your country .





3, Bulk goods can be ship by sea if you dont need it in urgent , it also can save shipping cost . But it need take about one month to arrive in your sea port .
