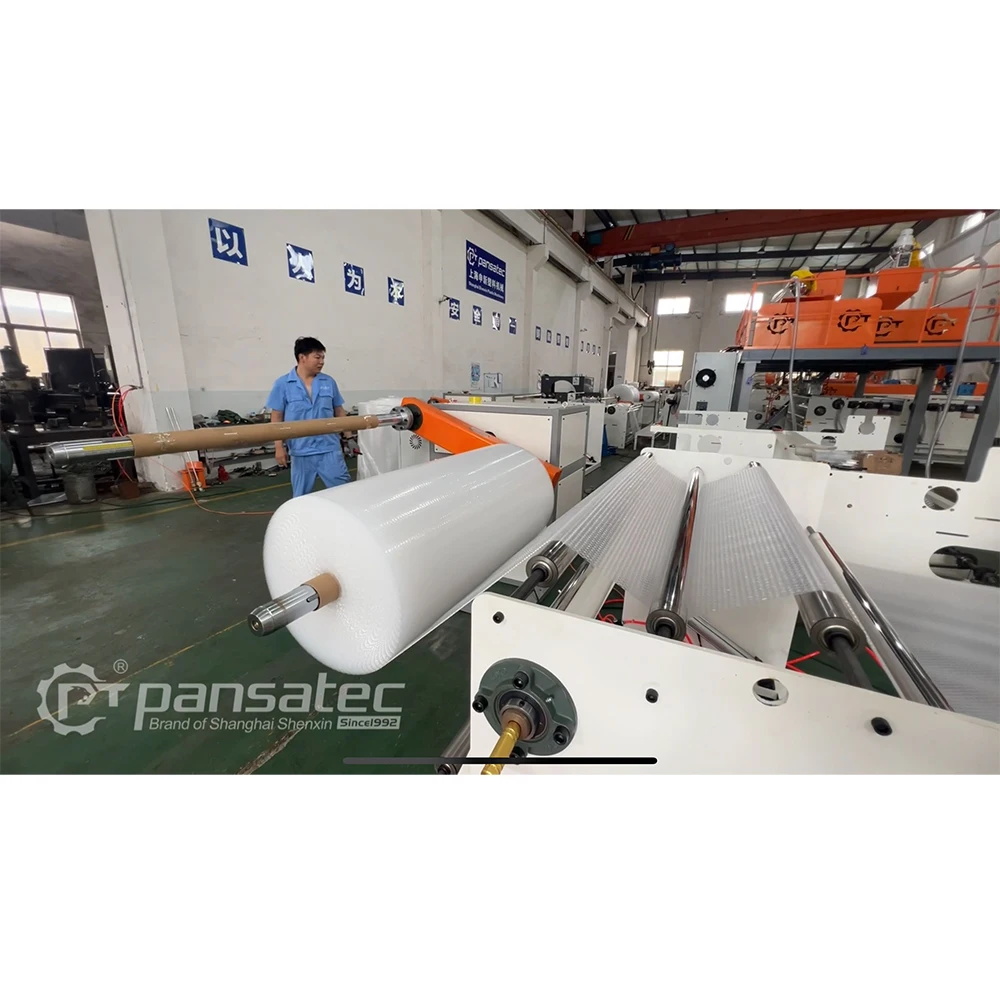

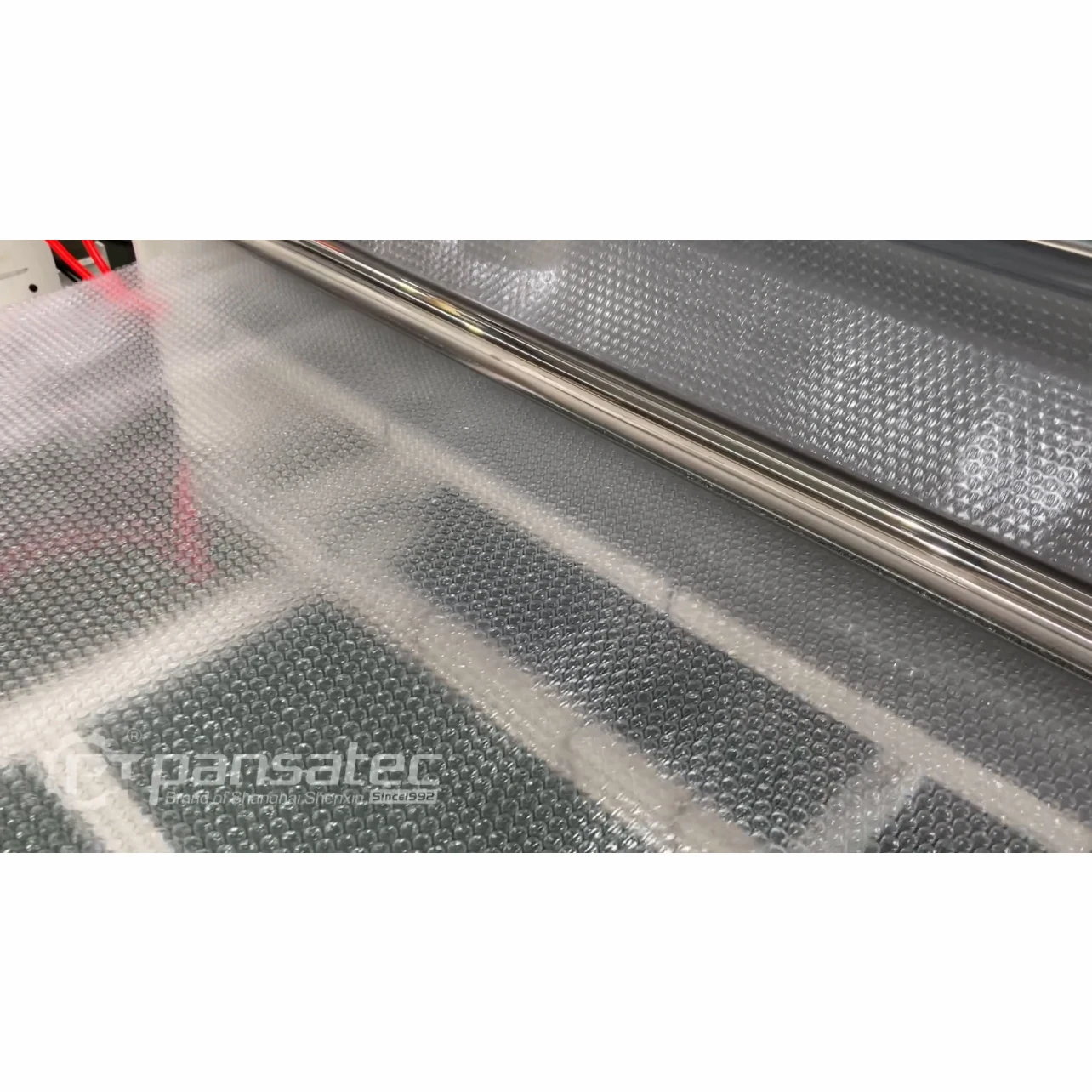

Customizable two layers air bubble film sheet wrap making machine manufacturer
- Category: >>>
- Supplier: Shanghai Shenxin Plastic Machinery Factory
Share on (1600589687236):
Product Overview
Description

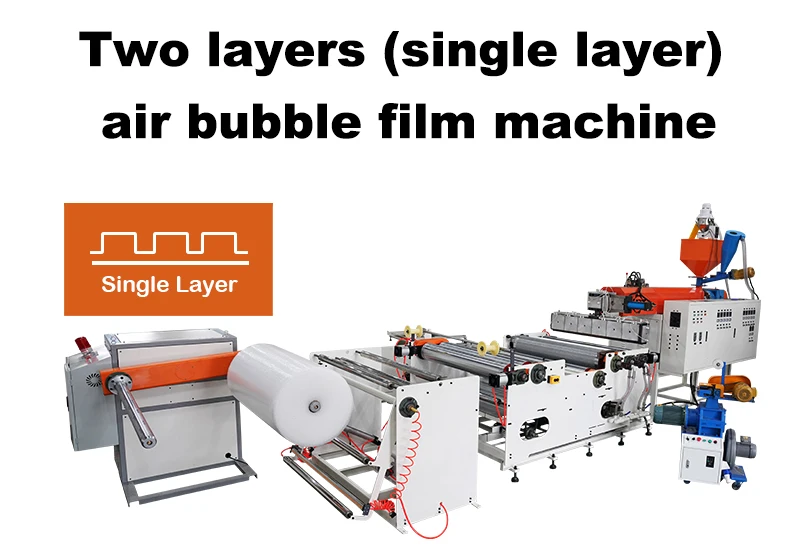

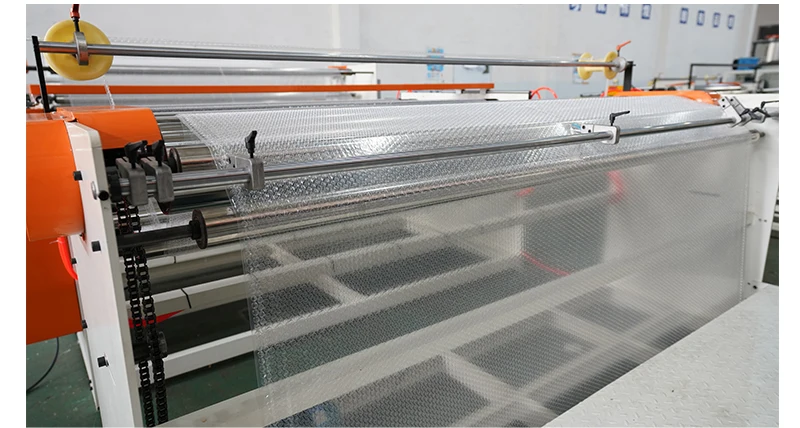

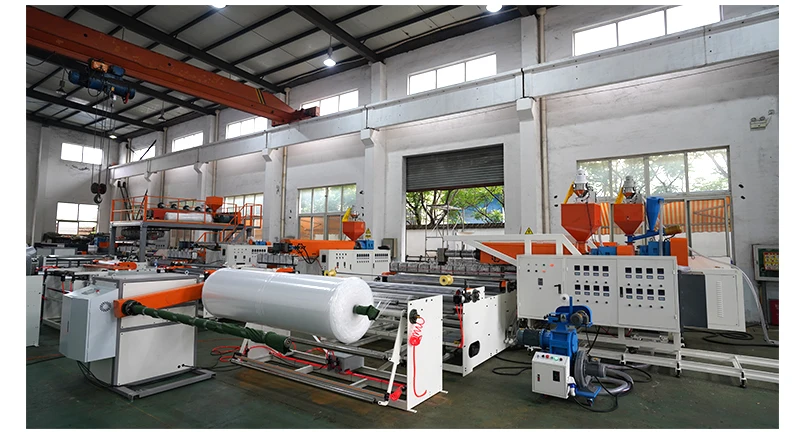

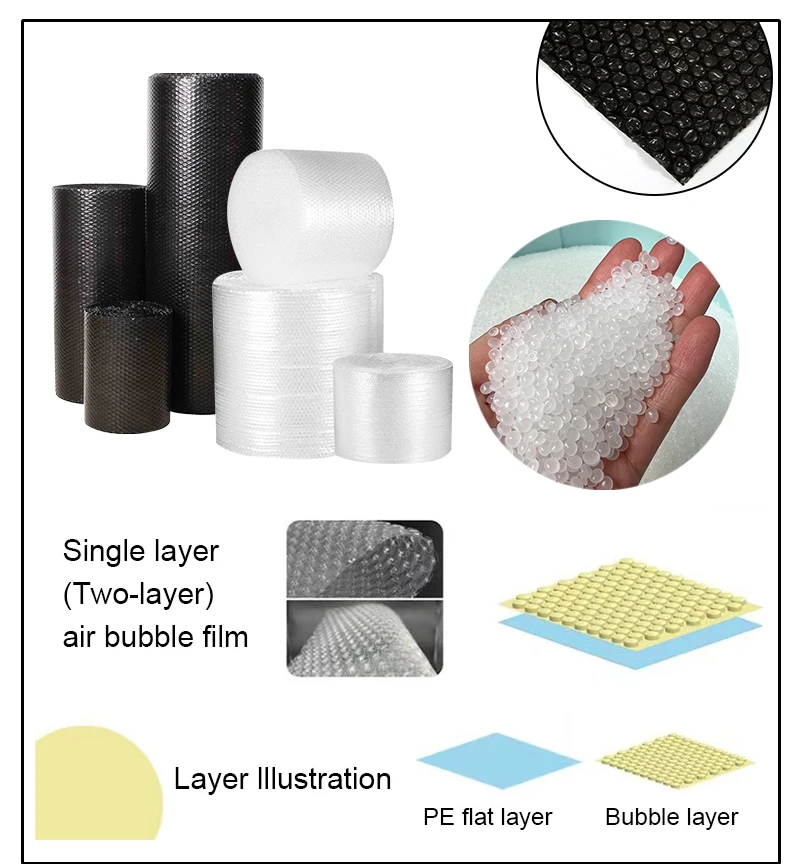

Two layers (single layer) air bubble film machine
Comlete film width(mm) | 1000 | 2000 |
Model number | PT-L2-S1- W1000 | PT-L2-S1- W2000 |
Material | LDPE/LLDPE/HDPE(New or Recycled) | LDPE/LLDPE/HDPE(New or Recycled) |
Line speed(m/min) | 15-35 | 15-35 |
Capacity(kg/hr) | 50-120 | 100-200 |
Thickness(g/m²) | 25-300 | 28-300 |
Main screw diameter(mm) | Φ65/Φ75/Φ80Φ | Φ90/Φ105/Φ110Φ |
Heating power(kw) | 44-55 | 71-85 |
Operation(kw) | 31-40 | 50-58 |
DimensionL×W×H(m) | 7×2.3×3.3 | 10×3.4×3.3 |
weighr(kg) | 4000 | 7000 |

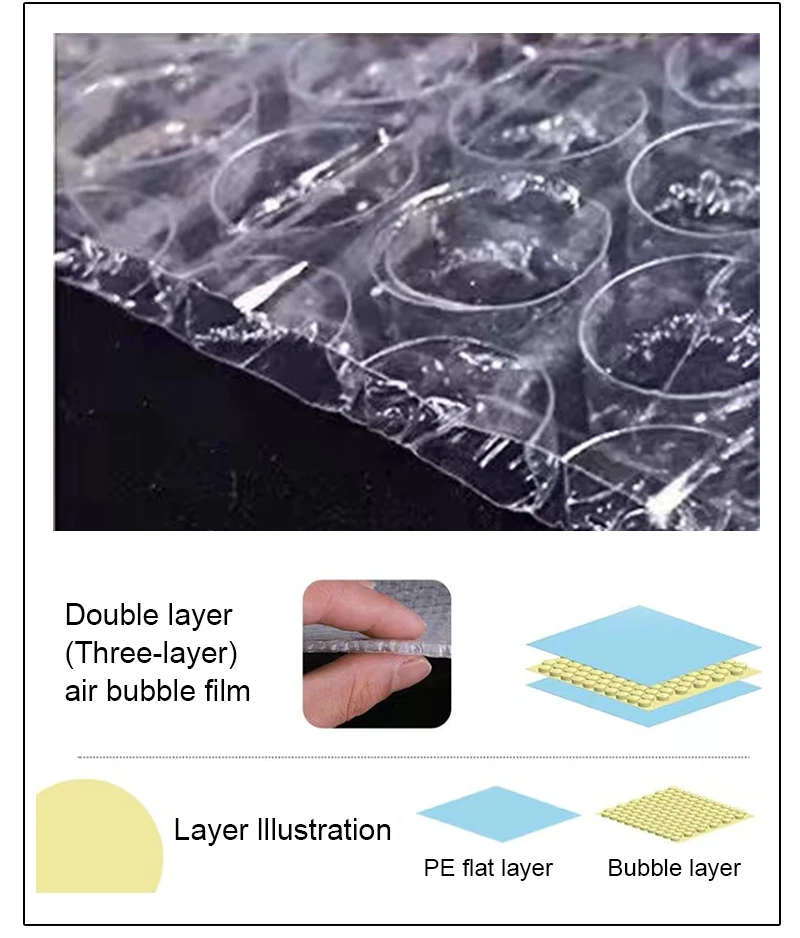

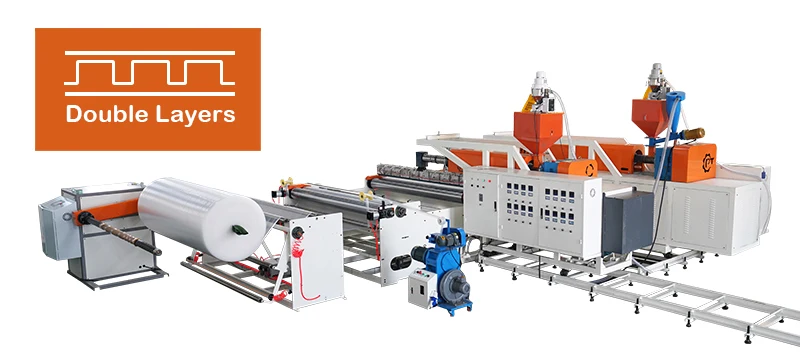

Three layers (double layers) air bubble film machine
Comlete film width (mm) | 1000 | 2000 |
Model number | PT-L3-S2- W1000 | PT-L3-S2- W2000 |
Material | LDPE/LLDPE/HDPE (New or Recycled) | LDPE/LLDPE/HDPE (New or Recycled) |
Line speed (m/min) | 15-35 | 15-35 |
Capacity (kg/hr) | 80-150 | 130-250 |
Thickness (g/m²) | 25-300 (two layers) 38-300 (three layers) | 28-300 (two layers) 42-300 (three layers) |
Main screw diameter(mm) | Φ65/Φ75/Φ80 | Φ80/Φ90/Φ105 |
Sub screw diameter (mm) | Φ50/Φ65 | Φ75/ΦΦ80 |
Heating power (kw) | 81-95 | 130-150 |
Operation (kw) | 57-70 | 91-105 |
Dimension L×W×H(m) | 10×6×3.3 | 11×9×3.3 |
weighr(kg) | 6250 | 9600 |

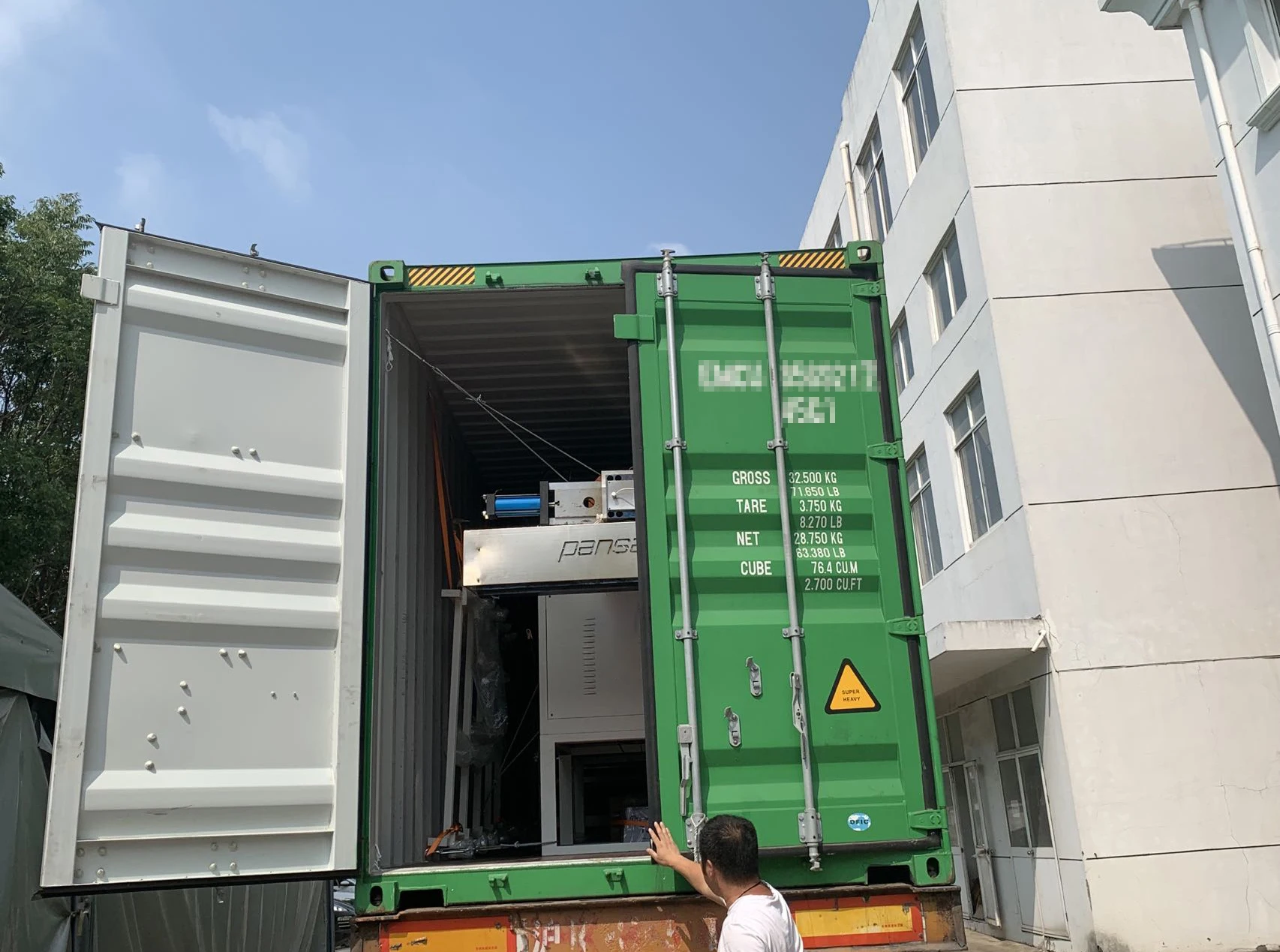

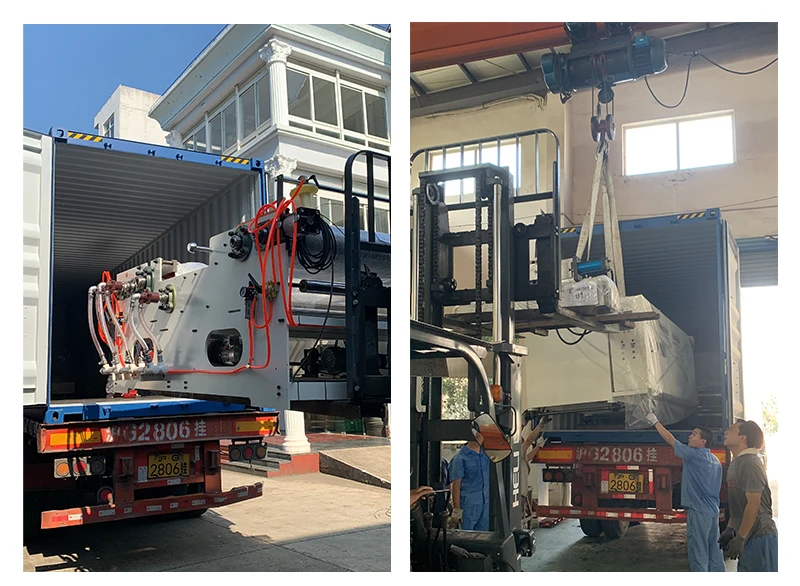

Shipping and loading
Certificate
We are one of the few verified suppliers passed SGS, CE, ISO 9001 and other certificates.
Different from gold suppliers,verified suppliers
are officiallyexamined by Alibaba.com,
and proved to be solid and reliable manufacturers.

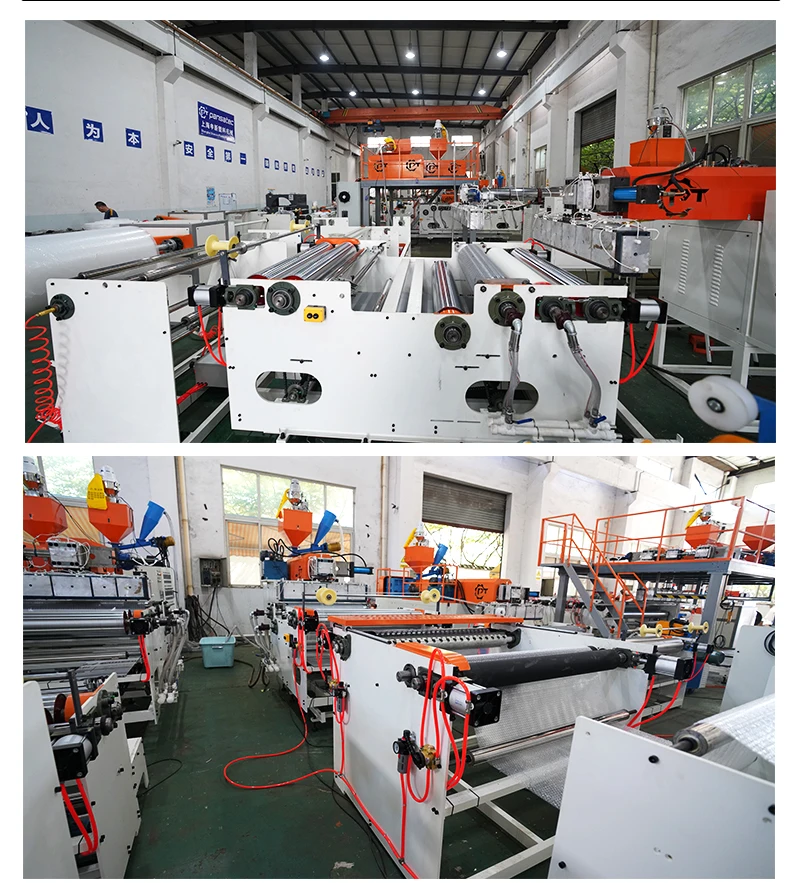

Factory
