Factory Sell Directly Hot Runner Spring Coil Heater with Thermocouple Wire with One Year Warranty
- Category: >>>
- Supplier: Shanghai Pamaens Technology Co. Ltd.
Share on (1600589868517):
Product Overview
Description
Product Description
Introduction of Hot Runner Spring Coil Heater with Thermocouple
Hot Runner Spring Coil Heaters with Thermocouple are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available.
Datasheet of Hot Runner Spring Coil Heater with Thermocouple
Sheath of coil heater: SUS304
Insulation of coil heater: Compacted magnesium Oxide
Heating conductor: NiCr8020
Thermocouple: K type, J type (optional)
Leads: Stainless steel braided wire, PTFE wire, glass fiber wire ( On demand)
Voltage: 24V to 415V
Temperature resistance: Maxi 800 cent degree
Outlet types of Hot Runner Spring Coil Heater with Thermocouple
1. Radial type
2. Tangential type
3. Azial type
Standard section size of Hot Runner Spring Coil Heater with Thermocouple
Ø 1.8mm, Ø 3.0mm |
Ø 3.3mm, Ø 4,0 mm |
2.2 x 4.0 mm, 2.0 x 4.2 mm |
2.2 x 4.2 mm, 2.5 x 4.0 mm |
2.5 x 4.2 mm, 2.7 x 4.5 mm |
2.7 x 4.2 mm, 3.0 x 3.0 mm |
3.0 x 4.5 mm, 3.3 x 3.3 mm |
Other size could be customized. |
Standard size of Hot Runner Spring Coil Heater with Thermocouple
230V | Total length straight (incl. cold length) | |||
2,2 x 4,2 mm | Ø 3,0mm | 3,2x3,2mm | 2,5x4,0mm | |
Other types on request | ||||
150 W | 265 mm | - | - | - |
175 W | - | 365 mm | 250 mm | - |
200 W | 315 mm | - | 300 mm | 250 mm |
225 W | 345 mm | - | 350 mm | 300 mm |
250 W | 400 mm | 515 mm | 400 mm | 350 mm |
290 W | 450 mm | - | 450 mm | 400 mm |
330 W | - | 615 mm | 500 mm | 450 mm |
350 W | 525 mm | - | - | - |
400 W | 585 mm | 765 mm | 600 mm | 500 mm |
470 W | 665 mm | - | 700 mm | 600 mm |
550 W | - | - | 800 mm | 700 mm |
620 W | 825 mm | - | 900 mm | 800 mm |
690 W | 965 mm | - | - | - |
700 W | - | - | 1000 mm | 900 mm |
800 W | - | - | - | 1000 mm |
850 W | 1165 mm | - | 1200 mm | - |
950 W | 1265 mm | - | 1400 mm | 1200 mm |
1000 W | - | - | - | - |
1100 W | 1465 mm | - | 1600 mm | 1400 mm |
1200 W | 1615 mm | - | 1800 mm | 1600 mm |
1400 W | 1815 mm | - | - | - |
1600 W | 2015 mm | - | - | - |
1800 W | - | - | - | - |
2000 W | - | - | - | - |
2200 W | - | |||

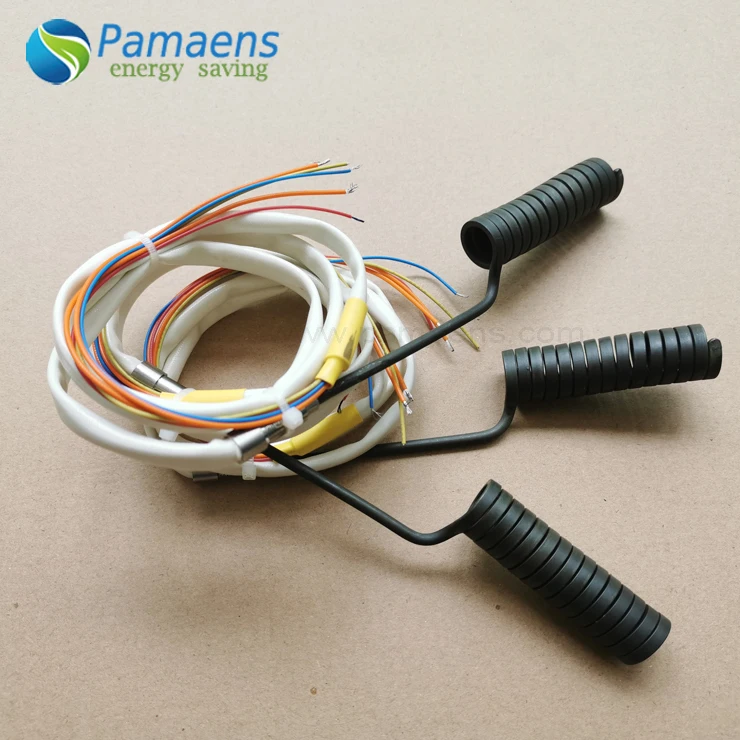

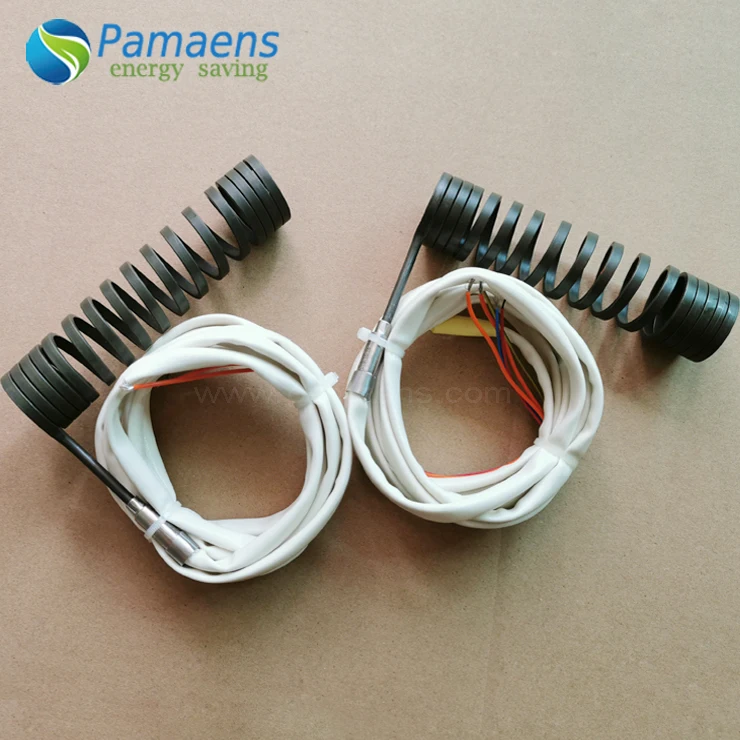

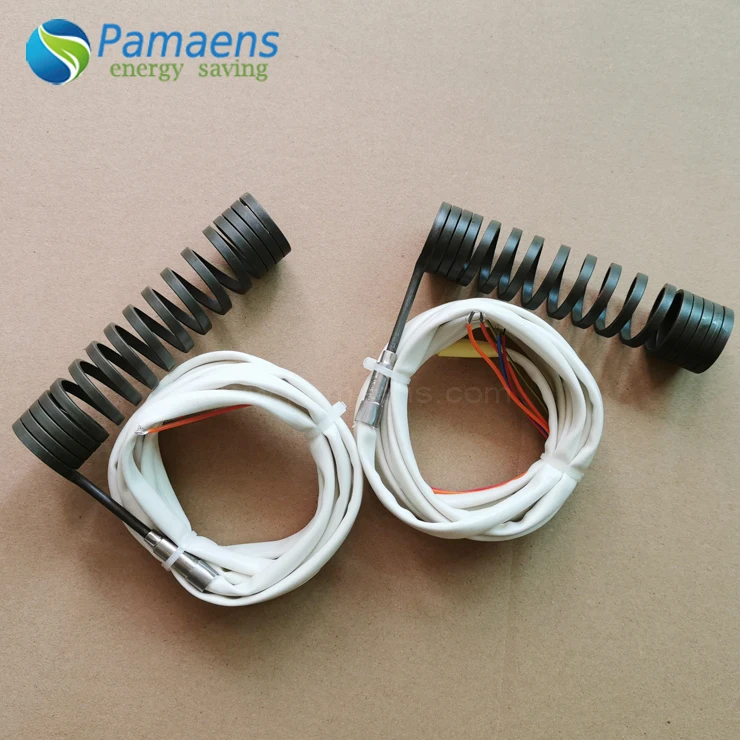

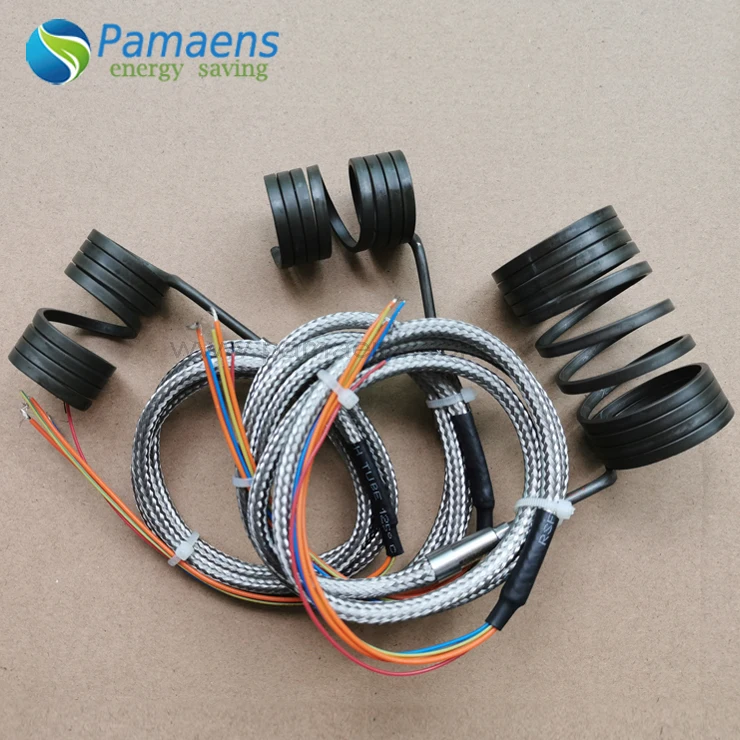

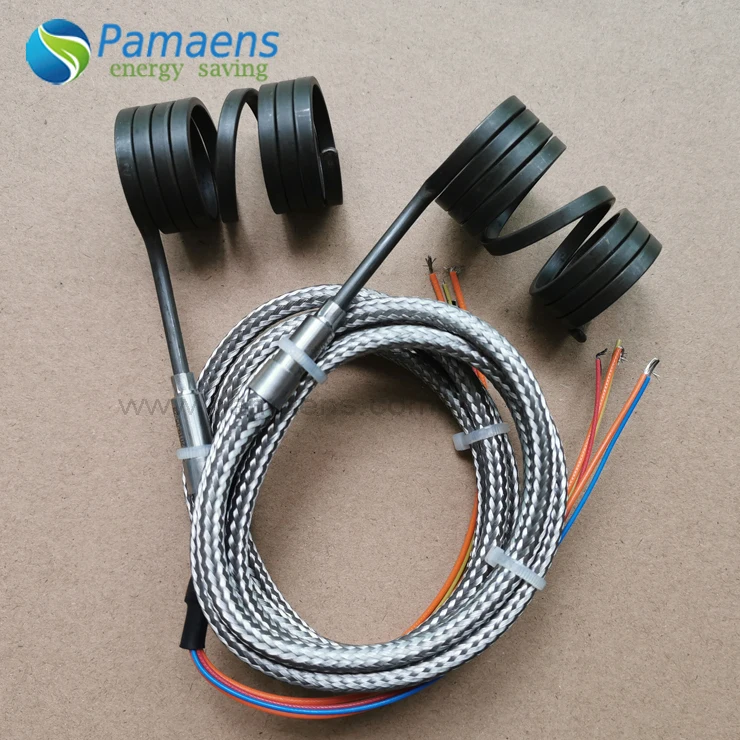

Product showcase of Hot Runner Spring Coil Heater with Thermocouple
 |  |
 |
|
 |  |
 |  |
Packaging & Shipping
PACKAGE:
Separate blister package and paper carton
DELIVERY TIME:
3-15 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Our Services
Our Services
Company Information
Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, developping and manufacturing heaters, plastic machinery accessaries and energy saving products. We have strong researching and developping team, many of our engineers have more than ten years experience on manufacturing heaters, and we have stict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.
FAQ
Order Guidance of Hot Runner Spring Coil Heater with Thermocouple
FAQ
Diameter and Length
Voltage
Power
Lead wire type and length
QuantityHot Runner Spring Heater Nozzle Coil
FAQ
How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product's quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
What is your term of delivery?
We accept EXW, FOB or C&F Shanghai, DDU etc. You can choose the one which is the most convenient or cost effective for you.
What about the lead time for the mass production?
Our production time is 10-20 days depends on the order quantity and the season you place the order.
