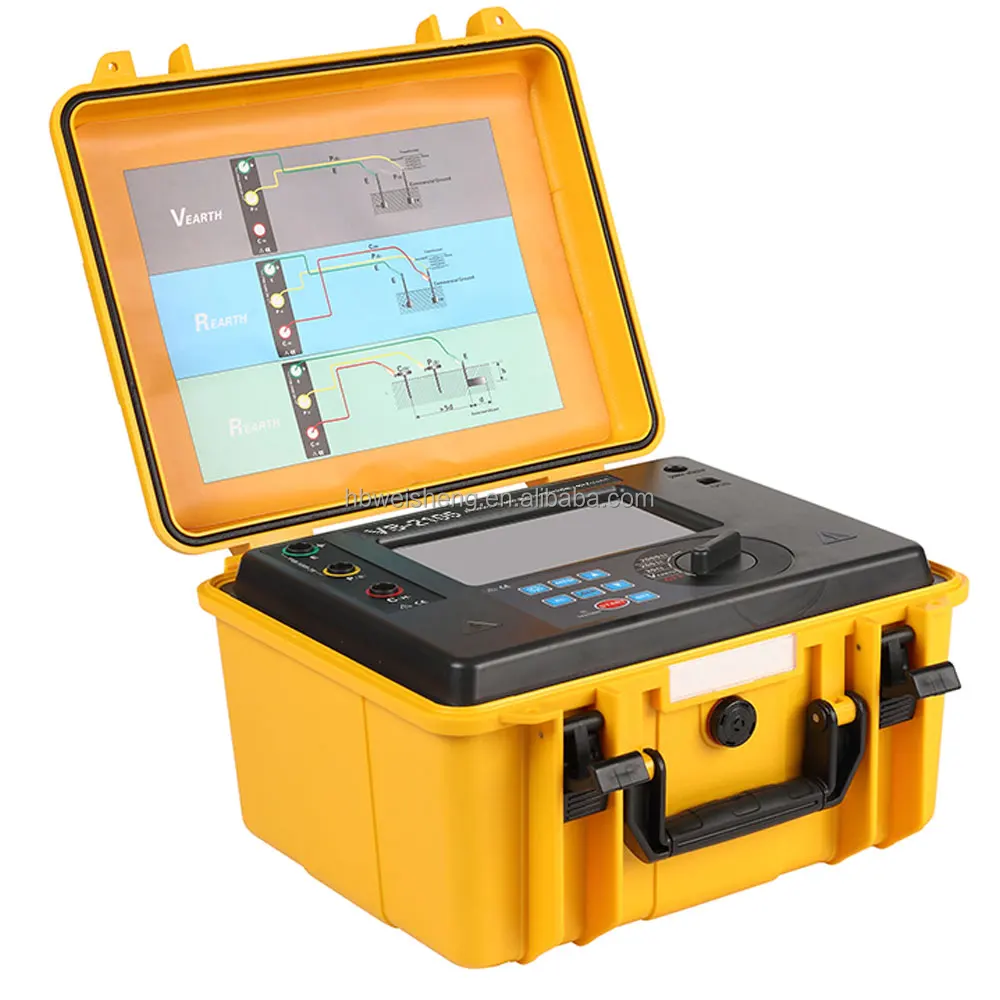

Gas Phase Equipment Grounding Resistance Soil Resistivity Tester
- Category: Other Electrical Instruments >>>
- Supplier: Weshine,Electric,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
1.Soil resistivity tester supports 2, 3 and 4wire grounding resistance measurement.
2. 4digit large LCD display with white screen backlight, suitable for use in dimly lit places.
3. IP65 protection grade, good waterproof, compact and portable, supports multiple functional tests.
4. Ground resistance measurement range is 0.0030.00kΩ, and soil resistivity is 0.00Ωm900kΩm.
5. Support ground voltage, AC voltage measurement, high accuracy, long-term use.
2. 4digit large LCD display with white screen backlight, suitable for use in dimly lit places.
3. IP65 protection grade, good waterproof, compact and portable, supports multiple functional tests.
4. Ground resistance measurement range is 0.0030.00kΩ, and soil resistivity is 0.00Ωm900kΩm.
5. Support ground voltage, AC voltage measurement, high accuracy, long-term use.
Specification:
Item Type: Soil Resistivity Tester
Material: ABS
Model:VS-2105
Function: 2, 3 and 4 wires to measure grounding resistance, soil resistivity; grounding voltage, AC voltage measurement
Working Voltage: DC7.4V 2600mAh x1 Rechargeable lithium battery, the battery is fully charged about 8.4V (built-in battery)
Adapter: US Standard AC100-240V
Range:
1. Grounding Resistance: 0.00 - 30.00kΩ
2. Soil Resistivity: 0.00Ωm - 900kΩm
3. Grounding Voltage: 0V - 600V
Measurement Method: Precise 4-wire, 3-wire method measurement, simple 2-wire measurement of ground resistance
Measurement: Grounding Resistance: Rated current pole changing method, measuring current 20mA Maximum
Soil Resistivity: Quadrupole Method (Winner Method)
Voltage To Ground: Average Value Rectification (Between P(S)-ES Interface)
Test Frequency: 128Hz/111Hz/105Hz/9Hz (AFC)
Short Circuit Test Current: AC 20mA Maximum
Open Circuit Test Voltage: AC 40V Maximum
Test Voltage Waves: Sine Waves
Electrode Spacing Range: 1m-100m can be set
Material: ABS
Model:VS-2105
Function: 2, 3 and 4 wires to measure grounding resistance, soil resistivity; grounding voltage, AC voltage measurement
Working Voltage: DC7.4V 2600mAh x1 Rechargeable lithium battery, the battery is fully charged about 8.4V (built-in battery)
Adapter: US Standard AC100-240V
Range:
1. Grounding Resistance: 0.00 - 30.00kΩ
2. Soil Resistivity: 0.00Ωm - 900kΩm
3. Grounding Voltage: 0V - 600V
Measurement Method: Precise 4-wire, 3-wire method measurement, simple 2-wire measurement of ground resistance
Measurement: Grounding Resistance: Rated current pole changing method, measuring current 20mA Maximum
Soil Resistivity: Quadrupole Method (Winner Method)
Voltage To Ground: Average Value Rectification (Between P(S)-ES Interface)
Test Frequency: 128Hz/111Hz/105Hz/9Hz (AFC)
Short Circuit Test Current: AC 20mA Maximum
Open Circuit Test Voltage: AC 40V Maximum
Test Voltage Waves: Sine Waves
Electrode Spacing Range: 1m-100m can be set
Specification
Brand Name | WESHINE |
Product name | VS-2105 |
Grounding Resistance | 0.00 - 30.00kΩ |
Soil Resistivity | 0.00Ωm - 900kΩm |
Grounding Voltage | 0V - 600V |
Test Frequency | 128Hz/111Hz/105Hz/9Hz (AFC) |
Short Circuit Test Current | AC 20mA Maximum |
Open Circuit Test Voltage | AC 40V Maximum |
Test Voltage Waves | Sine Waves |
Electrode Spacing Range | 1m-100m can be set |
Working Temperature and Humidity | -10℃-40℃; below 80%RH |
