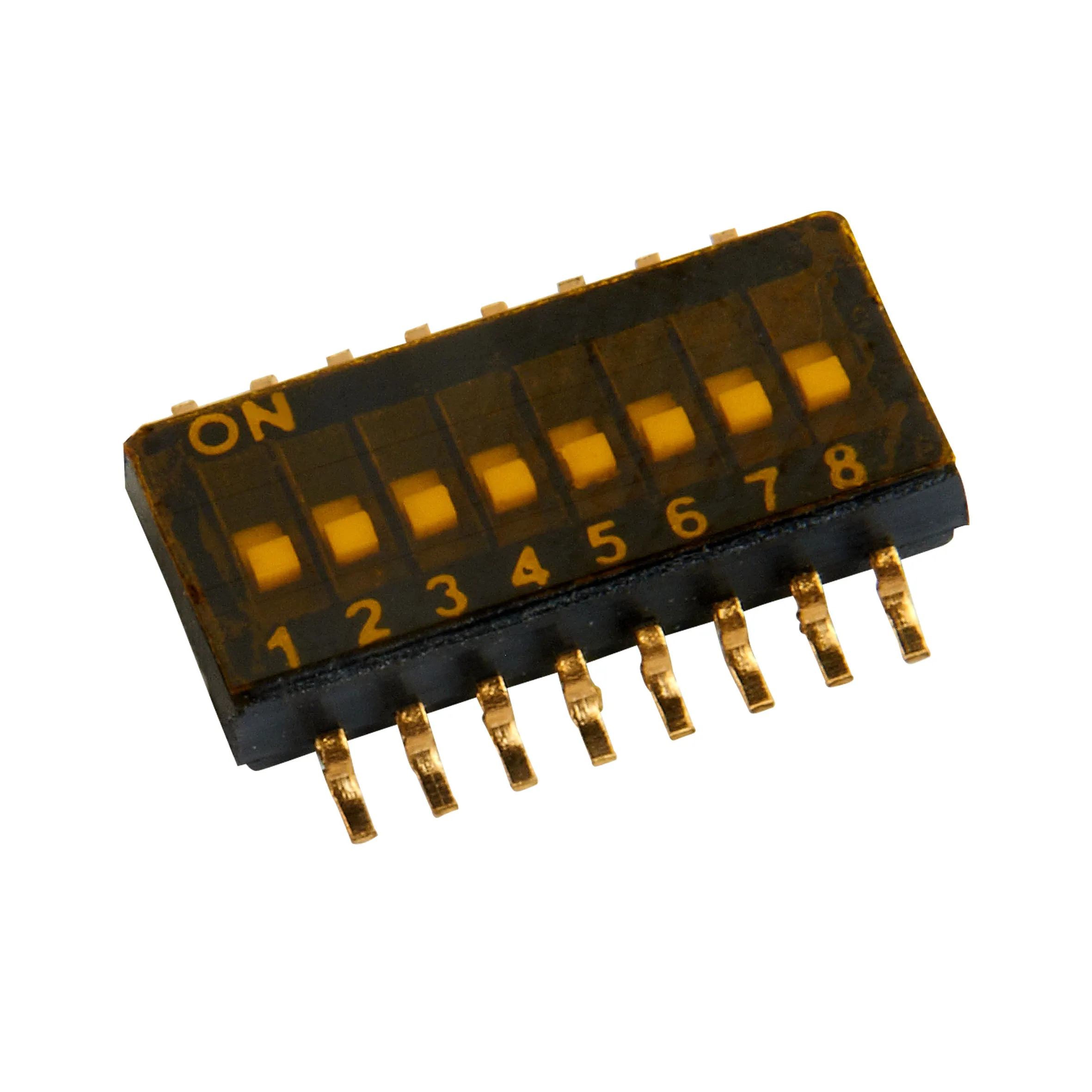

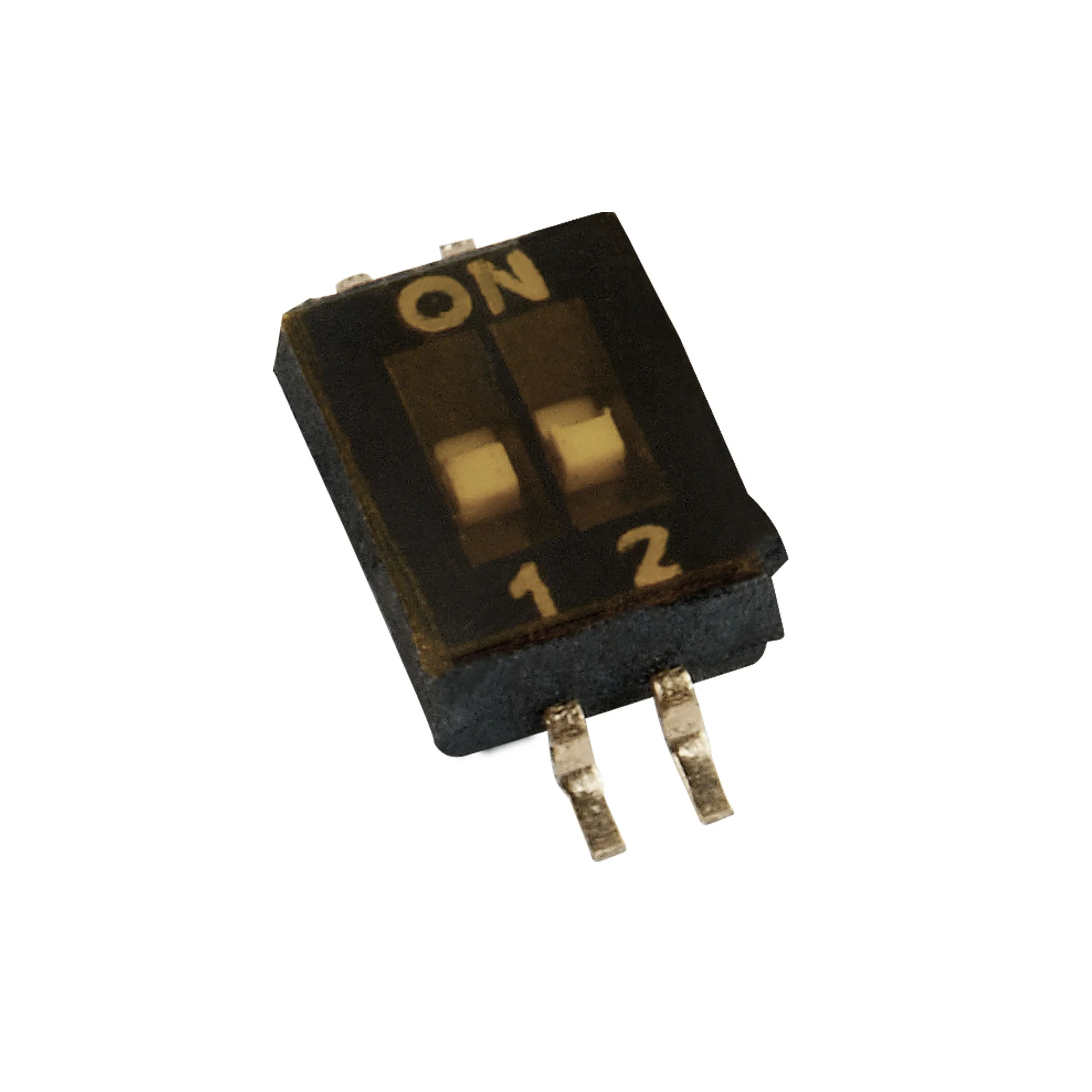

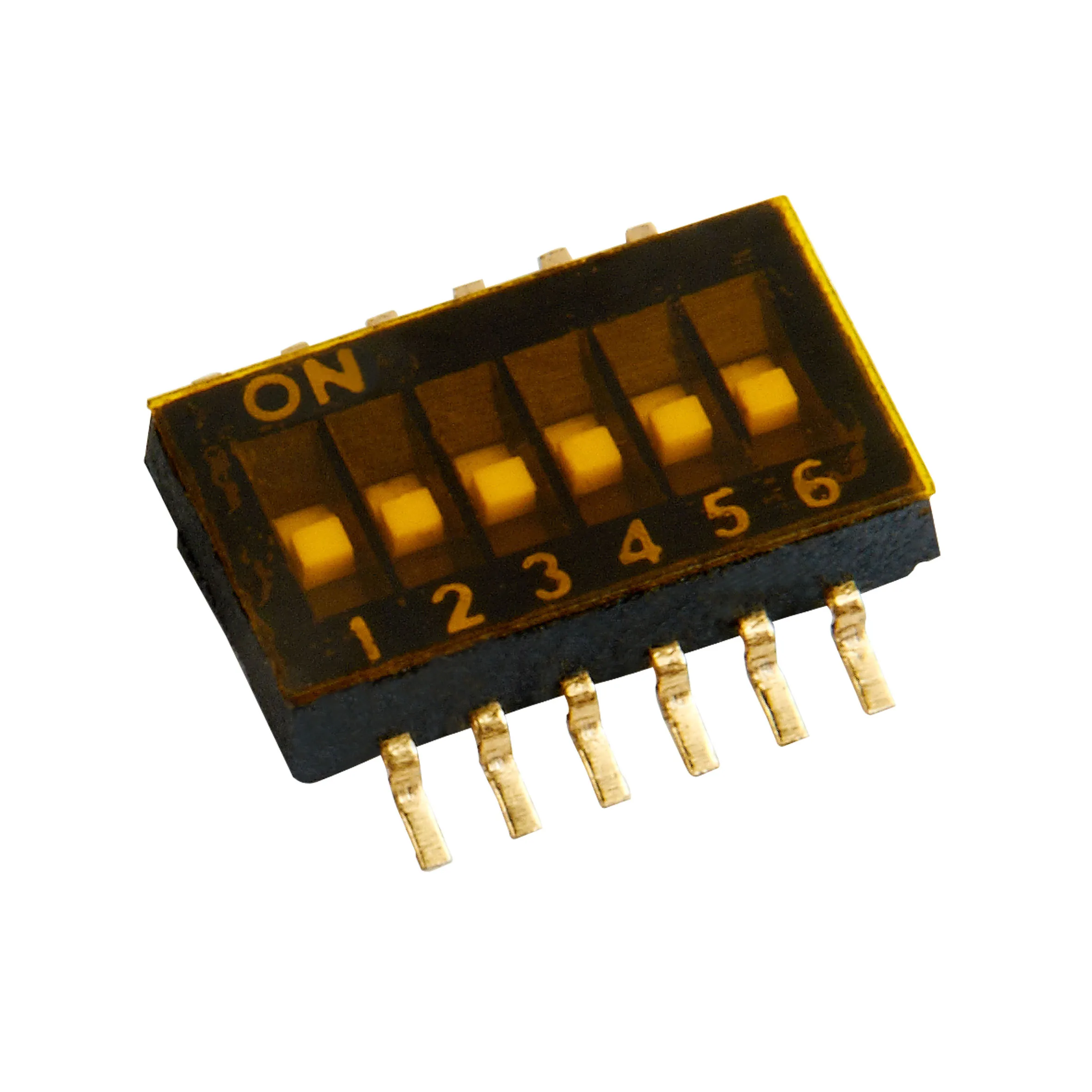

DIP SWITCH 2/4/6/8 position single pole single throw Black 1.27mm SMD SWITCHslide type dip switch
DIP SWITCH 2/4/6/8 position single pole single throw Black 1.27mm SMD SWITCHslide type dip switch
DIP SWITCH 2/4/6/8 position single pole single throw Black 1.27mm SMD SWITCHslide type dip switch
DIP SWITCH 2/4/6/8 position single pole single throw Black 1.27mm SMD SWITCHslide type dip switch
DIP SWITCH 2/4/6/8 position single pole single throw Black 1.27mm SMD SWITCHslide type dip switch
DIP SWITCH 2/4/6/8 position single pole single throw Black 1.27mm SMD SWITCHslide type dip switch
DIP SWITCH 2/4/6/8 position single pole single throw Black 1.27mm SMD SWITCHslide type dip switch

DIP SWITCH 2/4/6/8 position single pole single throw Black 1.27mm SMD SWITCHslide type dip switch

Share on (1600589934007):


Price:$0.01 - $0.10

Quantity:


Product Overview

Description



Products Description


Mechanical life
2000 operations per switch
operation Force
≤9.8N MAX
Stroke
2.0mm
operation temp
-20 to 70°C
E lectronic life
2000 operations per switch -24vdc 25ma
contact resistance
50mΩmax.at initial
NON-SWITCHING RATING
100MA,50VDC
SWITCHING RATING
25MA 24VDC
CIRCUIT
SINGLE POLE  SINGLE THROW


MDTS-04
MDTS-06
MDTS-08
