Гайковерт TY13245MB с Микки Маусом, № 8 | Диаметр пилотного отверстия 164 дюйма | Размер отверстия сверла #40, двойная шпиндельная дрель

Product Overview

Description

MODEL	TY13245MB
MODEL NUMBER DESIGNATION	1, Drilling Tools 3, Pistol Drills 2, Nutplate Drill Motors 45, Free Speed (4,500 rpm) M, For Mickey Mouse nutplate B, Identity Digit
PILOT HOLE DIAMETER	.164"
DRILL HOLE SIZE	#40
DRILL HOLE TO DRILL HOLE SPACING	.344
BOLT REF.	#8
DRILL CAPACITY	2 mm - 5 mm
FREE SPEED	4,500 rpm
GRIP	PISTOL
POWER	450 W (0.6 hp)
WEIGHT	1.4 kg (3.1 lb)
AIR CONSUMPTION	30 CFM @ 90 PSI
CURRENT	PNEUMATIC
AIR INLET	1/4”
REC AIR HOSE	3/8”
SOUND POWER	99 dB(A)
SKU	359878

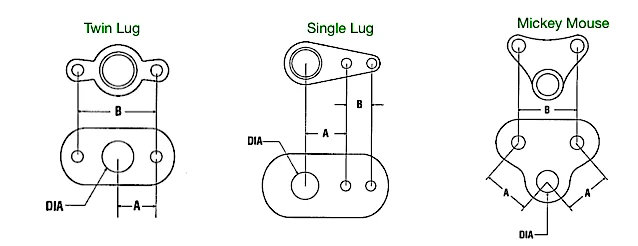

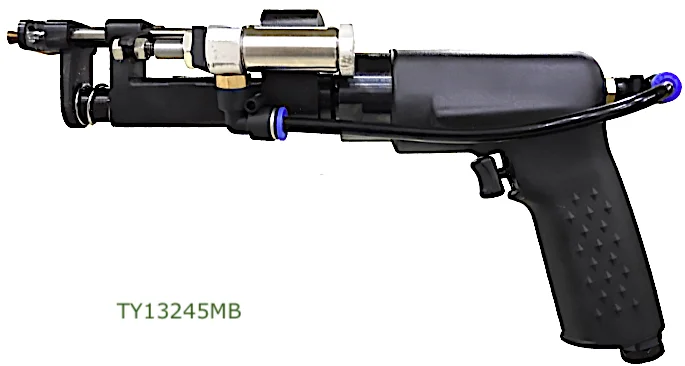

TY13245MB is a Twin spindle drill for Nut plate fasteners. Ergonomic, lightweight design. Only one hand required to locate, drill & countersink both holes. Available in single wing, double wing, mickey mouse models & Anchornut Type. Fully adjustable feed rate.



-.250” Countersink. (The contersink could be modified per buyers' request)

- Minimum Countersink Depth Accuracy of +/-.001”.



What is Nut Plate?

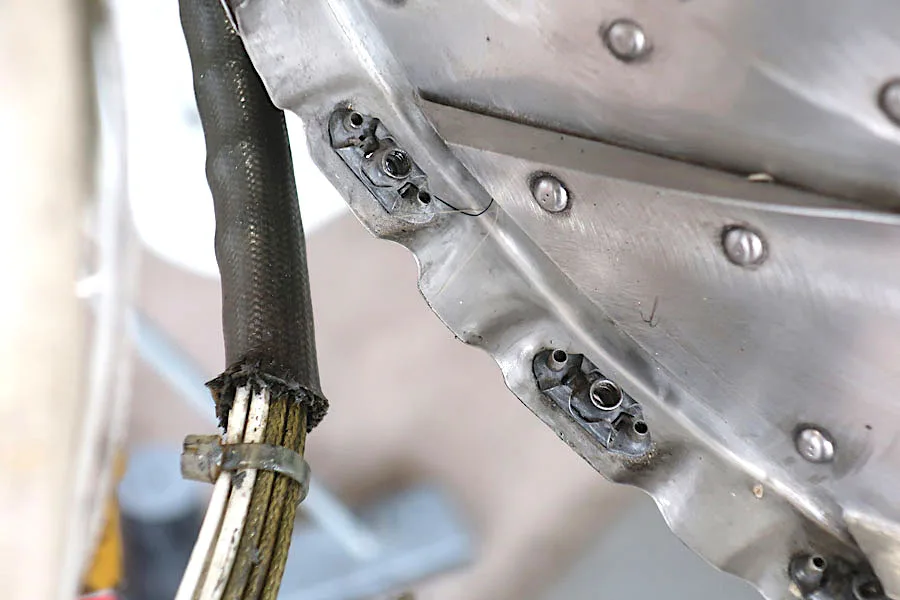

Like a normal nut, nut plates (or anchor nuts) have a threaded hole that accepts a screw or bolt, but they also have two holes used to affix them permanently to an airframe, usually with rivets. Think of them as nuts that can’t fall when the screw or bolt is removed. Think of them as nuts that require no tools to keep them from rotating while a screw or bolt is installed or removed. Think of them every time you don’t have to think of getting a helper, or duct-taping a combination wrench to the inside of your firewall, to swap out a faulty fuel pump.



In a nutshell, nut plates ease and speed the removal and installation of commonly removed airframe components but can themselves be fiddly to install.

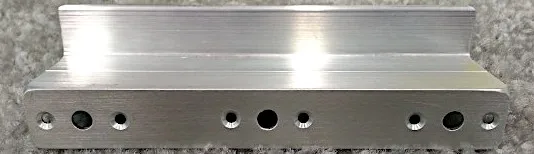

Typically, you would use the nutplate as the drill guide for the #40 rivet holes. Some do this by bolting a nuplate to the bracket from the underside and then using a block of wood that has a relief in it for the bolt head, drill a hole in one wing of the nutplate through the bracket into the wood, insert a cleco in that hole, and then drill the other. Then you have to repeat for each hole in each bracket. Once done, you then have to countersink the aft side of the bracket to accept flush rivets as this face sits against the spar. They do make drill jigs to speed this process up, but they are a bit pricey. It eliminates the need to bolt the nuplate to the part, but still requires the holes to be drilled one at a time, flip the jig and drill the other.



The time above two methods take is simply ridiculous. There is a pneumatic tool (Nutplate drill motor) made specifically for doing nutplates. It uses a center pilot the size of the bolt hole that when engaged, it acts like a cleco, pulling the part to the tool. It then has two drill bits on either side, exactly at the spacing for the nuplate rivet holes, that plunge simultaneously to drill the #40 holes. Wait, that is not all. The bits also have countersinks on them. So at the end of the drilling, it also countersinks the holes. In one trigger pull, you get perfectly aligned rivet holes, that are countersunk all in about 10 seconds. Most of that is inserting the pilot and lining up the part to the tool.



Needless to say, you knock out 36 nutplate locations in less than 20 minutes and the only thing left is the backside of the countersunk holes being deburred. It is certainly true what it is said about the right tool for the job. Now let's continue with the “Checkoway” method.

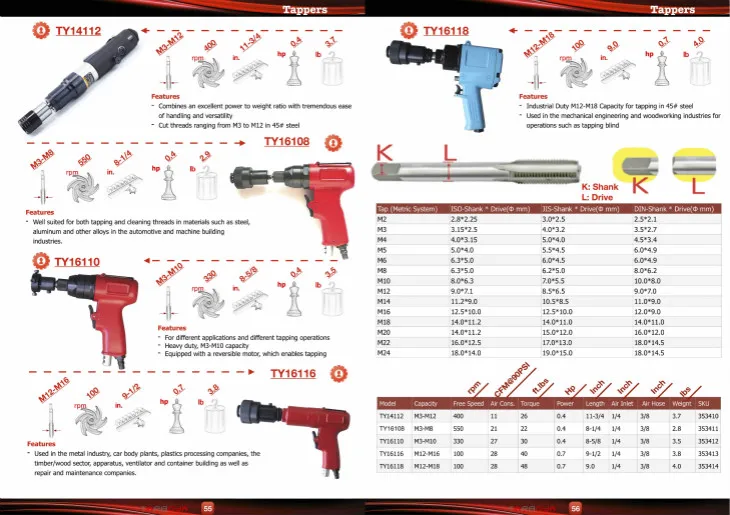

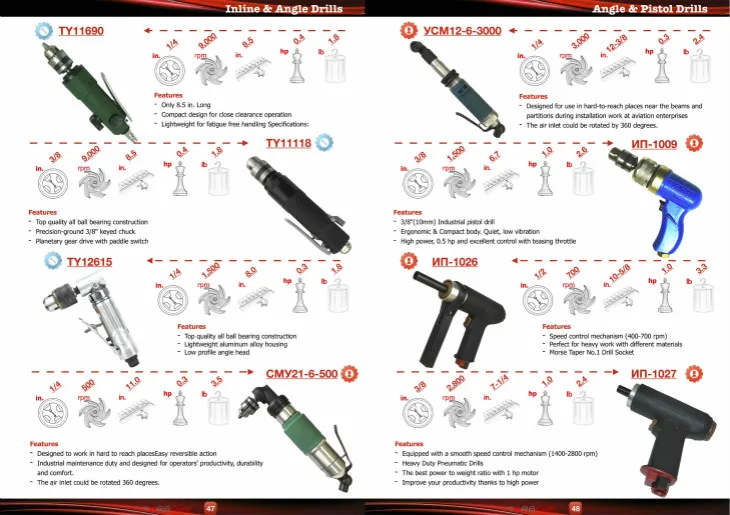

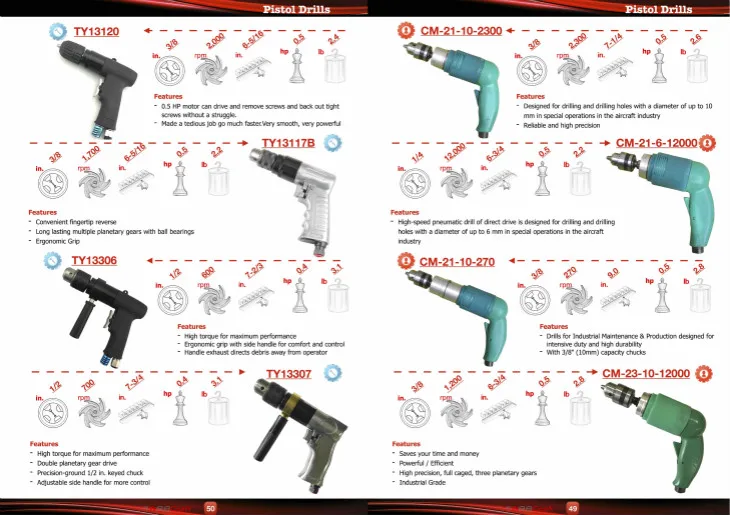

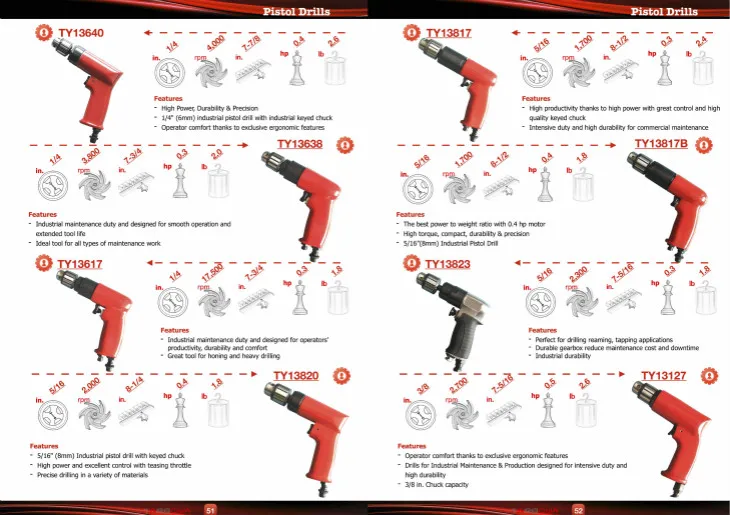

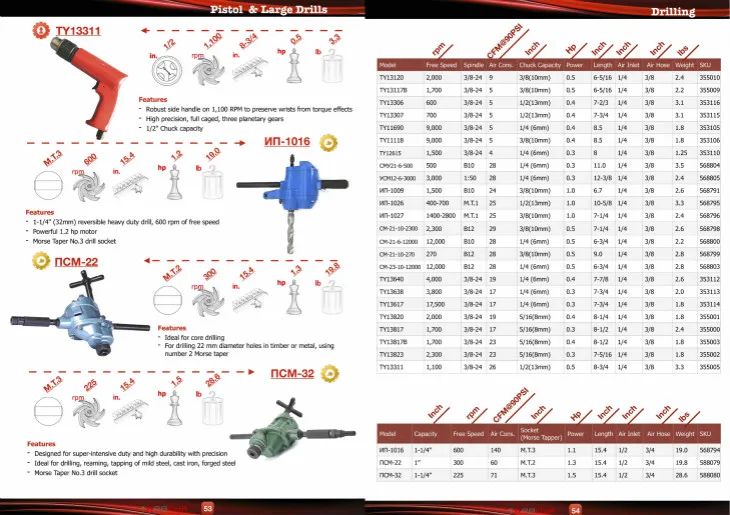

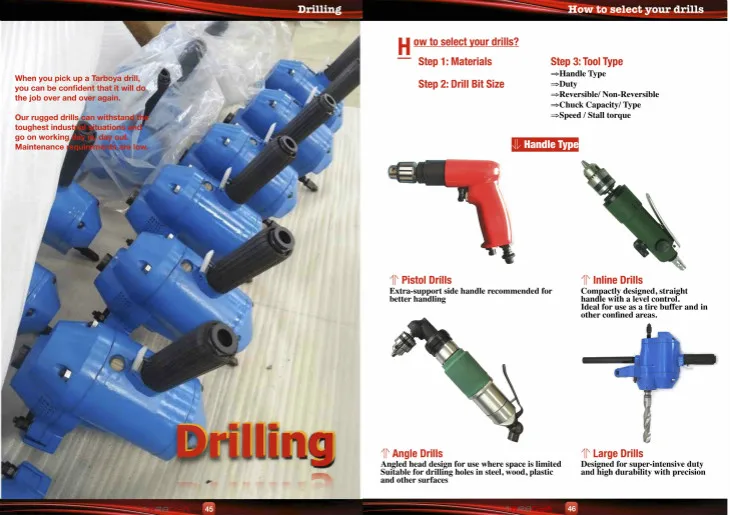

Tarboya Drilling Tools Brochure could be downloaded from www.tarboya.com

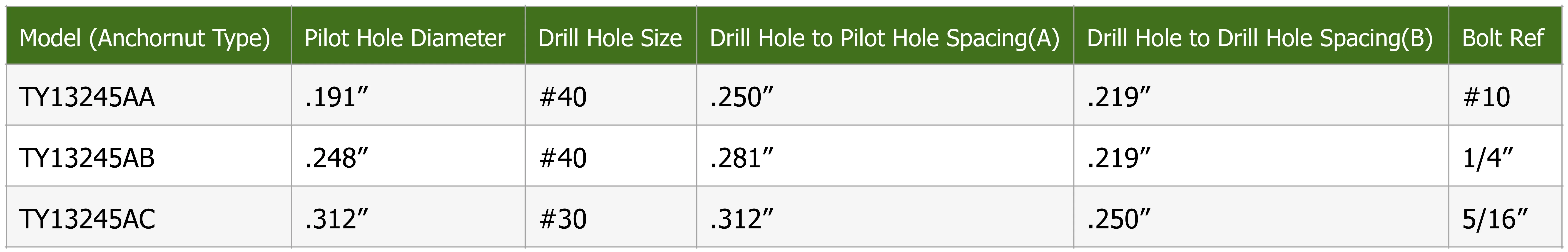

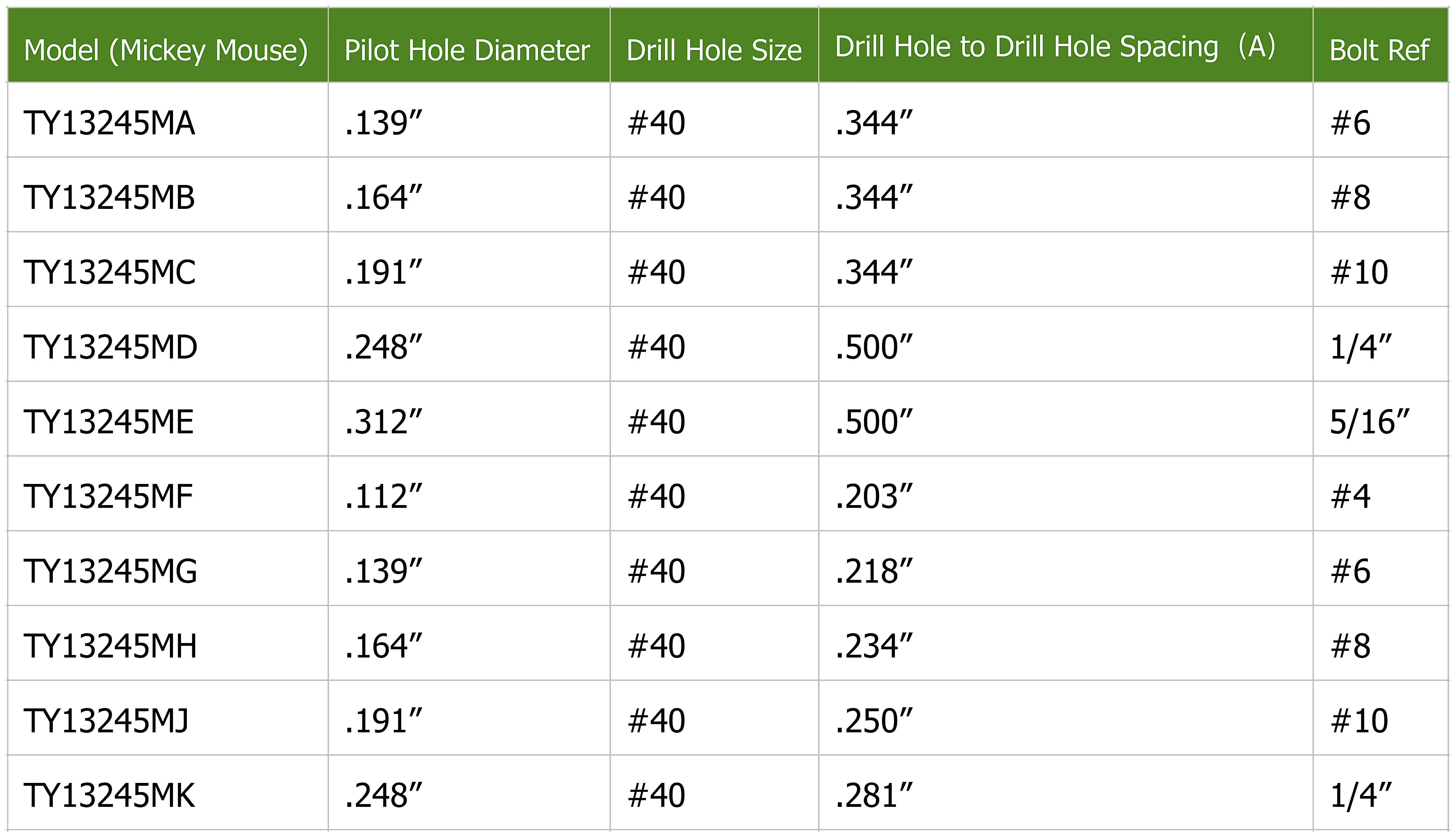

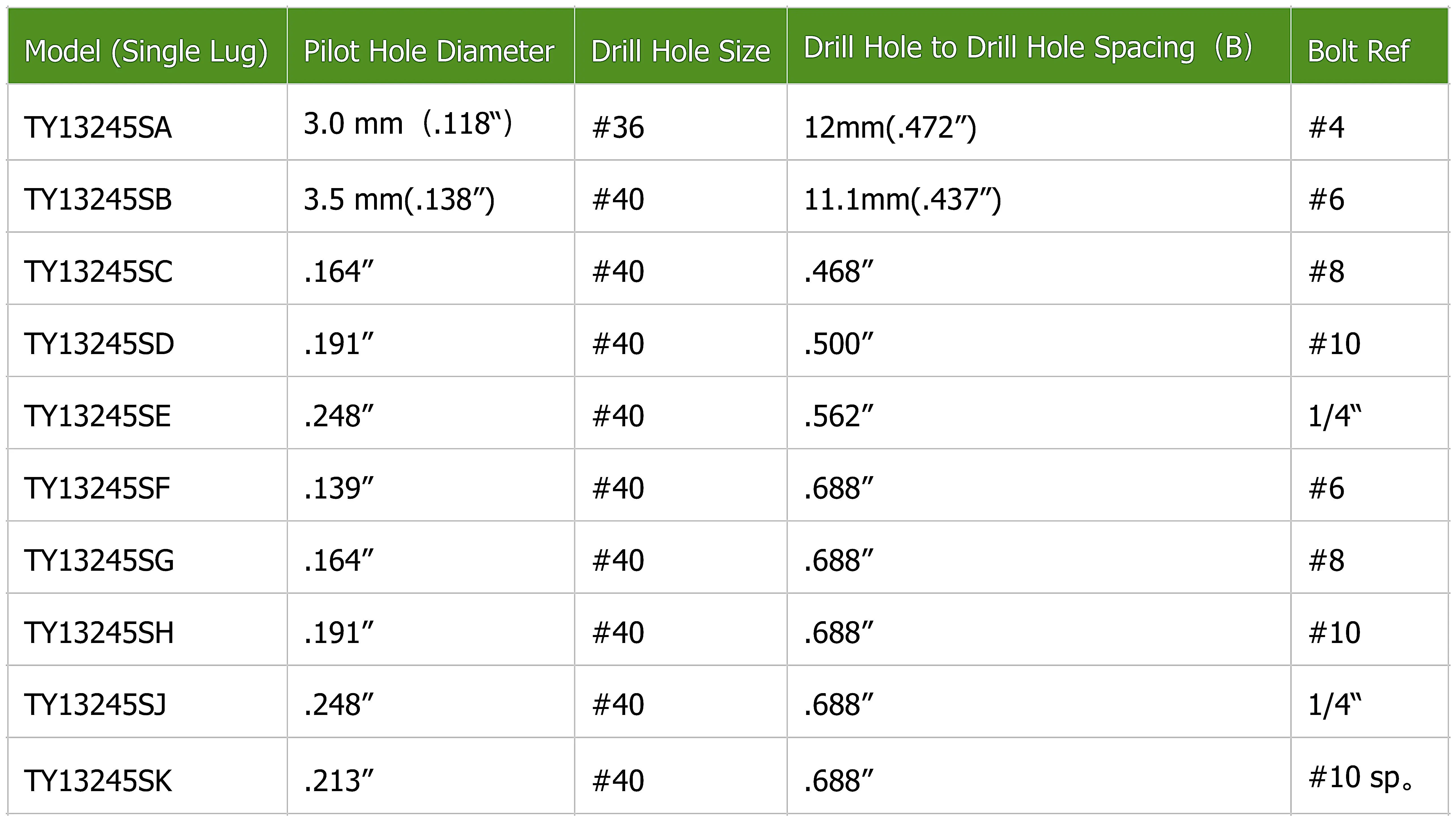

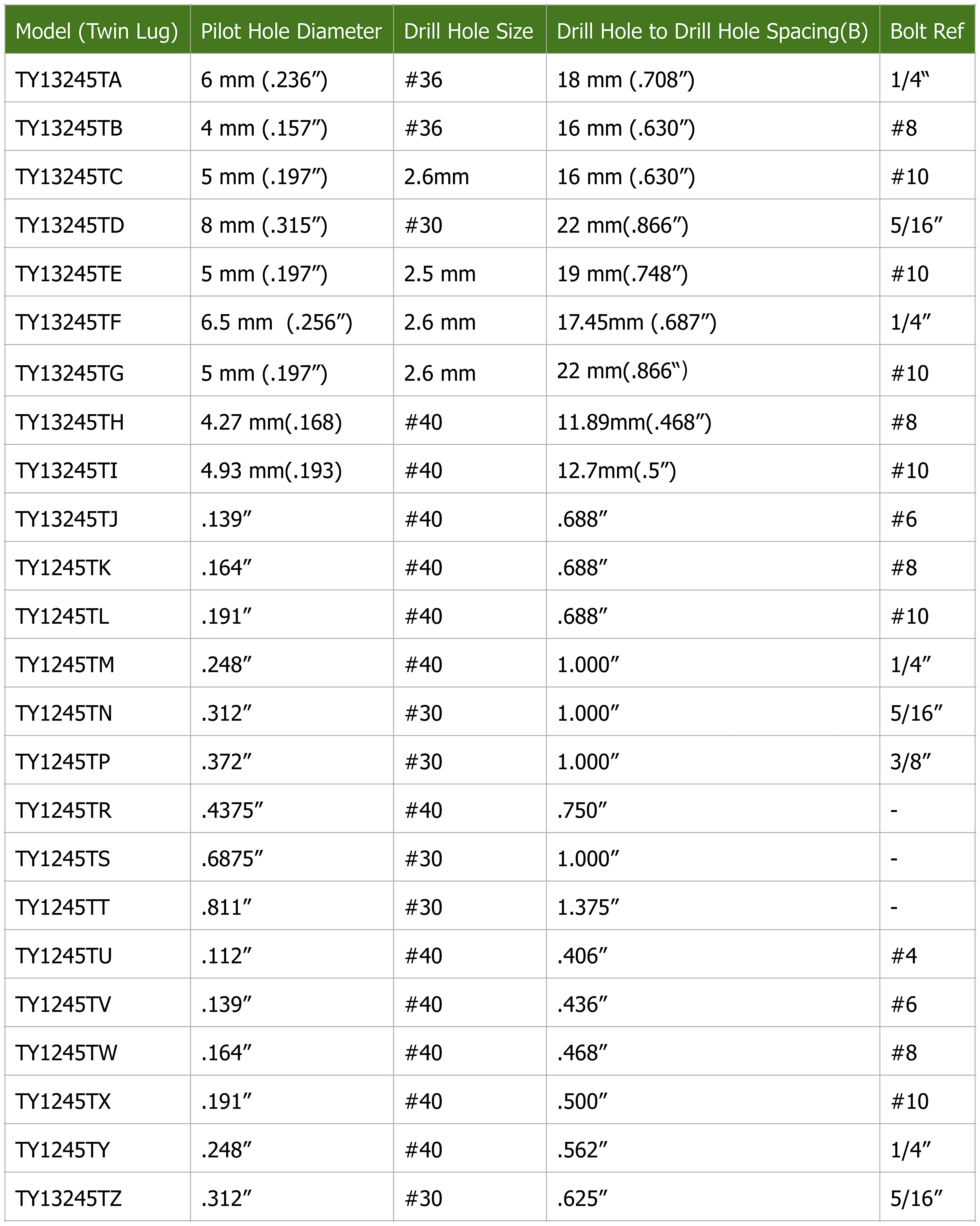

More Models and Their Capacity









At Tarboya, we bring you only two things: great products and exceptional service. Whenever you are using your pneumatic tools , we make sure you have the technology you need to be safe and efficient. Tarboya supplies both Russia pneumatics and ordinary air tools. Our team, capable of designing, developing, CNC modification and production, supports multiple industries with innovative, high quality air tools and accessories for the most demanding applications. Tarboya’s export starts in Mid 2018, our Alibaba shop was incepted in 2019 but we   a-r-e   d-i-f-f-e-r-e-n-t !

Wait.. Are you kidding me? What the f**k Tarboya, you are only 2 years old and even do not know the ABCs of air tools.

Before 2018, we are doing inland sales. That is the point. Our production and marketing team have been in air tools line for more than 10 years. These backbones have in-depth knowledge and knows air tools very well.

You will find Tarboya owner’s manual, here in Tarboya we name it Passport, is not the simply exploded view or general safety rules translated by Google, but the detailed technical description and operating instructions accurately written.

We assure you only the best designs, materials and production methods are used to make the tools that carry the Tarboya Name.

Quality tool, favorable price, professional papers, swift after-sale service. These are the very four Tarboya wanna to put in your hand.



Tarboya warrants TY13245MB Pneumatic Nutplate Drill Motor will not have any material or manufacturing defects for the period of 12 months from the date of delivery. The warranty for flawless function of the goods and the materials used is granted for the period of 12 months from the date of delivery of the goods.

Tarboya undertakes to remove any possible defects covered by the warranty free of charge and without undue delay, so that the buyer of the goods can use the product properly. Should the buyer exercise rights arising form the liability for the defects which are not covered by the warranty, he/she shall pay all related costs.

Tarboya’s  warranty shall be deemed void in the event of:

• Improper use of the machine,


• Use contrary to national or international standards,


• Incorrect installation,


• Faulty supply of compressed air or its poor quality


• Serious deficiencies in maintenance,


• Unauthorized modifications and/or interventions,


• Total or partial non-compliance with the instructions included in the manual


• Exceptional events, natural disasters and others.
