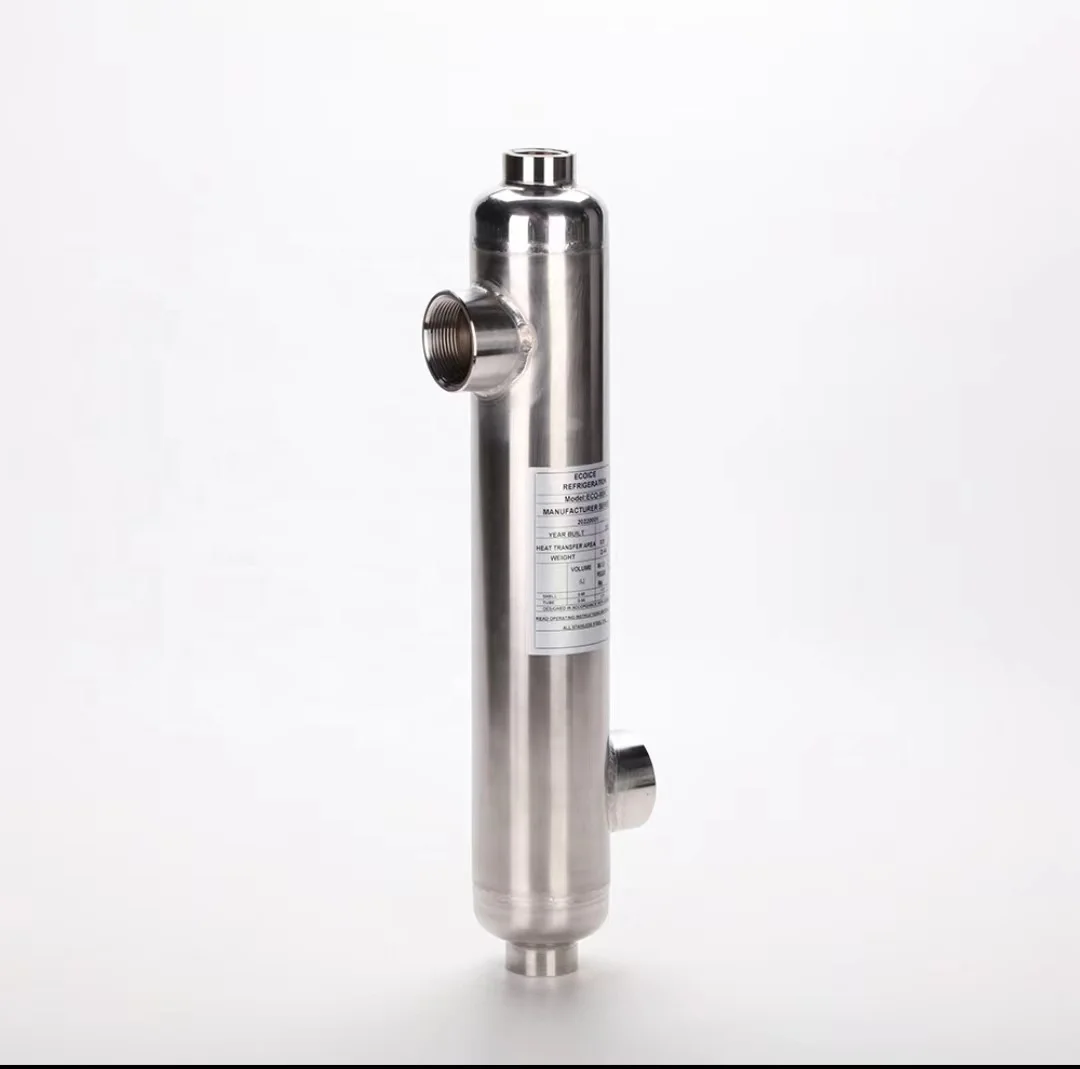

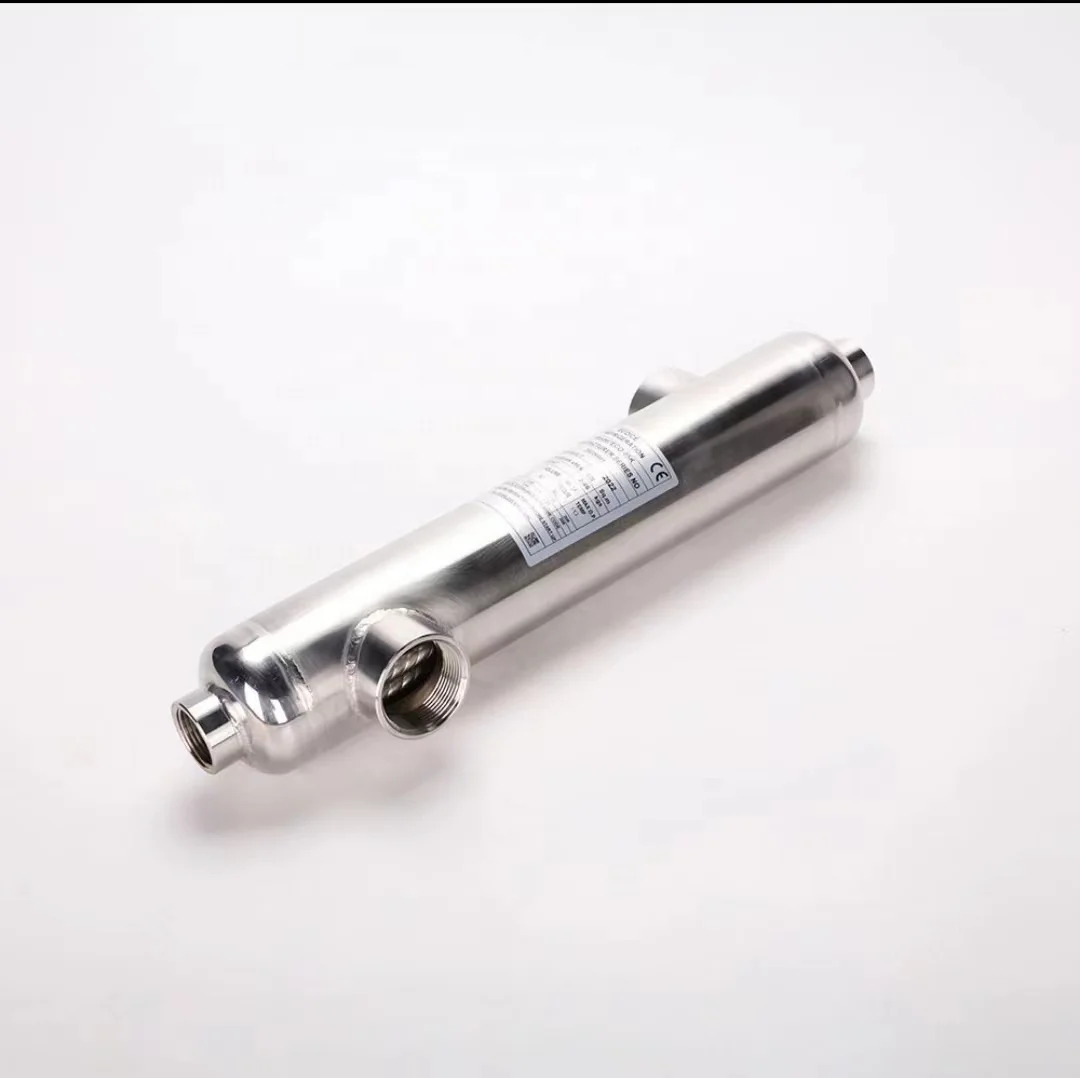

Stainless Steel 304 Swimming Pool Water Heater Multi Heat Source Heat Exchanger
- Category: >>>
- Supplier: SHANDONG ECOICE REFRI CO. LTD
Share on (1600590432166):
Product Overview
Description
Product Description
Specification
With high heat transferring efficient heat exchanger tubes and smooth shell, it ensures high velocities inside of the unit making
the heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any boiler/solar water
heater or heat pump water heater circuit and any pool or spa circuit, besides other applications.
Features:
1. High heating efficiency for pool heating, big flow volume, compactable, easy installation and durable.
2. Max design temperature:208°C
3. Max. working pressure:1.3Mpa
4. Material: All stainless steel 316L,Titanium or according of customer's requirement
5. Warranty period:5 years
Advantages:
1. High efficiency,coefficient up to 10000 W/m2•°C,Heat exchanging capacity 3-7 times traditional equipments.
2. Compact configure, occupy small area,one tenth as the traditional equipments
3. Titanium material, endure high temperature, pressure and corruption.
4. Helix screw thread elasticity heat exchange bundle, eliminate the stress
5. Design flux speed is 5.5m/s, less dirt.
6. ASME standard VIII-1
7. Easy clean and maintain
8. Big flow volume
9. Compactable
10. Easy installation and durable
the heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any boiler/solar water
heater or heat pump water heater circuit and any pool or spa circuit, besides other applications.
Features:
1. High heating efficiency for pool heating, big flow volume, compactable, easy installation and durable.
2. Max design temperature:208°C
3. Max. working pressure:1.3Mpa
4. Material: All stainless steel 316L,Titanium or according of customer's requirement
5. Warranty period:5 years
Advantages:
1. High efficiency,coefficient up to 10000 W/m2•°C,Heat exchanging capacity 3-7 times traditional equipments.
2. Compact configure, occupy small area,one tenth as the traditional equipments
3. Titanium material, endure high temperature, pressure and corruption.
4. Helix screw thread elasticity heat exchange bundle, eliminate the stress
5. Design flux speed is 5.5m/s, less dirt.
6. ASME standard VIII-1
7. Easy clean and maintain
8. Big flow volume
9. Compactable
10. Easy installation and durable

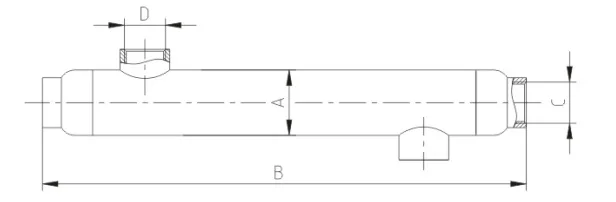

Model | A (mm) | B(mm) | C | E |
ECO-55K | 60 | 360 | 3/4" | 1" |
ECO-85K | 60 | 520 | 3/4" | 1" |
ECO-155K | 76 | 450 | 1" | 1-1/2" |
ECO-210K | 76 | 570 | 1-1/2" | 1-1/2" |
ECO-300K | 76 | 780 | 1-1/2" | 2" |
ECO-360K | 89 | 830 | 1-1/2" | 2" |
ECO-600K | 114 | 900 | 2" | 2-1/2" |
ECO-1200K | 133 | 900 | 2" | 2-1/2" |
ECO-2400K | 168 | 950 | 2" | 4" |
ECO-3000K | 168 | 1100 | 2-1/2" | 4" |
ECO-3600K | 168 | 1300 | 2-1/2" | 4" |
ECO-4500K | 219 | 1070 | 2-1/2" | 4" |
ECO-5000K | 219 | 1120 | 2-1/2" | 4" |
ECO-6000K | 219 | 1220 | 2-1/2" | 4" |
Normal Capacity | Pool Capacity | Heat Transfer Area | |||||
KW | Kbtu/hr | Gallons@1oF/hr | Literes@1o C/hr | m2 | |||
ECO-55K | 16 | 55 | 4700 | 32021 | 0.15 | ||
ECO-85K | 25 | 85 | 7300 | 49735 | 0.25 | ||
ECO-155K | 45 | 155 | 13300 | 90613 | 0.33 | ||
ECO-210K | 61 | 210 | 18000 | 122634 | 0.44 | ||
ECO-300K | 88 | 300 | 25800 | 175776 | 0.64 | ||
ECO-360K | 105 | 360 | 31500 | 21460 | 0.85 | ||
ECO-600K | 175 | 600 | 52500 | 357684 | 1.55 | ||
ECO-1200K | 352 | 1200 | 105600 | 719455 | 2.01 | ||
ECO-2400K | 704 | 2400 | 211200 | 1438910 | 4.47 | ||
ECO-3000K | 880 | 3000 | 264000 | 1798638 | 5.30 | ||
ECO-3600K | 1056 | 3600 | 316800 | 2158365 | 6.42 | ||
ECO-4500K | 1320 | 4500 | 396000 | 2697956 | 8.46 | ||
ECO-5000K | 1467 | 5000 | 439000 | 3000000 | 8.87 | ||
ECO-6000K | 1760 | 6000 | 526800 | 3600000 | 10.64 | ||

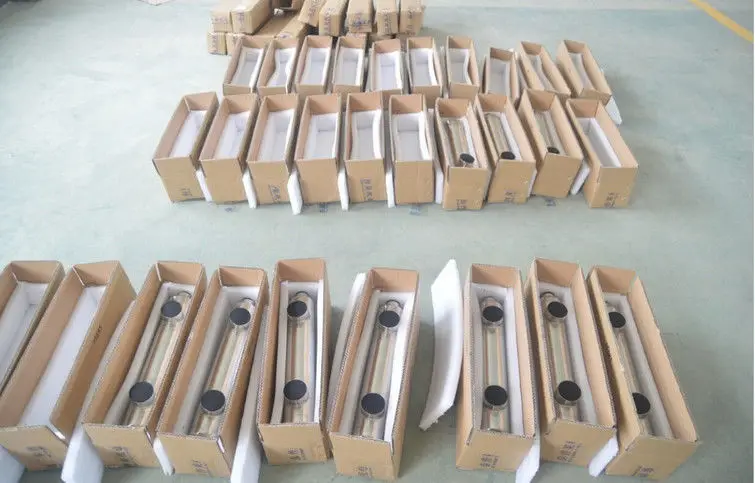

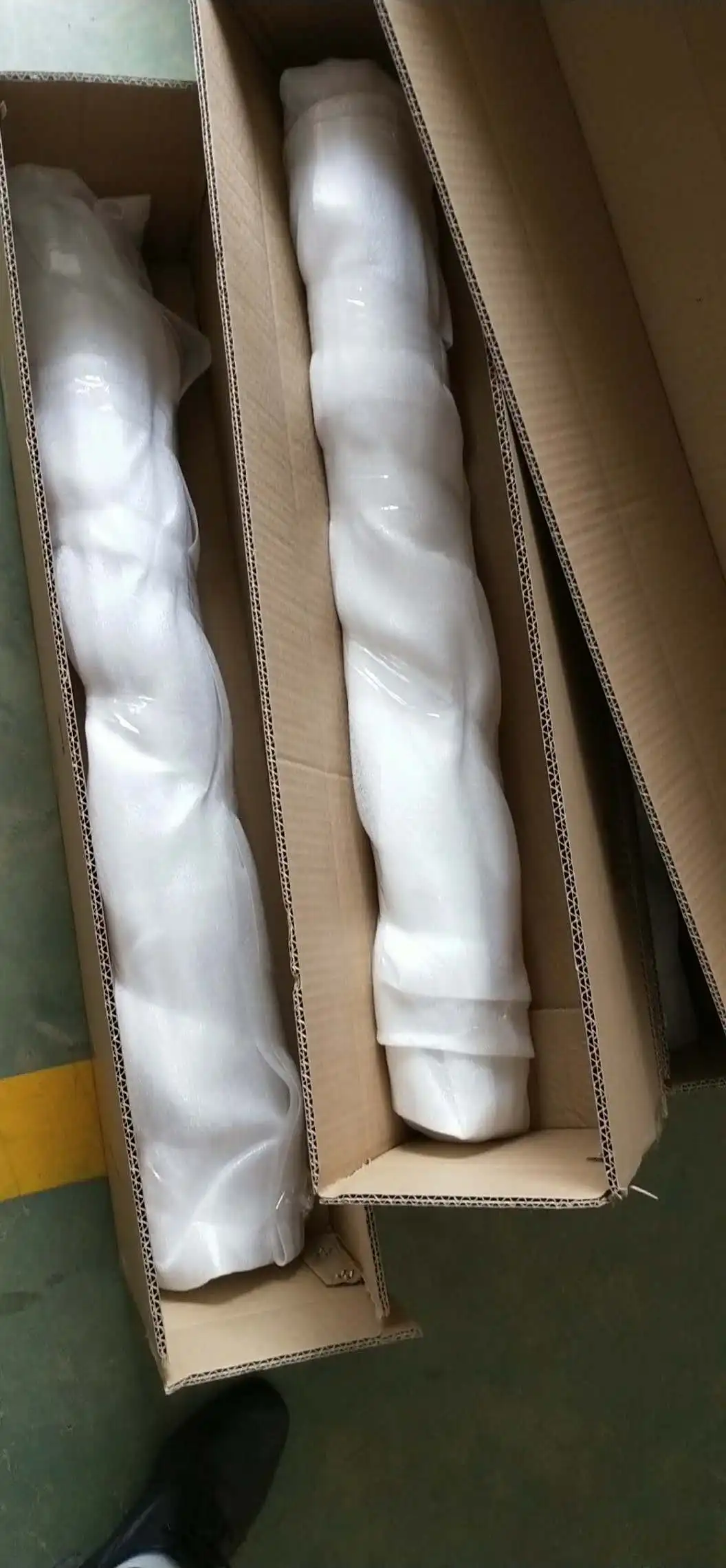

Packing & Delivery
Wooden package.
Company Profile
ShanDong EcoIce Refrigeration Co., Ltd is specialized in manufacturing flake ice machine, heat exchanger,quick freezer , seafood process machines and water chiller in China.
With a professional refrigeration and air conditioning system R&D team, we can supply customized OEM & ODM products. For any new project, we could prepare samples for quality check on client request. Now our factory has been awarded ISO9001: 2000, ISO14000, RoHS and UL certificate.
With advanced equipment, strong technical team, best management system and 20+ years international business experience, we are cooperating many clients from Europe, North America, South America, Middle East, Africa and South of Asia...
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual development.
With a professional refrigeration and air conditioning system R&D team, we can supply customized OEM & ODM products. For any new project, we could prepare samples for quality check on client request. Now our factory has been awarded ISO9001: 2000, ISO14000, RoHS and UL certificate.
With advanced equipment, strong technical team, best management system and 20+ years international business experience, we are cooperating many clients from Europe, North America, South America, Middle East, Africa and South of Asia...
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual development.
FAQ
1. who are we?
We are based in Shandong, China, start from 2018,sell to Southeast Asia(35.00%),South America(20.00%),North America(18.00%),Africa(7.00%),Central America(6.00%),Oceania(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
flake ice machine,heat exchanger,water chiller,quick freezer,seafood grading machine
4. why should you buy from us not from other suppliers?
With a professional refrigeration and air conditioning system R&D team, we can supply customized OEM & ODM products.We have advanced equipment, strong technical team, best management system and 20+ years international business experience .
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,French,Russian,Italian
We are based in Shandong, China, start from 2018,sell to Southeast Asia(35.00%),South America(20.00%),North America(18.00%),Africa(7.00%),Central America(6.00%),Oceania(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
flake ice machine,heat exchanger,water chiller,quick freezer,seafood grading machine
4. why should you buy from us not from other suppliers?
With a professional refrigeration and air conditioning system R&D team, we can supply customized OEM & ODM products.We have advanced equipment, strong technical team, best management system and 20+ years international business experience .
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,French,Russian,Italian
