2024 new design mini yag laser welder on hardware tools and jewelry agent price
- Category: >>>
- Supplier: Liaocheng CN Laser Technology Co. Ltd.Liaocheng Ltd.
Share on (1600590461578):
Product Overview
Description
Product Overview

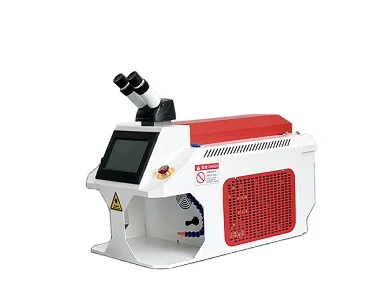

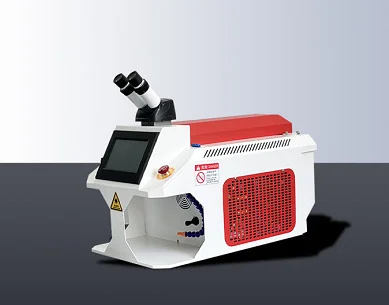

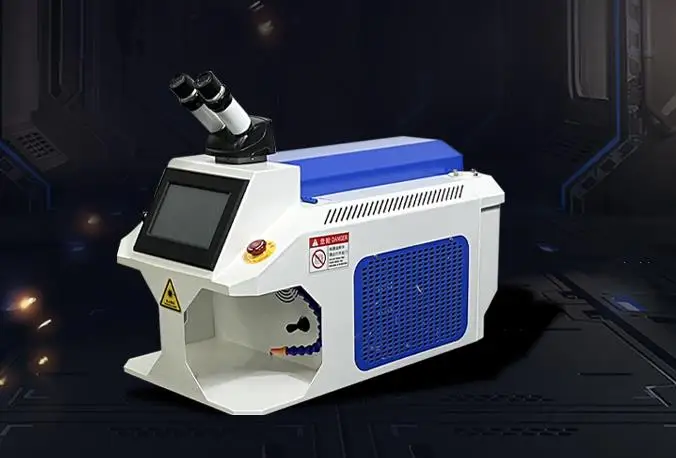

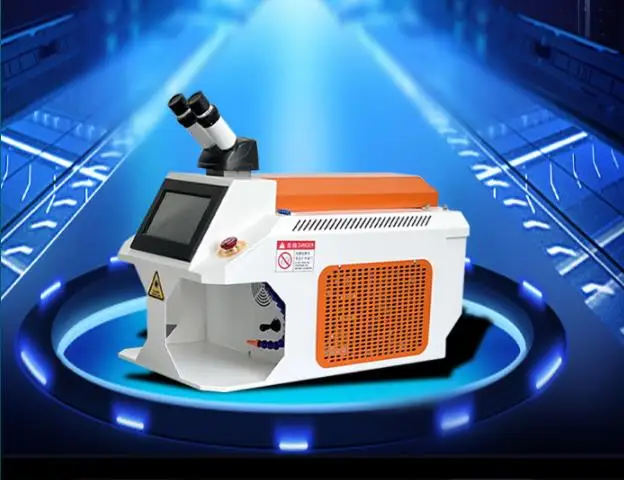

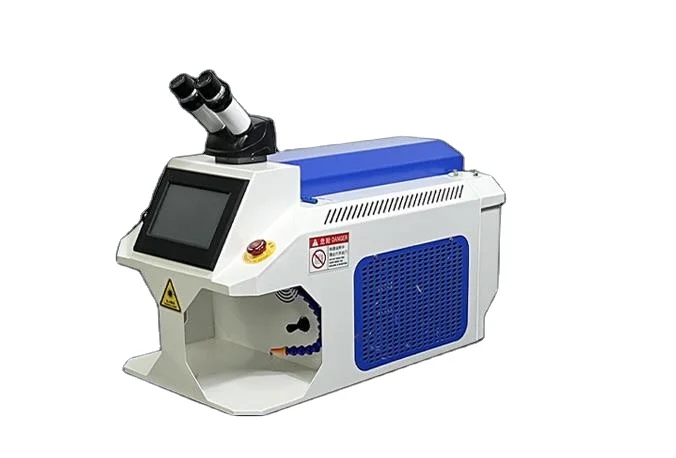

MINI YAG WELDING MACHINE FOR JEWELEY
This machine is specially designed for jewelry laser welding, which is mainly used in jewelry patching holes . Laser spot welding
is one of the most important applications for material processing technology. The procedure of spot welding belongs to heat
conduction type, that’s to say the laser radiation heat the surface of the work piece, the heat on the surface spread toward
inside by heat conduction. By controlling the parameters as width, energy, peak power and frequency, etc. of the laser pulse, work
piece will be melted and formed special molten pool. Due to the particular advantage, it has been successfully used in processing
gold and silver jewelry as well as welding tiny and small parts
is one of the most important applications for material processing technology. The procedure of spot welding belongs to heat
conduction type, that’s to say the laser radiation heat the surface of the work piece, the heat on the surface spread toward
inside by heat conduction. By controlling the parameters as width, energy, peak power and frequency, etc. of the laser pulse, work
piece will be melted and formed special molten pool. Due to the particular advantage, it has been successfully used in processing
gold and silver jewelry as well as welding tiny and small parts
FEATURES AT A GLANCE
1. It can realize spot welding, butt welding, seam welding and sealing welding.
2. Large working space, convenient for placing various tools and cleaning welding debris
3.Jewelry laser welding machine adopts YAG technology, so xenon brand and crystal, It is the core part of the whole laser welding machine
4. Contains ring-shaped, shadow-free, adjustable-brightness LED lights to make the welding area clearer and meet the subtle
welding requirements
welding requirements
Right elevation
Left elevation
Front elevation
Model Number | CN-JW135 | ||||||
Laser Source | ND3+ YAG | ||||||
Wavelength | 1064nm | ||||||
Max Laser Power | 130W | ||||||
Pulse energy | 90J | ||||||
Pulse Width | 0.1-20ms | ||||||
Facula Diameter | 0.1-3.0mm | ||||||
Observing system | Microscope or CCD camera | ||||||
Cooling | Water chiller | ||||||
Power consumption | 2.5kw | ||||||
Language | English | ||||||
Power Supply | 220V 50Hz | ||||||
Xenon lamp | MADE IN GERM | ||||||
Parameter Prestore | Bring | ||||||
Gross Weight | 35kg | ||||||
Dimension | 103*62*82mm | ||||||
FAQ
Q：Are you a manufacturing or a trading business?
A：A factory that we are.
Q：Where are you? How do I travel there?
A: The shandong province of China's Wuhan is home to our factory.
All of our customers are cordially invited to come see us!
Q:Do you possess any credentials?
All of our customers are cordially invited to come see us!
Q:Do you possess any credentials?
A: All machine series have obtained CE and ISO certification.
Q: What is the deliveryl term?
Q: What is the deliveryl term?
A: FOB, , EXW CIF DDP...
Q: What is the duration of payment?
Q: What is the duration of payment?
A: T/T upfront.
Q: Do you arrange for the machines' shipping?
Q: Do you arrange for the machines' shipping?
A: Yes, we can set up shipping under the parameters of FOB/CIF. Your shipping
agents should arrange for shipment for an EXW fee.
Q: The warranty?
agents should arrange for shipment for an EXW fee.
Q: The warranty?
A: The whole machine has a 24-month guarantee (with the exception of artificial damage).
Q: How did the packing go?
Q: How did the packing go?
A: Every package is in accordance with exporting standards.
Q: How much advance time is required?
Q: How much advance time is required?
A: 7 to 10 business days
