Automatic Auger Salt Dry Milk Baby Talc Face Powder Spice Bottle Filling Packing Machine With Screw Feeder
- Category: >>>
- Supplier: Shanghai Tops Group Co. Ltd.
Share on (1600590573643):
Product Overview
Description
Product Description
General description

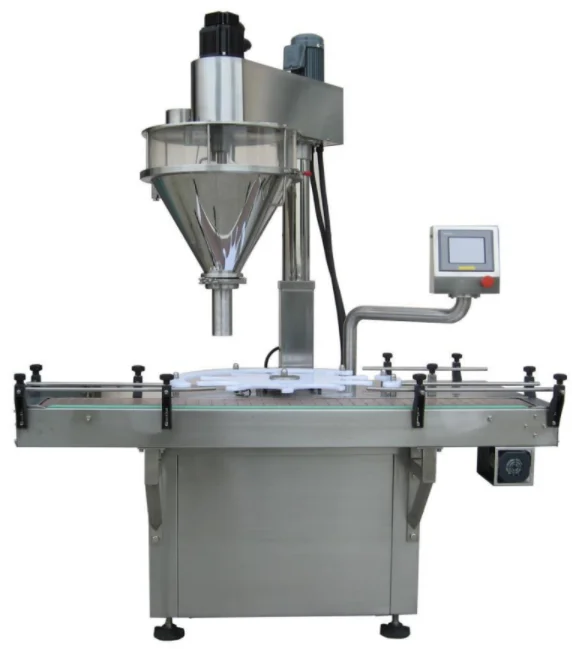

Automatic auger filling machine is used in dosing and filling work. Its special professional design is suitable for coffee powder, flour, condiments, solid beverages, veterinary drugs, glucose, medicine, powder additives, talcum powder, agricultural pesticides, dyes and other fluid or low-flow materials.
Features
1. Lathing auger screw to guarantee the precise filling accuracy
2. PLC control and touch screen display
3. Servo motor drives screw to guarantee stable performance
4. Quick disconnecting hopper could be washed easily without tools
5. Full stainless steel 304 material
6. weight feedback and proportion track to materials, which overcomes difficulties of filling weight changes due to
2. PLC control and touch screen display
3. Servo motor drives screw to guarantee stable performance
4. Quick disconnecting hopper could be washed easily without tools
5. Full stainless steel 304 material
6. weight feedback and proportion track to materials, which overcomes difficulties of filling weight changes due to
materials’ density change.
7. Save 20 sets of formula inside the machine for later use
8. Replacing the auger parts, different products ranging from fine powder to granule and different weight can be packed
9. Multi language interface
7. Save 20 sets of formula inside the machine for later use
8. Replacing the auger parts, different products ranging from fine powder to granule and different weight can be packed
9. Multi language interface
10.Can be setting to semi-auto filling by pedal switch or auto filling
11.With Unqualified weight rejection funstion.
Product Paramenters
Model | TP-PF-A21N | TP-PF-A22N |
Control system | PLC & Touch Screen | PLC & Touch Screen |
Hopper | 25L | 50L |
Packing Weight | 1 - 500g | 10 - 5000g |
Weight dosing | By auger | By auger |
Packing Weight | ≤ 100g, ≤±2%; 100 – 500g, ≤±1% | ≤ 100g, ≤±2%; 100 – 500g, ≤±1%; ≥500g,≤±0.5% |
Filling Speed | 40 – 120 times per min | 40 – 120 times per min |
Power Supply | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz |
Total Power | 1.2 KW | 1.6 KW |
Total Weight | 160kg | 300kg |
Overall Dimensions | 1500×760×1850mm | 2000×970×2300mm |
Overall Dimensions | 1400*830*2080mm | 1840×1070×2420mm |
Configuration List
No. | Name | Pro. | Brand |
1 | PLC | Taiwan | DELTA |
2 | Touch Screen | Taiwan | DELTA |
3 | Servo | motor Taiwan | DELTA |
4 | Servo | driver Taiwan | DELTA |
5 | Switching supply | powder | Schneider |
6 | Emergency | switch | Schneider |
7 | Contactor | Schneider | |
8 | Relay | Omron | |
9 | Proximity | switch Korea | Autonics |

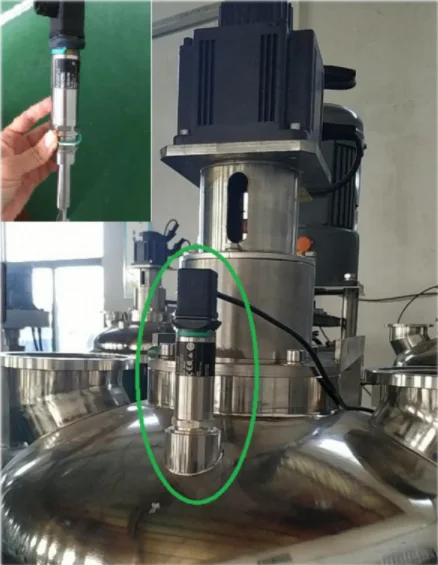

10 | Level sensor | Korea | Autonics |
Accessories List
NO. | NAME | QUANTITY |
1 | Fuse | 10pcs |
2 | Jiggle switch | 1pc |
3 | 1000g Poise | 1pc |
4 | Socket | 1pc |
5 | Pedal | 1pc |
6 | Connector plug | 3pcs |
Tool Box
NO. | NAME | QUANTITY |
1 | Spanner | 2pcs |
2 | Spanner | 1pc |
3 | Slotted screwdriver | 2pcs |
4 | Phillips screwdriver | 2pcs |
5 | User manual | 1pc |
6 | Packing | 1pc |

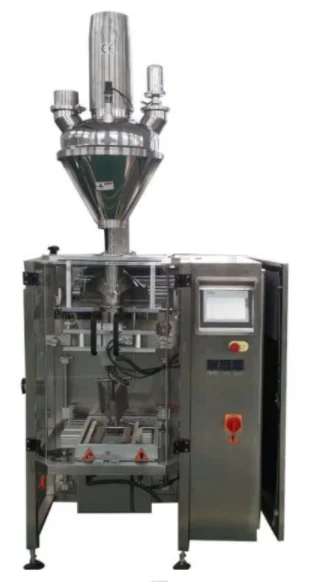

Options & Related Machine
Detailed Images

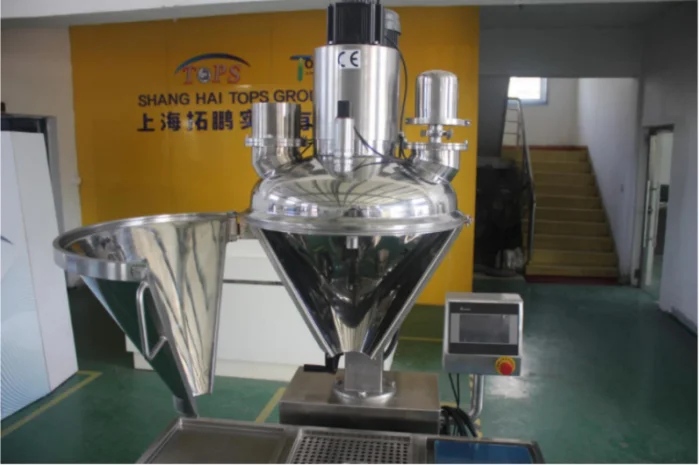

3. Feed inlet & air outlet--- feed inlet with radian to reduce impact for hopper; Air outlet with quick connection type, more convenient installation and disassembly
4.Screw way to fix metering auger in the hopper ---It will not make material stock and easy for cleaning.
5. Height adjust handwheel for filling nozzle--- It is suitable for filling into bottles/bags with different height.
6.Different sizes of augers can be utilized in different filling weight ranges to increase accuracy and save time. To ensure filling precision, one size screw is suited for one weight range; for example, a diameter 38mm screw is suitable for filling 100g-250g.
Production and processing
Packing&Shipping
About Us
FAQ
1. Are you a factory or agent?
We are an OEM, we always design and manufacture our products ourselves, so we could provide satisfaction technical and after sales service. You could pay a visit to our factory any time you like.
2.How does your factory do regarding quality control?
Quality is priority! Every worker keeps the QC from the very beginning to the very end, all material we used are meet GB standard, skillful workers care every detail in handling each process, Quality control department specially responsible for quality checking in each process.
3.Is there any spare parts?
Spare parts when there is a big weight ranges/special powder characteristics/special container/ high accuracy request/etc.
4.As an oversea buyer, I wonder if you could send us engineer for installation and maintenance?
The machines are test without problem before shipping. Just connect to power the machine will work. We will always do our best to solve your problem or whatever in one year warranty or not, and you need not to pay for unnecessary in reasonable price.
5.Why we can choose you?
A. Reliable- we are the real company, we dedicate in win-win.
B. Professional- we offer the filling machine exactly what you want.
C. Factory- we have factory, so we have reasonable price.
6. How about the price? Can you make it cheaper?
The price depends on the item in your demand ( model and quantity )
Beat quotation after after receiving full description of the item you want.
7. Delivery Time?
Normally, our delivery time is 25 days after we receive the deposit. If the order is big, we need to extend the delivery time.
