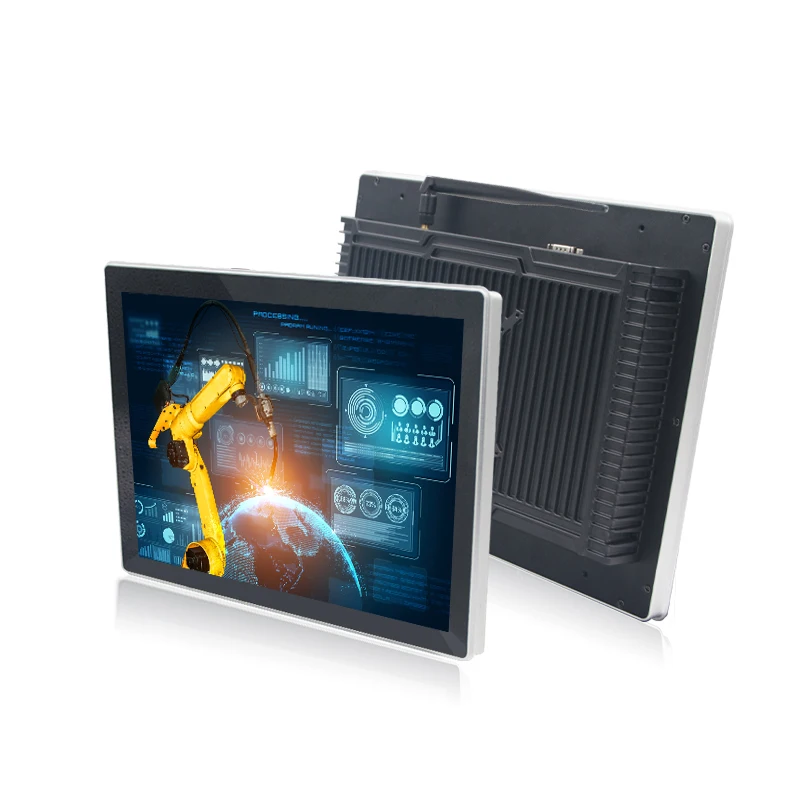

Industrial open frame display 15 17 18.5 19 21.5 23.6 27 32 Inch Capacitive Touch Screen Monitor Industrial Lcd Monitor
- Category: Touch Screen Monitors >>>
- Supplier: Hengchen,Interactive,(beijing),Information,Technology,Co.,Ltd,
Share on:
Product Overview
Description
Why Choose us? | ||||||||
Welcome to Hengchen Interactive (Beijing) Information Technology Co., Ltd. Established in 2010,Rich product lines such as Industrial touch screen monitor, Industrail All-in-one Panel PC,Industrial Android All-in-one Tablet PC,Industrial boards, Open Frame touch screen monitor,Advertising Player,Smart Whiteboard,and customized products,etc. | ||||||||
Product Paramenters
01.Support embedded,wall-mounted,rack-mounted,desktop,VESA support.
02.Black or silver color optional
03.IP65 grade water-proof,dust-proof for front panel.
04.Working temperature:-20-80 degree
05.365Days*24hours all-weather working.
06.Support boot strap with electricity
07.3mm bezel thin front panel,embedded cabinet suitable.
08.Aluminum alloy shell,good mechanical properties,better performance of heat dissipation.
09.Adopt industrial control HD LCD screen +LED backlight screen,highlight picture,perfect color.
10.Compatible with various industrial systems/application.
11.Support non-touch,resistive touch,capacitive touch.
12.Whole system is equipped with WI-FI module,more convennient.
13.Build-in 2.0 speakers,support 1080P HD video.
14.CE,FCC,CCC,ROHS certificate.
14.CE,FCC,CCC,ROHS certificate.
15.Complete machine triple protection:explosion-proof, flameproof, moisture-proof.
16.Shock resistance standard reach GB2423,protection during transportation/working on the sea.
17.Anti-static level of contact 4KV(customized MAX 6KV),air 8KV( customized MAX 16KV).
18.Anti surge design,it is proper functioning during Instantaneous voltage rising into 280v.
Details Photo
Specification
PC | ||
CPU( Can be customized) | Intel® Celeron J1900 2.0GHz, Quad cores, fanless | |
Intel® Core i3-3217U 1.8GHz dual cores, with fan | ||
Intel® Core i5-3317U 1.7GHz dual cores, with fan | ||
Memory | 4G DDR3 ( Max. 8G) | |
Hard Drive Capacity | 64G SSD or 500G HDD | |
Hard Drive Optional | SSD: 16GB,32GB,64GB,128GB, 256GB | |
HDD: 160GB,320GB,500GB,1TB | ||
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality | |
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out | |
Network | 1×Realtek RTL 8111E Gigabit Ethernet controller | |
Wireless Network | Optional | |
4G module | Optional | |
I/O Interface | 2×USB2.0, 2×USB3.0,1×Lan(RJ45),2 x COM(RS232/Serial), 1×VGA/HDMI/Audio OUT/POWER DC | |
Opetation System | Android 5.1/6.0/7.1( for optional) | |
LCD panel | ||
Panel size | 10.1'' 10.4'' 12.1'' 13.3'' 15" 17'' 19'' 21.5'' | |
Resolution | 1024*768/1280*1020/1920*1080 | |
Brightness (cd/m²) | 350 (700-2000 for optional) | |
Response time | 5ms | |
Contrast ratio | 4000:1 | |
View angle | 89°/89°/89°/89° (R/L/U/D) | |
Touch panel | ||
Touchscreen Type | capacitive touch (10 touch points) | |
Touch Interface | USB | |
Touch response time | <5ms | |
Luminousness | 75-85% | |
Power Supply | ||
External Power Supply | AC 100 - 240V | |
Working voltage | DC 12V | |
Power consumption | ≤20W | |
Operating Environment | ||
Temperature range | operating: -20 to 60°C, storage :-20 to 80°C | |
Relative humidity | 5%~95% @ 40° C, non-condensing | |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
FAQ
1. Q: Do you accept OEM service?
A: Yes,We can do OEM&ODM service and can customize products according to the drawings you supply.
2. Q: What about the delivery time?
A: Generally, the sample order is 7 to 15 days. While for OEM order or that with special requirement on configuration, then the leading time is 15-20 working days after all order details confirmed.
3. Q: How could I get samples?
A: Free sample is not available. If you need to order sample for checking-up, then both the sample and shipping cost should be charged by you, we will deliver them to you after receiving your payment.
4. Q: What's your payment term?
A: We always accept T/T and West Union payment with FOB, CIF or EXW price.
5. Q: What kind of delivery method you always choose?
A: DHL/FedEx/UPS/EMS is accepted, and it is better if you have your own freight agency.For mass order, we will choose ship by sea.
6. Q: What's the after-sales service you can supply?
A: Be free of 1 year warranty and lifetime maintenance service Any problems about the product we will give you professional response within 24 hours.
7. Q: What's the MOQ of your products?
A: We have no limit for MOQ, so you can even buy only 1 piece
